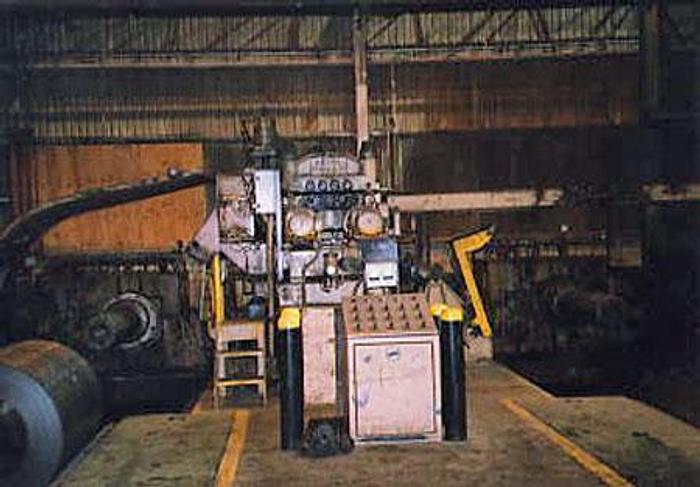

48´´ GALVANIZE/ALUMINUM LINE (USED)

48´´ GALVANIZE/ALUMINUM LINE (USED)

Description

Upgrades through 1983 Include: Increase Entry Coil Weight to 90,000 Lbs. New Horizontal Accumulators (Dual Pass) Changed Many Motors to 500 Volt Added Wellman Coolers Added Herr-Voss Tension Leveling Section Receives Coils: 1) I.D.: 16 ½" - 20" 24" 2) O.D.: 90" Maximum 3) Weight: 90,000 Lb. Maximum Delivers Coils: 1) I.D.: 16 ½" - 20" & 24" 2) O.D.: 66" Maximum 3) Weight: 42,000 Lb. Maximum Delivers Packs: 1) Width: 20" Minimum - 48" Maximum 2) Length: 48" Minimum, 192" Maximum 3) Height: 24" Maximum - Includes Skids 4) Weight: 50,000 Lb. Maximum Line Speeds: 1) Section I & III: 50 to 625 FPM 2) Section II: 50 to 500 FPM Gear-In Speeds: 1) Section I & III: 625 FPM @ 500V 2) Section II: 500 FPM @ 500V 3) Higher Speeds with Over Voltage 1) 34 T.P.H. @ .0157" Thick x 42" Width Material @ 500 FPM 2) 36 T.P.H. @ .0187" x 439 FPM 3) 36 T.P.H. @ .0217" x 379 FPM 4) 36 T.P.H. @ .0230" x 357 FPM 5) 36 T.P.H. @ .0276" x 297 FPM 6) 31.9 T.P.H. @ .0336" x 216 FPM Line Also Includes: Two Ajax Galvanizing Zinc Pots (Traverse Type) One Aluminum Remelt Pot Air Knife Spangle Control Items Missing: Many Electrical Cabinets Missing Parts Furnace Burners Gone Coating Gauges Gone X-Ray Gauges Not Available

Specifications

ConditionUsed
Stock NumberVX-27025
Year of start-upDecember 21, 1960
Material capacityCold Rolled Mild Steel Strip
Thickness29 Gauge (.0134") Minimum, 15 Gauge (.0747") Maximum
Width20" Minimum, 48" Maximum
Furnace rating(Tons Per Hour @ 1350" F Cycle)
