2.137´´ - 4.5´´ T&H LEMONT PIPE MILL (USED)
2.137´´ - 4.5´´ T&H LEMONT PIPE MILL (USED)
Description

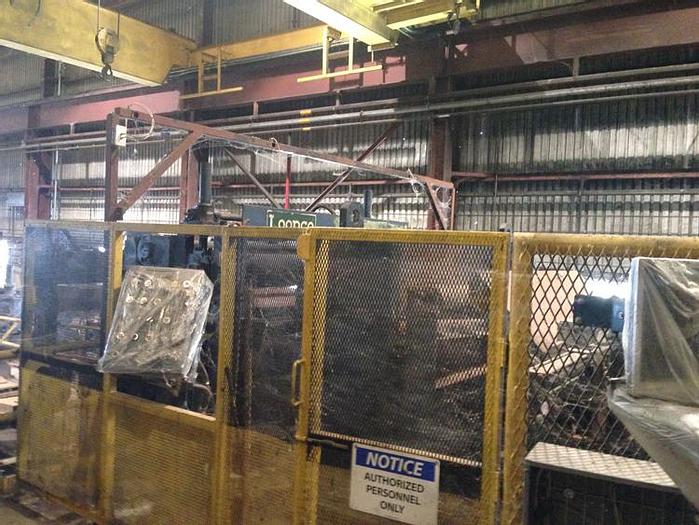

Annual Capacity: 100,000 tons of “full body normalized” ERW (HFI) OCTG and Line Pipe API tubular products. Mill Includes: Uncoiler: Manufacturer: Loopco Slit coil diameter OD: 42" min. - 72" max. Slit coil ID: 20" min. - 24" max. Equipment includes: 3 arm coil holder, coil car, uncoiler, uncoiler drum, hold down roll and peeler, 5 roll flattener, flattener side guide, coil restraining arm, and coil breaker bar Manufacturer: Lee Shaffer Company Equipment includes: Strip Clamp edge guide assembly, Spring loaded pass line roll assembly Year commissioned: 1981 Overhead Looper system: Manufacturer: Loopco Equipment includes: Looper Tower, Idler Conveyor Rolls, Frames, Carriage, and Winch Year commissioned : 1981 Pipe Mill: Manufacturer: Turk and Heller Model: U-60 tube mill # of Stands: 8 (Four break down, three fin section) side roll stands inserted between each stand Year commissioned : 1981 Mill Ultrasonic Unit: Manufacturer: Inspectech Model: 12-41 Year commissioned : 2013 Sizing Section: Manufacturer: Turk and Heller Year commissioned : 1981 Flying Cut-Off: Manufacturer: Turk and Heller Model: RC-66 Wall thickness: .110"-.375 max. Equipment includes: Cutter Housing, Clamp Jaws, Carriage Support Rolls, Carriage drive, Floor Jack Leveler system, Normalizing Unit: Manufacturer: Bone Frontier Equipment includes: 5 induction heaters, 3 load station cabinets, 6 induction coils, 1 operator console, Rotary Straightener: Manufacturer: Sutton Year commissioned : 1981 Foerster Eddy Current and Demag unit: Model: Defectomat Facers: Manufacturer: Fairfield Hydrotester: Manufacturer: Unknown Complete Mill. Still Installed.
Specifications
Manufacturer | T&H Lemont |
Model | H68F |
Year | 1981 |
Condition | Used |
Stock Number | VX-17470 |
Product range | 2-3/8", 2-7/8", 3-1/8", 3-1/2", 4", 4-1/2" O.D. |
Wall thickness | .140” thru .337” |
Strip thickness | .120"-.400" max. |
Strip width | 6" min. up to 15" max. |
Slit coil weight | 15,000 lb. max. |
Mill speed | 200 fpm max. |
Year commissioned | 1981 |
End joiner system | (Buttwelder) |
Weld box | Rafter 4 roll weld box |
Channels | 4 |
# of stands | 4 |
Pipe sizes | 2.375"-4.500" |
Max mill speed | 225 fpm |
# of knives | 3 |
Number of rolls | 6 |
Straightening speed | 150 450 fpm |
Max opening | 5.500" |
Distance between inlet and outlet rolls | 42" |
Eddy current manufacturer | Foerster |
Operating frequency | 3 khz |
# of facers | 2 |
Handling equipment | Taylor Wilson |
Length capability | Up to 45' |
Pressure capability | 5,000 PSI |
