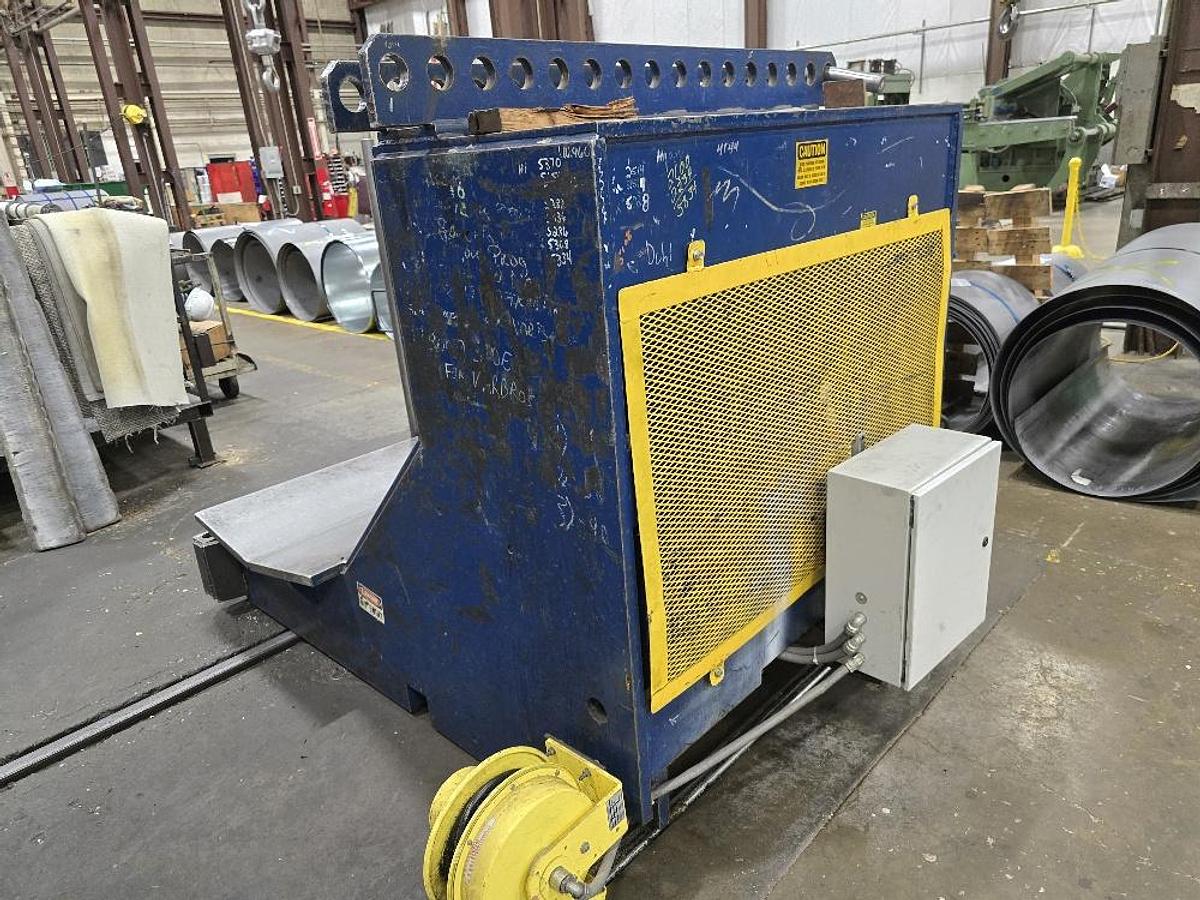

60” x .145" x 50,000 Lbs Braner Slitting Line

Specifications:

Manufacturer: Braner

Line Type: Slitting Line

Max Coil Width: 60”

Max Coil Weight: 50,000 Lb

Gauge Range: 0.020” to 0.145”

Line Direction: Right to Left

Line Includes:

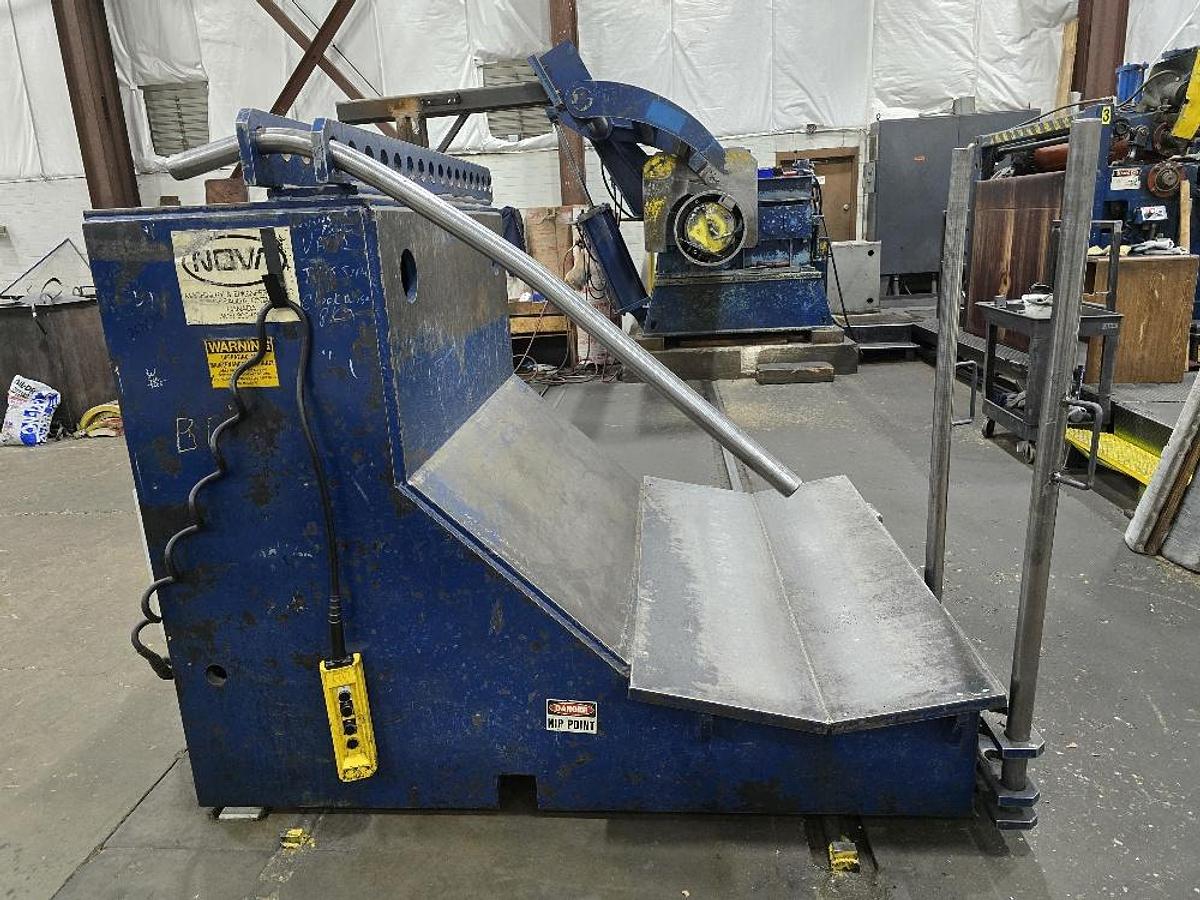

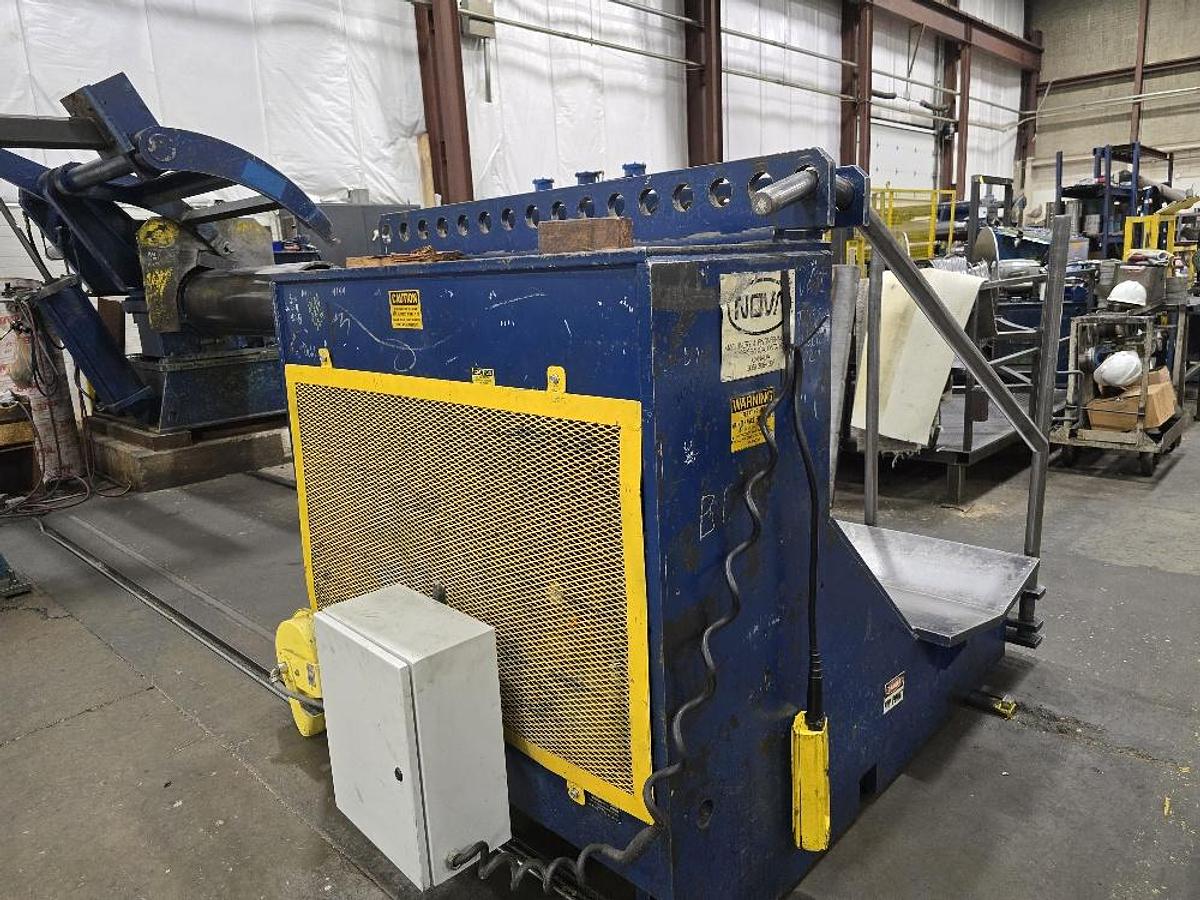

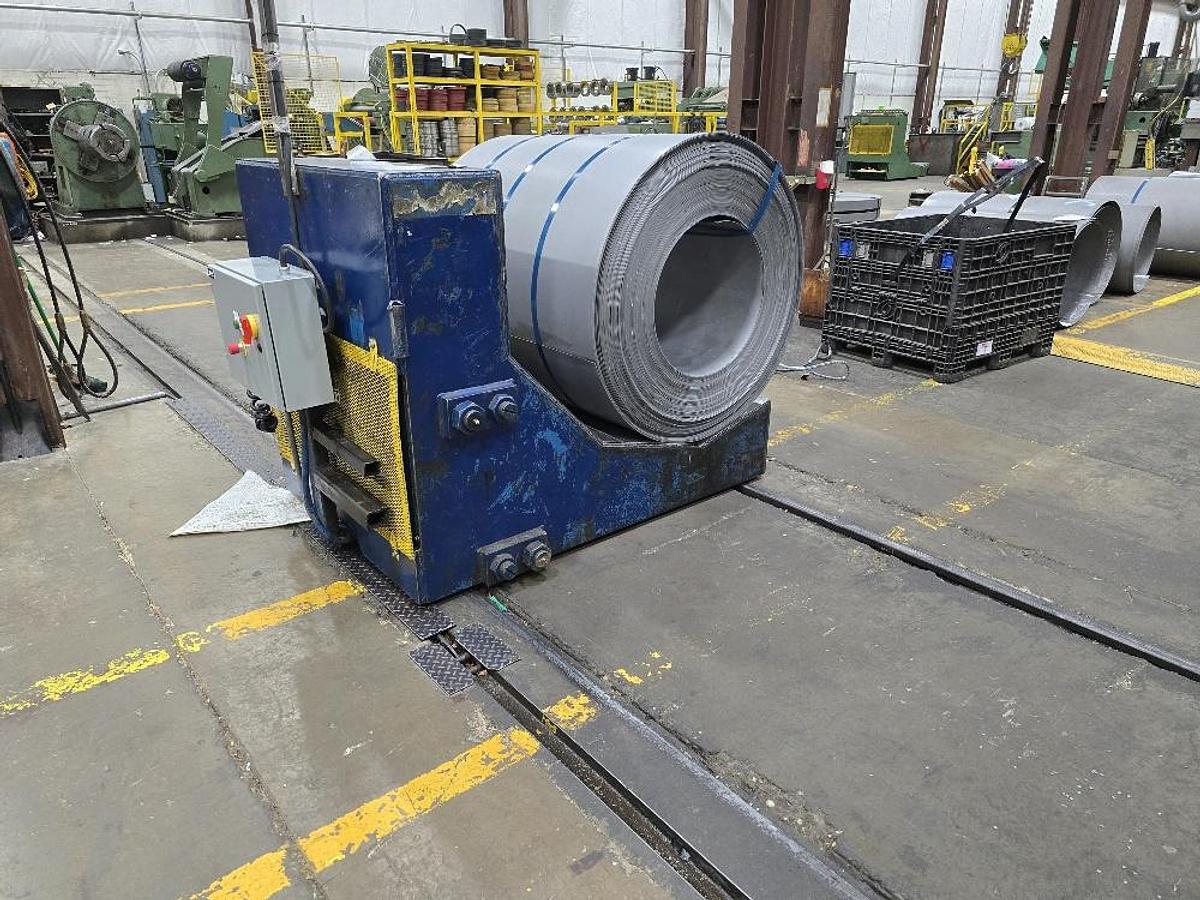

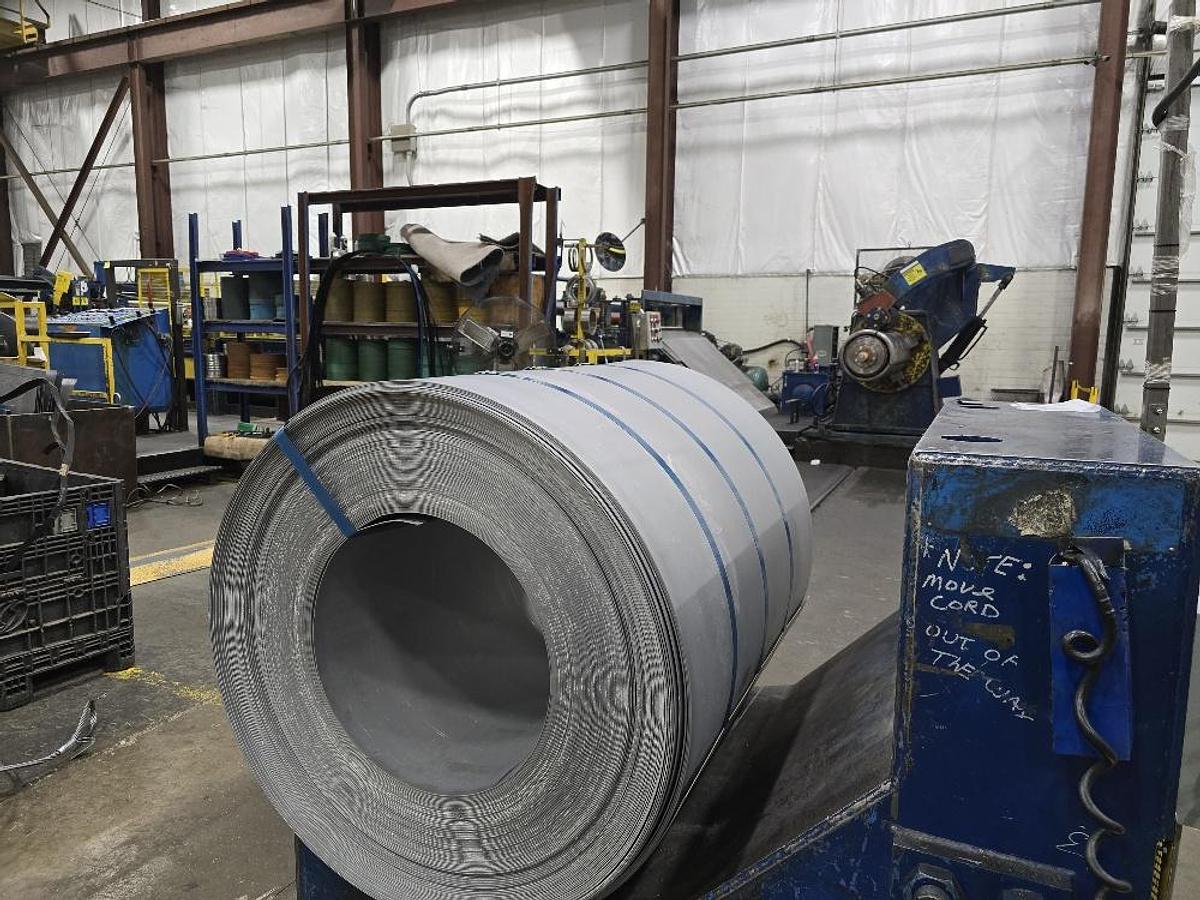

Entry Coil Car

-49” Bed Width

-Self-Contained Hydraulics

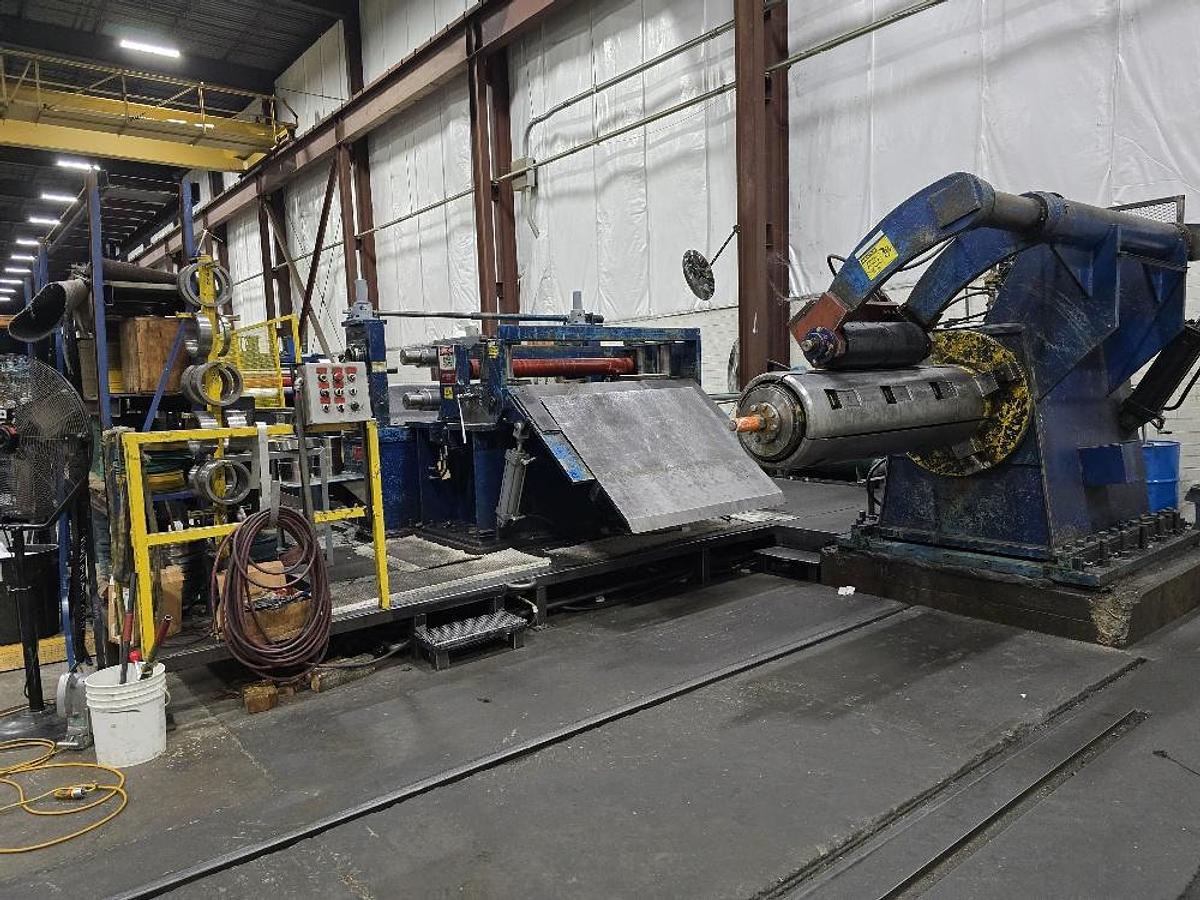

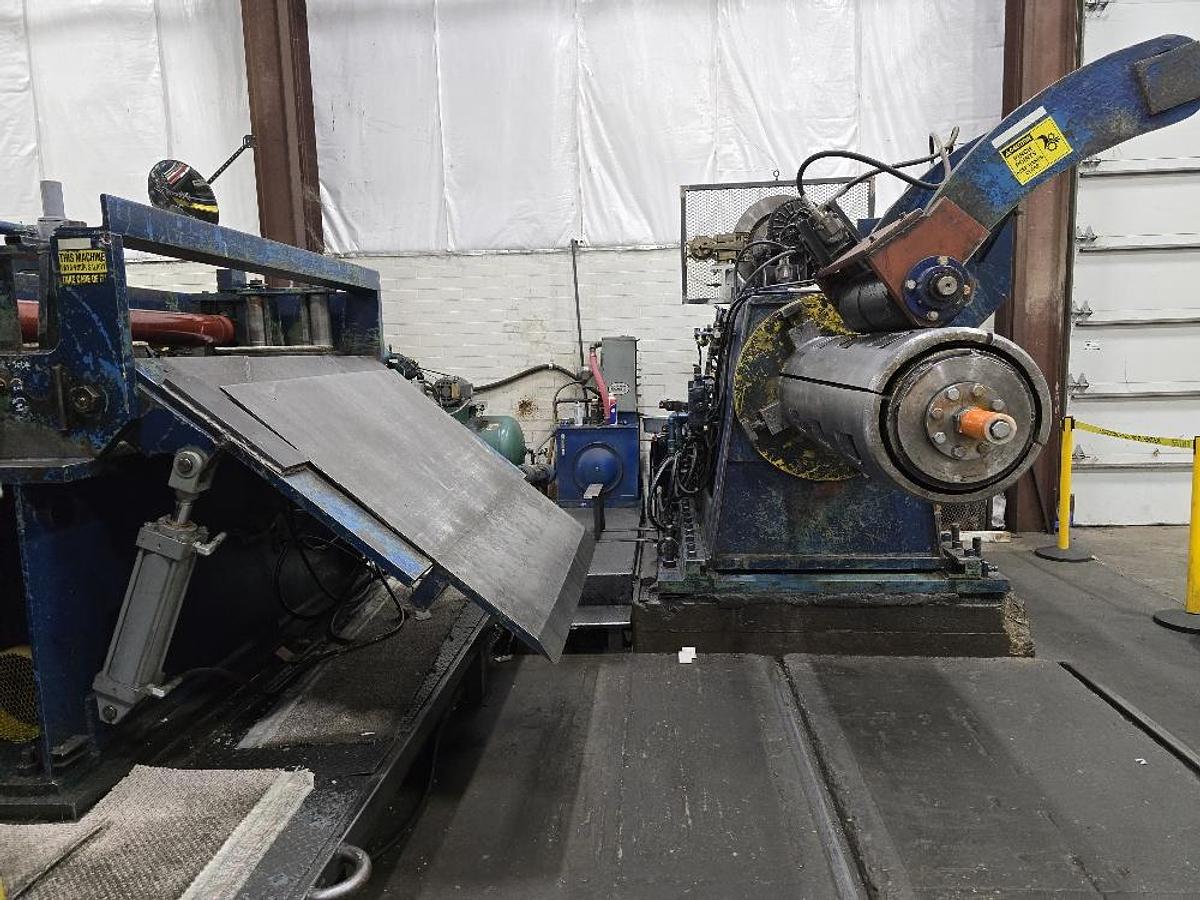

Uncoiler

-63” Wide x18.5”–24” Expansion

-Hydraulic Hold-Down

-Hydraulic Sliding Base

-Caliper Brake

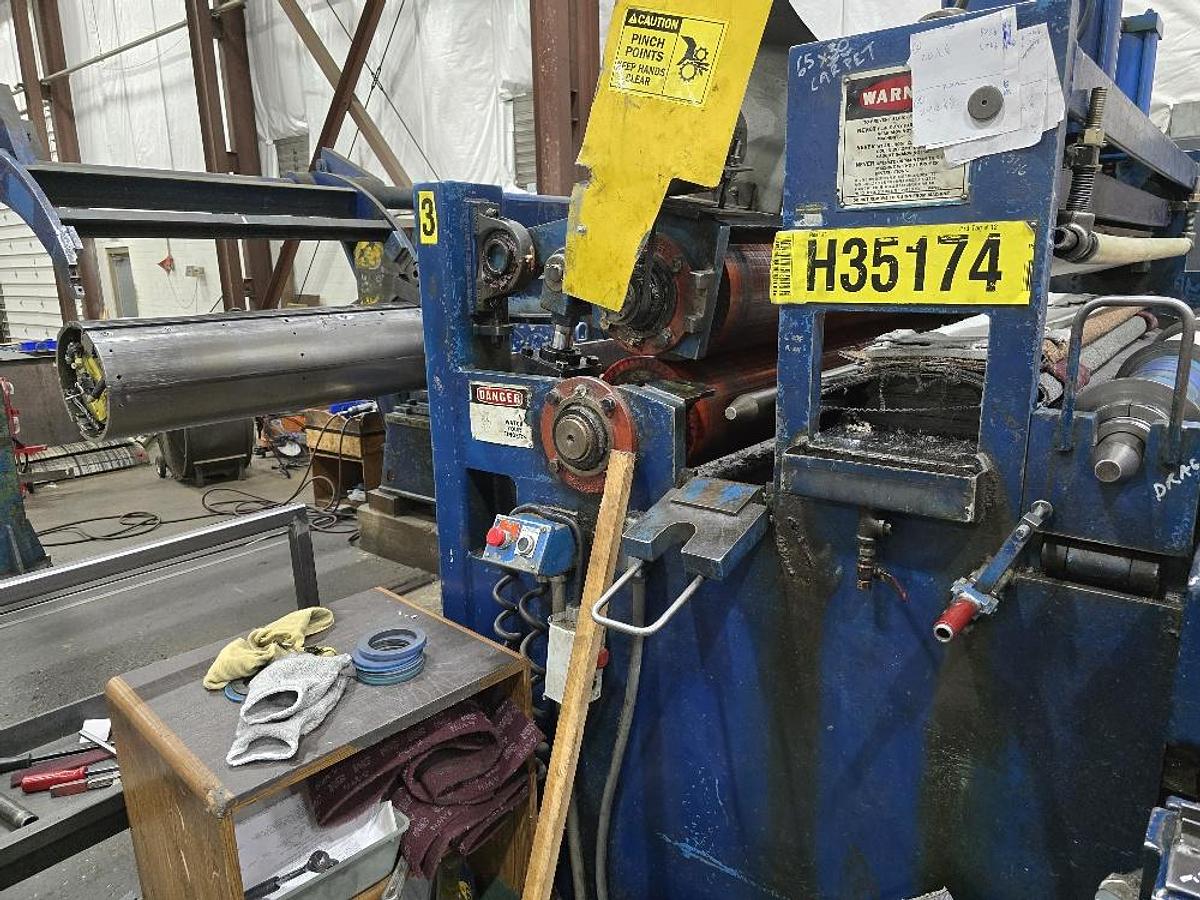

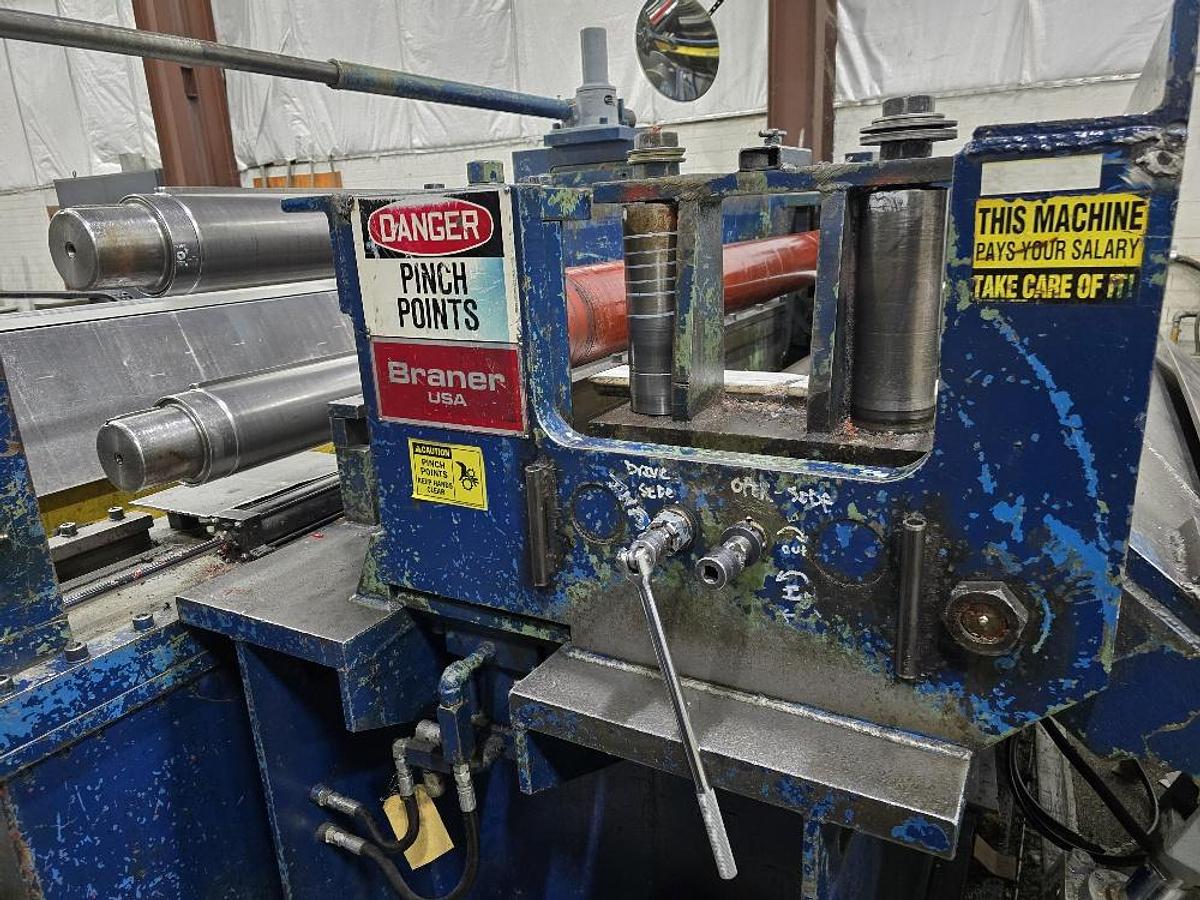

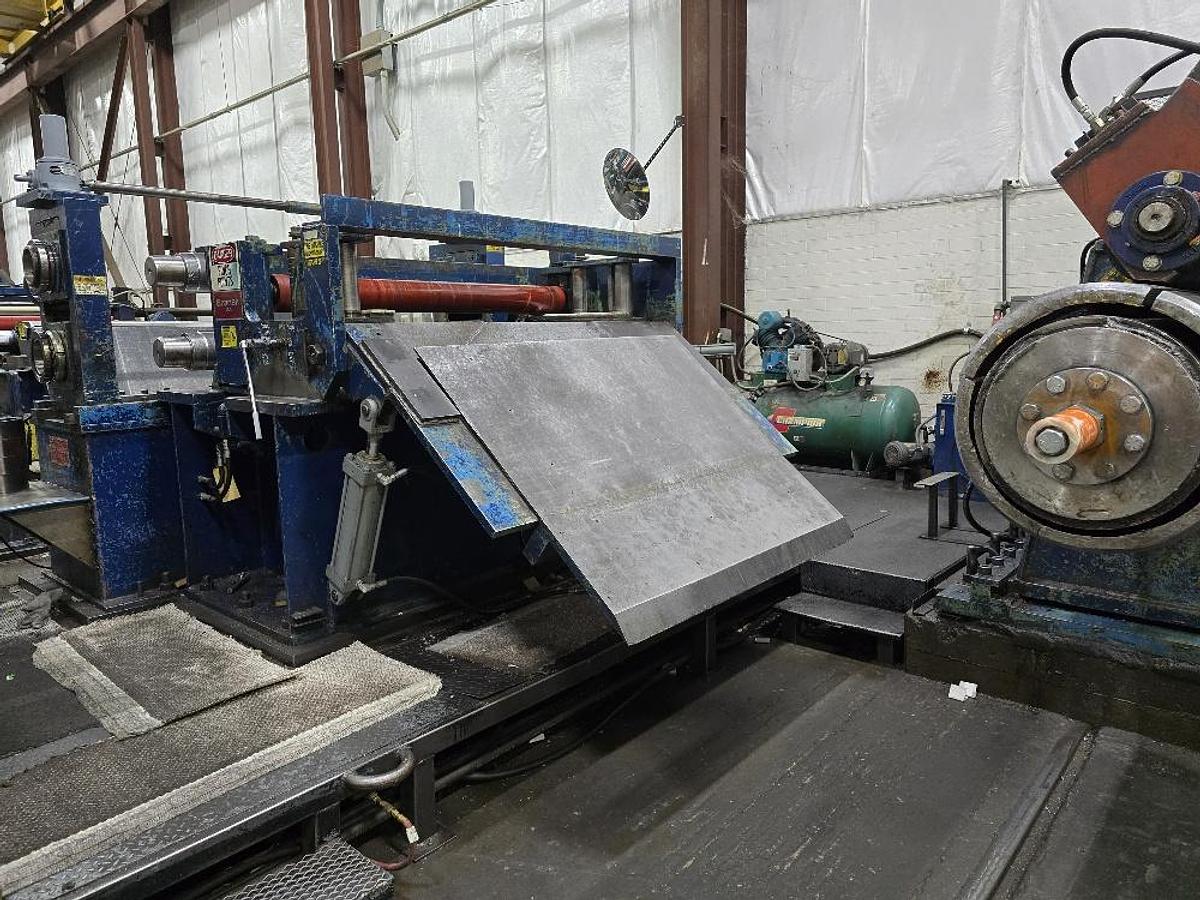

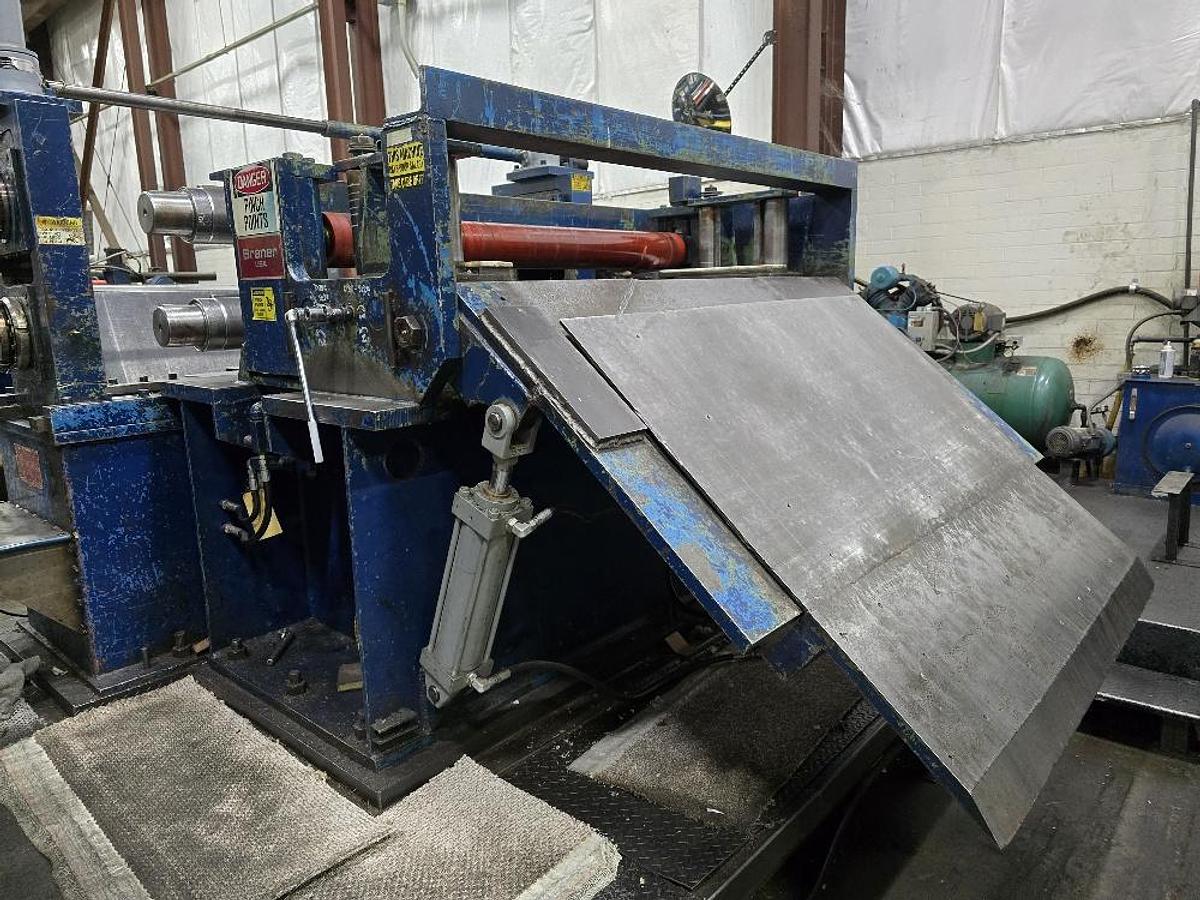

Peeler/Pinch/Side guide unit

-61” Wide

-Hydraulic In/Out, Up/Down

-Integrated With Side Guides & Passline Roll

-Side Guides – Dual-Roll Heavy-Duty

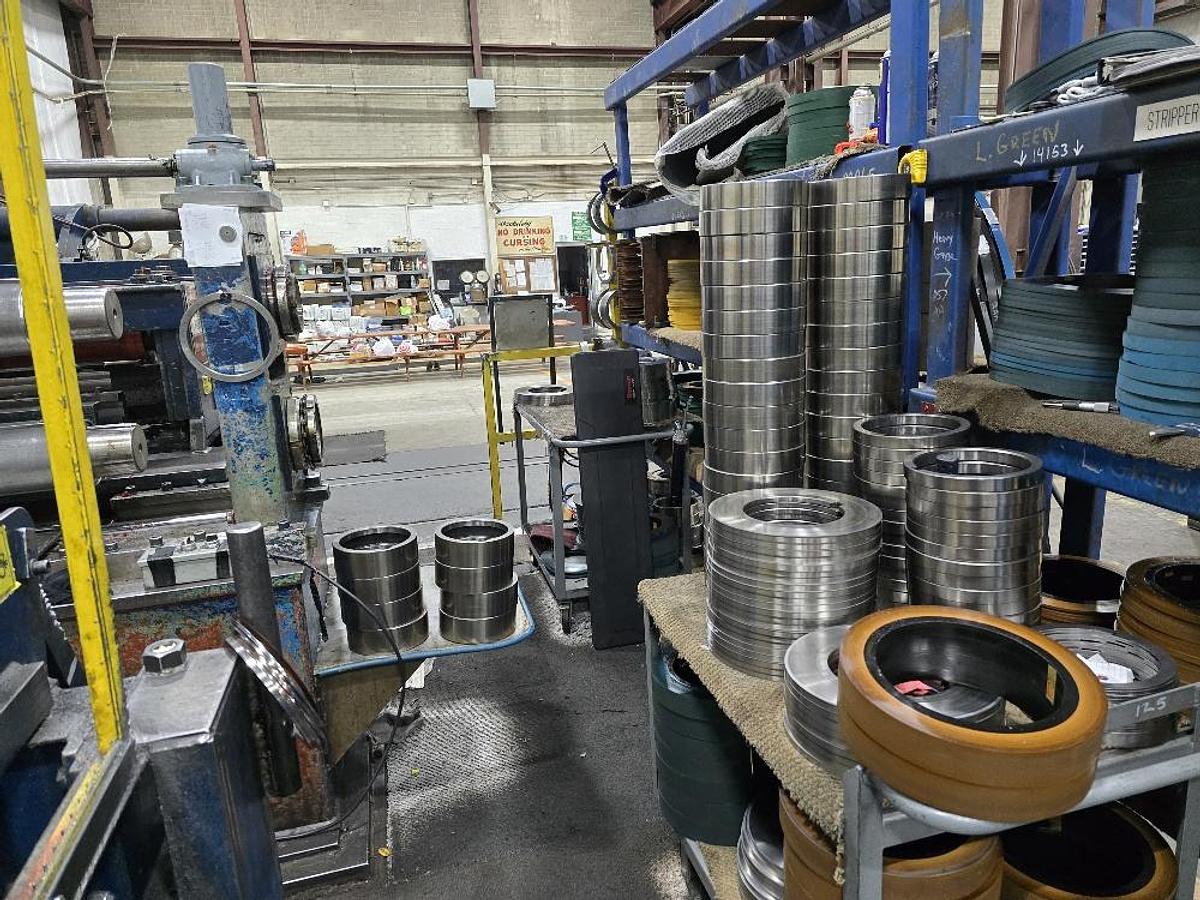

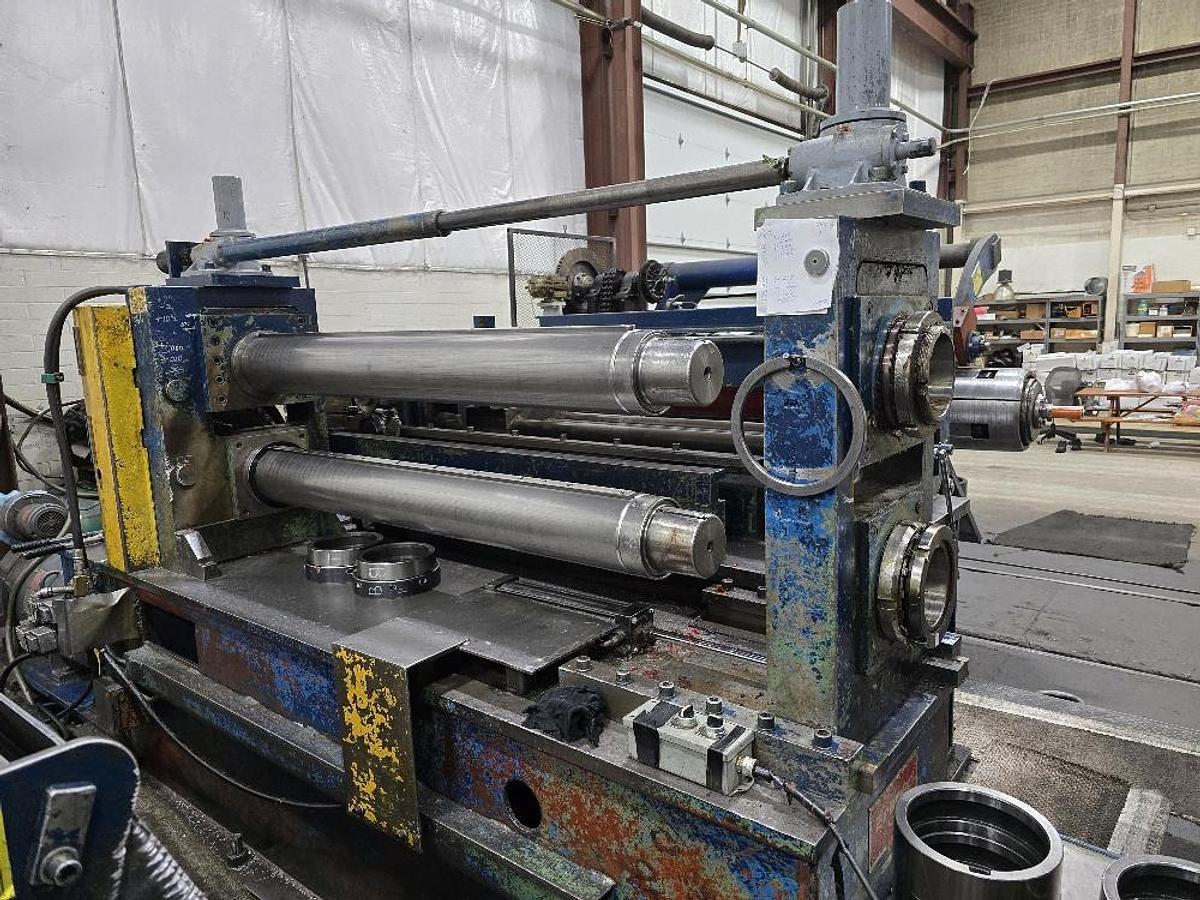

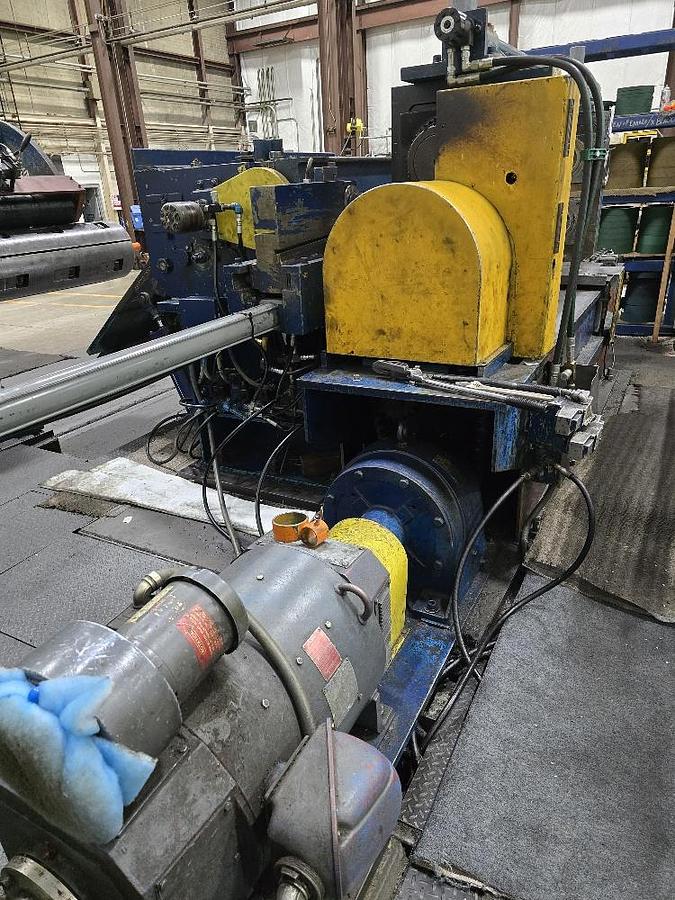

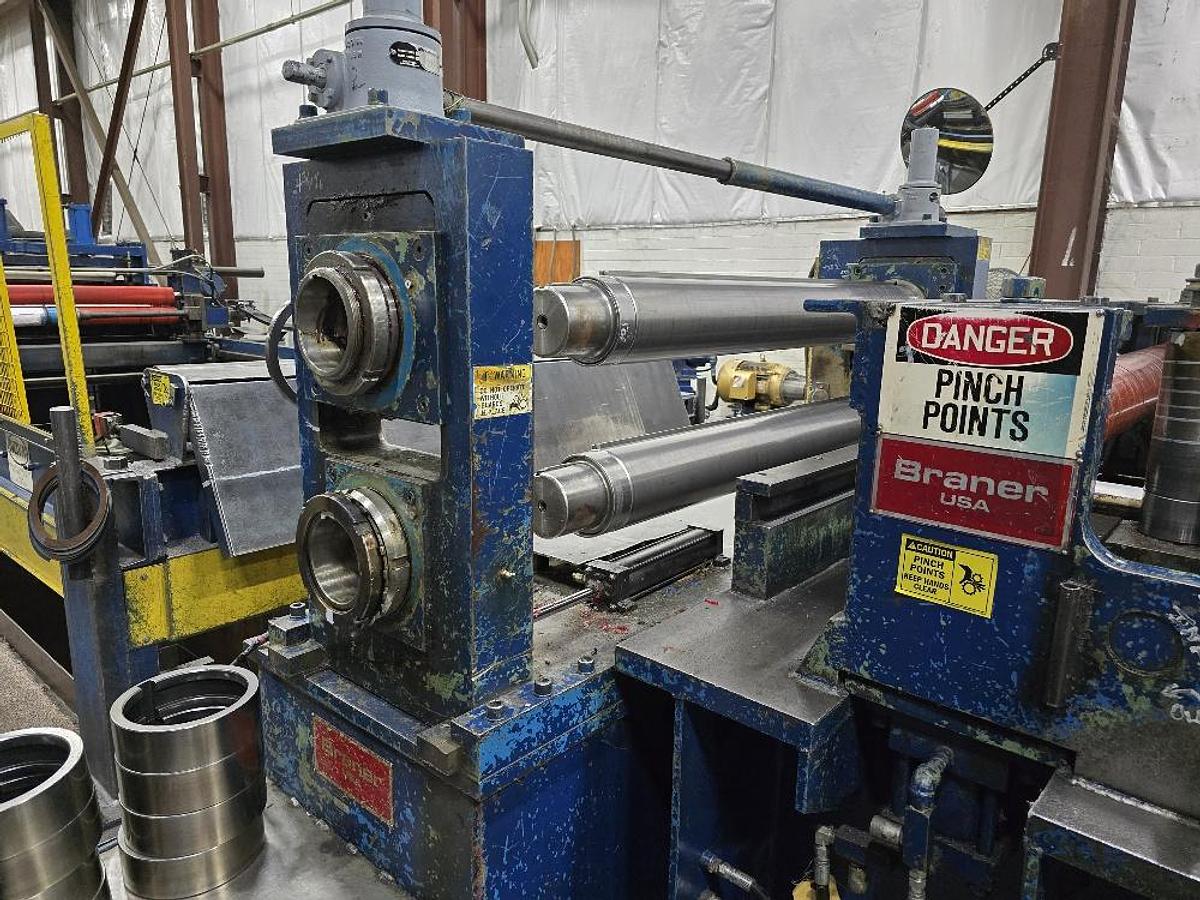

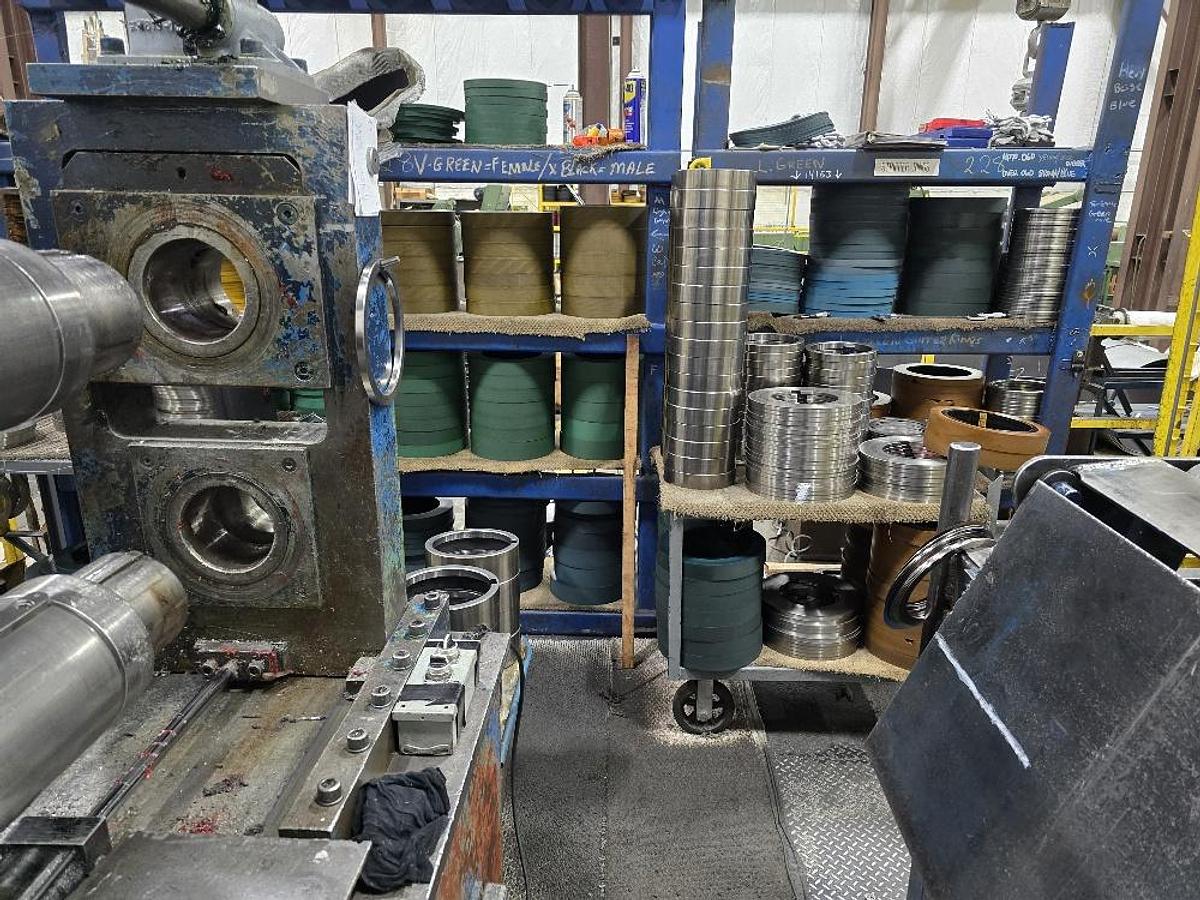

Slitter Head

-Single Head

-61” Wide x 7.5” Arbor | Gearbox Drive

-Slitter Drive – 75 HP DC | 650–2550 RPM

Looping Pit

-20 Ft Long X 25 Ft Deep | With Carry-Over Pinch Roll

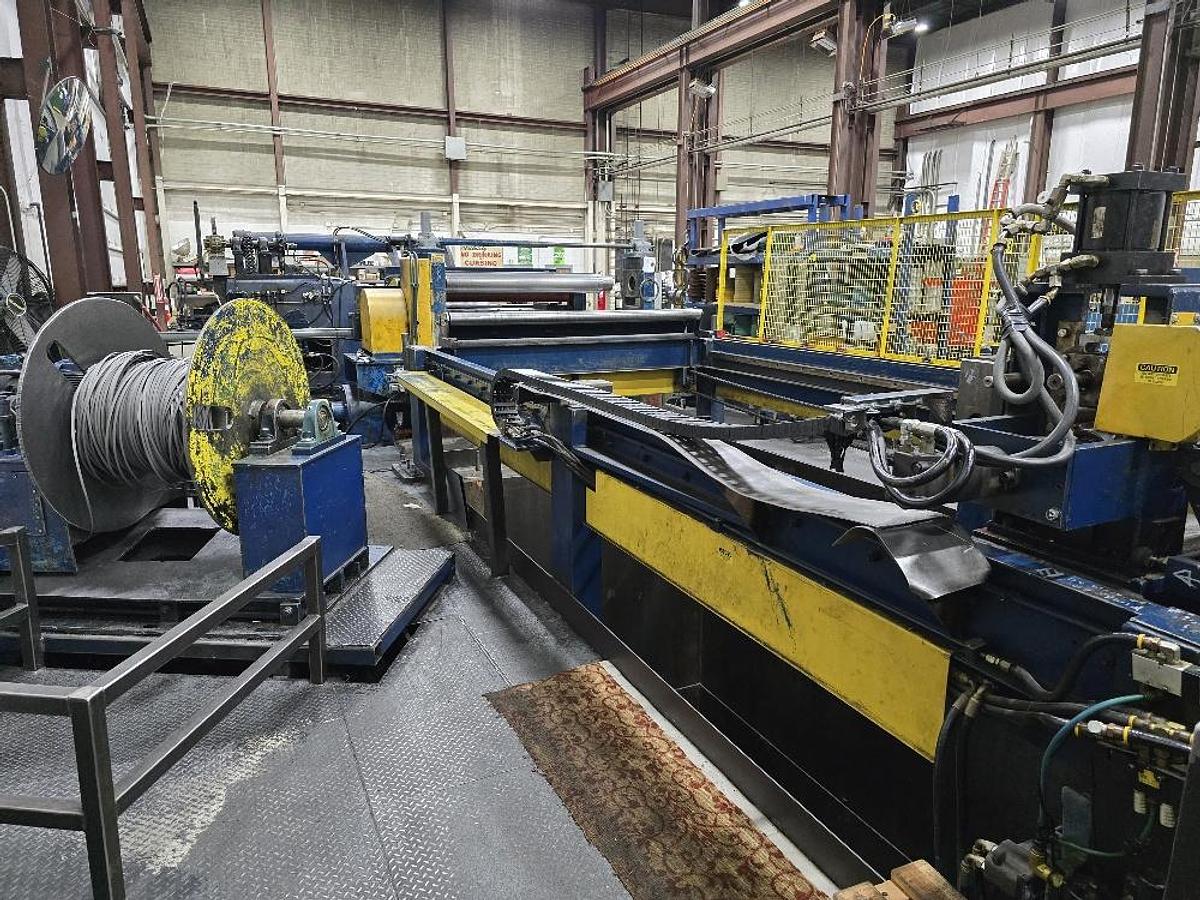

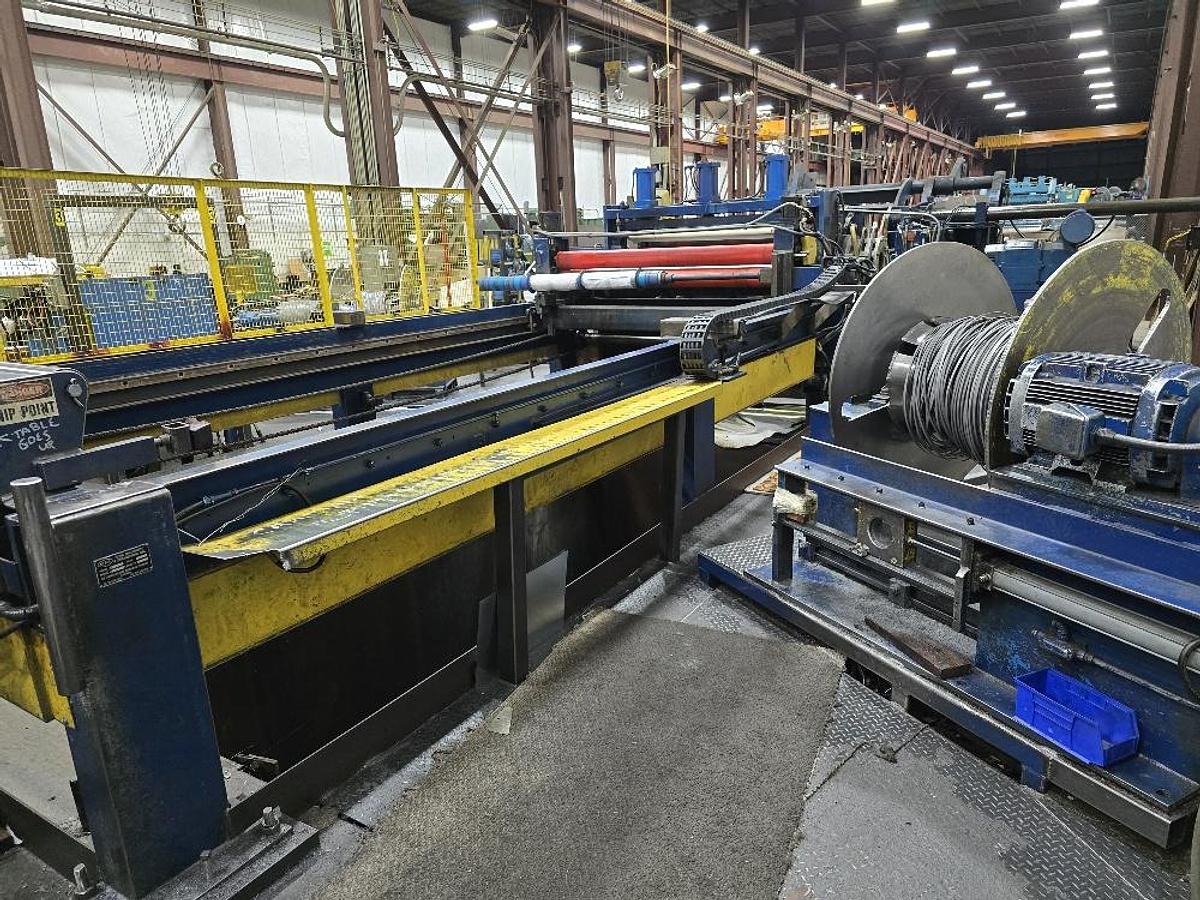

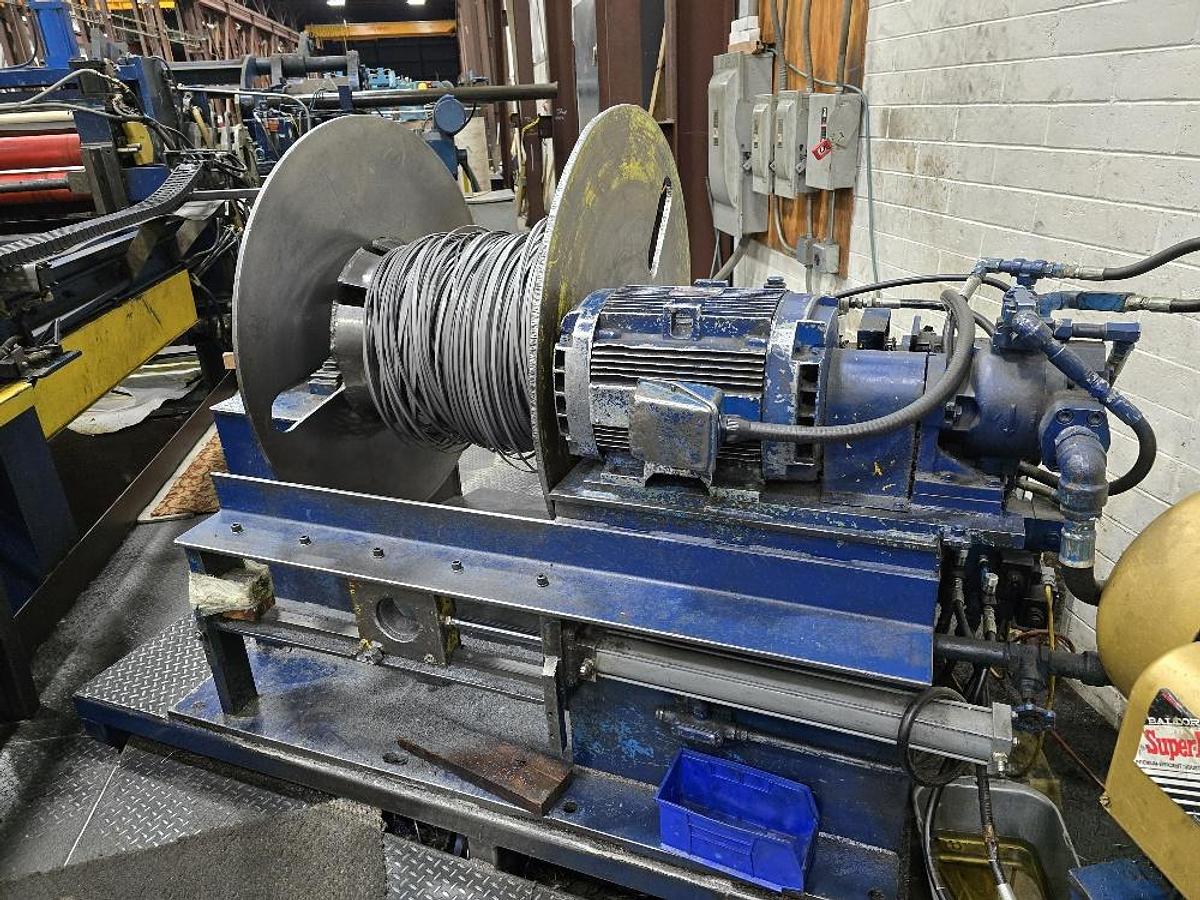

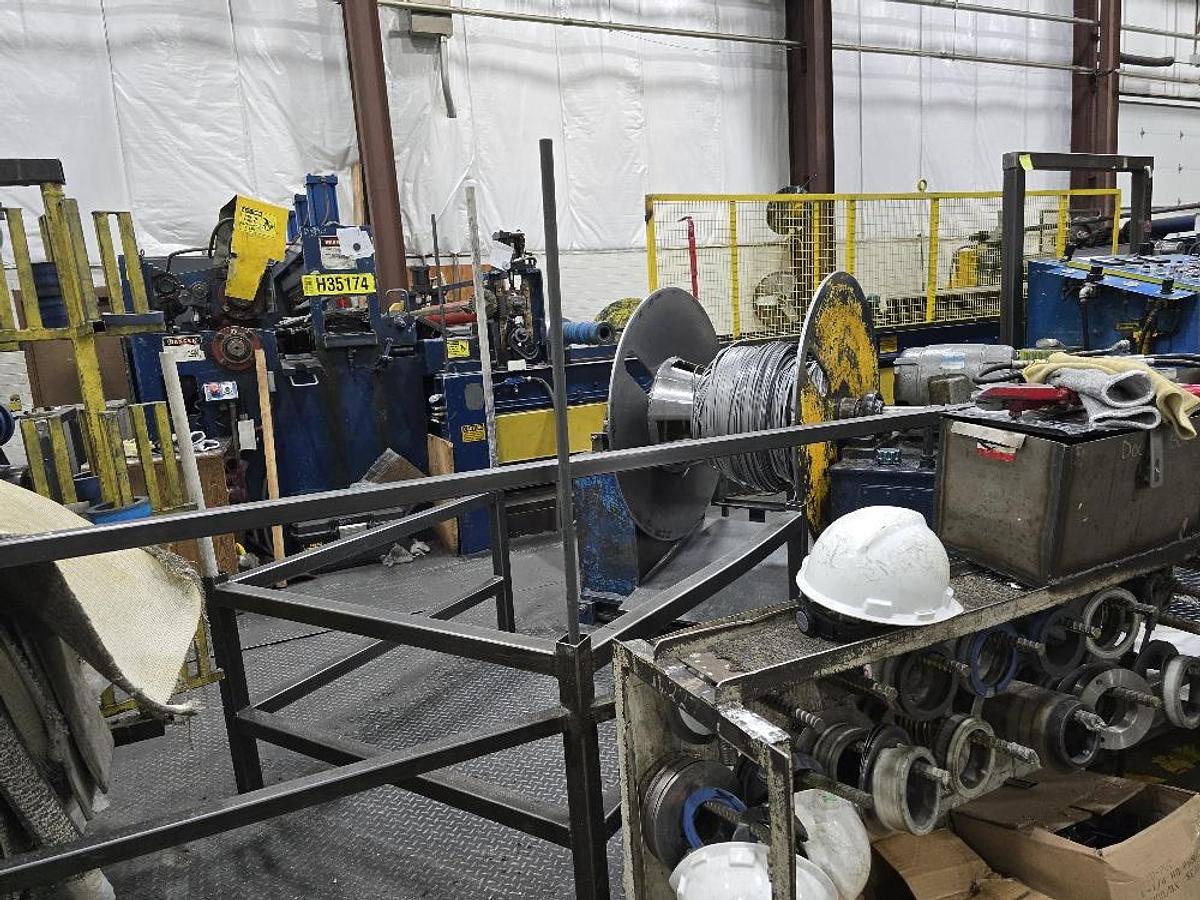

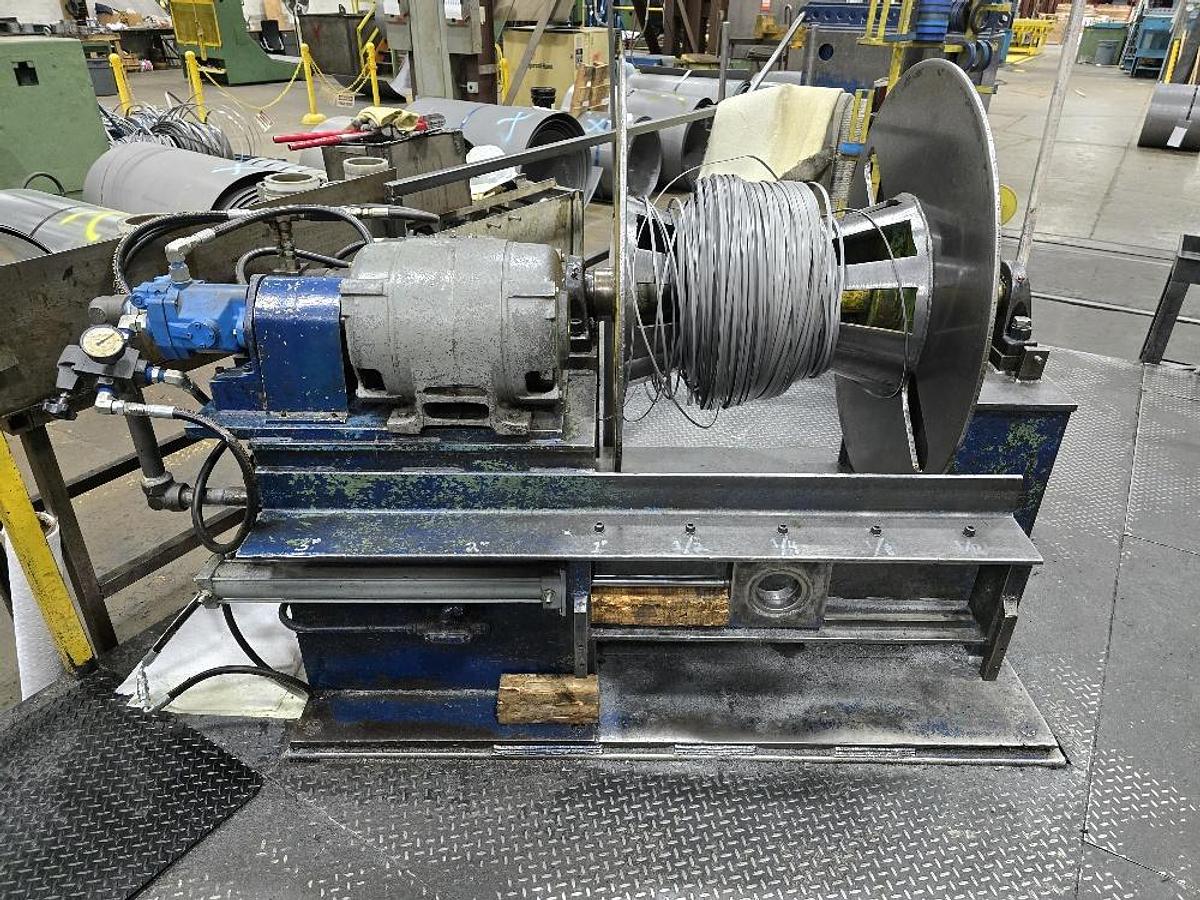

Scrap Winders – 2x Braner | One Hydraulic (Oscillation), One With Orbit Motor

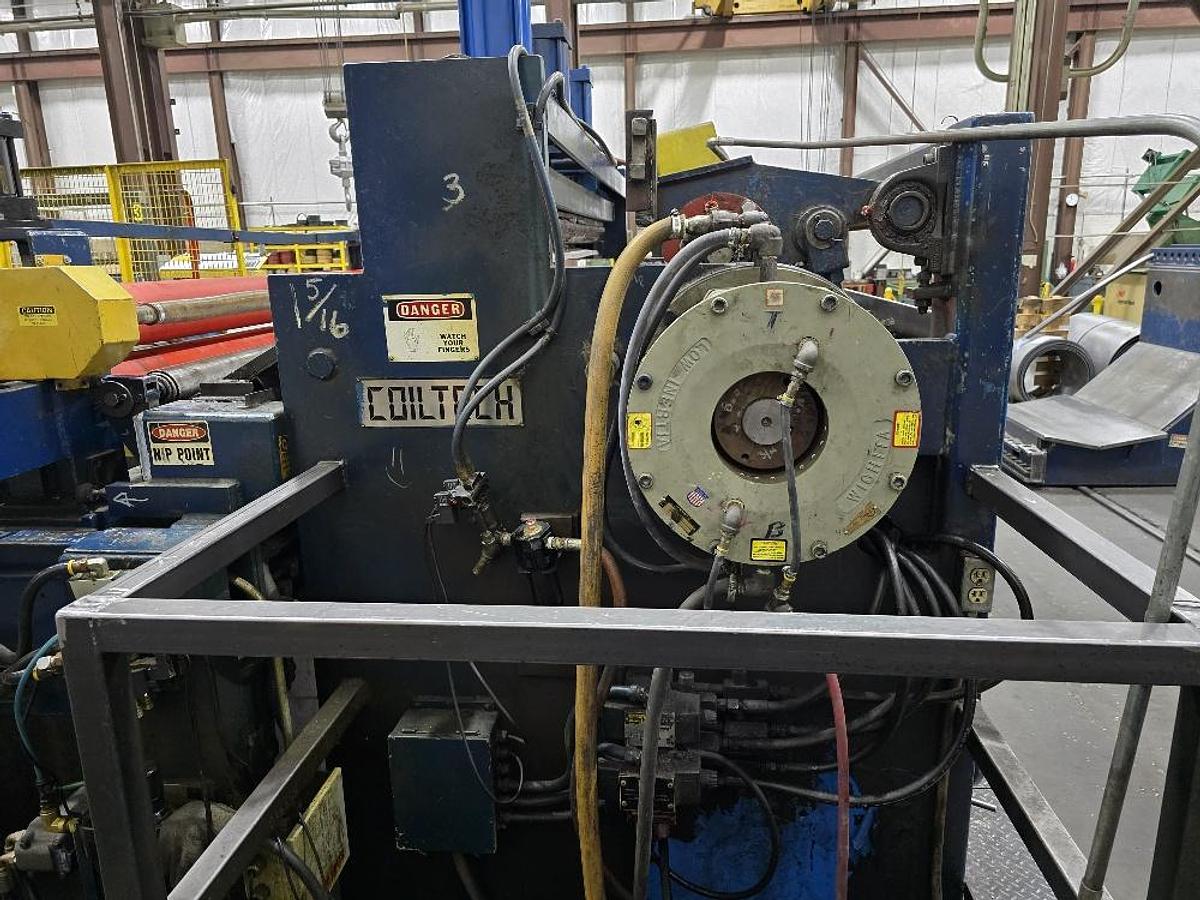

Tension Stand – Coil Tech (Braner Division) | Pad & Roll Type

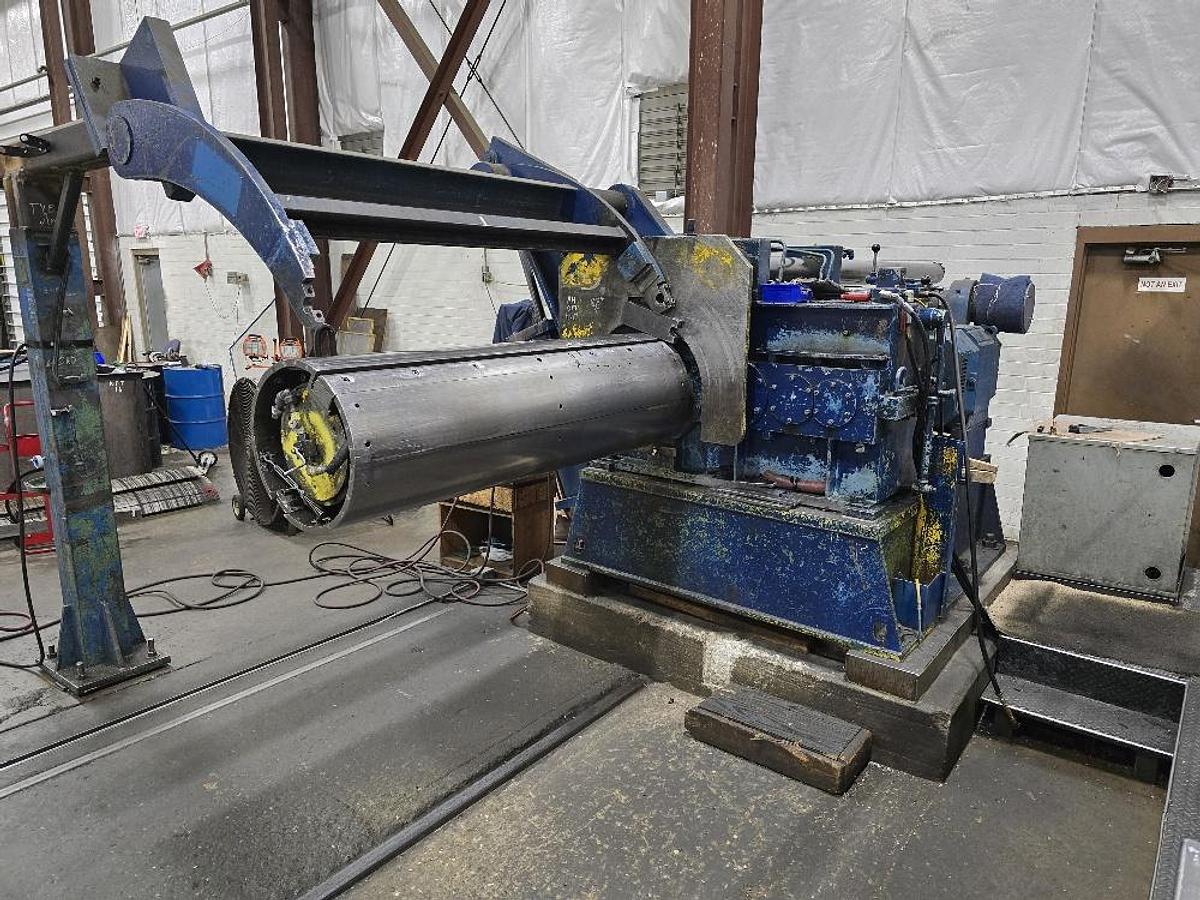

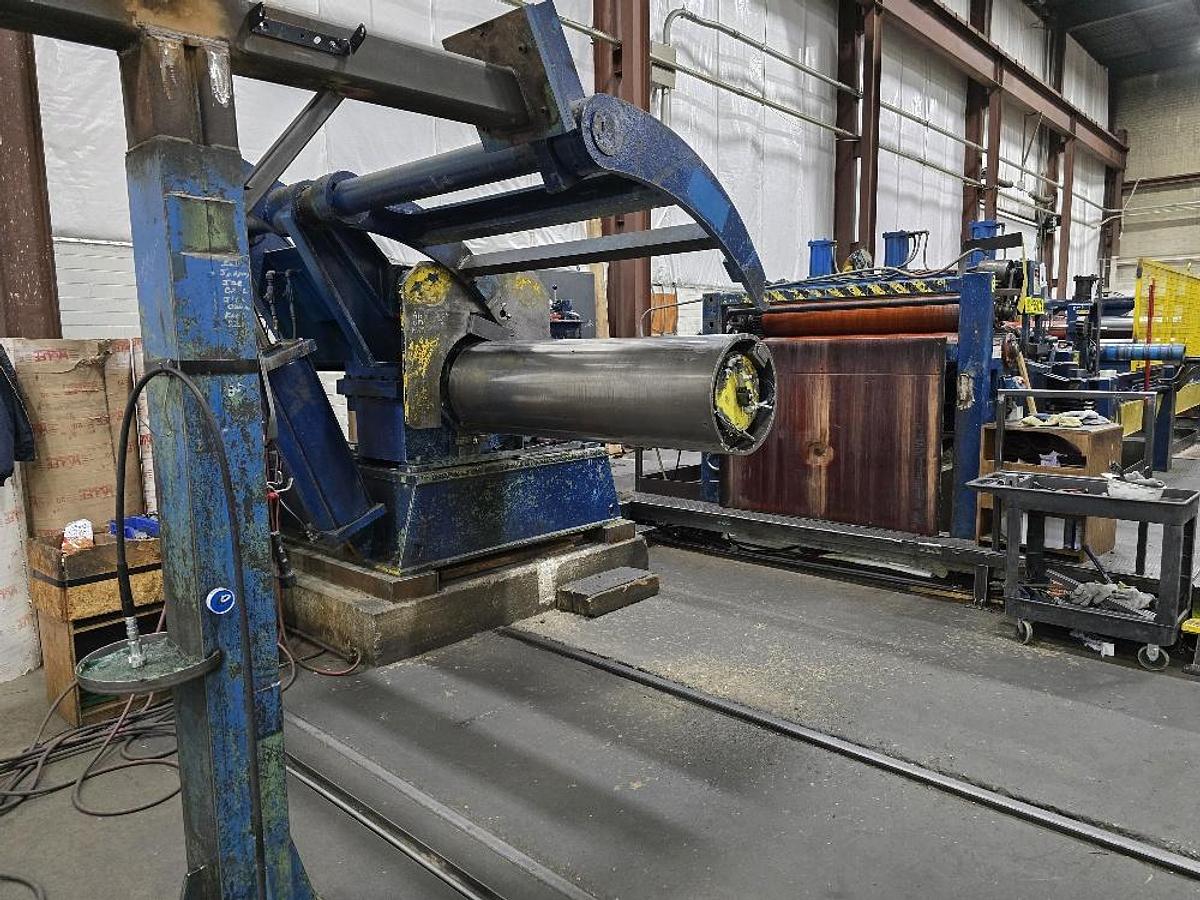

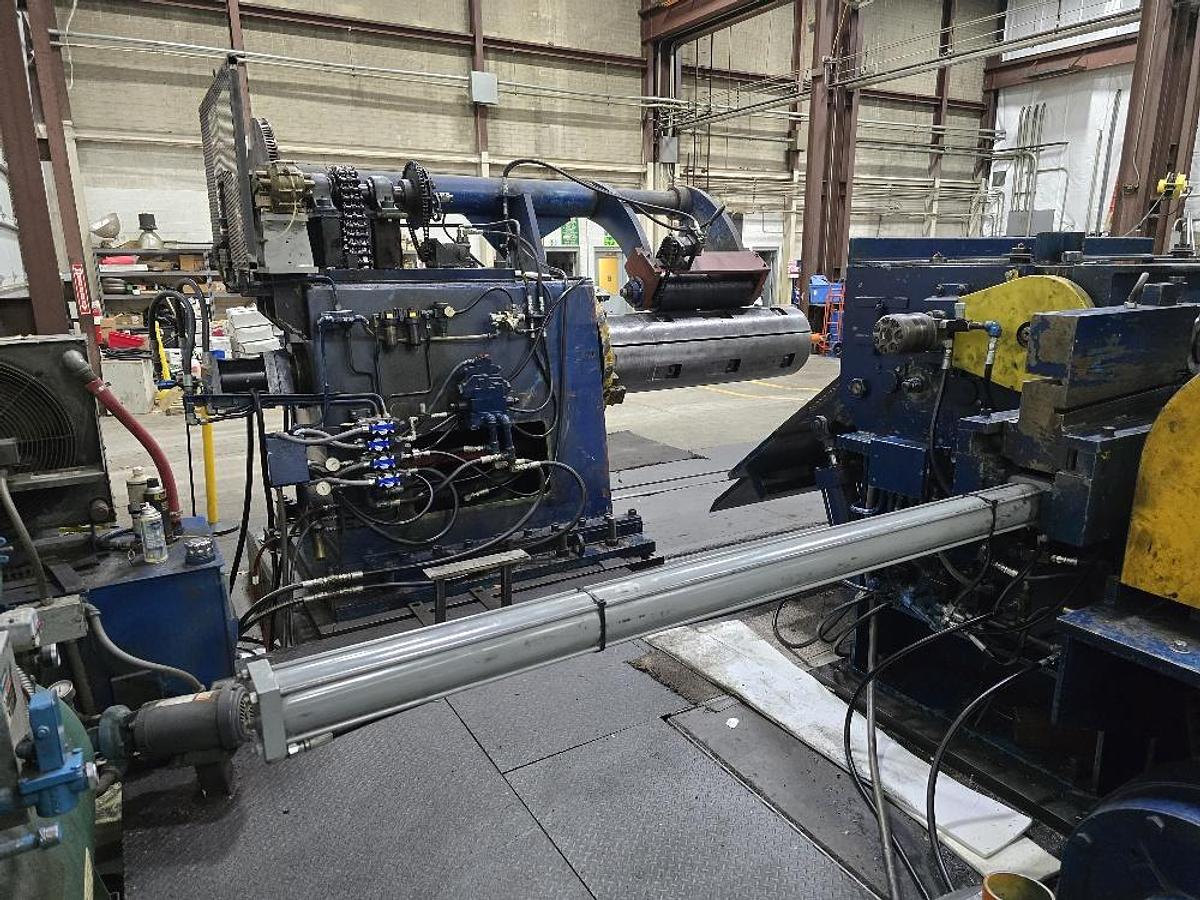

Recoiler:

-67” Wide | 20” Hydraulic Drum | Hydraulic Gripper

-Two-Speed Gearbox – 20.65:1 & 64.34:1

-Shaft – 13” | 50,000 Lb Capacity

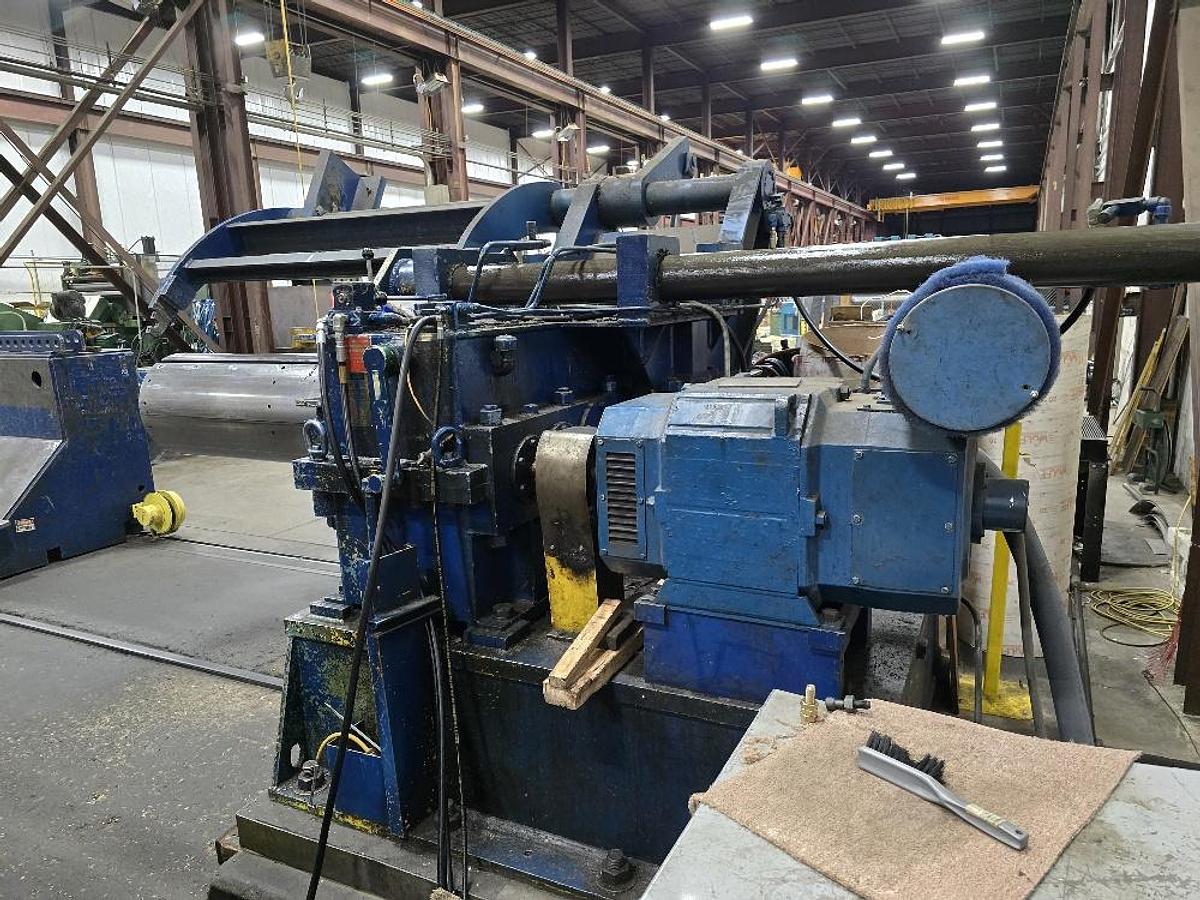

-75 HP DC Motor (350–2550 RPM)

-Overarm Separator – Attached

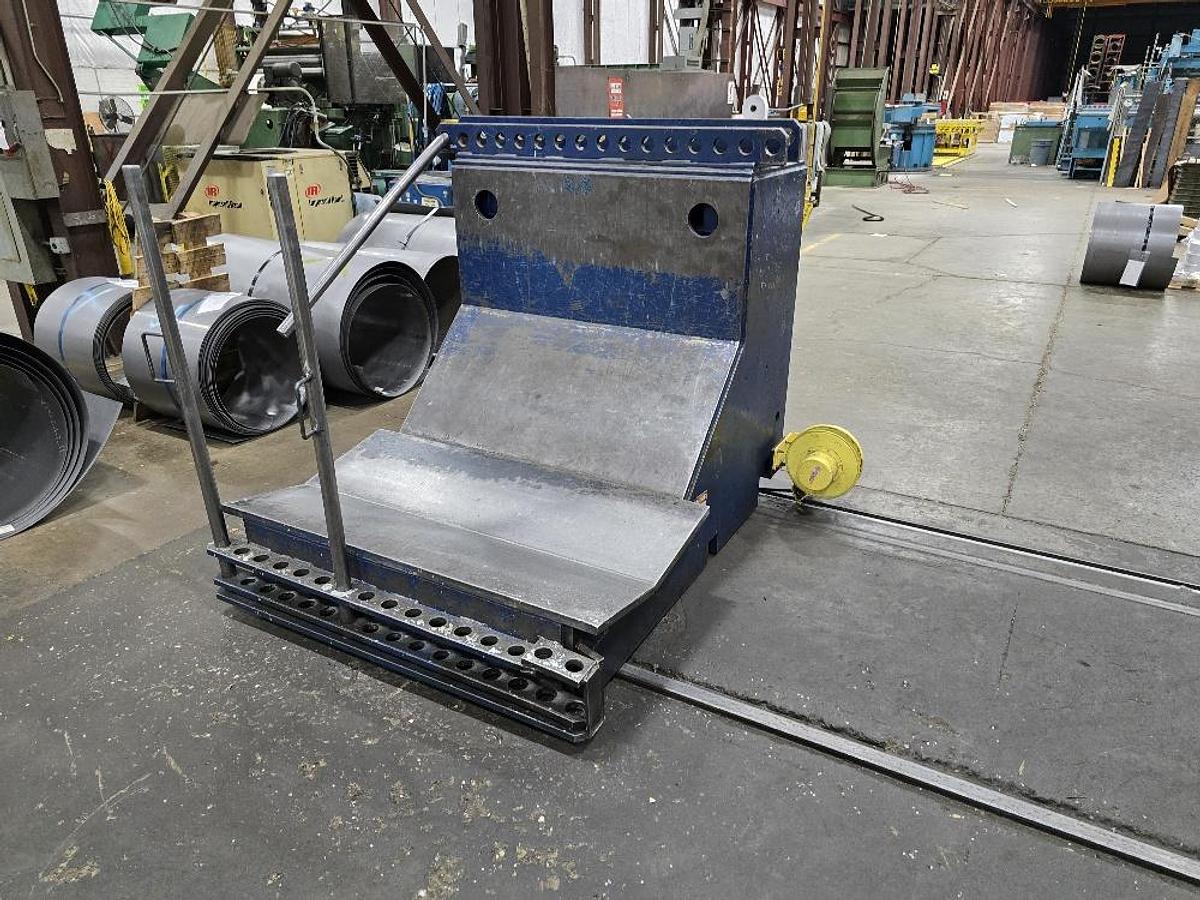

-Exit Coil Car – 64” Bed Width | 72” OD Coil | Self-Contained Hydraulics
