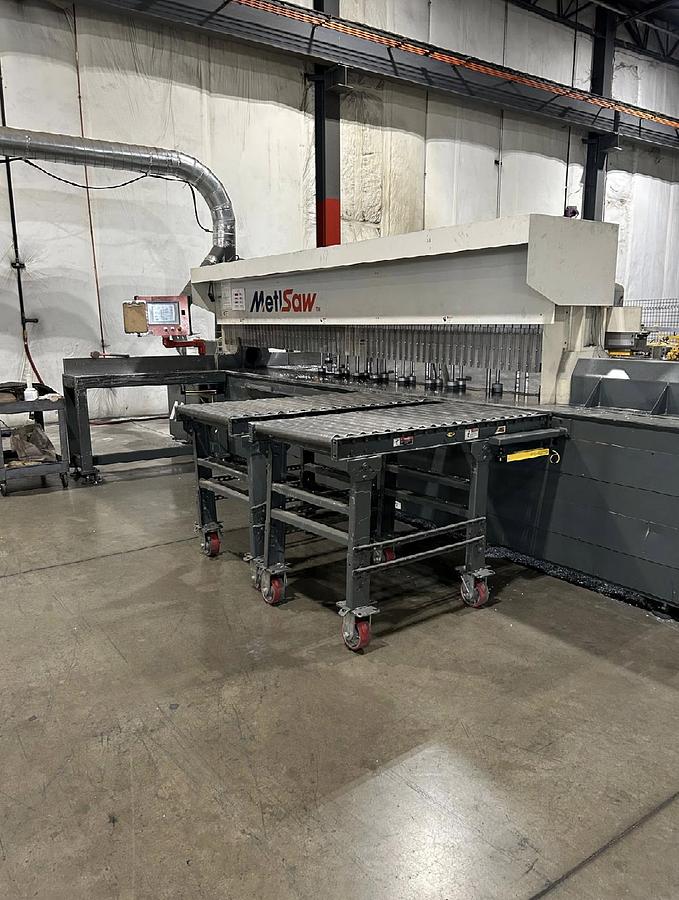

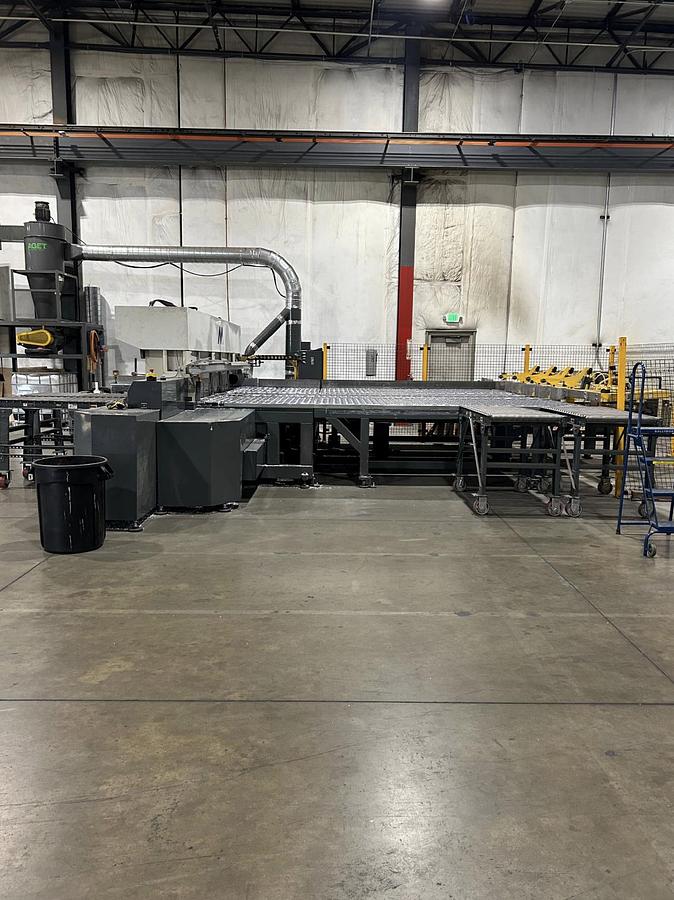

Metlsaw High Production Precision Plate Saw

Specifications:

Manufacturer: Metlsaw

Power Requirements: 480V / 3 Phase / 60Hz / 100A

Nominal Cut Length: 168” (14 ft)

Maximum Stock Length: 168” (14 ft)

Maximum Material Thickness: 8”

Speeds (Inches Per Minute):

Saw Carriage Travel Forward: 450

Saw Carriage Travel Reverse: 800

Feeder Backgauge Travel Forward: 250

Feeder Backgauge Travel Reverse: 250

Capabilities:

Straightness of Cut (In Per Foot): ±0.003

Horizontal Squareness (In Per Foot From Corner): ±0.002

Vertical Squareness (In Per Inch of Thickness): ±0.0005

Position Tolerance (In): ±0.003

Parallelism Over Whole Length (In): ±0.003

Equipment / Features:

Arbor Motor Size: 50 HP

Main Frame Table Equipped With Air Flotation System

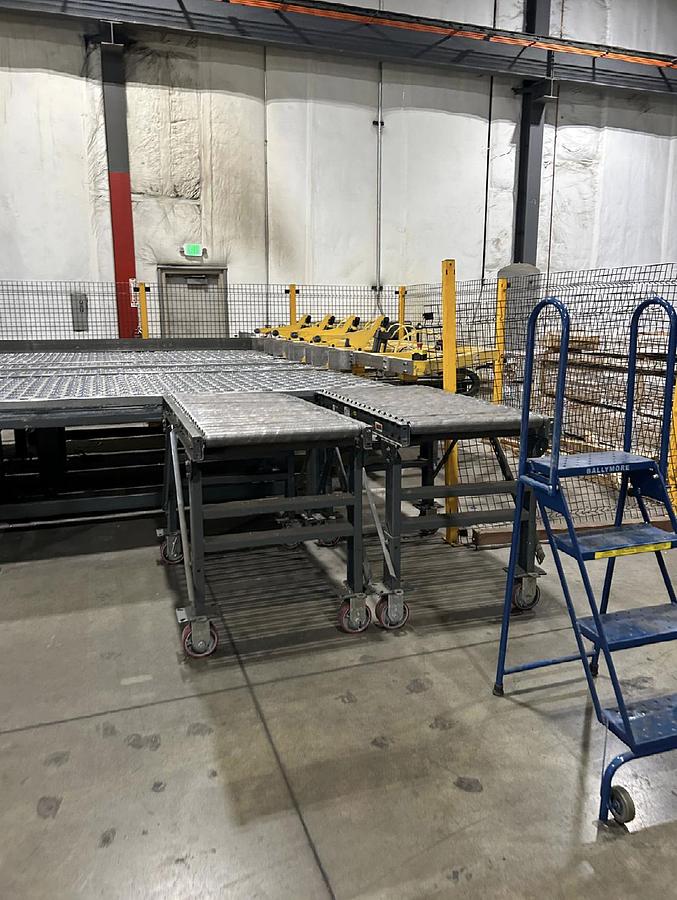

Movable Roller Tables: Qty. 4, 18” Wide x 60” Long Each, With Brakes

Machined Air Float Table: Qty. 1, 18” Wide x 60” Long

Backgauge: Precision Ball Screw Positioning With Clamps

Backgauge Table Equipped With Ball Transfers

Auxiliary Bar Clamps: Included

Side Guiding Alignment: Automatic

Blade Lubrication: Misting System

Safety Equipment: Operator Shielding, Front Light Curtain, Backgauge Safety Fencing

Controls: Rockwell PLC

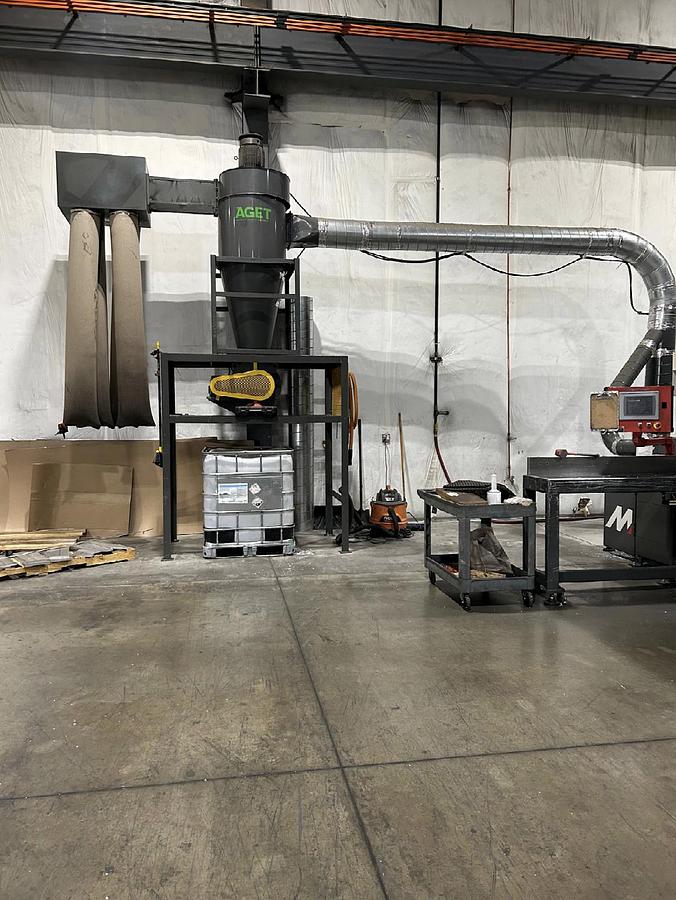

Chip Collection System: AGET 15 HP Vacuum System With Rotary Valve
