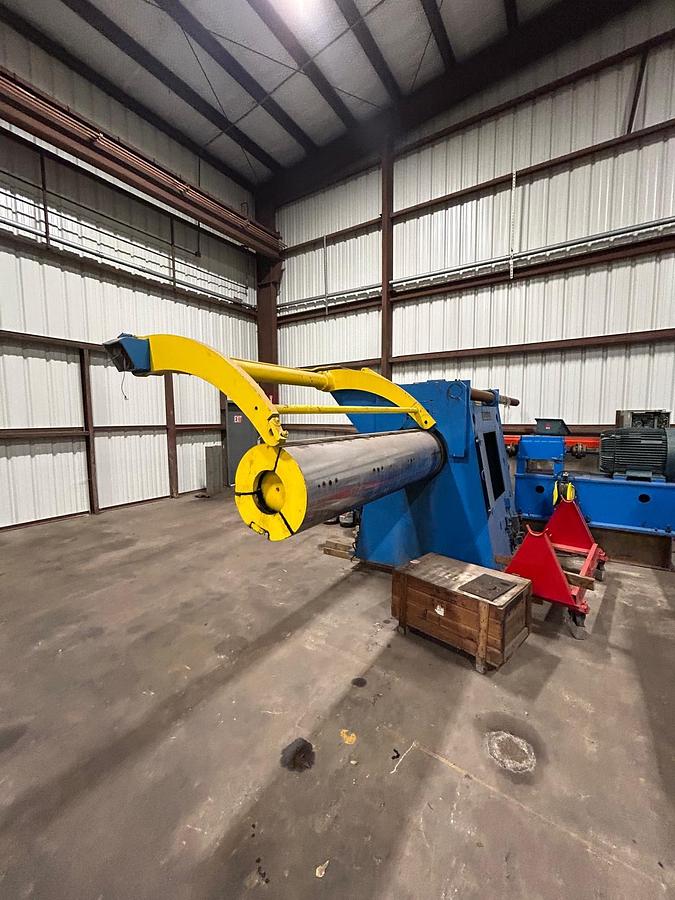

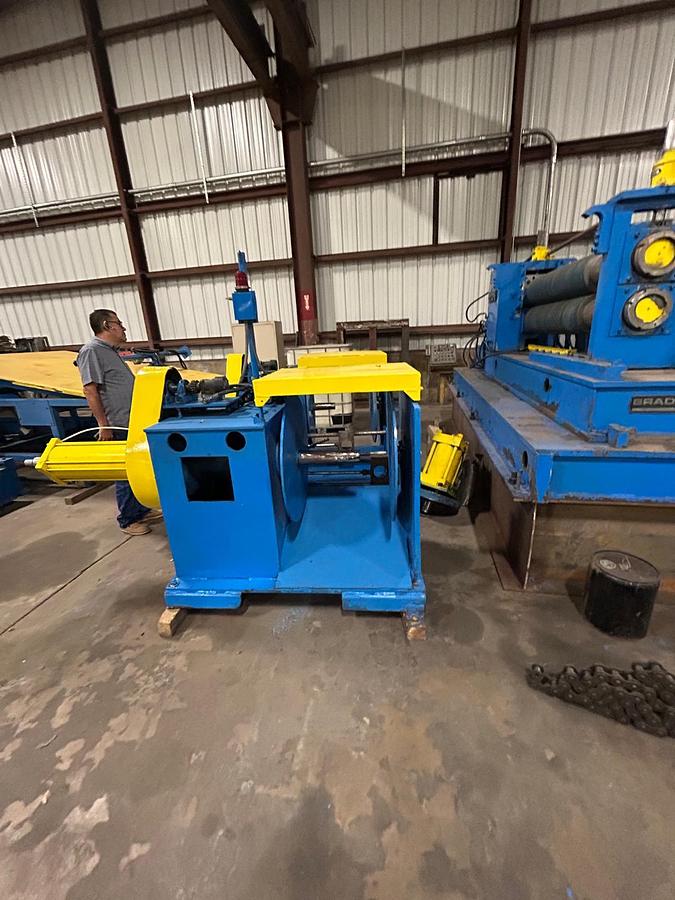

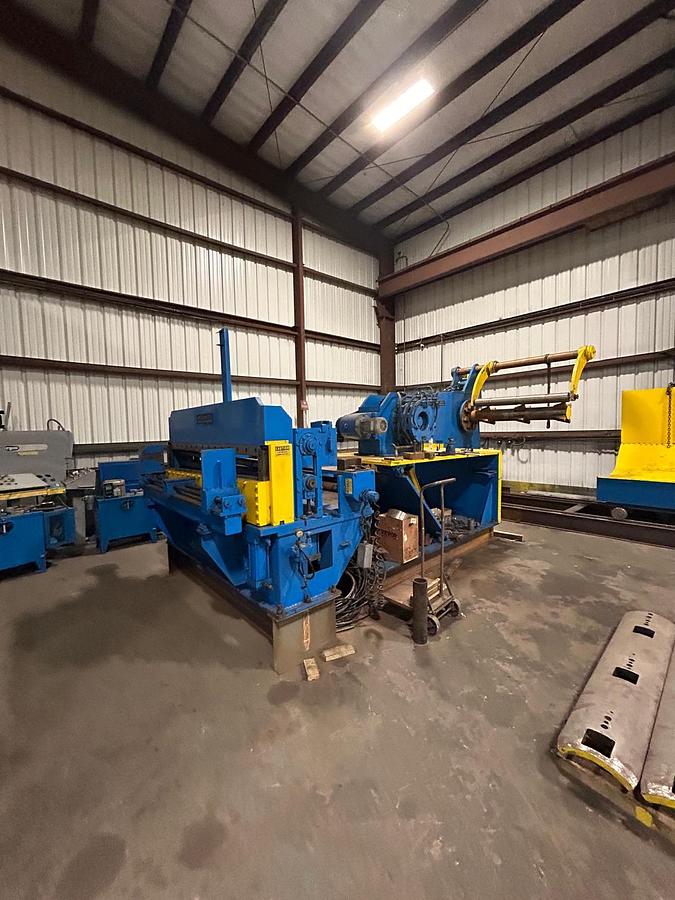

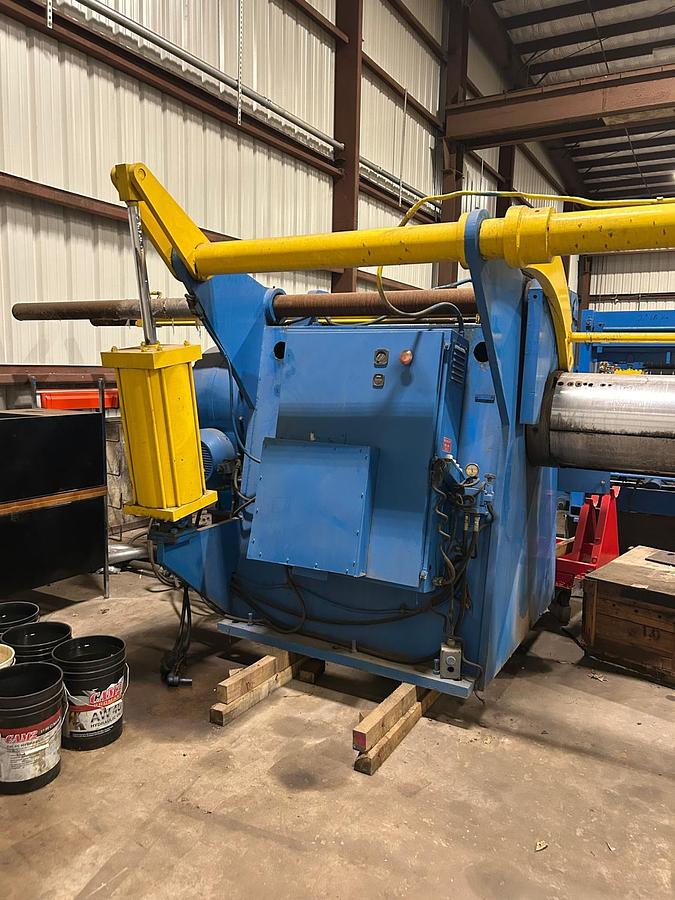

Bradbury 72´´ X .135´´ X 40,000 LB. SLITTING LINE

General Specifications:

Width Capacity: 72"

Gauge Range: .018" - .135"

Min/Max ID: 20" - 24"

Max OD: 72"

Weight Capacity: 40,000 Lbs.

Line Direction : Right to Left

Line Includes: Coil Car, 53" Wide Bed Uncoiler 70" Wide x 40,000 Lbs. Attached Holddown AC Feed Up Air Clutch Slide Base 14" Shaft 20/24" Hydraulic Drum Peeler Table Pinch Roll/Side Guide, Top Roll Driven Twin Screw Hydraulic Adjust Approximately 7" Diameter Pinch Rolls Top Driven Shear, Hydraulic Upcut, 84" Wide Blade Slitter With Entry Side guises and Pinch Rolls With Overriding Outboard Width Minimum 48" 15 HP AC Feed Up Thru Gearbox and Dog Clutch Loop Pit Carry Over Table (In & Out on Wheels) Tension Stand, Pad Type Recoiler 80" Wide x 20" Diameter Hydraulic Drum with Hydraulic Gripper Model #13343 Attached Overarm Separator Hydraulic Push Off 150 HP, 1790/2685 RPM, 460V Baldor Motor Gearbox, 3 Speed 3.454:1; 1.750 & 1:1 Ratios Thru Main Gearbox Right Angle Scrap Winders (2), Hydraulic Self Dump
