72´´ x .125´´ x 40,000 Lb. Paxson Cut-To-Length Line (Used)

Specifications
| Manufacturer | Paxson |
| Year | 1979 |
| Condition | Used |
| Stock Number | VX-2368 |
| Maximum Thickness | .125" |
| Minimum Thickness | .020" |
| Width capacity | 72" |
| Weight capacity | 40,000 Lb. |
| Line Direction | Left to Right |
Description
This used Paxson Cut-To-Length Line offers a maximum width capacity of 72 inches and can handle material thickness ranging from .020 to .125 inches. With a maximum weight capacity of 40,000 lbs, this line provides robust performance for a variety of heavy-duty applications. It efficiently processes material in a left-to-right direction. The equipment includes a full suite of components such as a 3-Arm Entry Turnstile, Above-Floor Coil Car, Uncoiler with a hydraulic slide base, Peeler/Pinch Unit, Side Trimmer, and 17-Roll Leveler with a 75 HP DC motor. The Downcut Shear features an 80-inch Bow-Tie blade with air clutch and brake. For handling materials post-cutting, it comes with an Exit Belt Conveyor, Magnetic Belt Stacker, and Exit Pallet/Roller Conveyor, which includes a scale for precise measurements. Key features to note include a self-contained hydraulic system for the coil car, a 7.5 HP AC feed-up drive on the uncoiler, and hydraulic adjustments for several components, ensuring precise operation. Additional benefits include a comprehensive inspection section for quality control and dual configuration options for the stacker sections, enhancing versatility for different production needs.
Includes
3-Arm Entry Turnstile
Above-Floor Coil Car
Uncoiler
Peeler/Pinch Unit
Side Trimmer
17-Roll Leveler
Loop Pit Crossover Table
Measuring Roll Unit
Downcut Shear
Exit Belt Conveyor
Magnetic Belt Stacker
Exit Pallet/Roller Conveyor
Specifications:

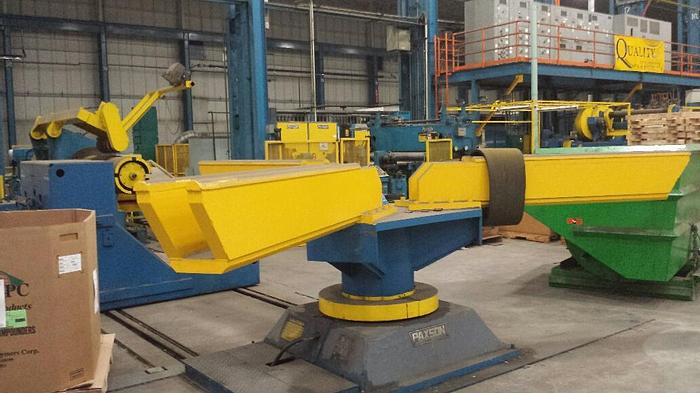

Entry Turnstile:
Type: 3-Arm
Width: 72"
Entry Coil Car:
Type: Above Floor
Bed Width: 54"
Hydraulics: Self-Contained
Uncoiler:
Width: 72"
Drum Diameter: 19" - 25", Hydraulic
Holddown: Attached, Driven
Base: Hydraulic Slide
Feed-Up Drive: 7.5 HP AC Through Air Clutch & Water-Cooled Brake
Peeler/Pinch Unit:
Peeler Blade Width: 48"
Adjustment: Hydraulic Up/Down & In/Out
Side Trimmer:
Knife Outside Diameter: 6"
Leveler:
Number of Rolls: 17 (8 Over 9)
Roll Diameter: 1.75"
Driven Rolls: Bottom
Backups: 9
Hydraulically Adjustable Backups: 7
Motor: 75 HP DC
Motor Speed: 1750/2100 RPM
Voltage: 500V
Loop Pit Crossover Table
Measuring Roll Unit:
Motor: 30 HP DC
Shear:
Type: Downcut
Blade: 80" Bow-Tie
Clutch & Brake: Air
Exit Conveyor:
Type: Belt
Length: 36'
Inspection: Strobe Inspection Section
Stacker:
Type: Magnetic Belt
Configuration: (2) 12' Dual Stacker Sections or (1) 24' Single Section
Exit Pallet/Roller Conveyor:
Length: 48'
Roll Width: 78"
Includes: Scale Section
