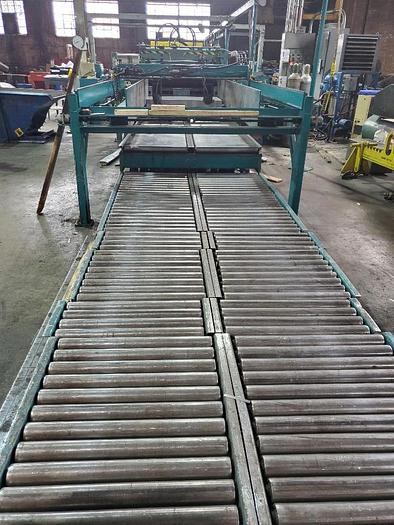

60´´ IOWA PRECISION SLEAR LINE W/ HERR-VOSS LEVELER (USED)
No longer available
Specifications
| Manufacturer | Iowa Precision |
| Year | 2005 |
| Condition | Used |
| Stock Number | VX-2401 |
| Mmanufacturer | Iowa Precision |
| Machine configuration | Single Loop/Cut-To-Length/ Multi-Blank |
| Unwind | Over |
| Maximum weight (lbs.) | 35,000 |
| Maximum od | 55" |
| Width (maximum & minimum) | 60"/20" |
| Thickness | .062" Maximum, .014" Minimum |
| Rewind | N/A |
| Maximum width (slit/side trim) | 60" |
| Minimum width | 12" |
| Minimum length | 24" |
| Maximum length | 144" |
Description
Incoming Material: ID Range: 16" - 24" Outgoing Material: Maximum Weight (Lbs.): 25,000 Line Includes: Coil Car Uncoiler 62" Mandrel 18"-20" Hydraulic Expand 35,000 Lbs Capacity Peeler/Pinch Roll Unit Leveler, Herr-Voss 014"-.062" 225 FPM 50,000 PSI 460 Volt, 3 Phase, 60 Hz 72/1.156-19/11 4HI Looping Section Slear Unit w/ Entry Feed Rolls 66” Slitter Head x 5" Arbor Flattener, 2 over 2 Scrap Winder Sliding Cut-Off Shear 65" Bowtie Blade Entry & Exit Belt Conveyor Fed Drop Leaf Stacker w/ Scissor Lift Roller Conveyor Table 25,000 Lbs Capacity Exit Pallet Conveyor 20' Section
