72´´ X .187´´ X 60,000 LB. HERR-VOSS CUT TO LENGTH LINE (USED)

72´´ X .187´´ X 60,000 LB. HERR-VOSS CUT TO LENGTH LINE (USED)
orCall (734) 854-8700
Description
Line Includes:
Cone Uncoiler, 60,000 Lbs.

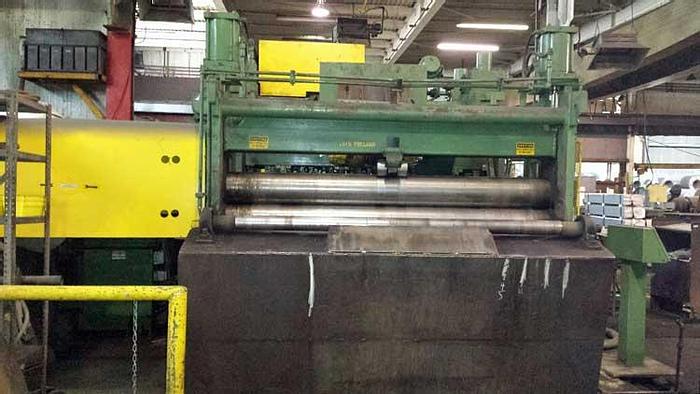

Pinch Roll/Peeler, 86" Wide x 9" Diameter Driven Rolls with Center Back Up
Flattener, 5 Roll (2 Over 3), Backed Up,
(4) Back Ups
4" Diameter x 86" Wide with Screw Jacks

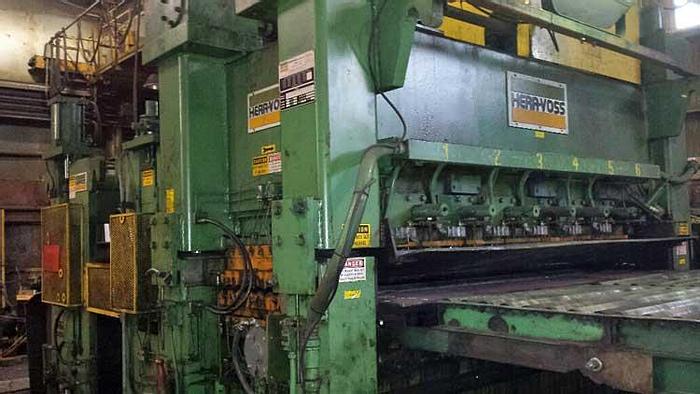

Leveler, Herr-Voss
Type VKL Leveler LH 86/2.062-19/7 4-HI
(7) Motor Back Up
Quick Open Jacks
100 HP, 1150 RPM Emerson DC Motor,
45,000 PSI Maximum
Table, 15' Roller Table to Shear
Shear (Downcut), 86" Blade Width, Bow-Tie
Drop Table, 24' Gravity Roller Conveyor with Side Guide and Center Shutter Device
Exit Pallet Conveyor, Roller Non-Driven Gravity Conveyor
No Spare Rolls or Shear Blades
Specifications
Manufacturer | Herr-Voss |
Year | 1988 |
Condition | Used |
Stock Number | VX-2312 |
Maximum coil o.d. | 80" |
Coil i.d. | 20" to 32" |
Maximum width | 79" |
Nominal width | 12" to 74" |
Thickness range | .033" to .187" |
Maximum accuracy | +/- .032" |
Maximum length | 480" |
Nominal length | 240" |
Maximum line speed | 200 FPM |
Nominal line speed | 100 FPM |
Table | 24' Belt Conveyor |
