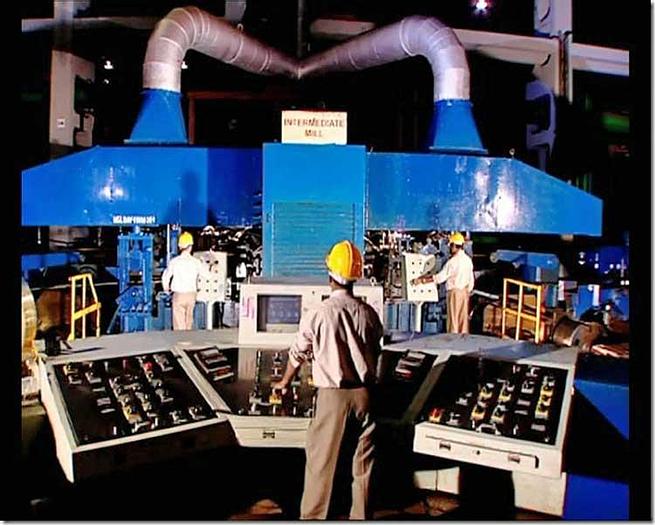

300 MM DIAMETER X 600 MM DIAMETER X 500 MM 4-HI REVERSING BREAK DOWN MILL (USED)
Sold
Specifications
| Manufacturer | Pitel |
| Condition | Used |
| Stock Number | VX-17538 |
| Duty | Cold Rolling of Brass and Copper |
| Material | Hot Rolled Cast and Milled Strips of Brass and Copper in coil form |
| Width | 325 mm Minimum, 425 mm Maximum |
| Thickness | 14 mm Maximum, 11.7 mm Normal |
| Bore | 610 mm (Approximate) |
| D. | 1720 mm Maximum |
| Weight | 6200 Kg (Approximate) |
| Rolling speed | 0/85/250 m/Min |
| Tension reel tension | 5200 Kg Max up to top speed |
| Drum coiler tension | 7500 Kg Max up to 140 mpm. |
| S.f. | 550 Tonnes Maximum (Total Design Load) |
| Pay off reel | 50 Kw (1 No.) |
| Mill | 600 Kw (1 No.) |
| Tension reel & drum coiler (common drive) | 230 Kw (1 no. each) |
Description
Technical Specifications: Incoming Strip Coil Dimension: Finished Strip: Width: 325 Minimum, 425 mm Maximum Thickness: 2.5 mm Maximum Coil Dimension: Bore: 610 mm D.: 1610 mm max Weight: 6200 Kg C. Motors
