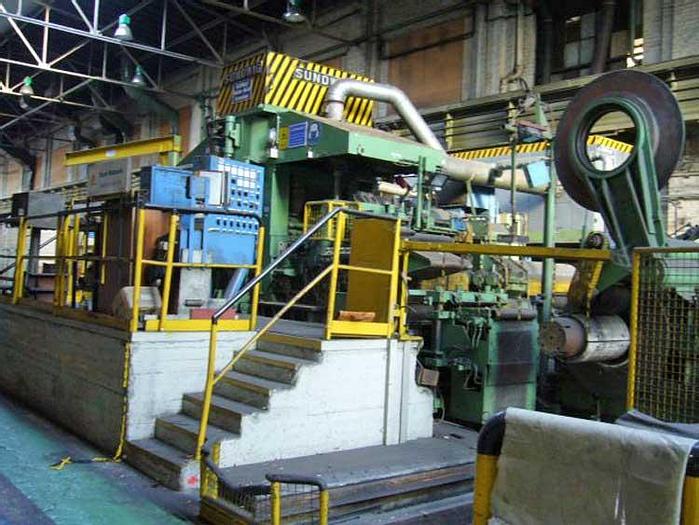

210 MM X 480 MM X 720 MM 2-HI/4-HI REVERSING MILL (USED)

Sold

210 MM X 480 MM X 720 MM 2-HI/4-HI REVERSING MILL (USED)

Description

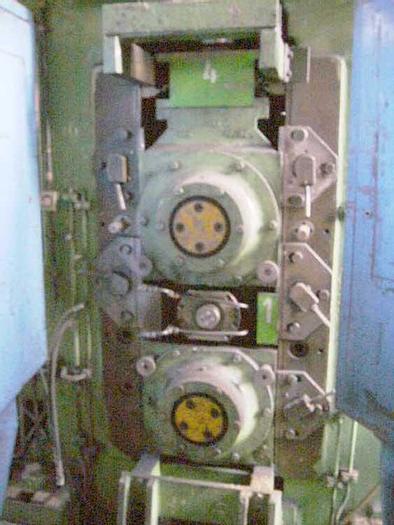

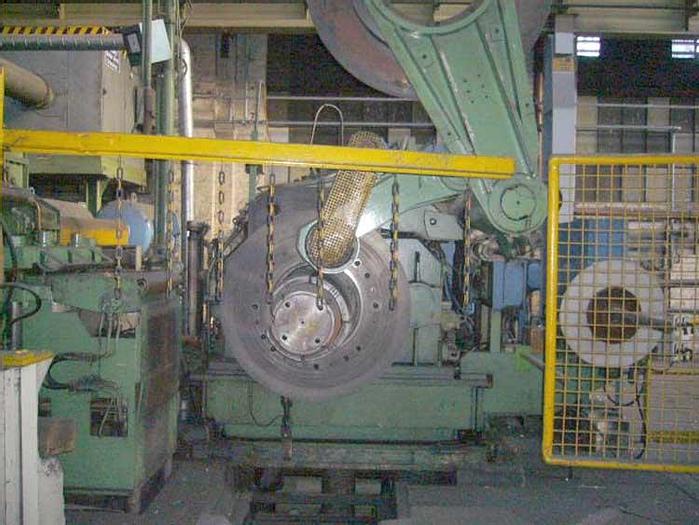

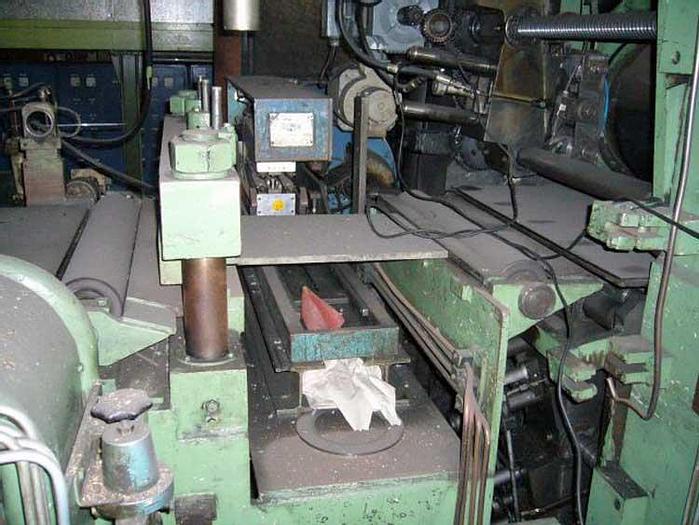

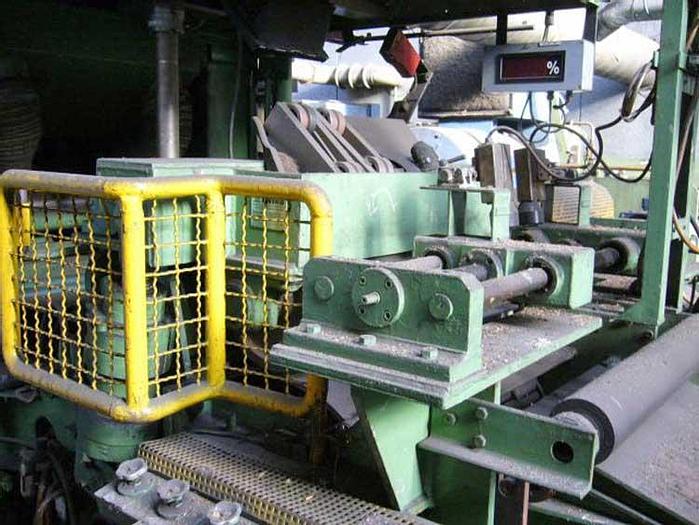

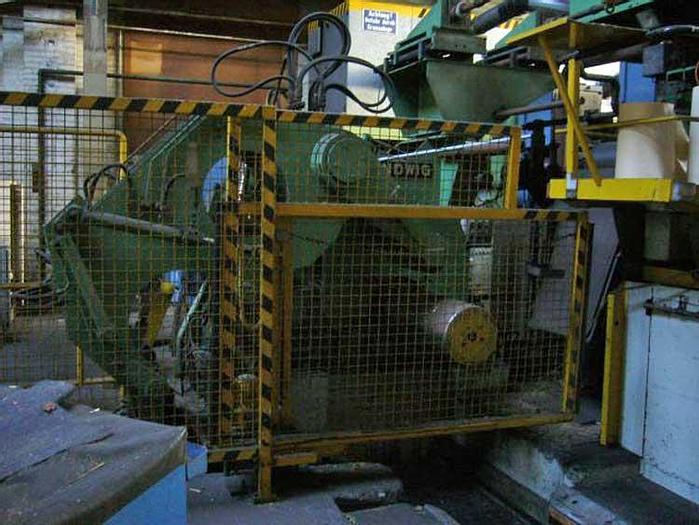

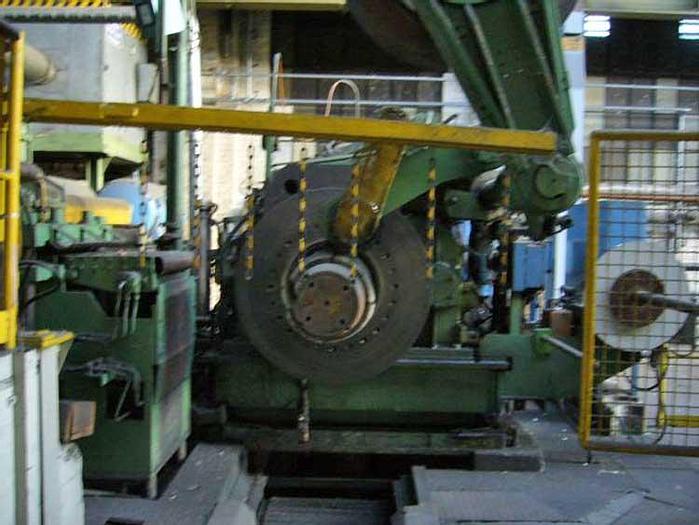

Line Description: The Mill can be driven in 2HI / 3HI or 4HI Operation The Hydraulic Roll Adjustment has a Total Rolling Force of 4MN The Skin Pass Level Regulation with the Registration of the Entry and Exit Speed provides a Skin Pass Precision of ± 0,05 % of the Elongation Degree With the Twin-Drive-Motor Rolls with different Diameters can be utilized Technical Details: Band Width: 200 - 660 mm Band Thickness: 0,10 mm - 3,50 mm Coil Inside Diameter: Recoiler 400 mm / 508 mm Coil Outside Diameter: Recoiler 1.700 mm Material Previously Used: Non Ferrous Metal, plated and galvanized MS refined Cold Material DIN 1624 / 1544 Strip Elongation Ratio: 0 - 5 % Line Consists of: Coil Car Underfloor Decoiler with Shifting Base Plate and Press Roll Expansion hydraulically Main Drive D.C. Motor Power 110 kW Strip Tension max. 30.000 N Pinch Roll Unit / Brake Roll with Scrop Shear Drive D.C. Motor Power 21 kW Strip Tension max. 3.000 N Bridle Roll Housing Drive D.C. Motor Strip Tension Entry max. 4.000 N Strip Tension Exit max. 30.000 N Power 100 kW Roll Stand Roll Diameter Back Up Rolls (2 HI) 480 mm Roll Diameter Work Rolls (3 HI / 4HI)) 210 mm Roll Bearing Roller Bearing Barrel Length 720 mm Adjustment hydraulically Rolling Force 400 t Drive Twin Drive / Back Up Rolls Thickness Gauge Laser Scrap Shear hydraulically Strip Elongation Gauge Recoiler with Pinch Roll Mandrel Diameter" 406 mm / 508 mm Expansion / Clamping hydraulic Drive D.C. Motor Power 125 kW Band Tension max. 35.000 N Coil Car Underfloor Stand Power 165 kW GS (2x) Hydraulic Electric

Specifications

ManufacturerSUNDWIG
Year1974
ConditionUsed
Stock NumberVX-17547
Coil weight10,5 t
Coil inside diameterDecoiler 400 mm / 508 mm
Coil outside diameterDecoiler 1.700 mm
Line speed200 / 400 m/min.
Reference material305 x 0,60 mm (5,1 t/h)
Working directionright to left uncoiler hands the reversing mill.
Mandrel diameter406 mm / 508 mm
