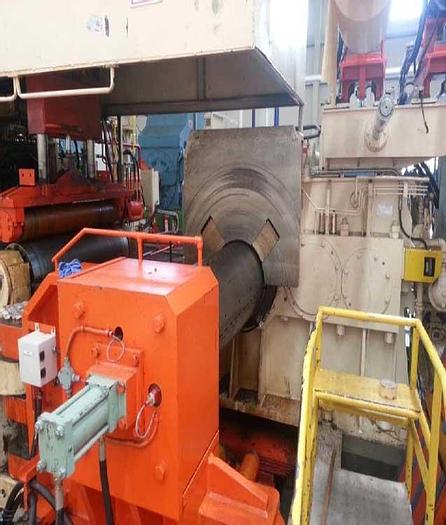

20 HI ZR22B-52 REVERSING COLD MILL (USED)
Sold
20 HI ZR22B-52 REVERSING COLD MILL (USED)
Description
Mill Specifications: Strip Thickness: Strip Width: Maximum: 1,300 mm, Minimum: 650 mm Coil Weight: Maximum: 25,000 KG Line Speed: Pay Off: Maximum: 200 MPM Tension: Winder: Maximum (Nominal) 360 KN to 600 MPM Coolant: Mineral Oil Filtration System Work Roll: Utilities:
Specifications
| Manufacturer | AMC |
| Condition | Used |
| Stock Number | VX-17439 |
| Year of installation | 2010 |
| Mill types | ZR22B-52 |
| Material | Stainless Steel 300 & 400 Series |
| Starting gauge maximum | 4.0 mm |
| Finish gauge | 0.2 mm |
| Coil size | 610 mm / 1,900 mm |
| Winder to winder | Maximum 600 MPM |
| Pay-off maximum | 90 KN to 200 MPM |
| Maximum | 210 KN to 350 MPM |
| To sprays | 4,800 LPM |
| To bearings | 1,600 LPM |
| Total | 6,400 LPM |
| Filter tank | 3 Sets |
| Normal diameter | 65 mm |
| Total length | 1,447.8 mm |
| Barrel length | 1,396.8 mm |
| Electrical power | 3 Phase, 50 Hertz, 400 Volts |
| Compressed air | 5.62KG/CM²( 58PSI ) |
| Water | 35 Degrees C |
