2-1/2´´ (63.5 mm) x .095´´ (2.41 mm) YODER M2 ERW Tube Mill Line
2-1/2´´ (63.5 mm) x .095´´ (2.41 mm) YODER M2 ERW Tube Mill Line
Description

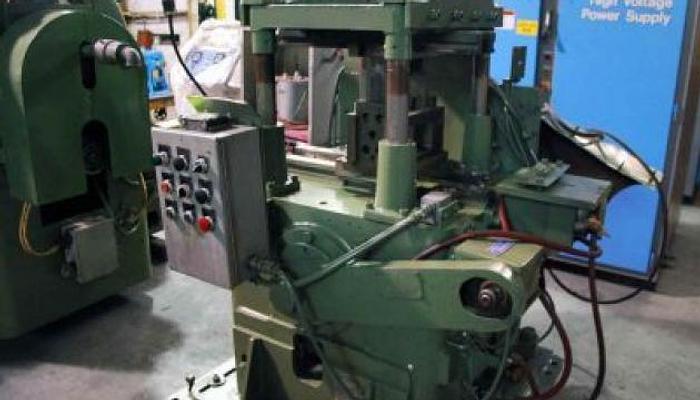

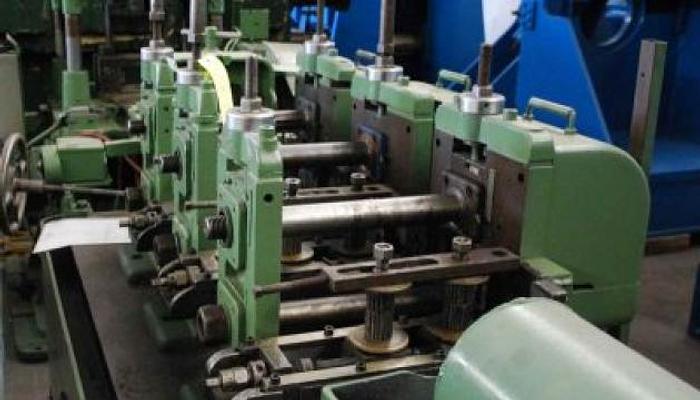

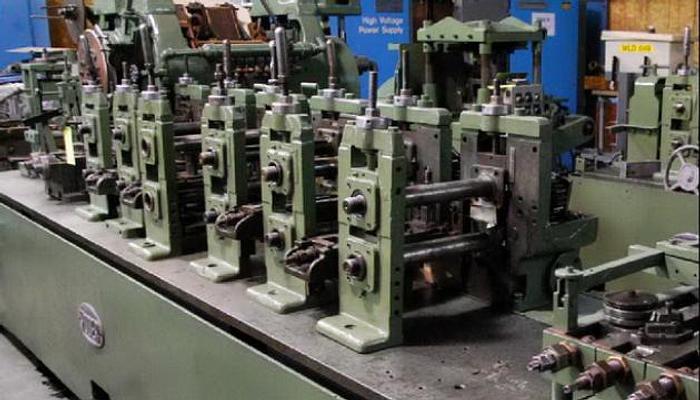

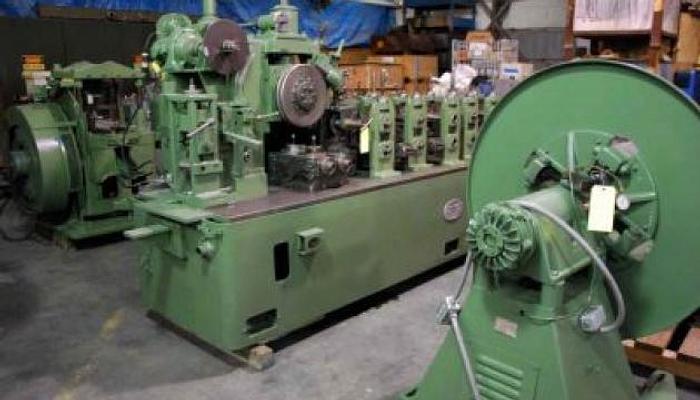

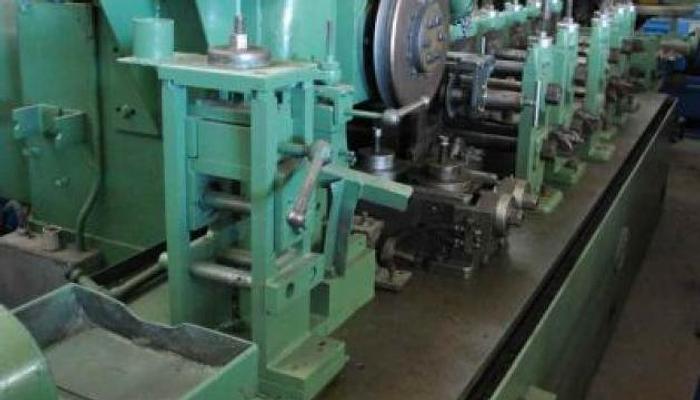

PRELIMINARY SPECIFICATIONS: Maximum D/T Ratio: 60:1 Minimum D/T Ratio: 10:1 GEAR BOX DATA: YODER Gears ENTRY EQUIPMENT: (1) LITTELL #40-18, 4,000 Lb. Single Uncoiler 4-Leaf, Manual Expansion, Electric Brake FORMING MILL: (1) Entry Guide Table, 4-Rolls with Edge Trimming (3) Driven Breakdown Stands (4) Idle Side Rolls with Vertical Adjustment (3) Driven Fin Stands WELDING SECTION: (1) YODER ERW Welder, MG Set, 150 HP (1) Seam Guide (1) 2-Roll Weld Pressure Unit (1) Scarfing Stand (1) Seam Ironing Stand (1) Bead Winder (1) Coolant Section – Flood Type, 4' – 5' SIZING MILL: (3) Driven Sizing Stands (3) Idle Side Rolls (1) Straightener, Turkshead 4-Roll CUT OFF: (1) YODER #P-40 Cut-Off, 4-Post, Single Cut (1) 20' Run Out Table, Single Dump MILL DRIVE: (1) Single Motor CUTLER HAMMER Drive System (1) 50 HP, DC Motor, 440 / 60 / 3 (1) Mill Control Panel CONDITION: Good, last run date: 03/2012
Specifications
| Manufacturer | YODER |
| Model | M2 |
| Condition | Used |
| Stock Number | VX-17475 |
| Line direction | Right to Left |
| Maximum tube diameter | 2-1/2" (63.5 mm) |
| Minimum tube diameter | 1/2" (12.7 mm) |
| Maximum wall thickness | .095" (2.41 mm) |
| Minimum wall thickness | .020" (0.50 mm) |
| Maximum line speed | 150 FPM, Max. Gear In Speed, No Load |
| Maximum material yield | 50,000 PSI |
| Spindle diameter | 2" |
| Roll space forming, fin & sizing | 13" |
| Horizontal centers | 15" |
| Motor | 7.5 HP, 1170 RPM |
