152mm x 4.5mm MTM Tube Mill Line (Used)

Sold

152mm x 4.5mm MTM Tube Mill Line (Used)

Description

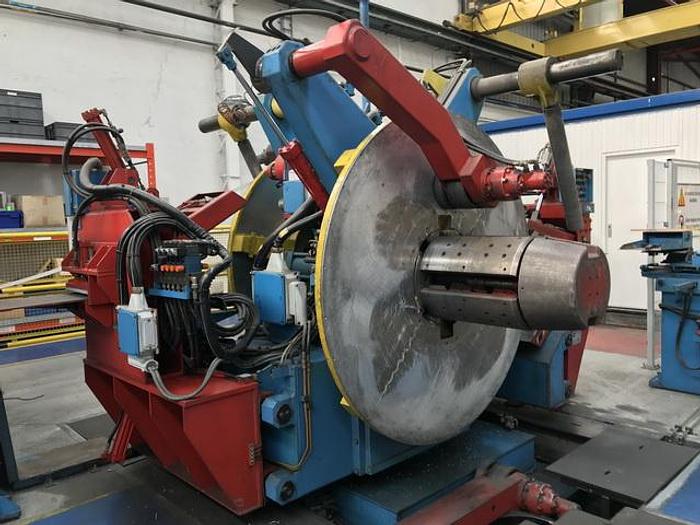

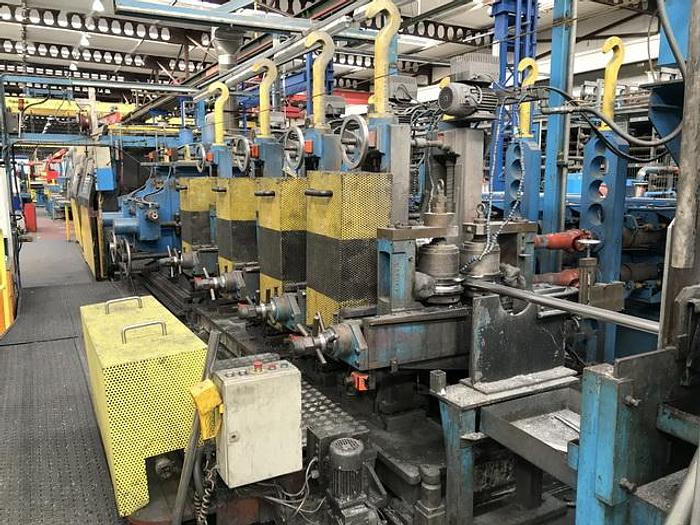

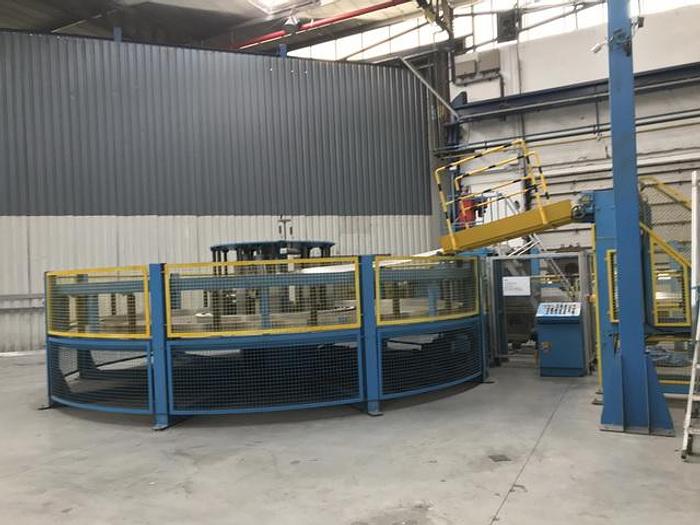

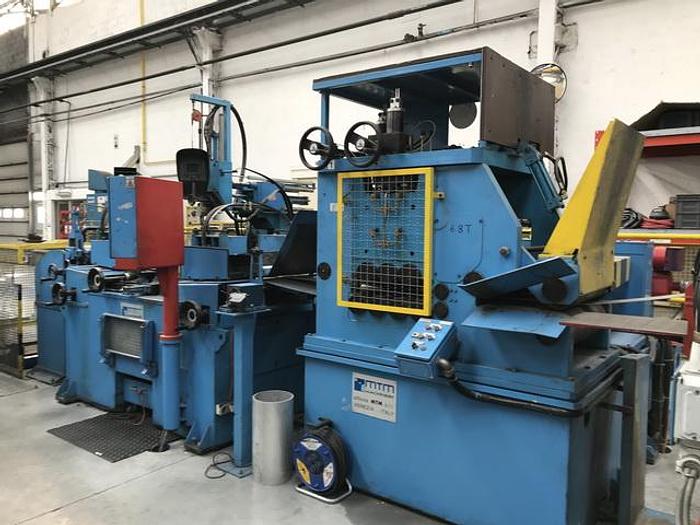

Width of strip- 94 to 479mm Rafted, without second set of rafts/stands COMPLETE TUBE MILL WITH FOLLOWING COMPONENTS: ENTRY SECTION MTM Double End Uncoiler Coil Weight 6.000 Kg Coil O.D. 1800mm Hydraulic Expansion, Rotation, Motors Feed Funnel / Coil Breaker/ Strip end flattener Coil Snubber Hold Down Roll, Hydr mtr, top and bottom, Coil Keeper Motor, Pump, Reservoir MTM Entry 7 Roll Straightener Coil Peeler table Pinch Rolls MTM Semi-Automatic Strip Joiner Rotary Shear, TIG Welder MTM Entry Strip Guide, turning strip to Vertical Plane & "U" Turn MTM Horizontal Accumulator Accumulator Entry Motor 26 kw Accumulator Exit Motor 26kw JULIUS Entry Pinch Roll and Guides JULIUS Entry Edge Unit Entry Guides (3) Position Rolling (3) Position Scarfing MTM FORMING SECTION (5) Forming Stands Rafted for Automated Quick Change Single Point Adjustment, Motorized Shaft Diameter 110mm, Universal Drive 148kw DC Drive Motor, 400 Volt, 1150 - 2600 RPM (3) Fin Pass Stands Rafted for Automated Quick Change Single Point Adjustment, Motorized Shaft Diameter 110mm, Universal Drive 125kw DC Drive Motor, 400 Volt, 1650 - 3500 RPM Forming Section with (7) Side Stands Roll Change Sled WELDING SECTION SMS ELOTHERM Solid State, Hi Frequency Welder, 2008 Nominal Power 410 Kw Nominal Frequency 100 - 400 KHz Entry Seam Guide (2) Roll Weld Box D Scarfing D. Scarfing Station, double head COOLING SECTION, 6 METERS MTM SIZING SECTION (4) Vertical Stands Rafted for Automated Quick Change Single Point Adjustment, Motorized Shaft Diameter 110mm, Universal Drive 148 kw Drive Motor, 400 Volt, 1150 - 2600 RPM (4) Side Stands Roll Diameter 150mm MTM Turksheads, (2) Vertical and Horizontal Hydraulic Motor Adjustment Detwisting and Straightening Roll Diameter 120mm CUTOFF SECTION MTM Flying Cutoff Saw Saw blade type, non geared 94Kw Motor, 400 Volt, 1100 - 1800 RPM Hydraulic Feed Accelerator, DC Servo Motor Drive Caterpillar Pull Out Runout Conveyor Large assortment of tooling from 31mm to 152mm Operator Flat Screen Panels Baumuller Motor Drives Installed, under power

Specifications

ManufacturerMTM Italy
Year1995
ConditionUsed
Stock NumberVX-17479
Diameter range31mm to 152mm
Wall thickness range1mm to 4.5mm
Mill speed100mpm
DirectionRight to Left
Coil i.d. expansion508mm to 610mm
Strip capacity500 Meters
Roll diameter150mm
