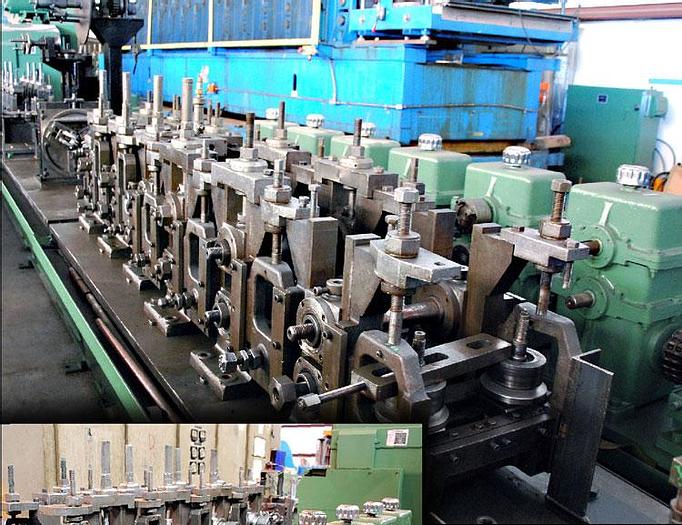

1-1/2´´ (38.1 mm) x .070´´ (1.77 mm) BRITISH ARM Tube Mill Line (USED)
1-1/2´´ (38.1 mm) x .070´´ (1.77 mm) BRITISH ARM Tube Mill Line (USED)
Description
Maximum D/T Ratio : 60:1 Minimum D/T Ratio: 10:1 ENTRY EQUIPMENT: (1) Double 4,000 Lb. Uncoiler with Air Brakes (1) GUILD Shear Welder FORMING MILL: (1) Entry Guide Unit (3) Driven Breakdown Stands (4) Idle Side Roll Units (3) Driven Fin Stands (2) Idle Side Roll Units (1) Seam Guide Unit (1) Weld Pressure Unit, 3-Roll (1) Double OD Scarfing Unit (1) Tube Guide COOLANT SECTION: No Coolant Zone SIZING MILL: (4) Driven Sizing Stands (4) Idle Side Roll Units (1) Rotary Squaring Turkshead Unit CUT-OFF: (1) BETARAM Model E24-1.5" x .100" with TALLEYRAND Digital Length Control (1) Runout Table (1) Encoder ELECTRICAL: (1) Solid State DC Drive System, 45 HP x 2 Motor (40KW) TOOLING TO PRODUCE THE FOLLOWING SIZES OF TUBE: 625" (15.8 mm) / 0.629" (16.0 mm) / 0.639" (16.3 mm) 677" (17.2 mm) / 0.708" (18.0 mm) / 0.716" (18.2 mm) 724" (18.4 mm) / 0.750" (19.0 mm) / 0.781" (19.9 mm) 787" (20.0 mm) / 0.799" (20.3 mm) / 0.838" (21.3 mm) 866" (22.0 mm) / 0.874" (22.2 mm) / 0.944" (24.0 mm) 974" (24.8 mm) / 0.976" (24.8 mm) / 0.984" (25.0 mm) 000" (25.4 mm) / 1.023" (26.0 mm) / 1.102" (28.0 mm) 125" (28.5 mm) 050" (12.7 mm) / 0.625" (15.9 mm) / 0.750" (19.0 mm) 000" (25.4 mm) x 0.500" (12.7 mm) / 0.874" (22.2 mm) 181" (30.0 mm) x 0.590" (15.0 mm) / 0.732" (18.6 mm) x 0.492" (12.5 mm) 748" (19.0 mm) x 0.511" (13.0 mm) / 0.787" (20.0 mm) x 0.590" (15.0 mm) 035" (26.3 mm) x 0.590" (15.0 mm) / 1.110" (28.2 mm) x 0.519" (13.2 mm) 181" (30.0 mm) x 0.629" (16.0 mm) / 0.874" (22.2 mm) x 0.500" (12.7 mm) 181" (30.0 mm) x 0.551" (14.0 mm) / 0.921" (23.4 mm) x 0.523" (13.3 mm) 031" (26.2 mm) x 0.637" (16.2 mm) Prospective Buyers Are Advised to Check Rolls for complete sets. CONDITION: Very Good As Taken From Service.
Specifications
| Manufacturer | BRITISH ARM |
| Year | 1988 |
| Condition | Used |
| Stock Number | VX-17476 |
| Maximum tube diameter | 1-1/2" (38.1 mm) |
| Minimum tube diameter | 1/2" (12.7 mm) |
| Maximum wall thickness | .070" (1.77 mm) |
| Minimum wall thickness | .027" (.685 mm) |
| Maximum material yield | 50,000 PSI |
| Maximum mill speed | 450 FPM (138 MPM) Max. Gear In Speed, No Load |
| Roll space (width) forming | 6" |
| Roll space (width) fin & sizing | 3" |
| Driven spindle diameter | 1-1/2" (38.1 mm) |
| Line direction | Right to Left |
| Welding section | (Welder not included in quote) |
| Rounds | INCHES (mm) |
| Squares & rectangles | INCHES (mm) |
| Note | Tooling is Believed to be Correct and Accurate. |
| Overall dimensions | Multiple Pieces, 2 Truckloads |
| Approximate weight | 50,000 Lbs. |
