COIL POLISHER LINE, 48´´ (USED)

Sold

COIL POLISHER LINE, 48´´ (USED)

Description

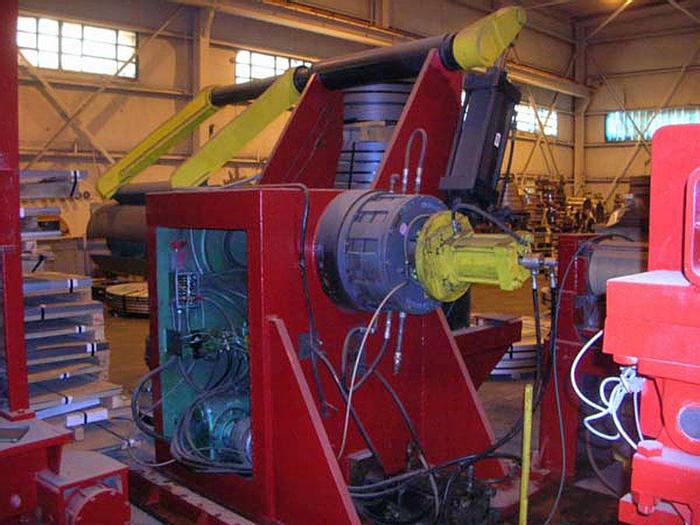

26 Gauge thru 12 Gauge No back pass on 26 Gauge Line Includes: Uncoiler - Wein - 30,000 Lbs. Tension Rolls MMP 13-1/2" x 54" (1 new spare in box) North American Tracking Hydraulic Unit Paper Winder DC Drive -120V or 240V 10 1 HP Uncoiler Feed Up Motor - 480V 30 5 HP w/90 deg - gear reduces and air clutch Head #1 - Bottom Side - 480V 30 60 HP Head #2 - Budd Top Side - 480V 30 60 HP w/Square D - Altistart Soft Start Unit Head #3 - Hill Acme Top - 480V 30 60 HP Recoiles - 480V 30 40 HP w/ variable pulley - speed control and gear reduces North American Tracking Unit 480V 30 5 HP for hydraulics 120V 10 Controls Spare Parts: (1) Bottom head contact roll - grooved rubber (1) Hill Acme contact roll - grooved rubber (1) Maddison contact roll - grooved rubber (1) Hill Acme spare billy roll (steel) (1) Spare set Uncoiler clutch take-up parts (Rowland Co. part #4-275-897-011-0 2 discs; part #4-275-033-000-4 8 springs; pusher plate and bladder) (1) Uncoiler hub spline (1) Set Uncoiler brake discs (Rowland part # 155-8-370-108-000) (1) Bottom head belt tension cylinder (2) Bottom head tracking cylinder (1) Maddison head tracking value (1) Bottom head idler roll air cylinder (1) Tracking value bottom head (1) Set Hill Acme contact roll brake pads (2) Hill Acme tracking values (1) Small rubber hold-down roll Recoiler Misc. Uncoiler segment parts (cam followers, brackets) Misc. roll bearings (1) Set 4 Sleeves 24" OD Recoiler

Specifications

ConditionUsed
Stock NumberVX-22418
Maximum width49.75"
Maximum coil weight30,000 Lbs.
Incoming id16", 20", 24"
Outgoing id20", 24"
New wichita water cooled brake2000
WelderHobart Mig 170
Pinch rollsStamco
Bottom sideStein MFG
MaddisonE.G. Budd
Finish headHill Acme

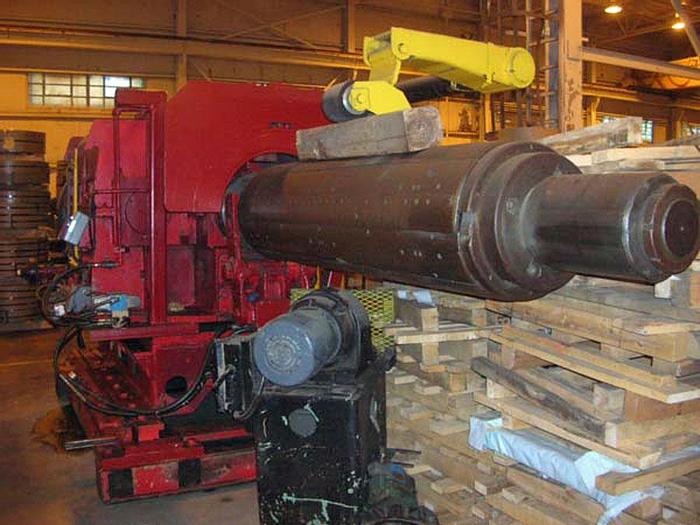

RecoilerWein 30,000 / Arbor Support
Coil carsWein L Shape 30,000 Lbs.
Dust collectionCyclone Drum Cleaner
Operation's panelMMP New 1996
Uncoiler coil car480V 30 5 HP
Feed up rolls480V 30 3 HP
Recoiles coil car hydraulic480V 30 5HP
Main hydraulic unit480V 30 10HP
Main hydraulic cooler480V 30 1-1/2 + 1/4 HP
Recoiles hydraulic unit480V 30 5 HP
Uncoiler brake cooling unit480V 30 3/4 + 1/2 + 1/4 HP
Dust collector unit480V 30 20 HP
Total line current480V 30 60 HP 320 Amps. Approx
