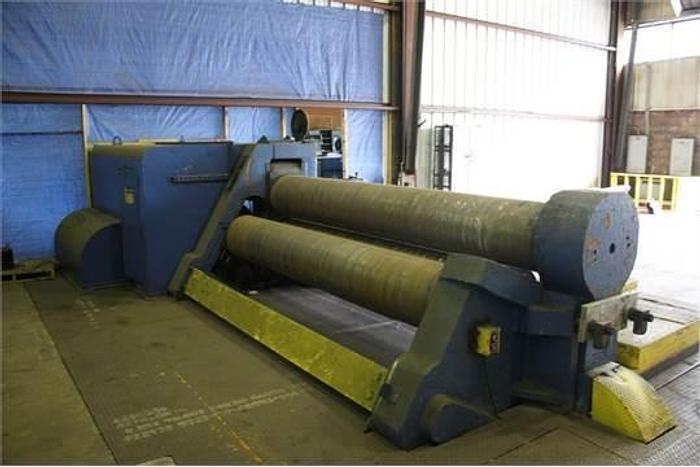

10' X 1-1/4´´ BERTSCH MODEL #18 HEAVY DUTY INITIAL PINCH PLATE BENDING ROLL (USED)

Name: 10' X 1-1/4´´ BERTSCH MODEL #18 HEAVY DUTY INITIAL PINCH PLATE BENDING ROLL (USED)
SKU: VX-23111
Availability: OutOfStock

Sold

Used 10' X 1-1/4´´ BERTSCH MODEL #18 HEAVY DUTY INITIAL PINCH PLATE BENDING ROLL (USED)

Specifications

Model	18
Condition	Used
Stock Number	VX-23111
Capacity	10' X 1-1/4"
Roll size	18" DIA.
Roll length	10'2"
Main drive motor	50 HP A.C.
Rear roll adjustment motor	25 HP A.C.
Approximate machine weight	80,000 LBS
Approximate machine dimensions	322"(LR) X 140"(FB) X 112"(H)

Description

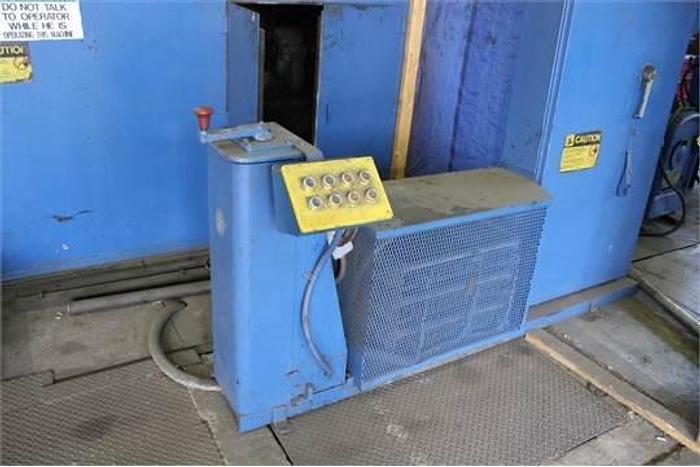

NEW 1976 EQUIPPED WITH --- DUAL CYLINDER HYDR. SYSTEM FOR COMBINATION DROP HINGE AND COUNTER BALANCE SYSTEM POWER ADJUSTMENT TO LOWER FRONT PINCH ROLL OPERATOR CONSOLE GRADUATED ADJUSTMENT TO ROLLS
