72´´ x .187´´ x 60,000 Lbs. Paxson Slitting Line (Used)

72´´ x .187´´ x 60,000 Lbs. Paxson Slitting Line (Used)

orCall (734) 854-8700

Description

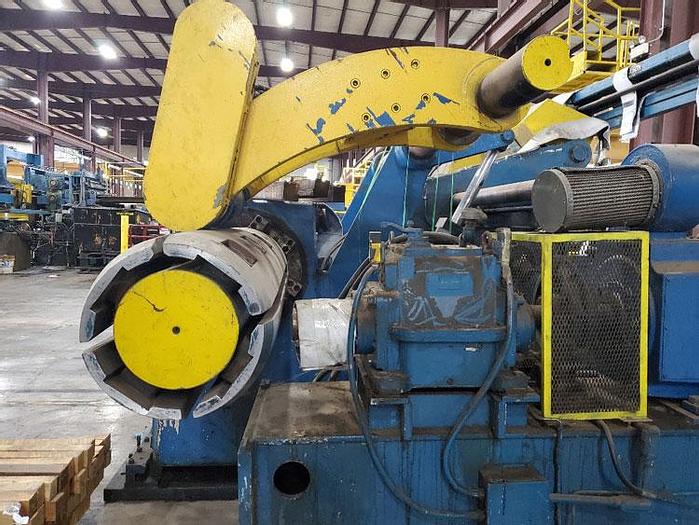

Max. Coil Width: Entry: 72" Min. Coil Width: Entry: 12" Thickness Range: 0.020" - 0.187" (Head #1) 075" - 0.375" (Head #2) Coil I.D.: Entry: 20" - 24" Consisting of the following: Mast Type Floor Mounted Self Contained Hydraulics Powered Lift and Traverse Narrow Coil Retaining Slots Pendant Control Cable Reel Uncoiler: Single Mandrel Type Hydraulic Expansion "Pumpkin Tooth" Segments Water Cooled Brake Slide Base Feedup Drive Holddown with Powered Snubber Roll Cooling System for Brake Entry Unit: Extending Blade Type Peeler Four (4) Roll Coil Breaker (8" Dia.) Powered Entry Side Guides Inspection Table Powered Exit Side Guides Crop Shear: Down-cut Type Powered Tamper Roll Scrap Ramp Scrap Cart Slitter Base: Powered Entry Pinch Rolls, 10" Dia. Powered Entry Side Guides Manually Adjustable Scrap Guides H & S Gearbox w/62.31:1 ratio, .927 SF 150 HP DC Motor, 1750/2000 RPM, 500V Two (2) Slitter Heads: Crane Removable Type Powered Outboard Retraction Powered Top Arbor Adjust Slitter Head #1: 9" Dia. Arbors Slitter Head #2: 12" Dia. Arbors Pit Section: Cross Over Table Two (2) Scrap Winders: Pro Eco Level Wind Automatic Scrap Dump 500" x 1" Capacity per Winder Tension Stand: Drag Type Recoiler Feed Table Recoiler: 20" Dia. Drum w/Risers for 24" Hydraulic Expansion and Gripper Hydraulic Pushoff Overarm Separator Lufkin Main Gearbox w/7.7:1 ratio Rated at 649 HP, 5.2 SF Two (2) Speed H & S Gearbox w/3:1 and 1:1 Ratios, 1.13 SF 150 HP DC Motor, 650/1900 RPM Exit Coil Car: Mast Type Floor Mounted Self Contained Hydraulics Powered Lift and Traverse Coil Stabilizing Arm Pendant Control Cable Reel Exit Turnstile: Two (2) Arms x 50,000# Each Arm Powered Rotation Slotted for C-Hook Provision for a Pulloff Assembly Electrical Controls: AC & DC Control Cabinets Drives new in 2016 Control Consoles: Main Operators Console Machine Mounted Auxiliary Operators Stations Slitter Tooling: Knives Rubbers Spacers Separator Tooling Two (2) Hydraulic Power Units Spare Parts for Recoiler Gripper Line is Removed and in Storage

Specifications

Year1999
ConditionUsed
Stock NumberVX-1685
MaterialsHRS, CRS, P & O
Max. coil weight50,000#
Max. shear45,000 PSI
Max. yield45,000 PSI
Exit20" & 24"
Max. coil o.d.72"
Line directionRight to Left
Mode of operationDriven
Entry coil carL & M
