48" SLITTING LINE COMPONENTS (USED)

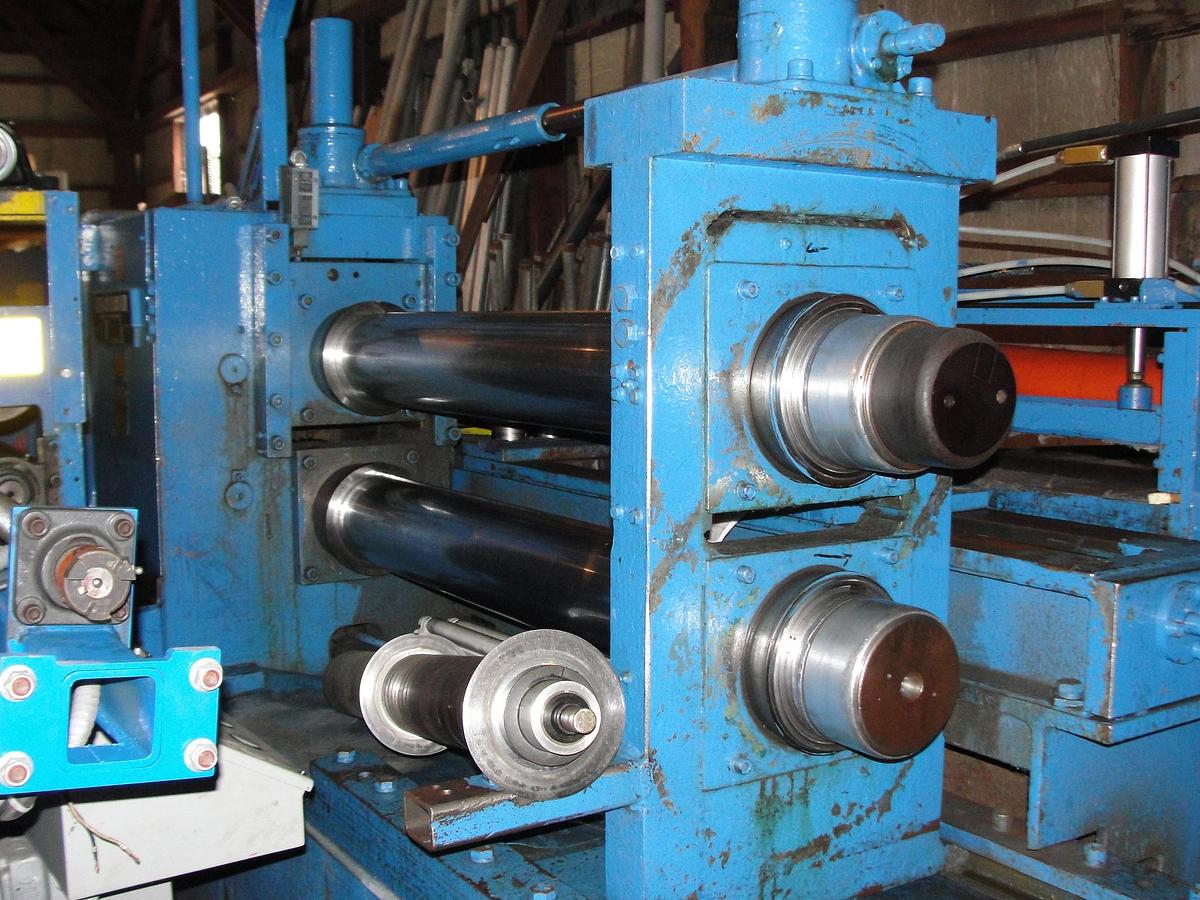

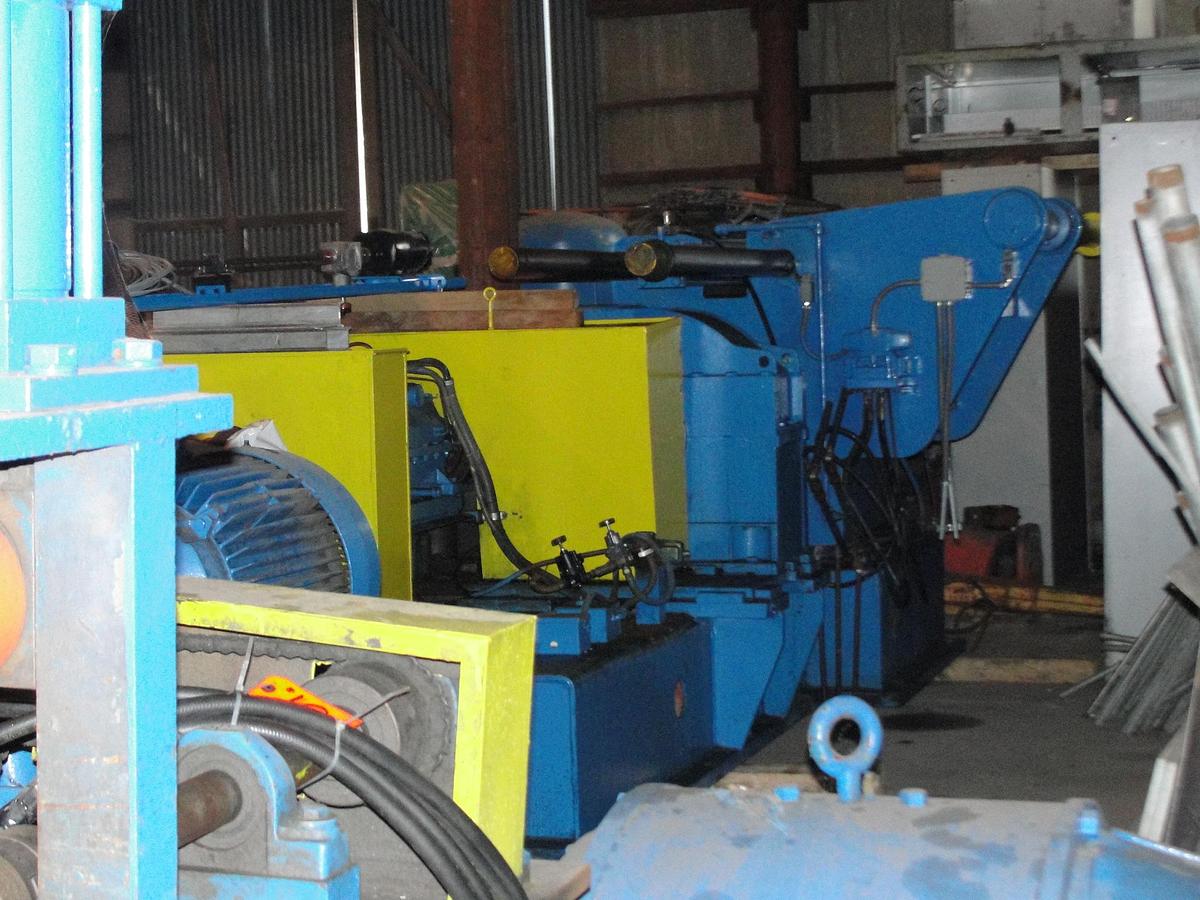

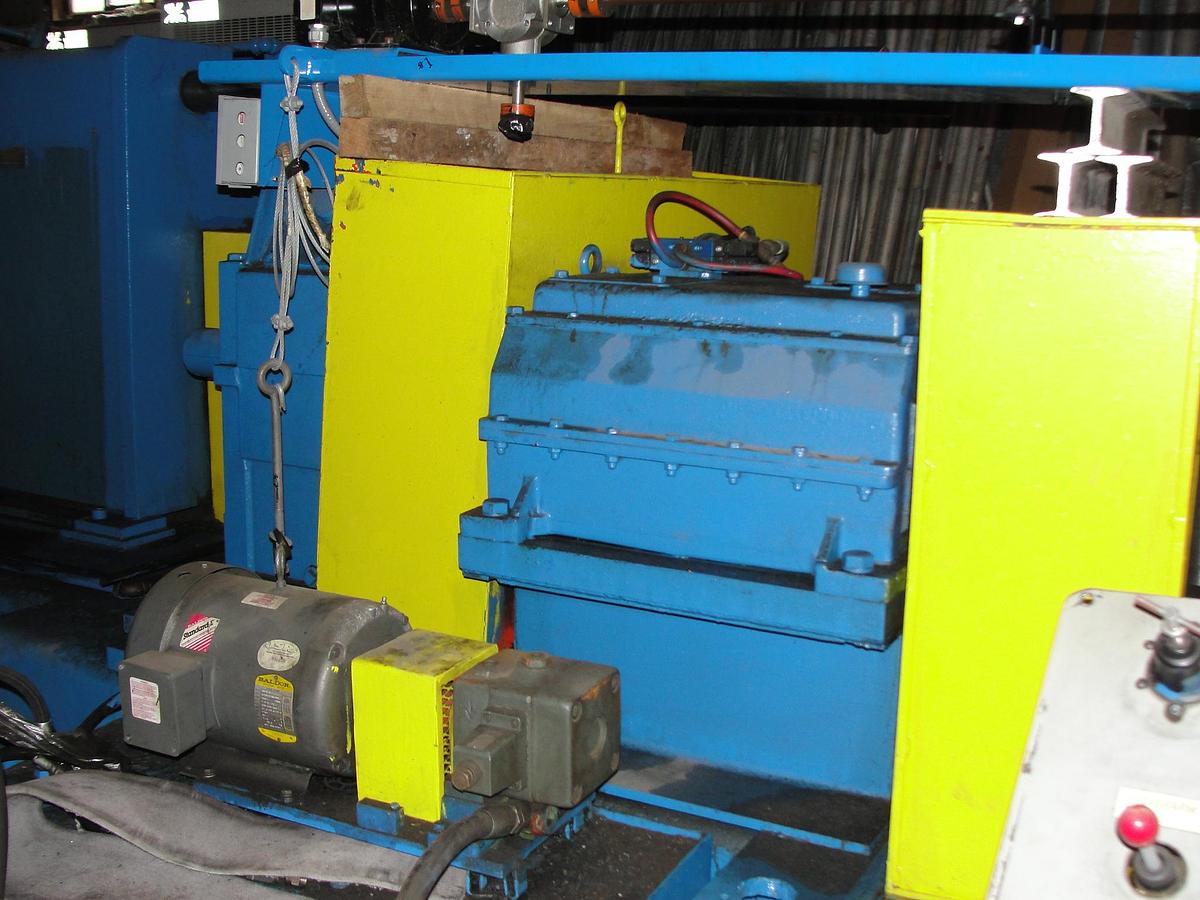

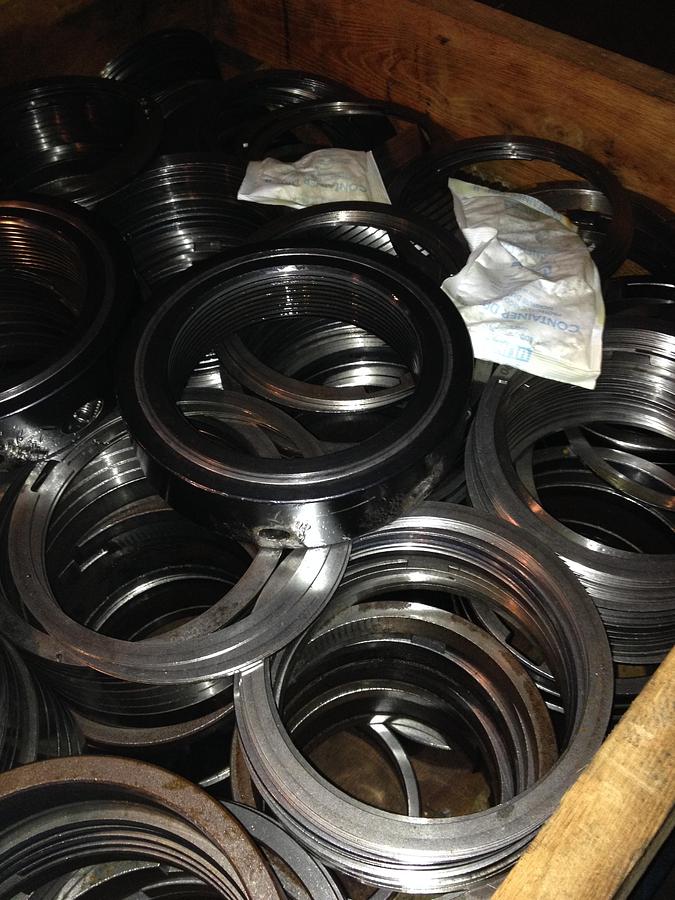

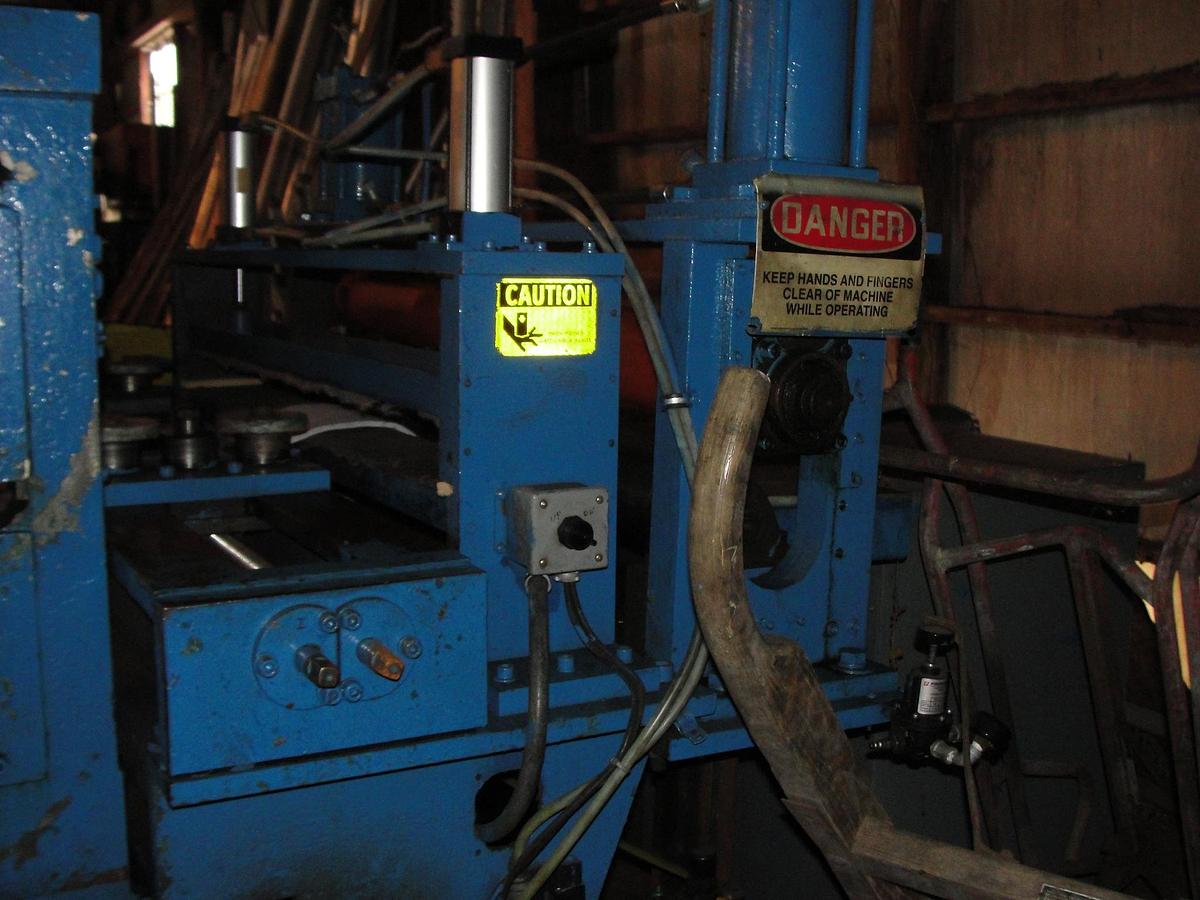

Includes: Slitter Head, Cincinnati, 7" Arbor (Tooling Included) Recoiler

48 – Slitting Line Capabilities

General specifications: Right to left flow

Capabilities are for Stainless Steel

Max. Coil weight Re-coiler: 20000 lbs.

Max. Coil width entry: 50.000 inches

Max. Coil width exit: 48.000 inches

Max. Coil OD Re-Coiler: 72.000 inches

Coil ID Range Entry: 20-24 inches only

Coil ID Range Exit:  20-24 inches only

Max. Gauge thickness: .135

Min. Gauge thickness:  .010

Slitting Capacity # of strips per gauge

.135 - .100 4 Cuts

.100 - .080 5 Cuts

.080 - .060 7 Cuts

.060 - .030 9 cuts

.030 - .010 9 Cuts

Min. slitting width is 1.500”

Min. trim to slit is .312

**The uncoiler, tension stand and lift table not included**
