18´´ x .050´´ x 5,000# Ruesch Loop Slitting Line (Used)
Sold
18´´ x .050´´ x 5,000# Ruesch Loop Slitting Line (Used)
Description

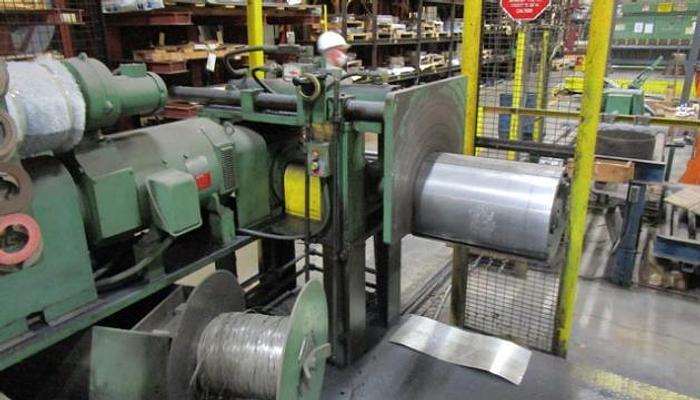

Gauge Range: 0.015" - 0.050" Widths Produced: 0.375" - 18" Complete Line with The Following: Mandrel Uncoiler Coil ID: 15.875" - 16" Sliding Base Pass Line Rolls Stanat Style Slitting Head Elevating Tension Stand Pad Type Recoiler Motor 100 HP 2 Speed Gearbox 2 Spare Drums - 10" & 12" Single Scrap Winder Complete Banding Line Horn Type Downlayer Powered Conveyor Banding Table with 3 Conical Rolls Signode Banding Head Exit Powered Conveyor Complete with Hydraulics, Electrics, Controls and Drawings Installed and Running
Specifications
| Condition | Used |
| Stock Number | VX-1659 |
| Minimum start width | 1.5" |
| Maximum start width | 18" |
| Maximum payoff weight | 5,000 Lbs. |
| Maximum rewind weight | 5,000 Lbs. |
| Coil od | 60" |
| Arbor diameter | 2.625" |
| Knife diameter | 7" |
| Coil id's | 18" |
| Coil od's | 40" Max. OD |
