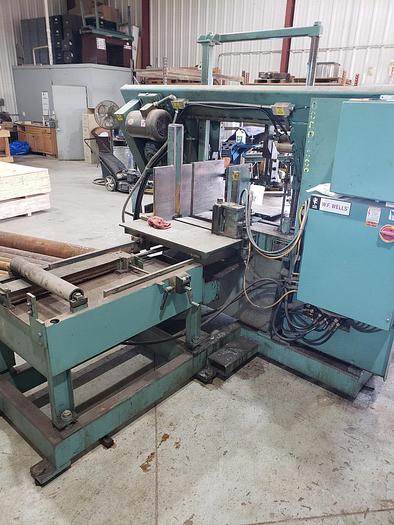

16" X 20" W. F. WELLS Model #F-16-2A TWIN POST AUTOMATIC FEED HORIZONTAL BAND SAW (USED)

orCall (734) 854-8700

Specifications

ManufacturerW. F. WELLS
ConditionUsed
Stock NumberVX-23526
MANUFACTURERW. F. WELLS
Weight Capacity5,000 Lbs.

Description

SPECIFICATIONS:

MANUFACTURER: W. F. WELLS

Model F -16-2A

TWIN POST HORIZONTAL BAND SAW.

Capacity: Rectangular at 90° 16″ High x 20″ Wide, Round at 90° 16″ Diameter

Rectangular at 45° 16″ High X 9″ Wide, Round at 45° 9″ Diameter

Weight Capacity: 5,000 Lbs.

Blade Speed: 60-425 SFPM

Blade Size: 1¼” X .042″ X 15′

Blade Guide: Rollers and Carbide Side Blocks

Blade Tension: Hydraulic

Band Wheel Size: 20″

Vise: Full Stroke Hydraulic, 8-1/2”

Blade Drive: 7½ HP, AC Vector Drive

Sawing Force:0-750 Lbs.

Coolant Capacity:15 Gallons

Hydraulic Capacity: 20 Gallons

Hydraulic Drive: 2 HP Motor

Work Height: 26″

Shipping Weight: 2,450 Lbs.

Electrics: Wired to NFPA 79 Machine Tool Standards

Machine Dimensions: 97″ Length x 49″ Width x 83″ Height
