72" X .021"-.135" x 40,000 LBS. B&K MULTI BLANK LINE (USED)

72" X .021"-.135" x 40,000 LBS. B&K MULTI BLANK LINE (USED)

orCall (734) 854-8700

Description

General Specifications:

Manufacturer: B&K

Year Manufactured: 2007

Width: 72"

Gauge Range: .021"- .135" (Line mostly ran .019"-.071")

Weight Capacity: 40,000 Lbs.

Line Speed: 250 FPM

Line Direction: Left to Right

Line is Operating and in Production


Line Includes:

Coil Car

Uncoiler

  74" Wide

  40,000 Lb. Weight Capacity

  19"/25" Hydraulic Drum

  Hydraulic Feed Up Air Clutch & Brake

  Hydraulic Slide Base

Peeler/Holddown Unit

  24" Wide Blade

  Hydraulic Up/Down & In/Out

  Driven Holddown

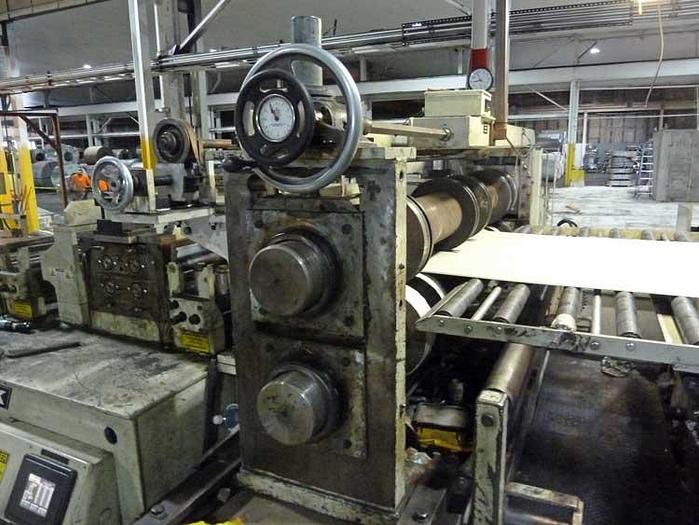

6-HI Leveler

  84" Wide

  .021" to .135"

  7 Motorized Banks of Back Ups

  1.75" Diameter

  19 Roll

  6-HI

  150 HP AC Motor

  Touch Screen Leveler Adjust

  Quick Open Screw Jack

  6" Diameter Pinch Roll

Feed Roll

  Digital Length Adjust

  Batch Size

  Diagnostic

  30 HP AC Motor (Approximate)

Slitter

  7-1/2" Diameter Arbor

  114 HP AC Motor

Scrap Winder

Shear, 40 Strokes Per Minute

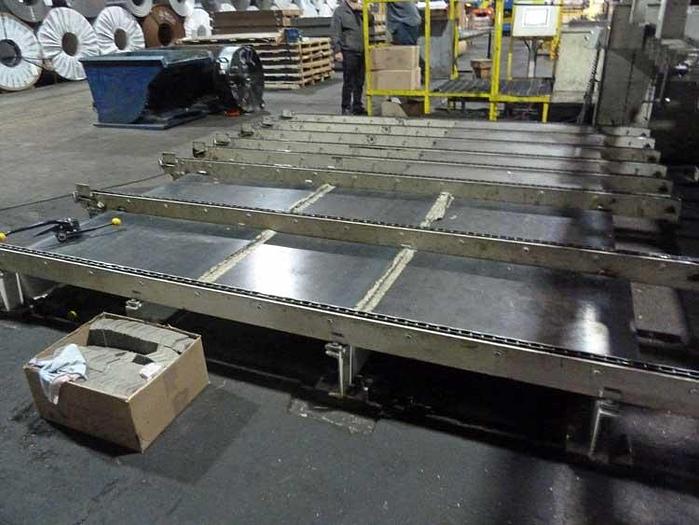

Stacker

  10,000 Lb.

  168" Length


Specifications

ManufacturerB&K
Year2007
ConditionUsed
Stock NumberVX-2280
