2450 mm x 25 mm x 35 Ton Cut to Length Line (Used)

General Specifications:

Year of Manufacture: 2010

Material: Hot Rolled Steel (SS, S55C, SPAH, DAS, ATS ETC.)

Material Thickness: 3.2mm - 25mm

Coil Weight Capacity: 35 Ton

Coil Width Capacity: 900mm - 2500mm

Coil I.D.: 508mm, 610mm, 762mm, 812mm

Coil O.D.: 1,000 - 2,400mm

Plate Length: 2,000 - 24,000mm

Threading Speed: 10 MPM

Working Speed: 27 MPM/17 MPM (2- Step Changelable)

Primary Motor Power: 380V; 3-Phase; 60 Hz(460V for D.C)

Line Includes:

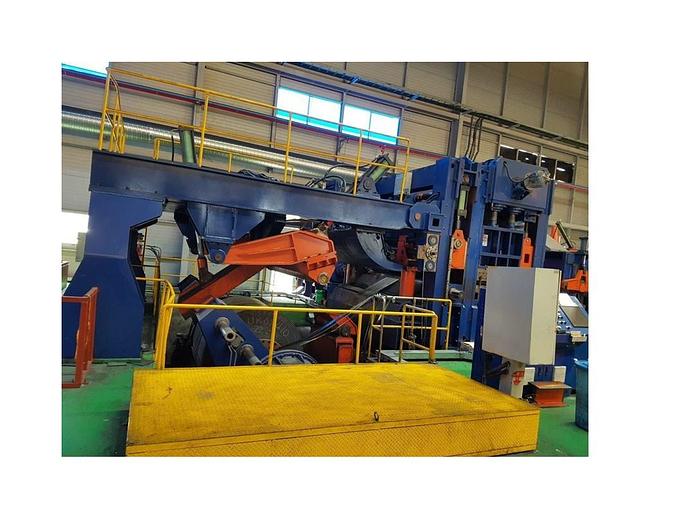

Coil Car

Uncoiler

-45kW/66kW x 2 Sets, DC

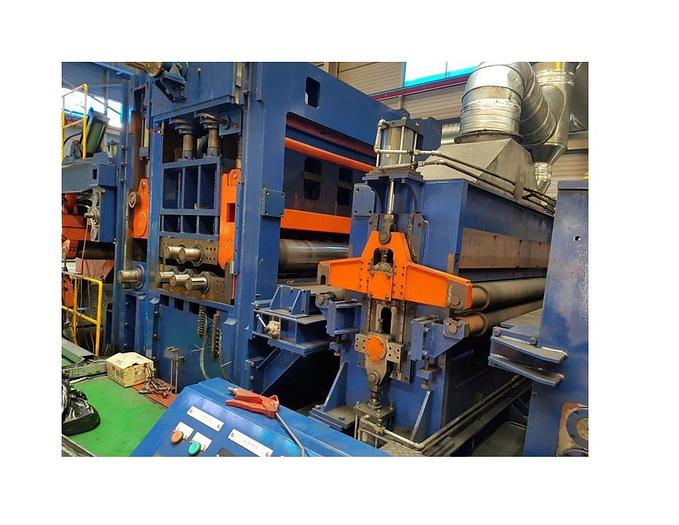

Entry Pinch & Flattener (2 Over 3)

Surface Brushing Unit w/ Dust Collector

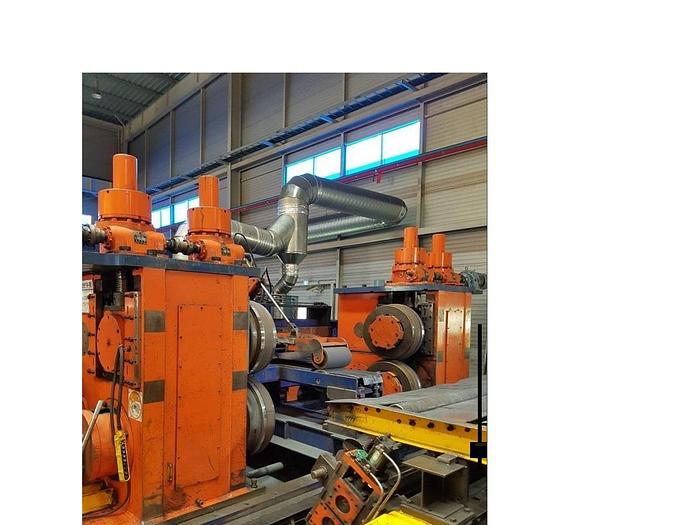

Side Trimmer & Scrap Chopper w/ Disposal Unit

Threading Table

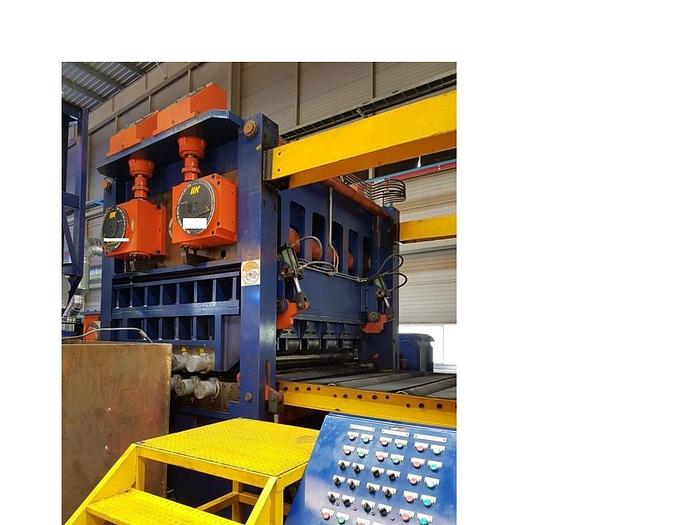

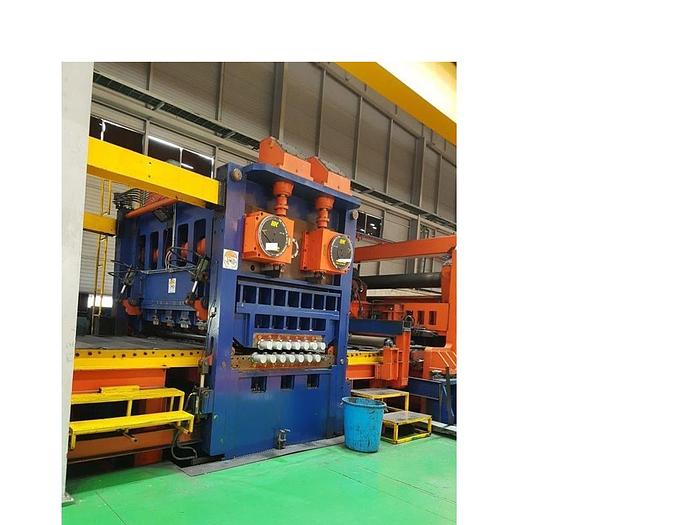

1st Finish Leveler

-264kW DC

Threading Table

2nd Finish Leveler

-266kW DC

Threading Table

Strip Press Roller

Measuring Roller

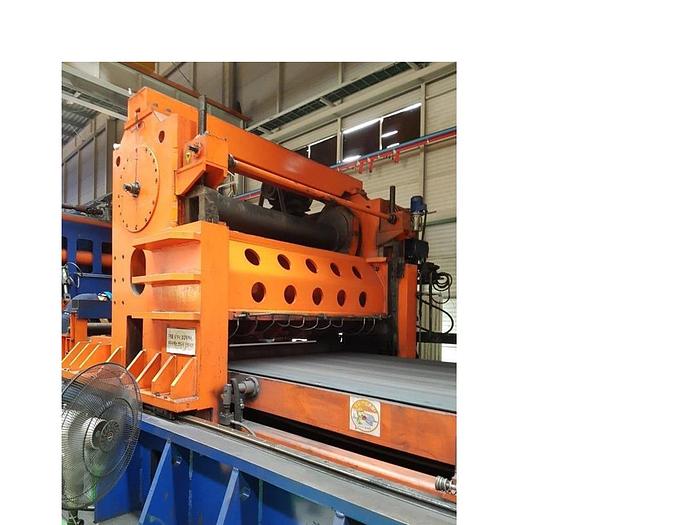

Flying Shear with Traversing Device

-75kW AC (Cutting); 55kW Servo (Traversing)

Run-out Belt Conveyor

Reject Table with Scrap Shoot

Inspection Table

Setting Roller before Stacking

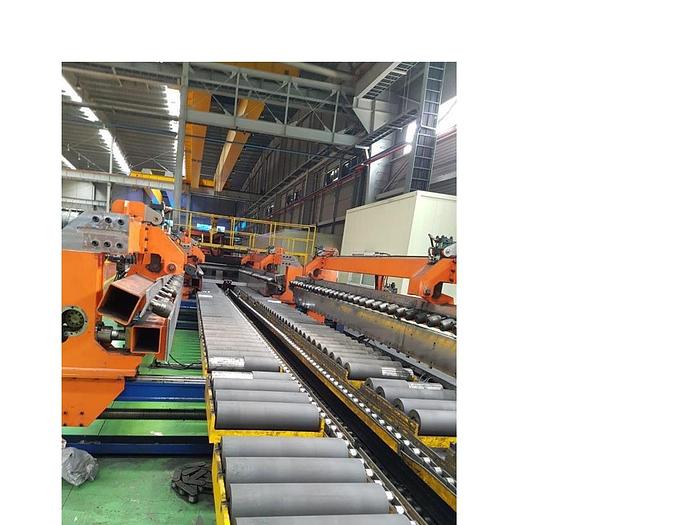

Number 1&2 Stackers

-Stacking Roller Conveyor for Short Plate

-Stacking Roller Conveyor for Long Plate

Receiving Table

Exit Conveyor

Hyd. Control Unit (Entry Delivery)

Electric Control Panel (Motor Drive, AC control, Servo Control, PLC, Auxiliary)

Operation Desk (Entry Leveler, Side Trimmer, Shear, & Stacker)
