60" x .060" x 40,000 Lb. Sesco/Voss Cut to Length Line (Used)

General Specifications:

Year of Manufacture: 1985

Material: Stainless, Pre-Painted, Smooth & Embossed

Material Yield Strength: 40,000 PSI

Material Width: 12" - 60"

Material Thickness: 0.015" - 0.060"

Coil Weight: 40,000 lbs. Max.

Coil I.D.: 20" - 24"

Coil O.D.: 72" Max.

Sheet Length: 144" Max.

Line Direction: Left to Right

Consisting of:

-Entry Coil Car/Upender: Sesco

 Electro-Mechanical

 Hydraulic Operation

-Uncoiler: Sesco

 40,000 lb. Capacity

 Hydraulic Expansion

 3 Segment Mandrel

 Holddown Arm

 Threading Drive

 Brake

-Peeler Table: Sesco

 Hydraulic Cylinder Actuated

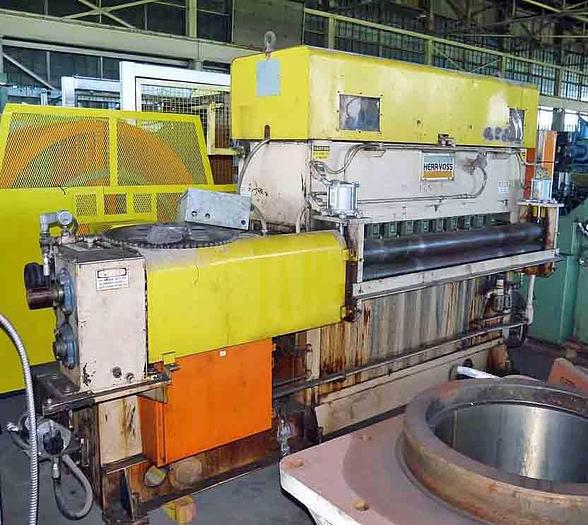

-Precision Leveler: Herr Voss;

 6 HI

 Model: Keystone 72/1.156-19/11, 6 HI, LH

 Capacity: 0.015" - 0.060", 40,000 PSI Yield

 19 Work Rolls

 1.156" Dia. x 72" Face Width

 11 Flights of Backups

  9 Flights Motorized with Joystick Controls

 50 HP Reliance DC Motor

  1750/2100 RPM, 500 V

 Line Speed: 200 FPM Max.

-Pneumatic Pit Threading Table: Sesco

-Servo Feed: Sesco

 Entry & Exit Side Guides

 Manual Adjustment

 Indramat Servo Motor, 12 HP AC

 Feed Accuracy +/- 0.005"

 Trabon Automatic Lube System

-Shear: Sesco

 Straight Rake Top Blade

 4 Edge Blades

 Hydraulic Cylinder Actuated

-Stacker: Sesco

 Capacity: 12" - 144" Long Sheets

 Sheet Support Rollers

 Powered Lift Table

 Air Blower

 Side Discharge

-Pallet Insertion System: Sesco

 Entry Chain Conveyor

 Exit Chain Conveyor

-Removed and in Storage:
