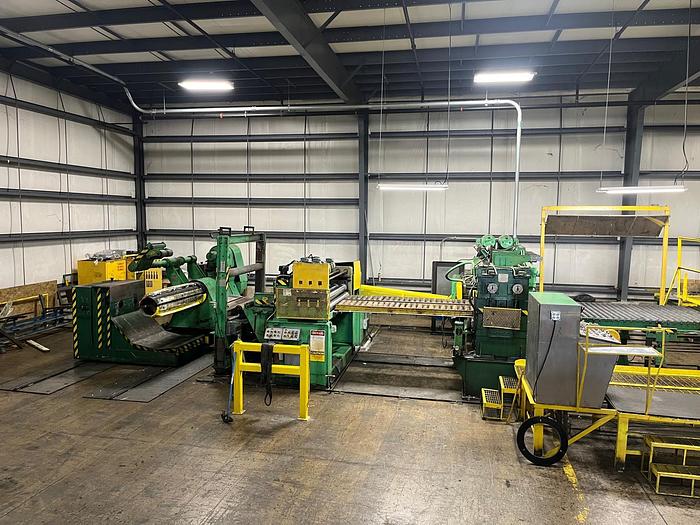

60" x 30,000 Lbs. McKay Cut to Length Line (Used)
![Used 60" x 30,000 Lbs. McKay Cut to Length Line (Used)](https://i.machineryhost.com/3f4366aeb9c157cf9a30c90693eafc55/eae1ef9b36ee9f18018b05da8f45a0c5/large-used-60-x-30-000-lbs-mc-kay-cut-to-length-line-used.jpg)
60" x 30,000 Lbs. McKay Cut to Length Line (Used)
Description
General Specifications:
Manufacturer: McKay
Width: 60"
Gauge Range: 12 gauge Stainless
Weight Capacity: 30,000 Lbs.
Line Direction: Left to Right
Material Thickness: .022" Max. to .179" Min.
Incoming Coil Width: 60" Max. 12" Min.
Incoming Coil Weight: 30,000 # Max.
Incoming Coil OD: 70" Max.
Incoming Coil ID: 20" to 24"
Sheet Length: ___" Min to 192" Max.
Pack Height: 24" Max. (Including Dunnage)
Line Speed: 0-100 FPM (Variable)
Leveler Type: 7 Sets Backup Rolls
Line Includes:
Uncoiler
64” Drum
30,000 Lbs. Weight Capacity
Slide Base with Attached Holddown
Hydraulic Expand
Collapse
10” Shaft with Forward Bearing
16”-20” ID Collapsed with Pads
Leveler
66” Roll Face
7 Banks of Back Ups, 5 Adjustable
6-HI
50 HP Motor
Spare Set of Work Rolls
Shear, Downcut
66” Blade
Air Clutch & Brake Cutoff Shear
Positive Stop Design
55” x 8” Diameter Pinch Rolls
Flattener, Wean
3 Over 2 Design
75” Roll Face
5-1/2” Diameter Roll
Coil Car, Wean United
45” Wide Bed
80” OD (Approximate)
30,000 Lbs. Capacity
Belt Conveyor, 64” Feed
Drop Stacker with Positive Stop, has 62” Driven Conveyor
Updated Computer Read for Length Tolerance Within +/- .062
Additional Shear Blades (New in Box)
Plenty of Replacement Rolls (Work Rolls and Backup Rolls)
Specifications
Manufacturer | McKay |
Condition | Used |
Stock Number | VX-2425 |
