60" X 3/16" X 50,000 LBS. PRO-ECO CUT TO LENGTH LINE W/CASSETTE LEVELER (USED)

orCall (734) 854-8700

Specifications

ManufacturerPro-Eco
Year1985
ConditionUsed
Stock NumberVX-2432

Description

GENERAL SPECIFICATIONS:


MANUFACTURER - PRO-ECO

YEAR - 1985, REINSTALLED 2002

WIDTH RANGE - 8" to 60"

GAUGE RANGE - .024" to .187"

WEIGHT CAPACITY - 50,000# (25 TON)

COIL OD - 36" to 72"

COIL ID - 19" to 24"

SHEET LENGTH - 24" to 168"

SHEET WIDTH - 8" to 62"

PACK HEIGHT - 30" (INCLUDING DUNNAGE)

PACK WEIGHT - 20,000#

LINE DIRECTION - RIGHT to LEFT

LINE SPEED - 50 to 300 FPM (VARIABLE)

LEVELER TYPE - MECHANICAL WEDGE STYLE w/ TWO CASSETTES

VIDEO OF THIS MACHINE CAN BE FOUND HERE


LINE COMPONENTS:


FOUR ARM ENTRY STORAGE TURNSTILE


FLOOR LEVEL COIL LOADING CAR


CANTILEVERED MANDREL UNCOILER w/ WATER COOLED BRAKE


PIVOTING AND TELESCOPING PEELER BLADE


ENTRY PINCH ROLLS


ROLLER TYPE SIDE GUIDES


ENTRY CROP SHEAR


SIDE TRIMMER HYDRAULIC SERVO DRIVE (CURRENTLY NOT OPERATIONAL)


MECHANICAL STYLE LEVELER FRAME W/ 200 HP MOTOR


CASSETTE #1 - 19 ROLL, 2.50" DIAMETER, 5 HI, 7 BACKUP FLIGHTS


CASSETTE #2 - 19 ROLL, 1.75" DIAMETER, 5 HI, 7 BACKUP FLIGHTS


STRIP INSPECTION AND CARRY-OVER TABLE w/ NON-MARKING ROLLS


LOOPING PIT QUADRANT TABLES w/ NON-MARKING ROLLS


ROLLER TYPE STRIP SQUARING TABLE


PRECISION ROLL FEEDER W/ 55 HP MOTOR


HIGH SPEED MECHANICAL CUT OFF SHEAR W/ 40 HP MOTOR


BLANK INSPECTION CONVEYOR w/ NON-MARKING BELT


REJECT BELT CONVEYOR w/ NON-MARKING BELT AND SCRAP CART


14 FOOT AIR FLOAT STACKER w/ SQUARING GUIDES AND END STOP


14 FOOT STACKER LIFT CONVEYOR w/ END DISCHARGE ROLLERS


14 FOOT STACKER RUNOUT CONVEYOR w/ END DISCHARGE ROLLERS

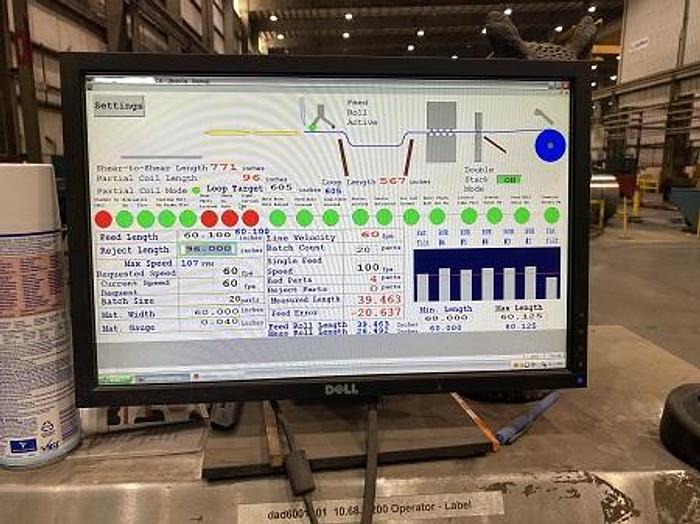

OPERATOR CONTROL STATIONS


UPDATED AC CONTROLS w/ ALLEN BRADLEY "CONTROL LOGIX" PLC (2006)


UPDATED DRIVE CONTROLS w/ SIEMENS "SIMOREG" CONTROLLERS (2006)


CLOSED LOOP HYDRAULIC SYSTEM


CLOSED LOOP WATER COOLING SYSTEM
