10" x .250" Edging Line (Used)

orCall (734) 854-8700

Specifications

ConditionUsed
Stock NumberVX-12101

Description

General Specifications:

Coil Width: 2" - 10"

Gauge Range: .064" - .250"

Coil Weight: 10,000 lbs.

Line Direction: Left to Right

Operation: Coil to Coil or Coil to Strip


Consisting of the following:


-Coil Lift:

 Lift only, no travel

 30" Wide Deck

 6" Bore x 24" Stroke Hydraulic Lift Cylinder

 2 Coil Keepers


-Uncoiler:

 16" - 20" Expansion Range

 Hydraulic Expansion

 Air Brake

 Hydraulic Threading Drive

 Hydraulic Slide Base

 Self-contained Hyd. unit

 Overall Size W/Coil Lift: 128" L x 98" W x 86" High


-Peeler / Holddown Unit:

 14" W Peeler Blade

  Hydraulic Cylinders for up/down, in/out movement

 14" Face x 6" Dia. Rubber Coated Holddown Roll

  Hydraulic Cylinder Raise/Lower

 Overall Size: 165" L x 53" W x 93" High


-Edging Unit:

 Entry Passline Roll

 Entry Edge Guides,

  Manual Handwheel Adjustment

  3 Roll set per bank

 Manually positioned strip holddown screw

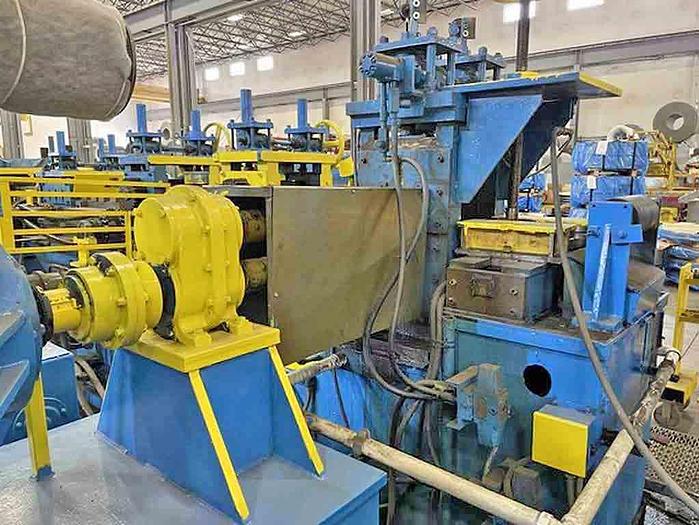

 4 HI Rolling Mill:

  4.5" Dia. Work Roll, 13" Face

  10" Dia. Backup Roll, 13" Face

  Hydraulic Motor Adjusted Screwdowns

  200 HP DC Motor Driven, W/Blower

  Coolant pump and tank in the base

  Free standing cooling unit

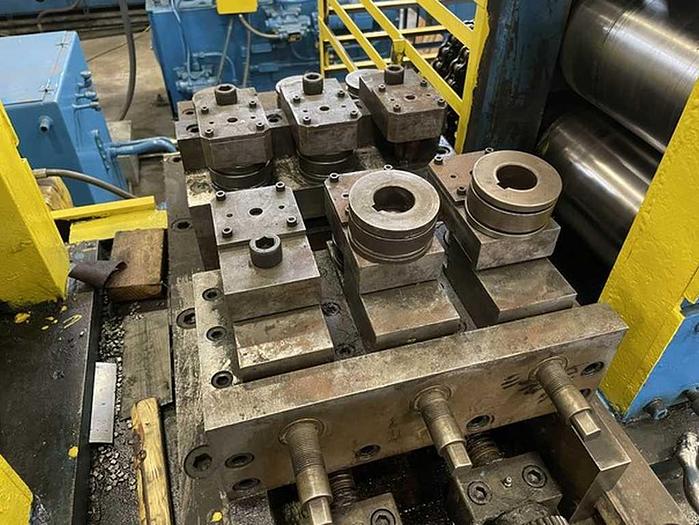

 Edging Die Set #1

  3 Roll set per bank

  "Missing the top die retainer block on 3 units"

  Single point adjustment for both banks of dies

  Operators side each die is independently adjustable

 2 HI Mill #1

  8" Dia. Work Roll,

  Manual screw down Adjustment

  Hydraulic Motor Driven, bottom roll

 Edging Die Set #2

  3 Roll set per bank

  Single point adjustment for both banks of dies

  Operators side each die is independently adjustable

 2 HI Mill #2

  8" Dia. Work Roll,

  Manual screw down Adjustment

  Hydraulic Motor Driven, bottom roll

 Decambering Section

  Operators side bank; 5 sets of dies

  Drive side bank; 4 sets of dies

  7 total dies make up the decambering section

  Dies #8 and #9 are set up as an edging section and are

    independently adjustable

  Single point adjustment for the entire bank in and out

 Straightener Unit

   4" Dia. Rolls, 3 over 2

   Bottom Rolls chain driven from 2 HI Mill Stand

 Exit Passline Roll

 Overall Size - Edging Mill: 192" L x 62" Wide x 95" High

         4 Hi Mill Stand Drive: 110" L x 45" W x 86" High


-4 Post Cutoff - Proma:

 60 Ton Capacity

 Model 60 CP-2

 13" Max. Shut Height

 4" Stroke

 25 Cuts/Min.

 11.5" Between Posts

 12" Shear Blade w/Hydraulic Cylinder Die return

 15 HP AC Motor, 1175 RPM, 230/460 V

 Exit Passline Roll

 Overall Size: 103" L x 72" W x 78" High


-Runout Conveyor Section: 15' long

 Hydraulic Cylinder dump


-Stacker Table: 15' Long


-Drag Tension Stand:

 Air Cylinder for Pad Tension

 Exit Passline Roll

 Passline Height: 62"

 Overall Size: 41" L x 32" W x 81" High


-Recoiler - Ruesch:

 Model: N2915

 Serial: 6229

 20" Dia. x 32 Face Mandrel

 Manual Grip & Expansion

 Hydraulic Slide Base

 Hydraulic Pushoff

 Overarm Separator

 125 HP DC Motor, 650 / 1500 RPM, 400V, W/Blower

 Internal Reducer w/24.77:1 ratio

 Overall Size: 149" L x 74" W x 82" High


-2 Arm Turnstile:

 C-Hook Type Arm

 40" Arm Length

 Manual Rotation

 Powered Pushoff

 Overall Size: 115" L x 48" W x 71" High



-Main Operators Control Panel:

 Overall Size: 46" L x 25" W x 43" High


-Hydraulic Power Units: (3) total


-Spare Mill rolls:


-Edging Dies:


-Line is removed and in storage
