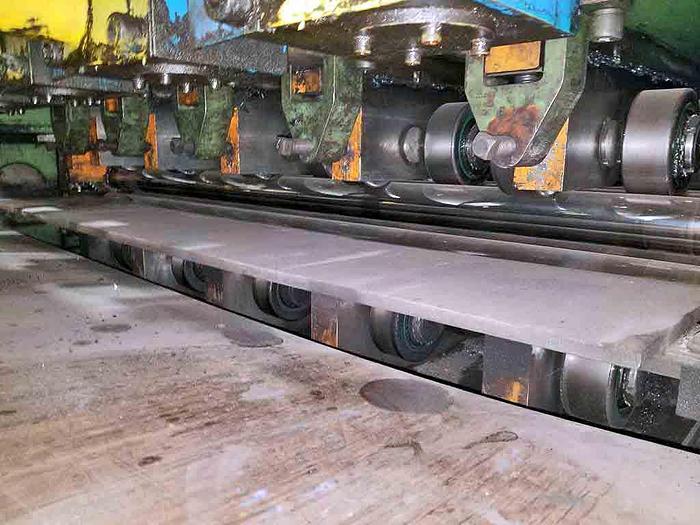

72" X .341" Herr-Voss Leveler (USED)

Specifications:

Manufacturer: Herr-Voss

Year: 1987; Rebuilt in 2007 (by Herr-Voss)

Model: VKL 84/3.500-13/5 - 4 HI, RH

Capacity: 72" x 0.067" - 0.341"

      0.341" Thick @ 50,000 psi

      0.222" Thick @ 80,000 psi

Roll Face: 84"

Roll Diameter: 3.500"

Number of Rolls: 13 (6 over 7)

Roll Spacing: 4.25"

Number of Backups: 5 Flights, Motorized

Pinion Box Rebuilt 2021

150 HP Main DC Drive Motor, 1150/2000 RPM, 500 V, W/Blower Less SCR Drive

Foote-Jones In-Line Reducer with 11.53:1 ratio

Overall Size: Leveler - 150" L x 88" W x 108" High; 35,000 lbs.

        Universal Drive Stand - 81" L x 60" W x 64" High; 16,000 lbs.

        DC Motor/Reducer - 105" L x 36" W x 70" High

Main Operators Panel:

Line Direction: Right to Left
