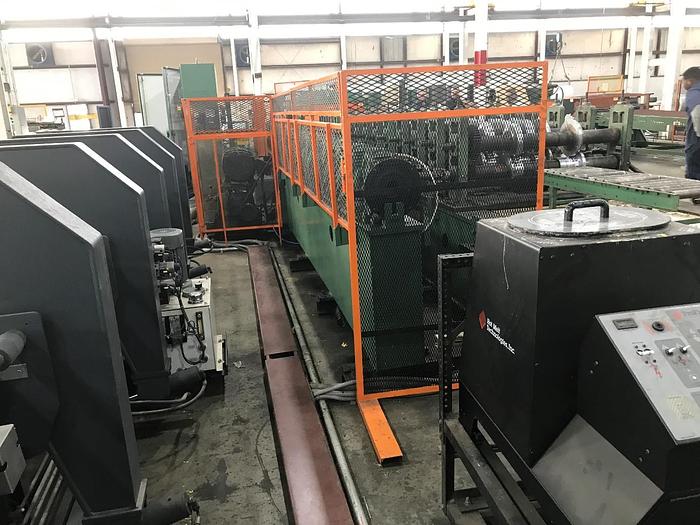

48" Bradbury "Single High" Roll Former RF1021R (Used)

Year of Manufacture: 1980

Model: 425

Materials: Painted, Galvanized

Max. Coil Width: 48"

Thickness Range: .017- .035"

Max. Yield: 80,000PSI

Line Direction: Right to Left

Arbor Diameter: 4"

Horizontal Centers: 18"

Vertical Adjustment: 6- 11"

Line Speed: 0- 120FPM

Dimensions: 130" W x 359" L

Roll Former Base #1

64" W x 178" L

Roll Former Base #2

64" W x 160" L

Gearbox Assembly #1

Nine (9) Passes

DC Motor

Gearbox Assembly #2

Nine (9) Passes

Raft #1 (Entry)

Crane Removable

Powered Feed Rolls

Manually Adjustable Guide Table

Two (2) Stands

Raft #2, 3, 4

Crane Removable

Three (3) Rafts with four (4) Stands each

Raft #5, 6, 7

Crane Removable

Three (3) Rafts with six (6) Stands each

*Mill only, no Uncoiler, Flattener, Cut-off or Electrical Controls included

All equipment sold "as is, where is" in storage
