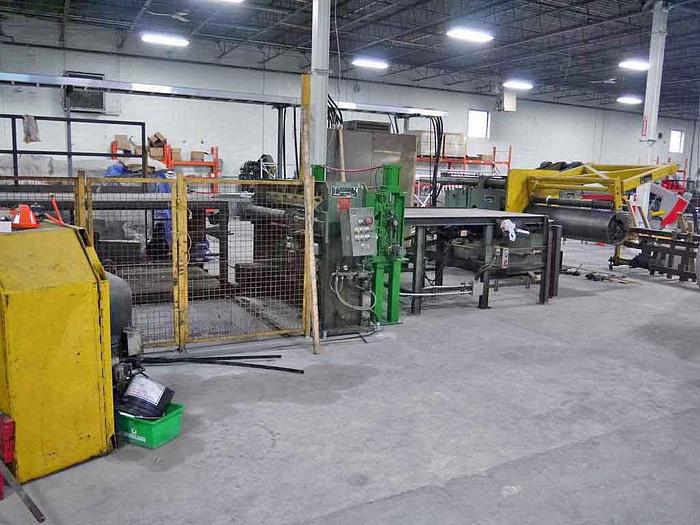

60" x 7.00" x 40,000# Loopco Slitting Line (Used)

60" x 7.00" x 40,000# Loopco Slitting Line (Used)

orCall (734) 854-8700

Description

Width:           60"

Weight Capacity:      40,000#

Coil I.D. Entry:      19.50" - 24"

Coil I.D. Exit:      20"

Line Speed:        300 and 600 FPM

Line Direction:      Left to Right


Consisting of the following:


-Loopco "L" Type Coil Car:

 Self Contained Hydraulic Power Unit

 Hydraulic Motor Travel

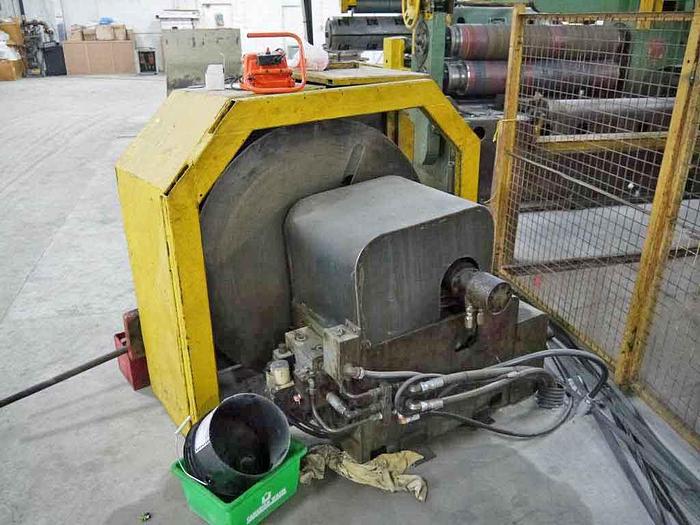

-Loopco Mandrel Uncoiler:

 Hydraulic Expansion

 Powered Overarm Holddown Roll

 Sliding Base

 Water Cooled Brake

 Feedup Drive


-Loopco Entry Unit:

 Peeler Table

 Driven Pinch Rolls

 Roller Side Guides


-Loopco Slitter Head:

 Crane Type Removable (1 Head)

 7" Dia. Arbors

 AC Gear Motor Threading Drive


-(1) Scrap Winder:

 Hydraulic Motor Drive


-Pit Cross Over Table:


-Loopco Drag Board Tension Stand:

 Air Bag Tension Type

 Exit Driven Pinch Rolls


-Cross Over Table to Recoiler:


-Loopco Recoiler:

 20" Dia. Drum

 Hydraulic Expand & Grip

 Overarm Separator

 2 Speed Reducer w/34.34:1 & 17.17:1 Ratios

 75 HP DC Motor, 650 - 2000 RPM, 500 V


-2 Arm Turnstile


-Slitter Tooling and Tooling Cart


-Hydraulic Unit


-Controls


-Line is Installed


Specifications

ManufacturerLoopco
ConditionUsed
Stock NumberVX-1729
