60" x .135" x 40,000 Lb. Stamco Slitting Line (Used)

60" x .135" x 40,000 Lb. Stamco Slitting Line (Used)

orCall (734) 854-8700


General Specifications:

Original Manufacturer: Stamco

Year of Manufacture: 1982

Materials: Stainless, Aluminum

Max. Coil Weight: 40,000-Lb.

Coil Width: 60"

Coil O.D.: 72"

Coil I.D.: 20"

Strip Thickness: 0.016”-0.135” (SS), 0.016”-0.190” (AL)

Arbor Size: 7” (2 Drop-in Style Driven Slitting Heads)

Loop Pit: 20’-30’ Required

Line Includes:

(1) CoilPro 4-Arm Powered Turnstile, 44,000 lbs/arm Capacity

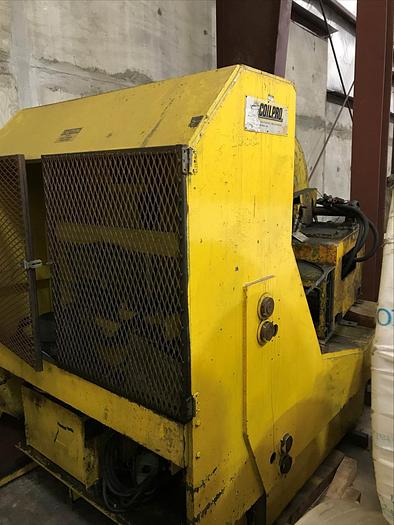

(1) CoilPro Coil Car, 40,000 lbs Capacity

(1) Stamco 40,000-Lb Uncoiler, w/ Peeler Arm and Custom Paper Unwinder

(1) Stamco 60" x 10-Gauge Shear with Rake Angle Adjustment and

Entry and Exit Feeder Rolls

(1) Stamco Tension Stand

(2) Stamco 60"W Slitting Heads with Shared 75 hp Drive Motor

(2) Stamco Scrap Rewinders

(1) K & S 60'W Slitter Tension Stand

(1) CoilPro Feeder Roll

(1) Stamco Rewinder, with Keeper Arm; and Horsburgh & Scott Gear Box,

(1) Stamco Single Arm Turnstile with Push-Off

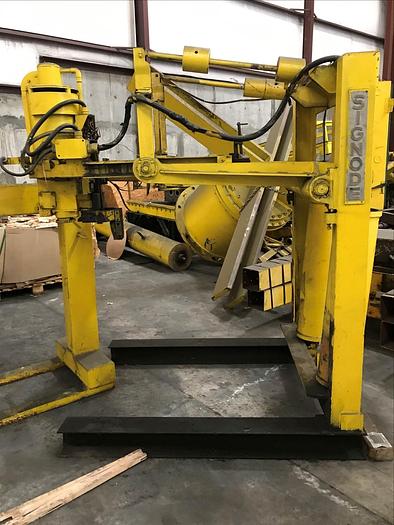

(1) Signode Automatic Coil Bander with Conveyor and Coil Tipper

(1) Stamco Single Arm Turnstile

(1) Operator Push-Button Control Panel; with Spare Tooling; and Dies


Stock NumberVX-1730
