48" x 25,000 Lb. Wean Driven Loop Slitting Line (Used)

48" x 25,000 Lb. Wean Driven Loop Slitting Line (Used)

orCall (734) 854-8700


General Specifications:

Width: 48"

Gauge: .020" - .187"

Maximum Coil: 25,000 Lbs.

Line Direction: Left to Right

Consisting of:

Entry Coil Car:

  Above Floor Type

  Self-Contained Hydraulics


 Hydraulic Expansion

  (4) Segment Mandrel

 16" - 20" I.D. w/Pads for 24"

 AC Motor Threading Drive w/Air Clutch Brake

 Sliding Base

Holddown Roll Unit:

  Rubber Covered Roll, Hyd. Motor Driven

Peeler Table:

 Hyd. Cylinder Operated

  Attached to Crop Shear Base

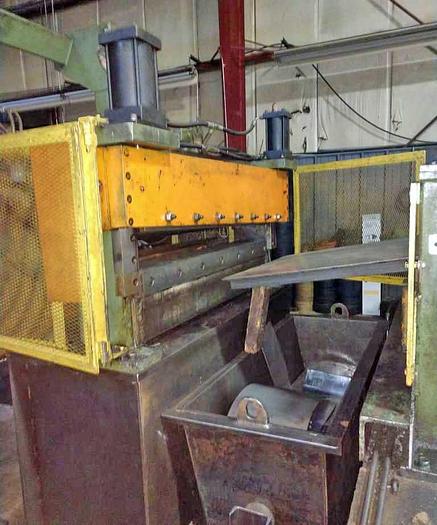

Crop Shear:

 Hydraulic Cylinder Actuated

  Downcut Design

Slitter Head:

 7" Dia. Arbors

 Entry Pinch Rolls

  Entry Side Guides, Manual Adjustment

  Parallel Arbor Adjustment

  AC Motor Threading Drive

Scrap Winder:

 Oscillate Wind

  Hydraulic Motor Driven

  Manual Scrap Ball Removal

Recoiler: Cauffiel

  20" Dia. Drum

 Manual Clamp and Expansion

 Hydraulic Pushoff

 Drive Motor Belt Driven to Reducer

Freestanding Overarm Separator:

Exit 3 Arm Turnstile

 Hydraulic Pushoff

  Powered Rotation


Slitter Tooling:

In Storage


Stock NumberVX-1732
