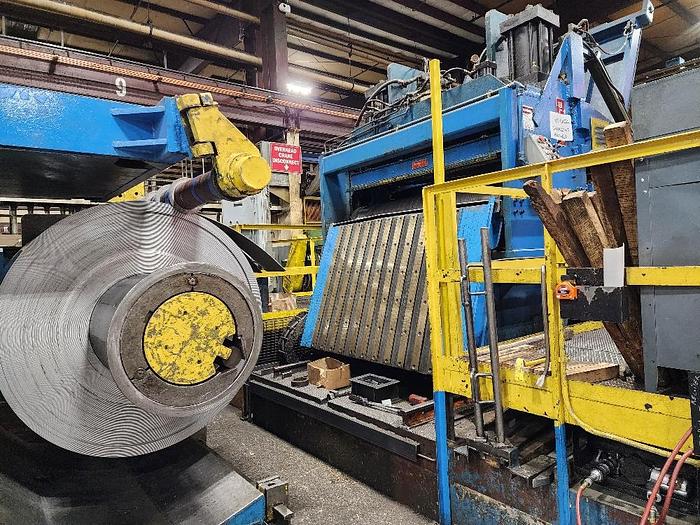

72" X .625" x 50,000 Lbs. Braner Turret-Head Slitting Line (Used)

SPECIFICATIONS:

MATERIALS: HR, HRP&O, CR, MILD STEEL

SHEAR STRESS: 60,000 PSI

THICKNESS: .135” - .625"

COIL WEIGHT CAPACITY: 50,000 LBS.

ENTRY COIL WIDTH: 74”/50”

ENTRY COIL O.D.: 72”

ENTRY COIL I.D.: 20”-24”

EXIT COIL WIDTH: 72”/48”

EXIT COIL O.D.: 72”

EXIT COIL I.D.: 24”

LINE INCLUDES

PIT TYPE COIL CAR W/ COIL STATIONING SADDLE

UNCOILER W/ ATTACHED HOLD-DOWN

PEELER/PINCH ROLL/SIDE GUIDE/SHEAR UNIT

DUAL TURRET-SLITTER HEAD

-SHIMLESS TOOLING

BUTECH SCRAP CHOPPERS

-MODEL SC625

EXIT CROP SHEAR W/ ENTRY & EXIT FEED TABLE

RECOILER W/ FLOOR STANDING OVER-ARM SEPERATOR

EXIT COIL CAR, ABOVE FLOOR

EXIT 4-ARM TURNSTILE

MOTOR LIST:

ENTRY COIL CAR: 7.5 HP/AC

SLITTER DRIVE: 200 HP/DC

RECOILER DRIVE: 300 HP/DC

HYDRAULIC SYSTEM: (2) 25 HP/AC

EXIT COIL CAR: 7.5 HP/AC

*NEW SIEMENS DRIVE PACKAGE IN OCT. 2021 FOR SLITTER HEAD, CHOPPERS, & RECOILER

SLITTER DATA:

ARBOR DIAMETER: 12”

ARBOR FACE: (1) @ 72”, (1) @ 48”

KNIFE SIZE: 18” SPACER SIZE: 14”

SLITTING LINE SPEEDS:

HELP SLIT (LOW GEAR): 150 FPM (CONSTANT)

PULL THROUGH (LOW GEAR): 150 FPM (BASE)

PULL THROUGH (HIGH GEAR): 450 FPM (BASE)

SERVICE REQUIREMENTS:

ELECTRICAL POWER: 460V/3PH/60HZ

COMPRESSED AIR: 90 P.S.I. (CLEAN & DRY)
