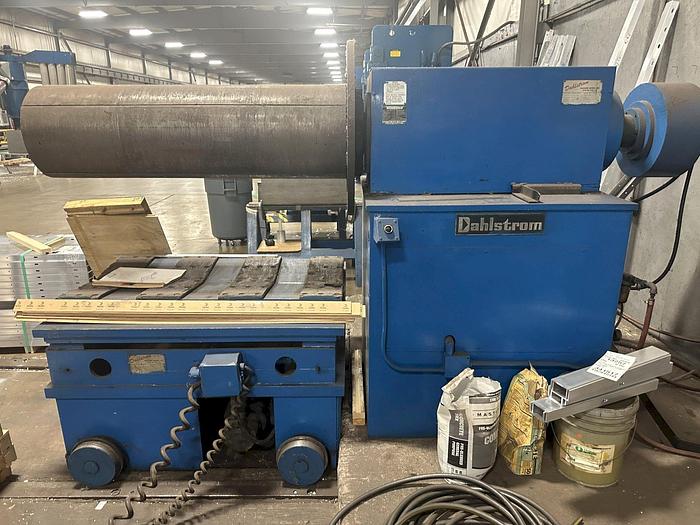

10,000 LB X 54” X .104" DAHLSTROM CUT THE LENGTH LINE

orCall (734) 854-8700

Specifications

ManufacturerDahlstrom
Model10A-48-1822
ConditionUsed
Stock NumberVX-35271

Description

UNCOILER:

MODEL: 10A-48-1822

CAPACITY: 10,000 LBS

WIDTH CAPACITY: 48"

COIL I.D. RANGE: 18" - 22"

COIL O.D: 60"

HYDRAULIC EXPANSION: YES

MANDREL TO FLOOR HEIGHT: 63"

COIL CAR TO CENTER OF MANDREL: 30"

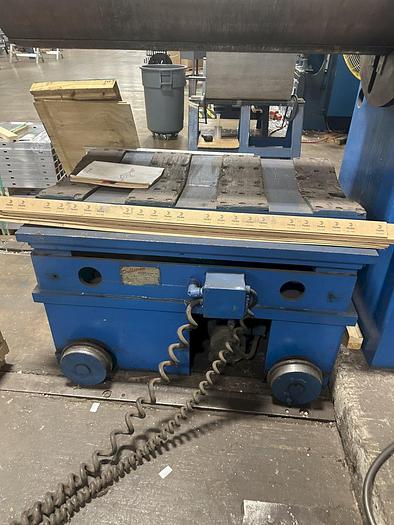

COIL CAR:

CAPACITY: 10,000 LBS

LENGTH OF COIL CAR: 48"

FLOOR TO TOP OF COIL CAR: 33"

IN/OUT: YES

UP/DOWN: YES


FLATTENER/LEVELER:

MODEL: S48-12-10

CAPACITY: .022" - .104"

WIDTH: 48"

SPEED RANGE: 30 - 150 FPM

ENTRY PINCH ROLLS: YES

PINCH ROLL DIAMETER: 6"

# OF WORK ROLLS: 9, 4 OVER 5

WORK ROLL DIAMETER: 4"

MOTOR: 20 HP

VOLTAGE: 220/3/60


CROP SHEAR:

MODEL: SH-48-12

SERIAL: SH-168

CAPACITY: .022" - .104"

WIDTH: 48"

FLYWHEEL SPEED: 375 RPM

STROKE: 1"

MOTOR: 15 HP


STACKER:

MODEL: M-1248-6192-12

LENGTH CAPACITY: 6" - 192"

WIDTH CAPACITY: 12" - 54"

CAPACITY: .022" - .104"

SPEED RANGE: 50-250 FPM

MOTOR: 2 HP

MOTOR: 3 HP
