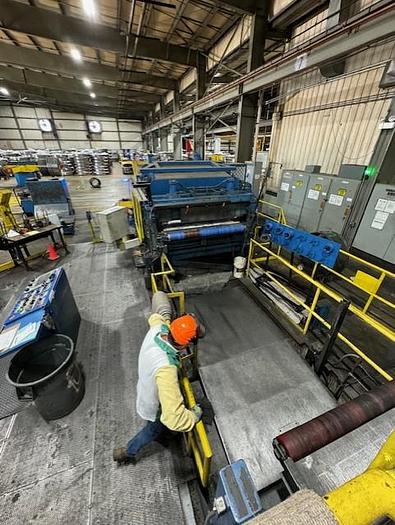

60" x .250" x 50,000lbs Pro Eco Slitting Line

General Specifications

Manufacturer: Pro Eco

Year: 1998

Material: Hot Rolled, Pickled & Oiled and Cold Rolled Steel

Maximum Shear Strength: 75,000 PSI.

Yield Strength (min/max): 30,000 / 65,000 PSI.

Maximum Coil Weight (entry/exit): 50,000# / 50,000#

Maximum Coil Width (entry/exit): 62” / 61”

Minimum Coil Width (entry/exit): 12” / 1.100 Determined by Knife Set-Up

Maximum Coil O.D. (entry/exit): 72” / 72”

Minimum Coil O.D. (entry/exit): 32” / 32”

Coil I.D. (entry/exit): 20, 24 / 20, 24

Gauge Range: .020” - .250”

Line Speed - Constant Speed: 500 ft/min

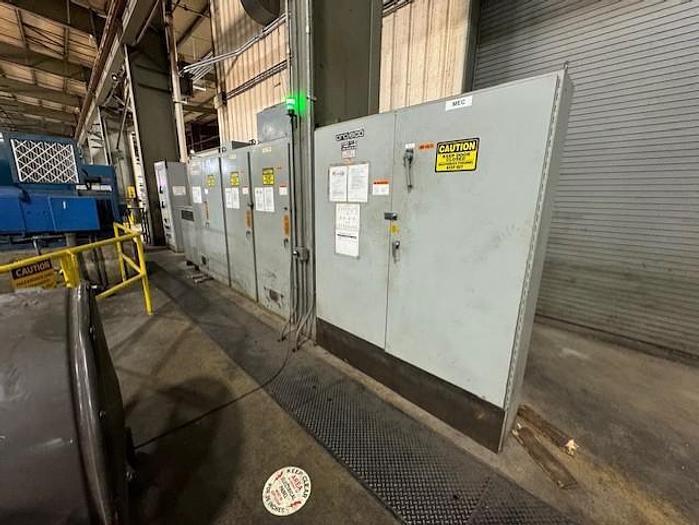

Electrical Supply: 460/3/60

Air Supply: 100 PSI.

Line Direction: Right to Left.

31 cuts @ .024

6 cuts at .250 (dependent on material Yield Strength)

Line Includes:

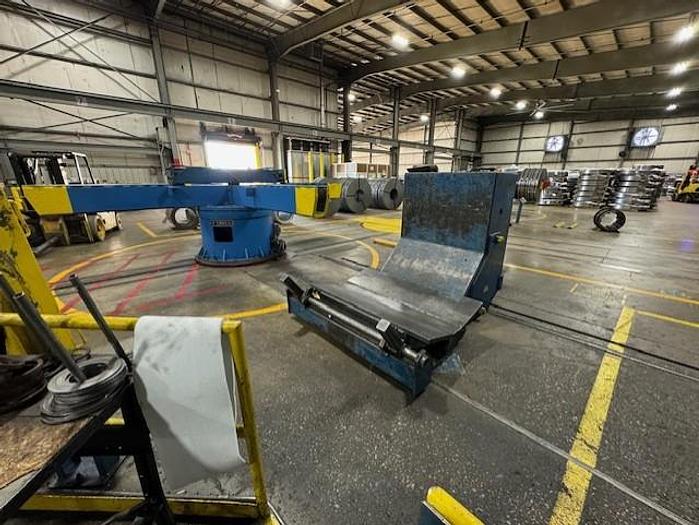

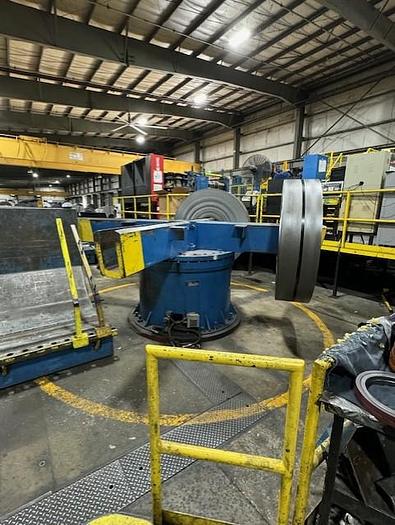

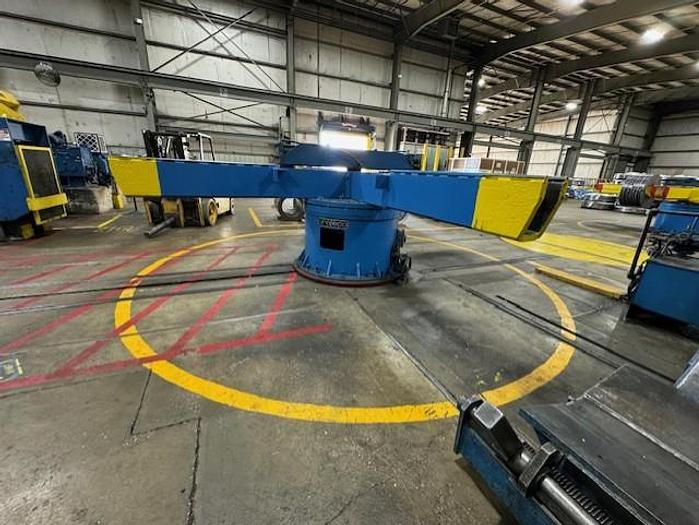

Entry 4-Arm Turnstile

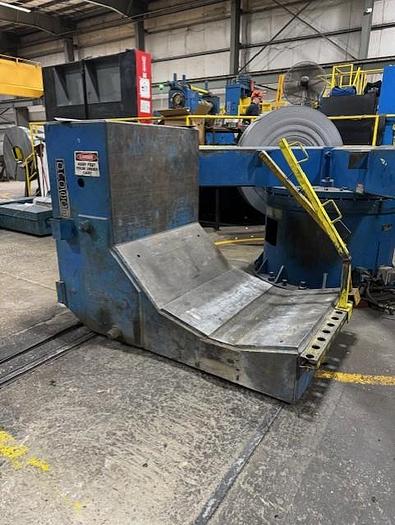

Entry Above Floor Coil Car

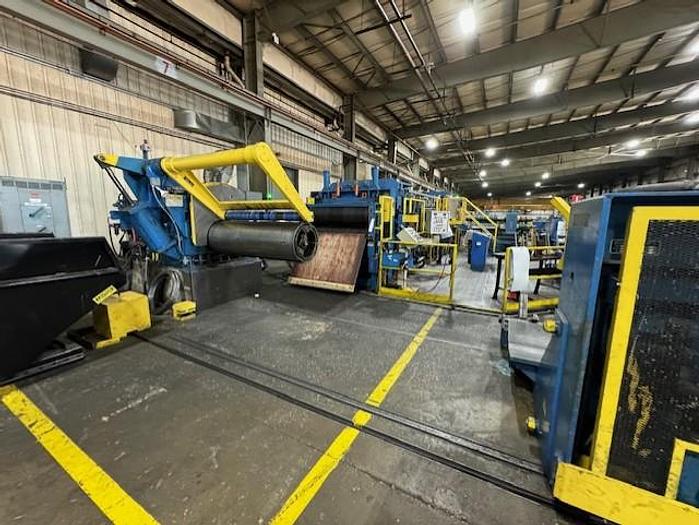

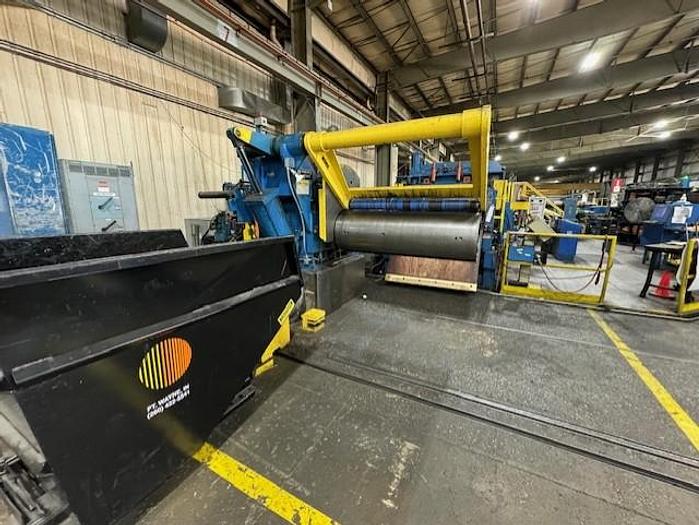

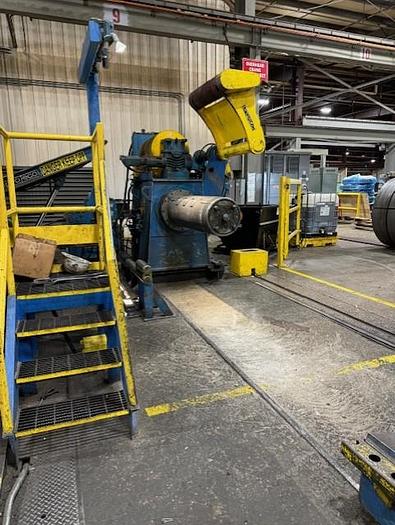

Uncoiler w/ attached hold down

-62" Mandrel

-Hydraulic expand and collapse and hydraulic slide base

-Wichita water cool brake

Peeler/Pinch Roll/Shear Unit

X-ray Gauge

3 Roll Side Guide Unit

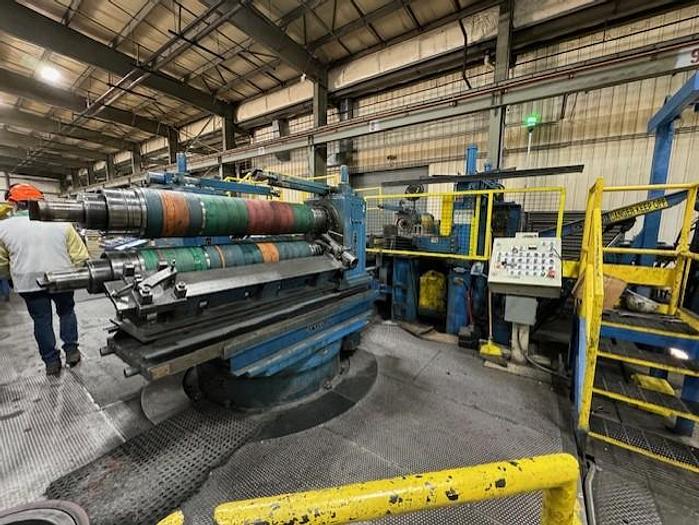

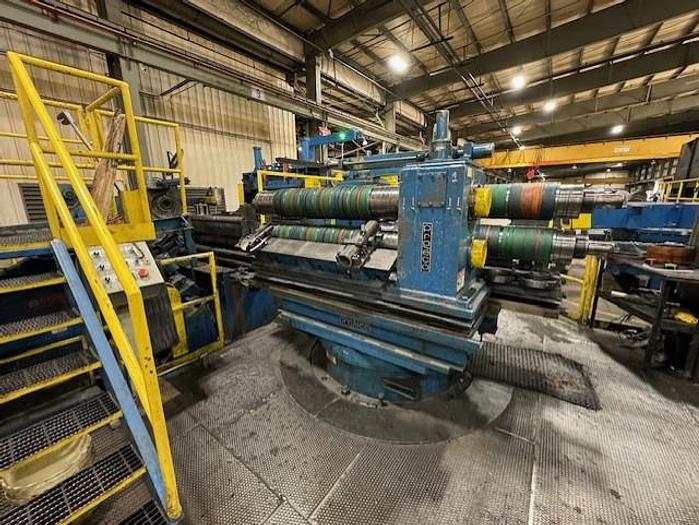

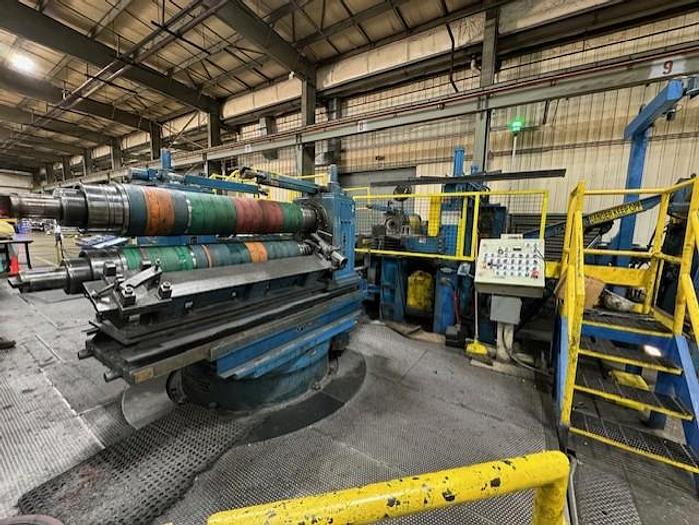

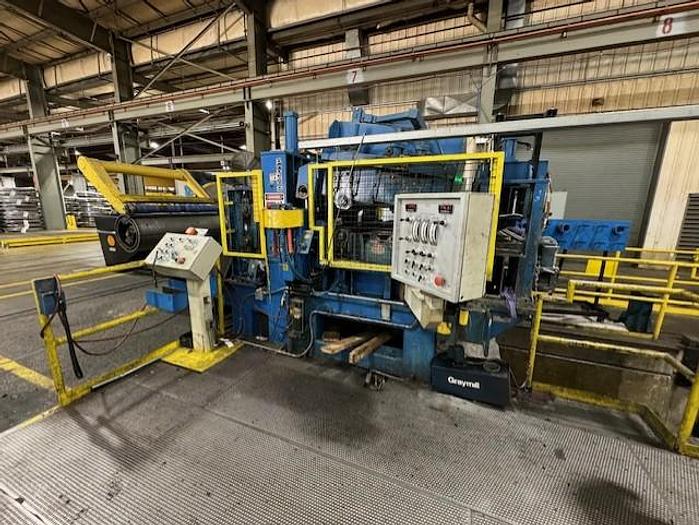

(2) Injector Slitter Heads

-62" wide x 9" diameter arbors

-150 horsepower DC motor

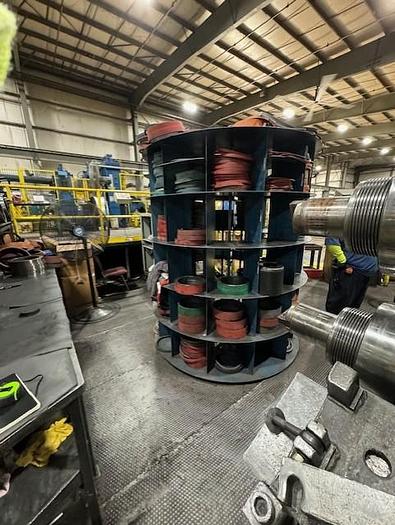

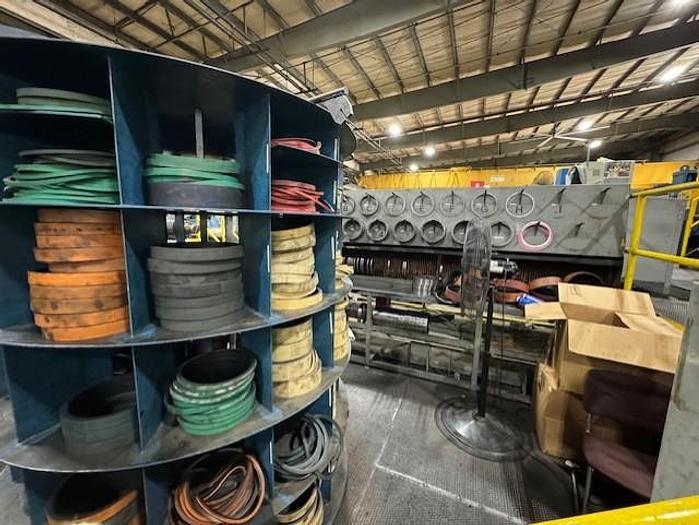

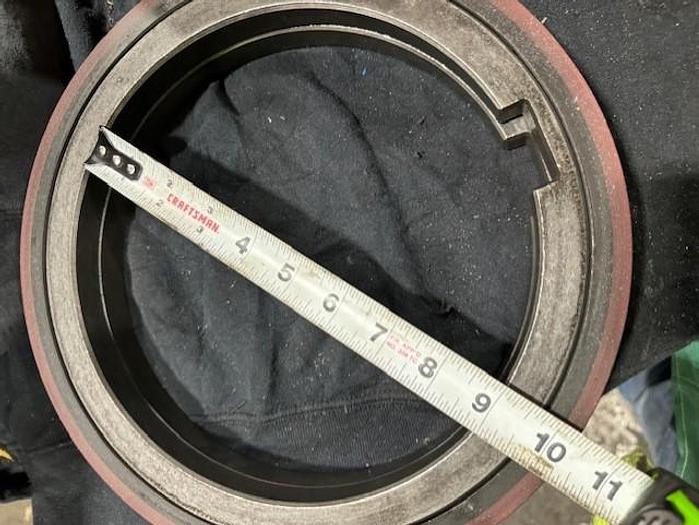

-Shimless tooling

Butech Scrap Choppers

Looping Pit

-21'

Carry Over Table

Tension Stand, Pad-Type

Exit Crop Shear/Feed Roll Unit

Feed Table

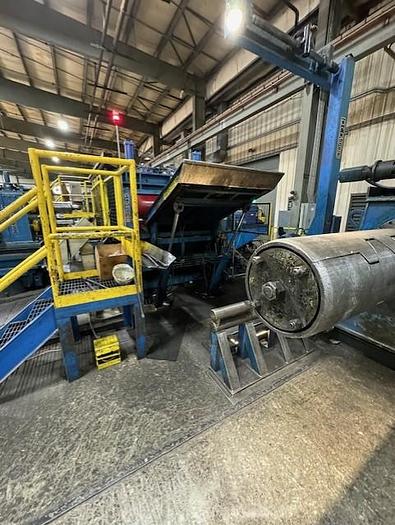

Recoiler w/ attached separator

-70" wide x 20" mandrel (with pads or 24")

-hydraulic gripper slot and push off

-300 horsepower DC motor

Exit Above Floor Coil Car

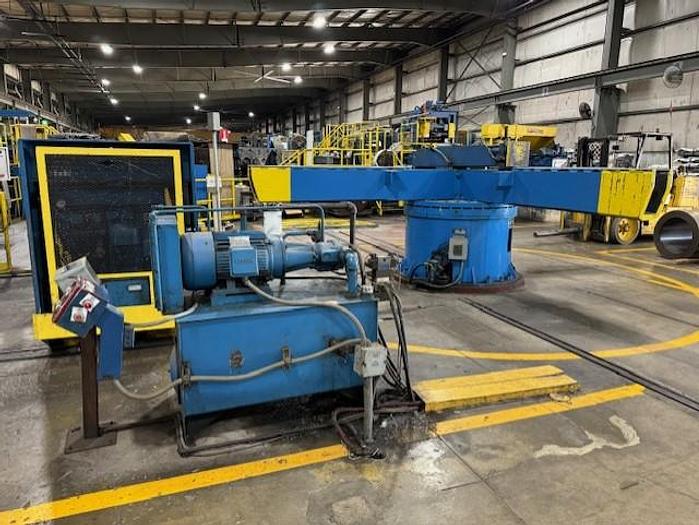

Exit 4-Arm Turnstile w/ push off
