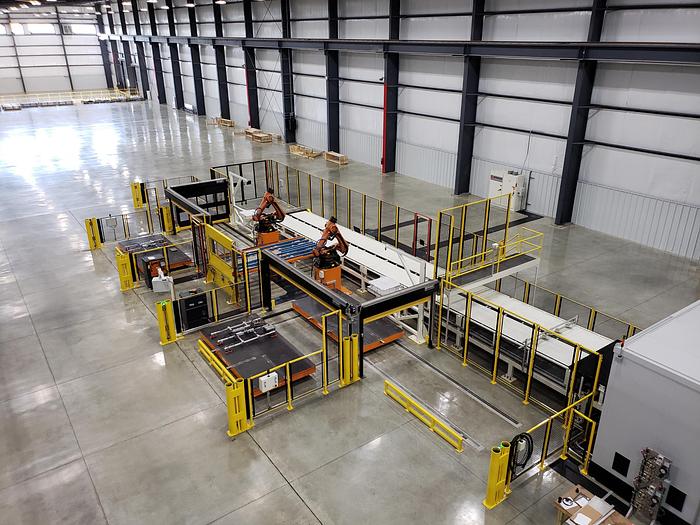

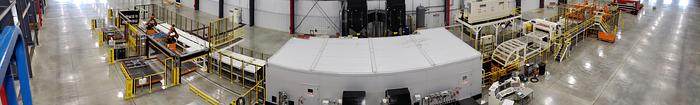

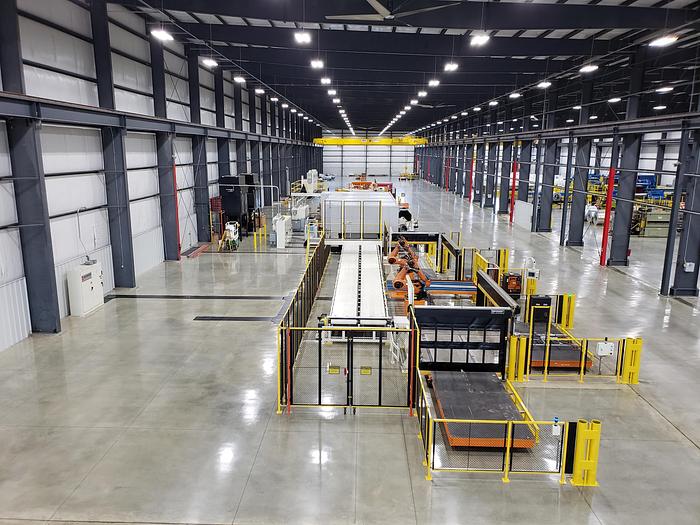

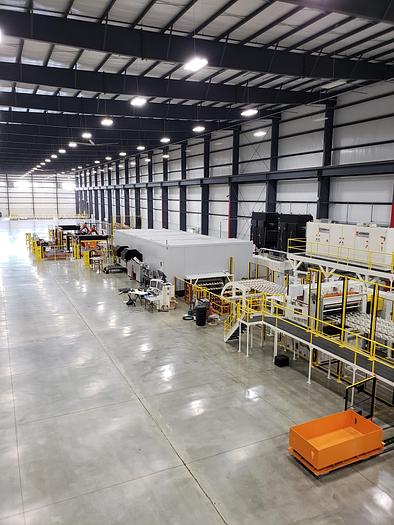

74" x .225" Automatic Feed Laser Blanking Line

Specifications:

Coil Line Specifications:

Coil Material: Hot rolled P&O steel, Cold rolled steel, Galvanized steel, Pre-lubricated material single and double sided class 1 and 2 surface critical material

Line Direction: Right to Left

Passline Height: 80.00” at the leveler

Coil Weight: 75,000 lbs. maximum

Coil Inside Diameter: 21.00” – 25.00”

Coil Outside Diameter: 32.00” – 96.00”

Coil Width:

• 16.00” – 74.00” at uncoiler

• 76.00” with spacers

• 80.00” without spacers

• At crop shear: 76.00”

• At leveler: 74.00”

• At laser feeder: 84.00”

Material Thickness: 0.019” – 0.225”

Material Yield: 980 Mpa (142 KSI) maximum

Controls: Allen Bradley PLC, Unico DC Servo Drives, AIM Line Supervisor

Stacker Specifications:

Stack Modes: Two station robotic, Continuous operation robotic/manual, Alternate stack robotic/manual, Two out robotic/manual, Manual stack

Blank Length: 8.00” – 168.00”

Blank Width: 16.00” – 84.00”

Stack Weight: 18,144 kgs (40,000 lbs.) max stack weight with pallet

Stack Height: 20.00” range limited by weight
