60" x .250" x 40,000 Lbs. Pro-Eco Slitting Line (Used)

Specifications:

Material: Mild steel or equivalent

Shear stress: 50,000 PSI

Max coil weight (Entry): 40,000 lbs

Max coil weight (Exit): 40,000 lbs

Max coil width (Entry): 62"

Max coil width (Exit): 60"

Min coil width (Entry): 6"

Coil O.D. (Entry): 72" max, 30" min

Coil O.D. (Exit): 72"

Coil I.D. (Entry): 16" & 20"

Coil I.D. (Exit): 20"

Max strip thickness: 0.250"

Min strip thickness: 0.010"

Line speed: 200 & 600 FPM constant, build up to 1200 FPM with tach disconnect

Electrical supply: 460V / 3PH / 60C

Line direction: Left to right

Mode of operation: Pull-through slitting

Air supply: 80 PSI

Line Includes:

Entry Turnstile, 4-Arm

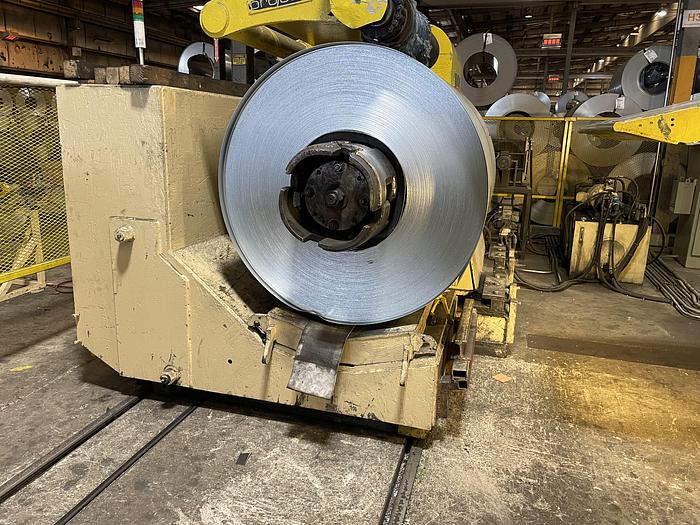

Entry Coil Car, Above Floor

Entry Peeler/Pinch Roll/Shear Unit

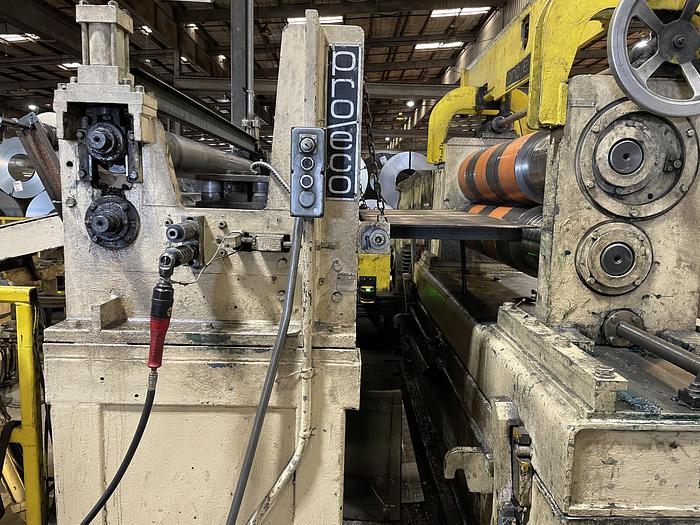

Slitter Head, (2) Heads

-Crane Load Type

-Motor: 50 HP DC

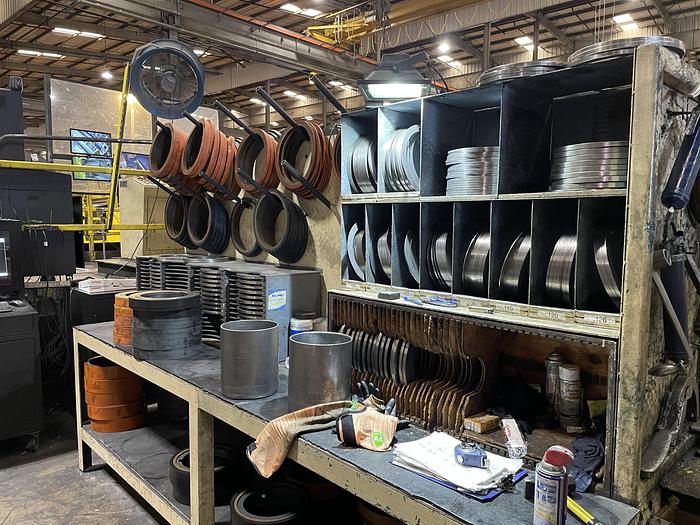

-Tooling Station, Shimless Tooling

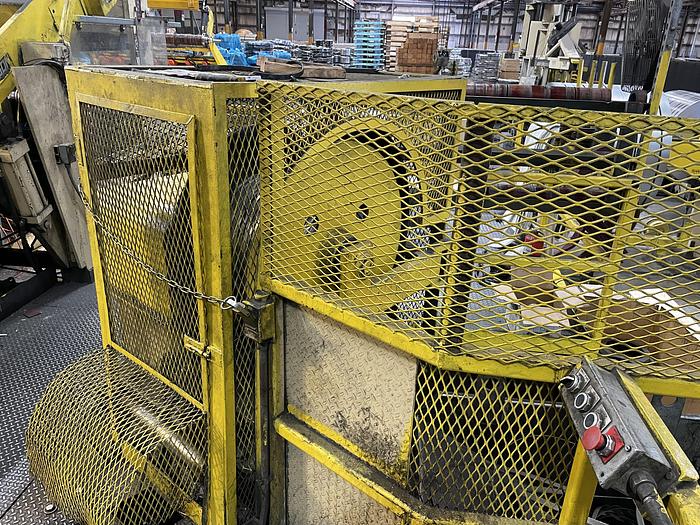

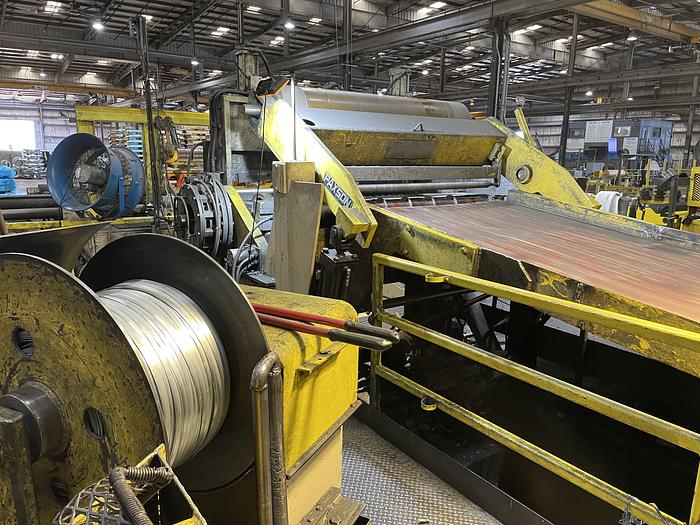

Dual Scrap Winder

Looping Pit

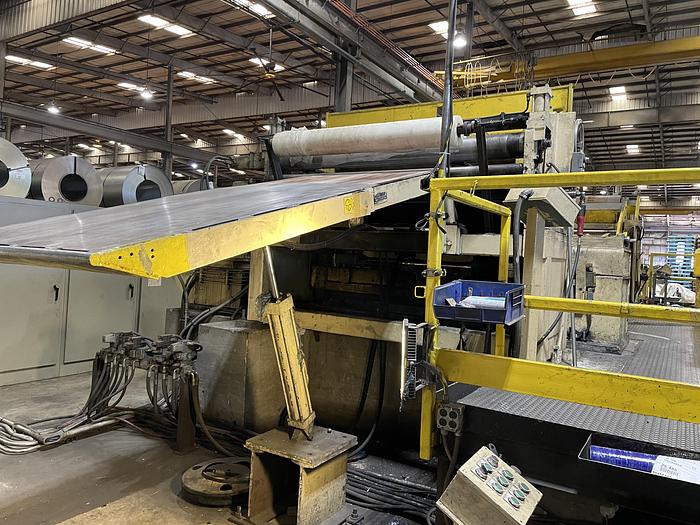

Pit Carryover Table

Exit Strip Separator Rolls

Tension Stand

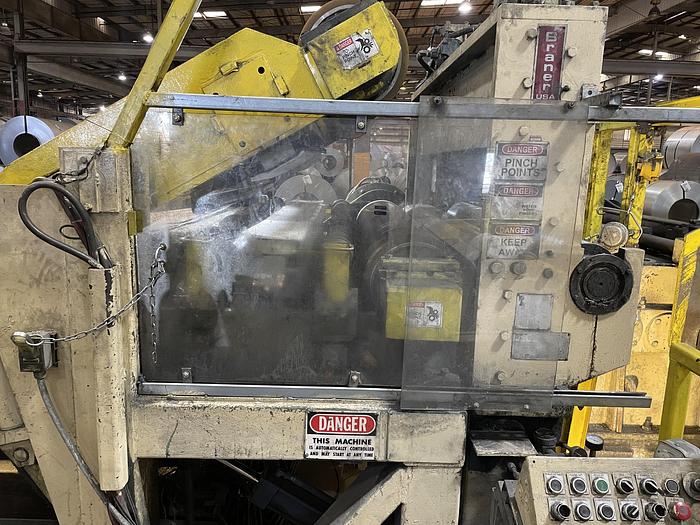

Exit Crop Shear, Braner

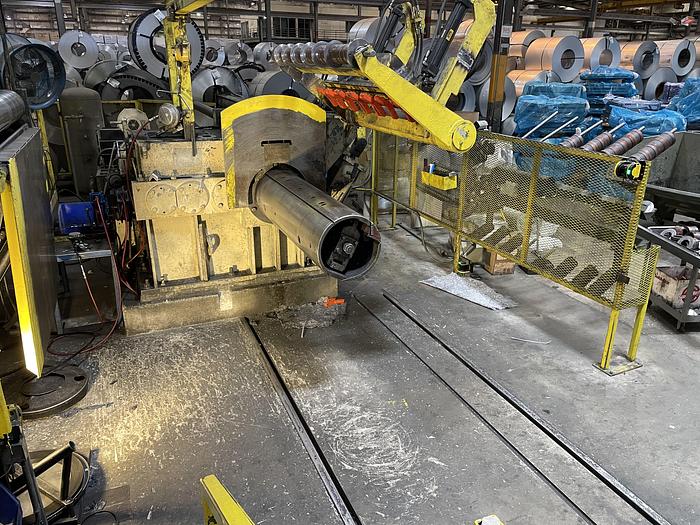

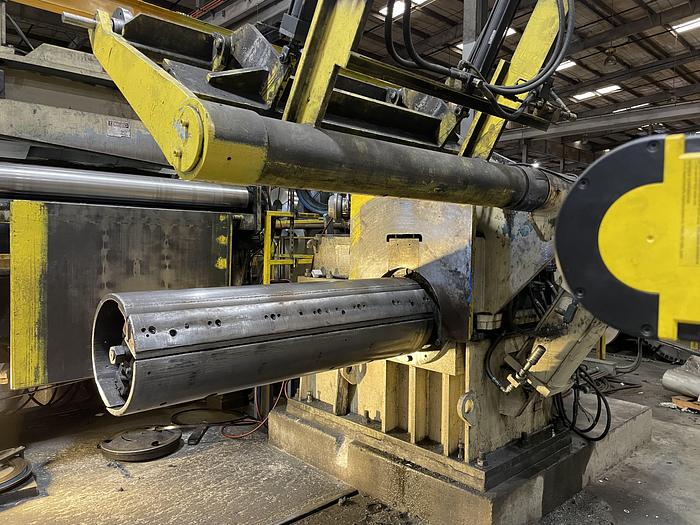

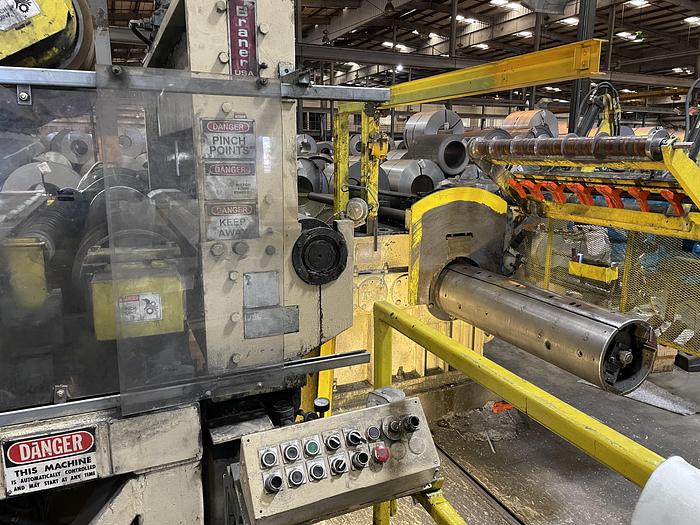

Recoiler

-100 HP Motor

Exit Coil Car, Above Floor

Exit Turnstile, 4-Arm
