72” x 0.625” x 70,000 lb Pro-Eco Heavy Gauge Injector Head Slitting & Packaging Line

Specifications:

Manufacturer: Pro-Eco

Year: 2004

Line Direction: Left to right

Material: Cold rolled and hot rolled steel (pickled or black)

Thickness Range: 0.165” (4.19 mm) min. to 0.625” (15.88 mm) max.

Max Coil Width: 74” (1,880 mm) entry / 72” (1,829 mm) exit

Max Coil Weight: 70,000 lb (31,752 kg) entry & exit

Max Coil OD: 72” (1,829 mm) entry & exit

Coil ID Range (Entry): 20” (508 mm) to 32” (813 mm)

Coil ID (Exit): 20” (508 mm) or 24” (610 mm)

Slitter Arbor Diameter: 13.000” (330.2 mm)

Slitter Heads: (1) 60” (1,524 mm) and (1) 72” (1,829 mm)

Head Exchange: Powered injector with turntable

Line Speed: 450 FPM (137 MPM) high gear / 150 FPM (46 MPM) low gear

Uncoiler Drive: Hydraulic feed-up with water-cooled brake

Flattener Drive: 300 HP

Slitter Drive: 150 HP

Recoiler Drive: 300 HP, 650/1950 RPM, DC

Slitting Line Components:

• (4) Arm entry storage turnstile

• Floor-level coil loading car

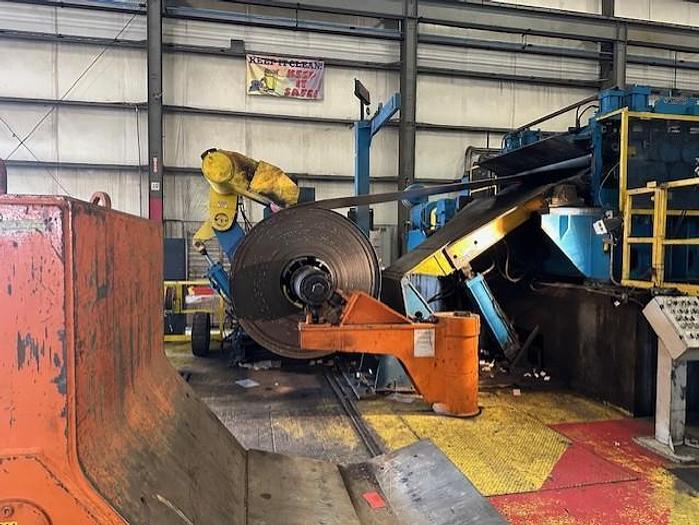

• Cantilevered mandrel uncoiler with hold-down roll & water-cooled brake

• Uncoiler outboard support

• Uncoiler filler plates for larger coil ID

• Pivoting and telescoping peeler blade

• Entry pinch rolls

• Roller-type side guides with powered width adjustment

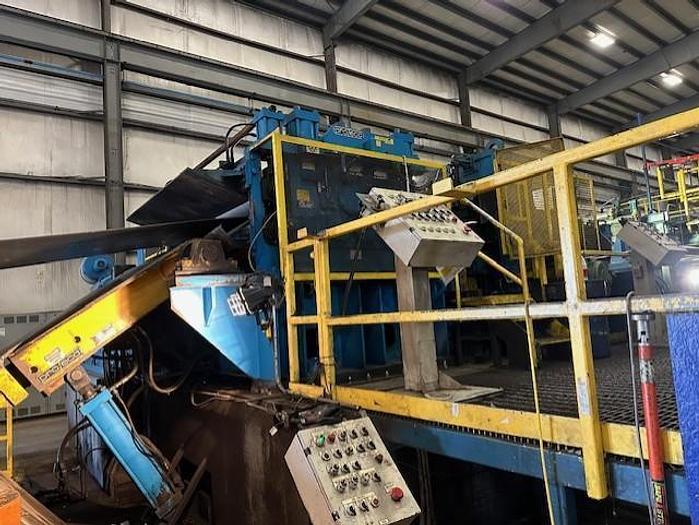

• (5) Roll flattener with variable speed drive

• Thickness gauge

• Entry crop shear

• Steel-reinforced belt scrap conveyor

• Heavy-duty side guides

• Variable speed slitter drive base

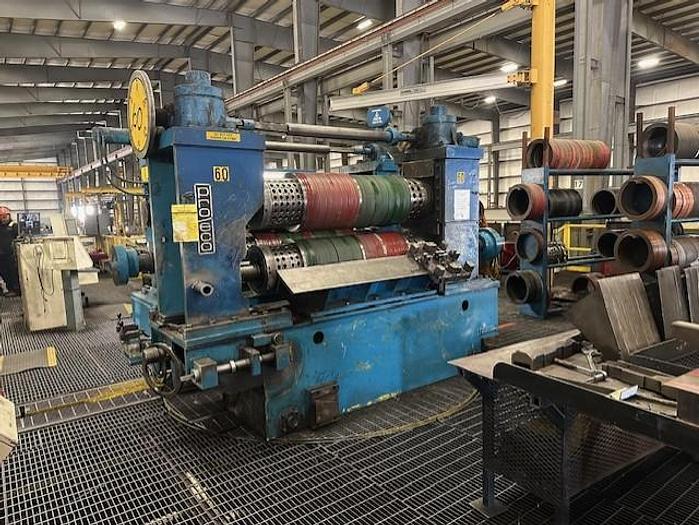

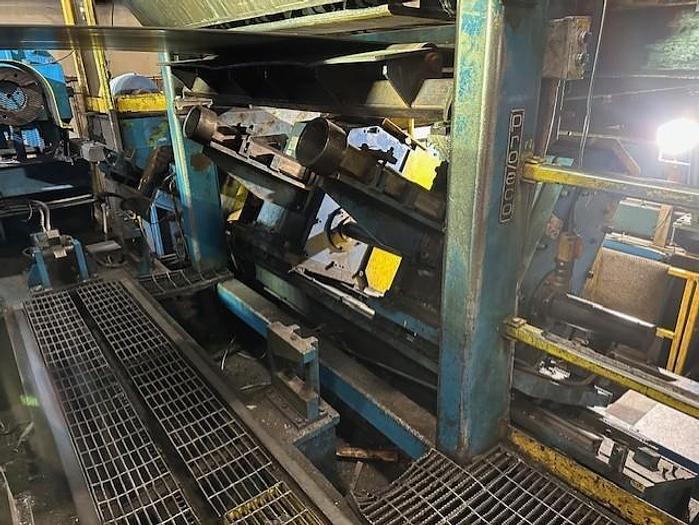

• (2) Injector-style slitter heads with 13.000” (330.2 mm) arbors

• Slitter head change system with injector rail & storage turntable

• Lot of slitter & separator tooling with cabinets & boxes

• Dual arbor rotary scrap choppers with variable speed drive

• Hinged steel belt scrap conveyor

• Scrap chopper carry-over table

• Pivoting pit threading table

• Pad-type tension stand with strip separator spindle

• Exit crop shear with tail feed rolls

• Exit pass line roll

• Pivoting recoiler threading table

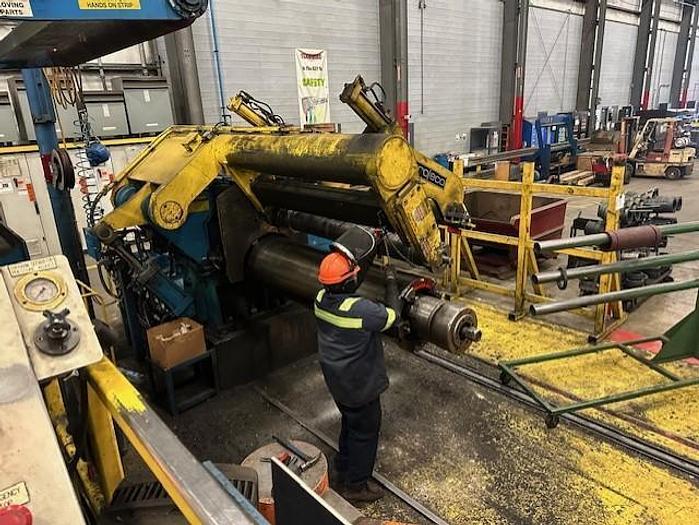

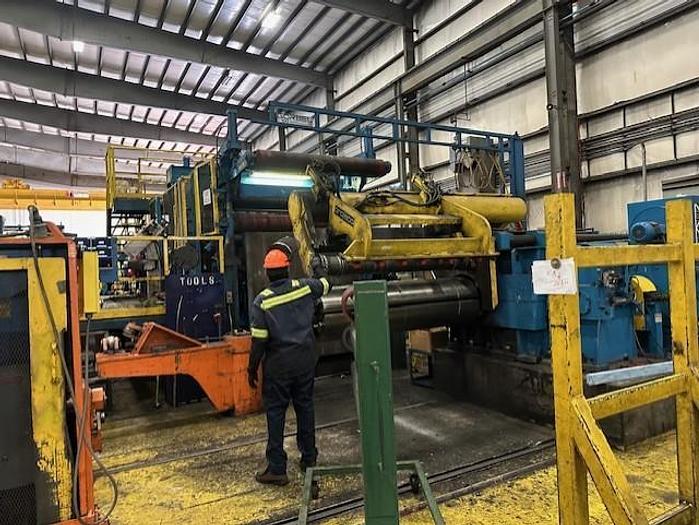

• Cantilevered mandrel recoiler with 20” (508 mm) drum, variable speed drive, coil pusher, & pivoting overarm separator with tail clamp

• Recoiler outboard support

• Hardened steel recoiler filler plates for 24” (610 mm) ID

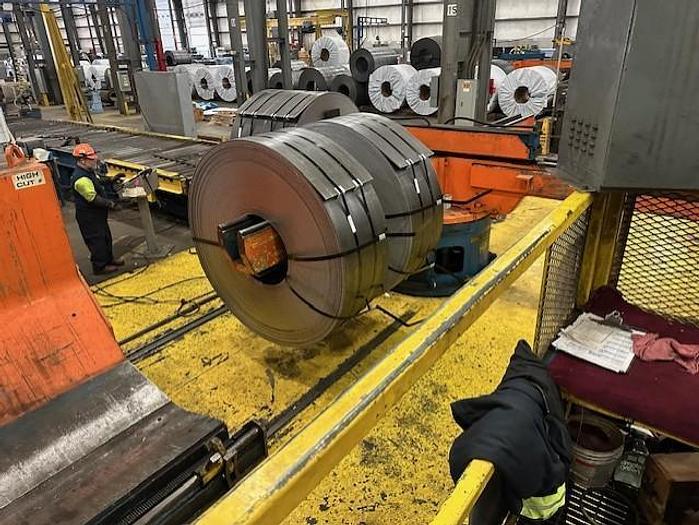

• Floor-level coil unloading car with narrow coil support stanchions

• (4) Arm exit storage turnstile with hydraulic coil pusher

• Operator control stations

• AC controls

• Variable speed drive controls

• Closed loop hydraulic system

• Closed loop water cooling system

⸻

Packaging Line Specifications:

Manufacturer: Pro-Eco

Year: 2004

Line Direction: Right to left

Max Slit Coil Weight: 10,000 lb (4,536 kg)

Max Slit Coil Width: 24” (610 mm)

Max Slit Coil OD: 72” (1,829 mm)

Slit Coil ID: 20” (508 mm) or 24” (610 mm)

Package Weight/Height: Not limited by quoted equipment

Coil Spacer Thickness: 1” min. (spacer blocks required)

Downender Style: Stationary

Bander Style: Powered coil rotation table with manual tools

Stacker Style: Mono-rail & hoist with manual ID grab

Packaging Line Components:

• Slit coil downender

• 7’ coil storage conveyor

• Powered coil manipulating table with driven coil rotation rollers

• Manual banding tools

• 14’ coil conveyor with ID grab access channel

• Mono-rail & hoist with manual ID grab

• Operator control stations

• AC control panels

• Closed loop hydraulic system
