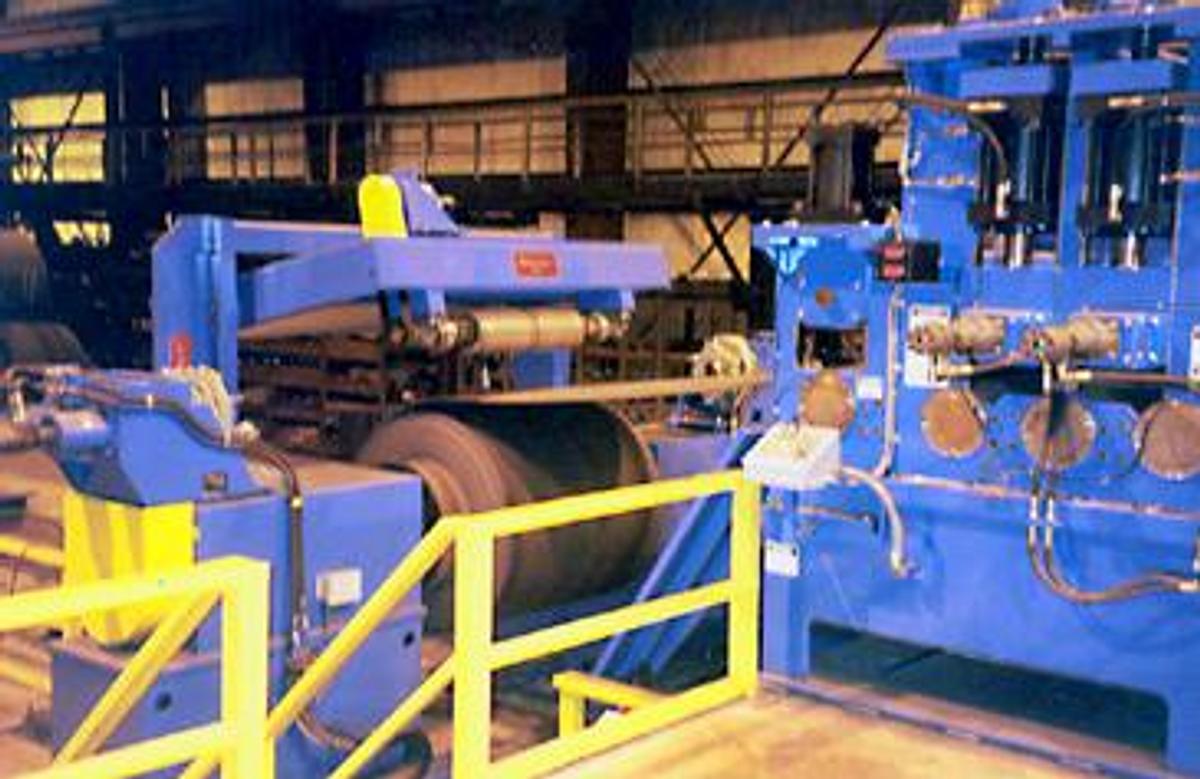

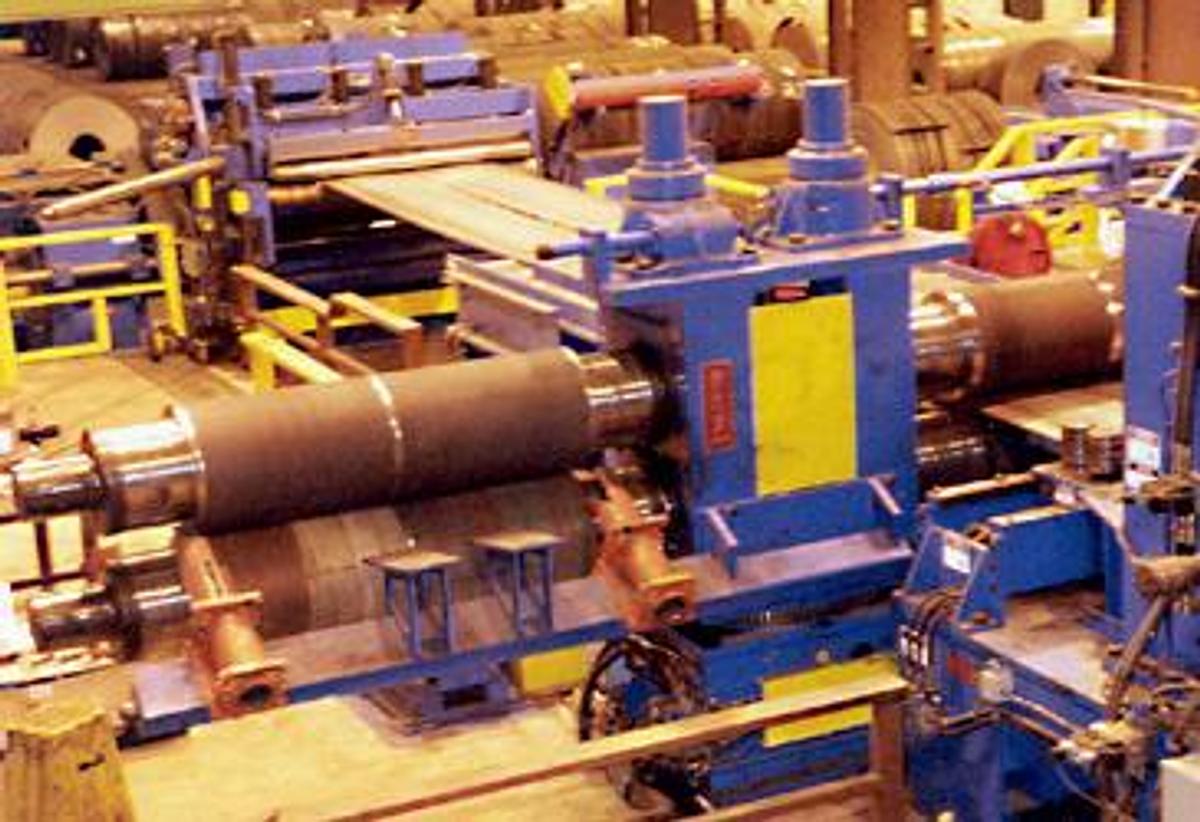

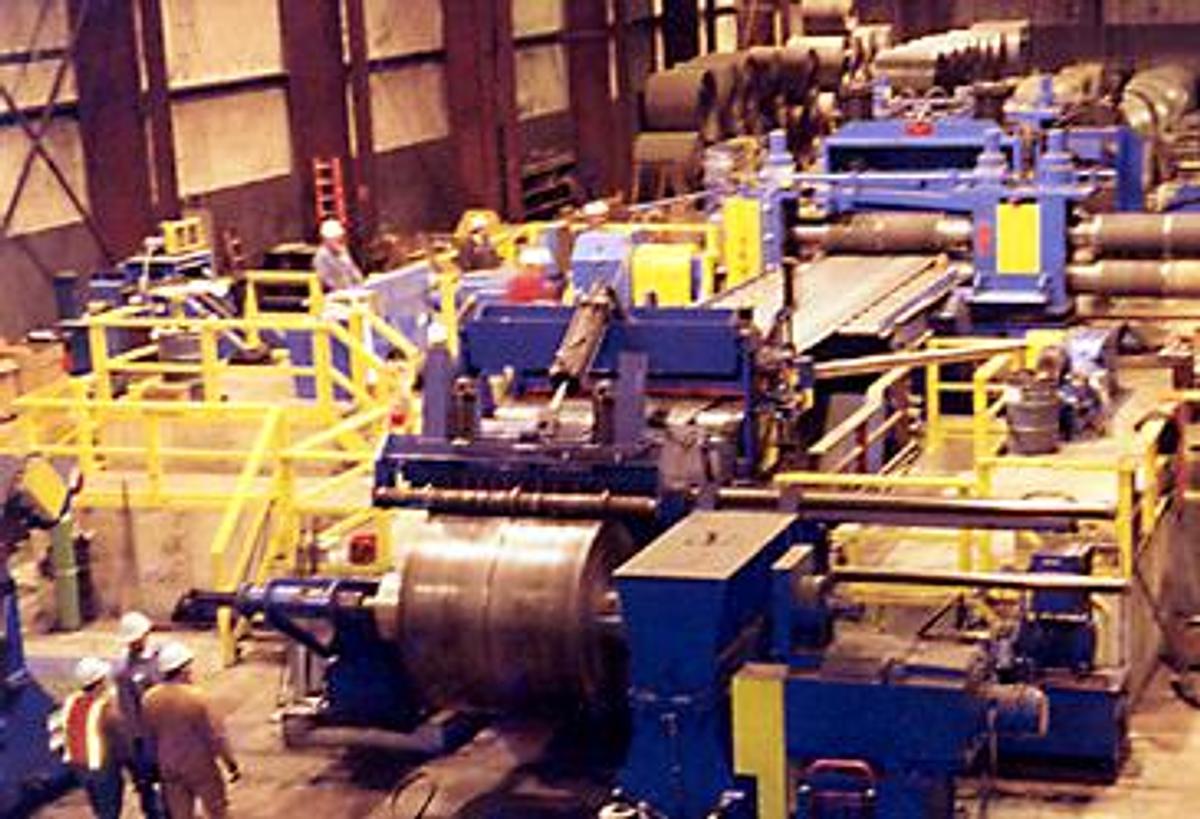

75" x .625" x 90,0000 Lbs. Braner Slitting Line
Specifications
| Manufacturer | Braner |
| Year | 2009 |
| Condition | Used |
| Stock Number | VX-35669 |
| Maximum Coil Width | 75" |
| Maximum Thickness | 0.625" |
| Coil Weight Capacity | 90,000 Lbs. |
| Coil ID Range | 20" - 24" |
| Maximum Coil OD | 76" |
| Slitter Arbor Diameter | 14" |
| Slitter Knife OD | 19" |
| Slitter Drive | 400 HP DC |
| Recoiler Drum Diameter | 30" |
| Recoiler Capacity | 90,000 Lbs. |
| Recoiler Drive | 400 HP DC |
Description
Slitting Capacity:
90,000 PSI Material:
0.625" - 3 Cuts
0.500" - 5 Cuts
0.375" - 3 Cuts Low Gear / 9 Cuts High Gear
0.312" - 5 Cuts Low Gear / 10 Cuts High Gear
0.250" - 8 Cuts Low Gear / 11 Cuts High Gear
0.187" - 12 Cuts
0.150" - 15 Cuts
0.125" - 18 Cuts
96,000 PSI Material:
0.625" - 3 Cuts
0.500" - 5 Cuts
0.375" - 3 Cuts Low Gear / 8 Cuts High Gear
0.312" - 4 Cuts Low Gear / 9 Cuts High Gear
0.250" - 7 Cuts Low Gear / 10 Cuts High Gear
0.187" - 12 Cuts
0.150" - 14 Cuts
0.125" - 17 Cuts
75,000 PSI Material:
0.625" - 4 Cuts
0.500" - 6 Cuts
0.375" - 4 Cuts Low Gear / 10 Cuts High Gear
0.312" - 6 Cuts Low Gear / 13 Cuts High Gear
0.250" - 10 Cuts Low Gear / 15 Cuts High Gear
0.187" - 17 Cuts
0.150" - 20 Cuts
0.125" - 20 Cuts
50,000 PSI Material:
0.625" - 6 Cuts
0.500" - 9 Cuts
0.375" - 7 Cuts Low Gear / 15 Cuts High Gear
0.312" - 10 Cuts Low Gear / 18 Cuts High Gear
0.250" - 15 Cuts Low Gear / 20 Cuts High Gear
0.187" - 20 Cuts
0.150" - 20 Cuts
0.125" - 20 Cuts
Includes
Three-Position Entry Coil Storage Saddles
90,000 Lb. Capacity
Pit-Type Entry Coil Loading Car
90,000 Lb. Capacity
Dual Cone Uncoiler
90,000 Lb. Capacity
Free-Standing Floor-Mounted Hold-Down
Hardened Steel Roll
Telescoping Peeler Blade
Hardened Steel Entry Pinch Rolls
Hydraulically Adjustable Side Guides
Automatic Edge Guide
Five-Roll Flattener
Quick-Opening Rolls
Entry Crop Shear Tail Feed Rolls
Hydraulic Guillotine Downcut Entry Crop Shear
Scrap Gate
Powered Scrap Car
Hydraulically Adjustable Side Guides
Three-Head Knife Turret Slitter
14" Arbor Diameter
19" Knife OD
400 HP DC Drive
Pivoting Slitter Table
Slitter / Recoiler Threading Table
Free-Standing Overarm Separator
One (1) Spindle
One (1) Spare Overarm Separator Spindle
Recoiler
90,000 Lb. Capacity
30" Drum
400 HP DC Drive
Recoiler Tail Hold-Downs
Floor-Level Exit Coil Unloading Car
90,000 Lb. Capacity
Electronic Scale
Four-Arm Exit Storage Turnstile
90,000 Lb. Capacity
Water Recirculating System
Hydraulic System
Electrical System
Not Included:
Scrap Winder
