74" x 0.375" x 60,000 Lb Herr Voss Cut To Length Line
Specifications
| Manufacturer | Herr-Voss |
| Year | 1995 |
| Condition | Used |
| Stock Number | VX-35672 |
| Minimum Width | 36" |
| Maximum Width | 74" |
| Minimum Thickness | 0.075" |
| Maximum Thickness | 0.375" at 80,000 PSI Yield Strength |
| Coil Weight Capacity | 60,000 Lbs. |
| Minimum Coil ID | 20" |
| Maximum Coil ID | 34" |
| Maximum Coil OD | 84" |
| Jog Speed | 50 FPM |
| Minimum Line Speed | 20 FPM |
| Maximum Line Speed | 175 FPM |
| Line Direction | Left to Right |
Description
This 74" x 0.375" x 60,000 lb Herr Voss Cut-to-Length Line, manufactured in 1995, is designed for efficient processing of metal coils. It supports a range of material widths from 36" to 74" and thicknesses from 0.075" to 0.375" with a yield strength of 80,000 PSI. The line can handle coil weights up to 60,000 lbs and accommodates coil IDs between 20" and 34" and a maximum coil OD of 84". The machine operates at speeds from 20 FPM to 175 FPM with a jog speed of 50 FPM, moving material from left to right. Key components include an entry coil ramp with three storage positions, a cone-type uncoiler with an AC motor, hydraulic threading unit, and a Keystone 4-High Precision Leveler with an 88" face rolls and a 200 HP DC motor. Herr Voss's mechanical shear and drop-type stacker, capable of managing sheets up to 24' in length and weighing 40,000 lbs, complement the system for versatile manufacturing needs. Additional components include squaring guides, a powered pinch roll system, a measuring unit, and a 40' long runout conveyor. Operational efficiency is further supported by main operator control and hydraulic power units, and the system includes complete mechanical and electrical drawings and an operator manual for ease of use.
Includes

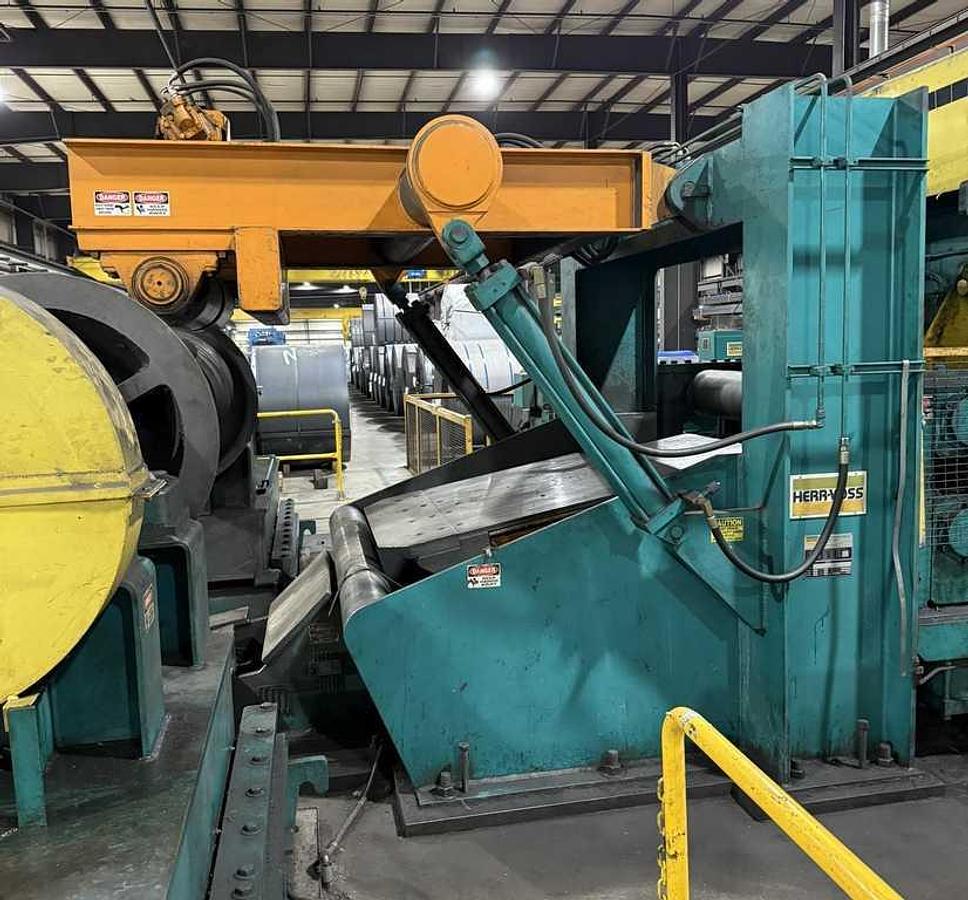

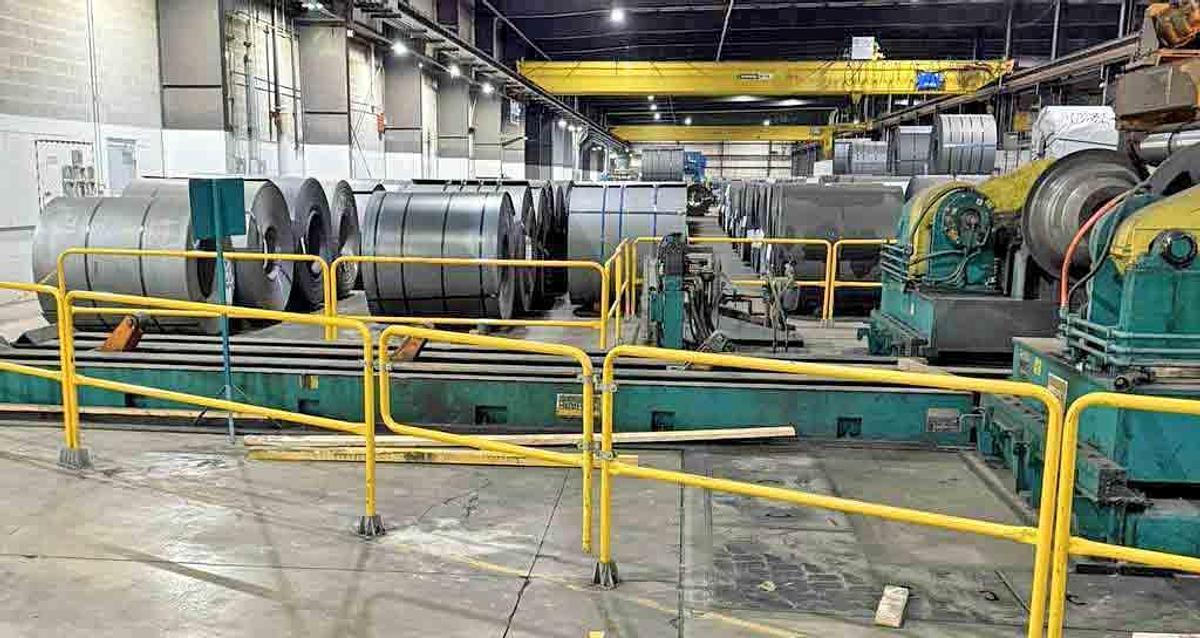

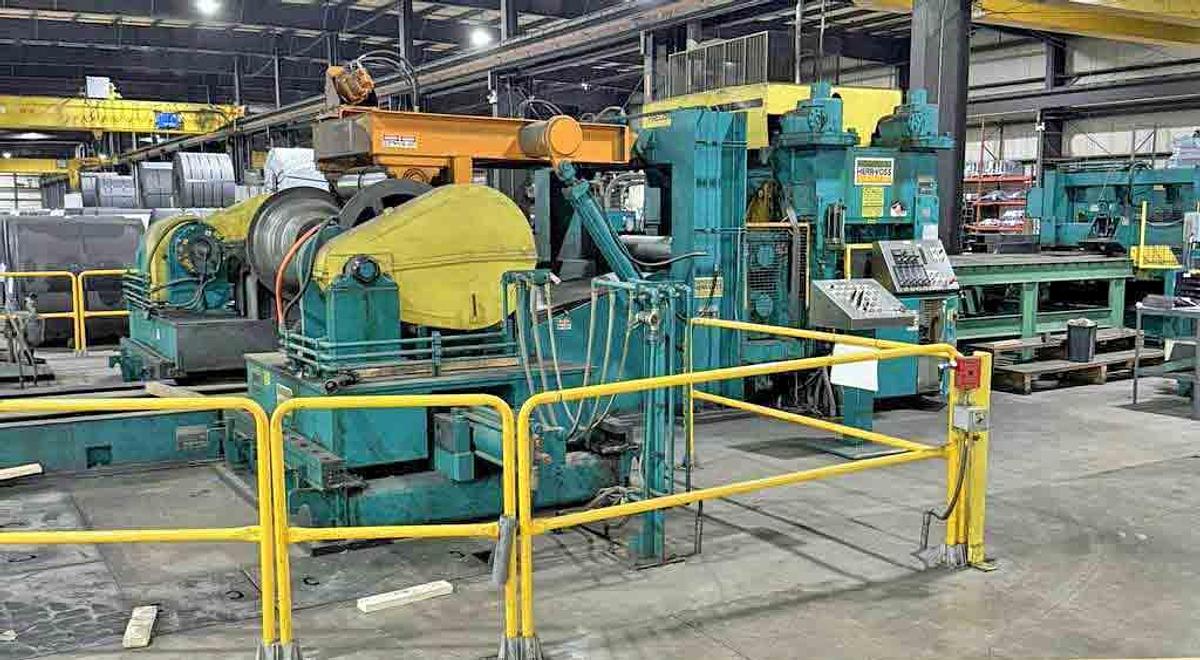

Entry Coil Ramp
- Three (3) Coil Storage Positions
- Hydraulic Lever-Type Holding Mechanism

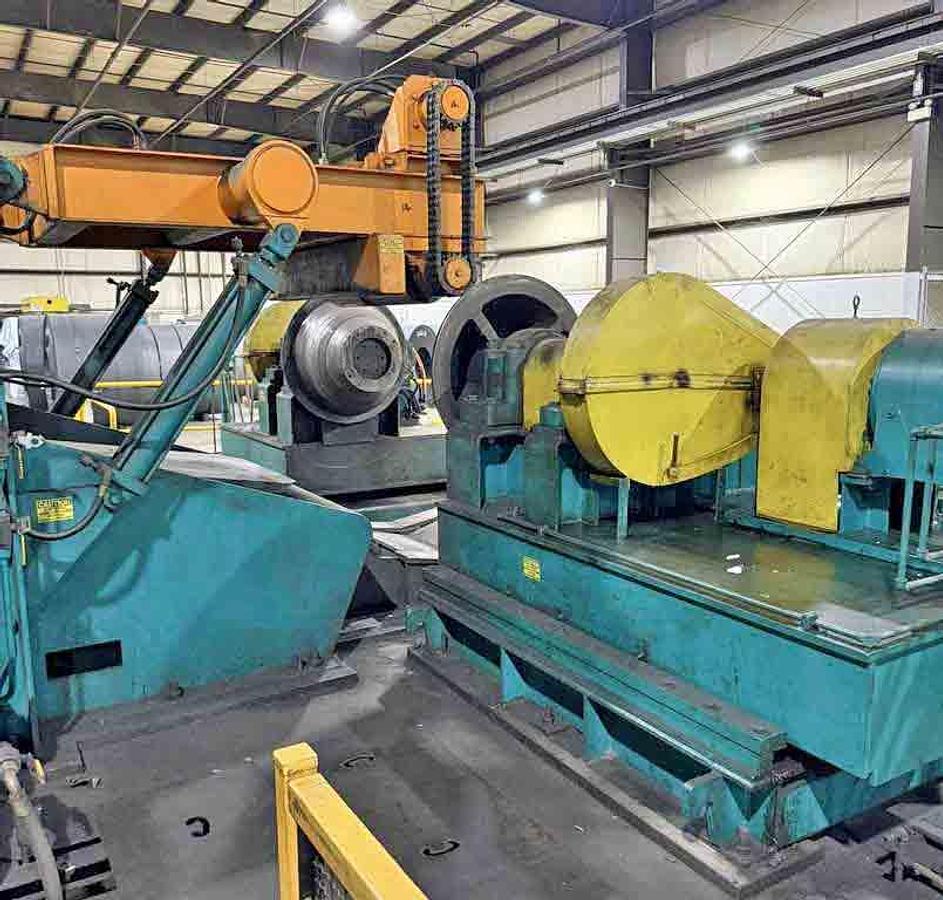

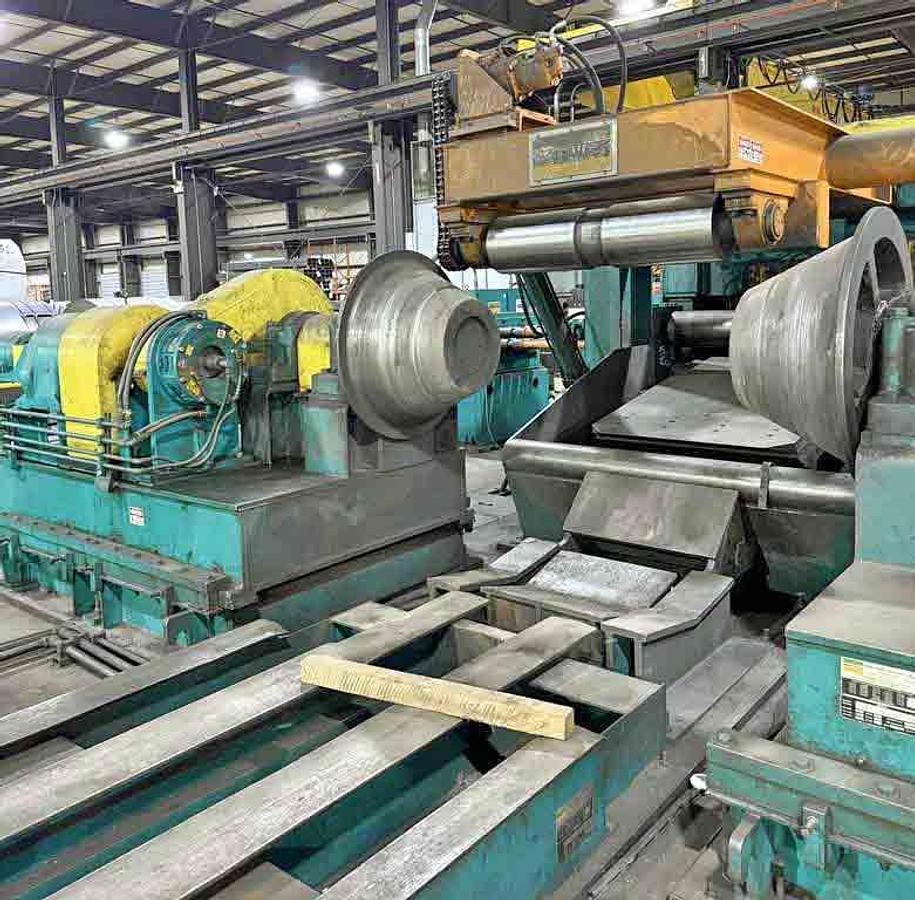

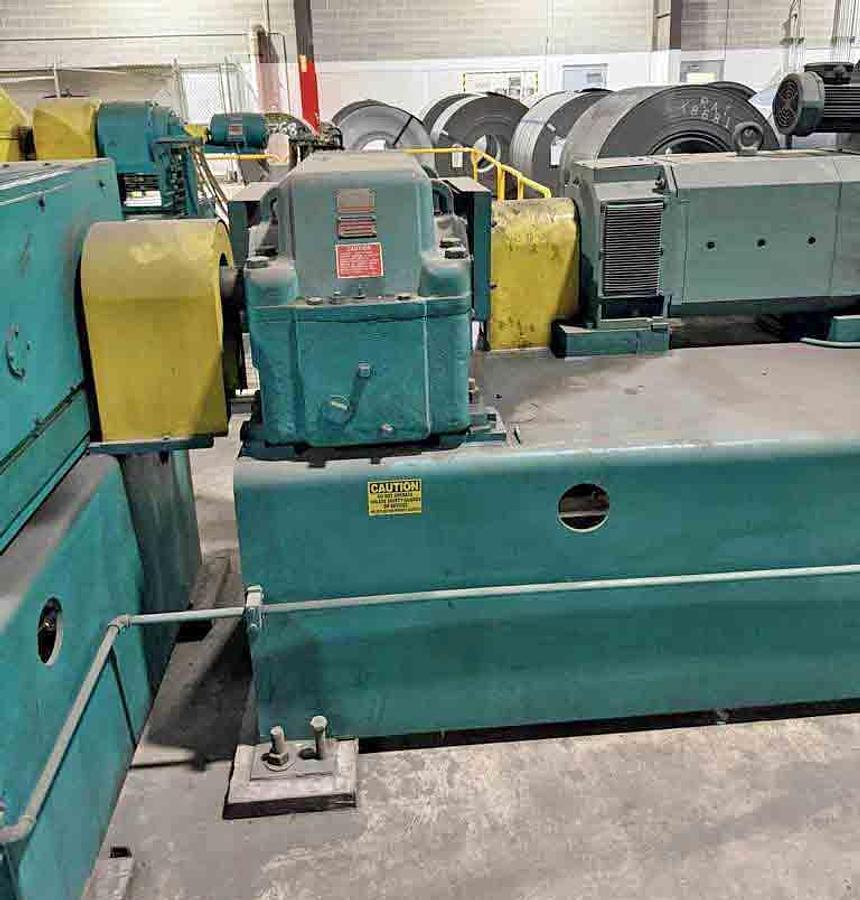

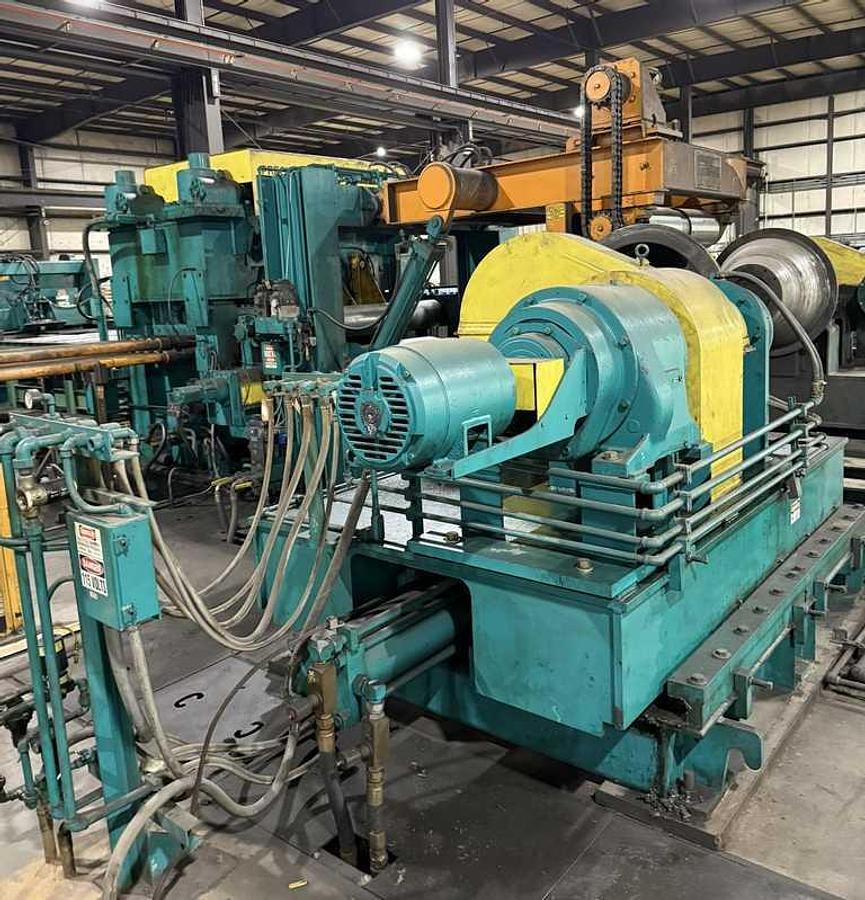

Cone-Type Uncoiler
- Motorized Feed-Up
- AC Motor
- Air Clutch on One Head
- Wichita Water-Cooled Brake on Each Head
- Sliding Base on Each Head
- Coil Lift with 12" Bore Hydraulic Cylinder
Threading Unit
- Motorized Overarm Hold-Down Roll
- Steel Roll Powered by AC Motor
- Hydraulically Actuated Peeler Table
Entry Side Guides
- Powered Width Adjustment

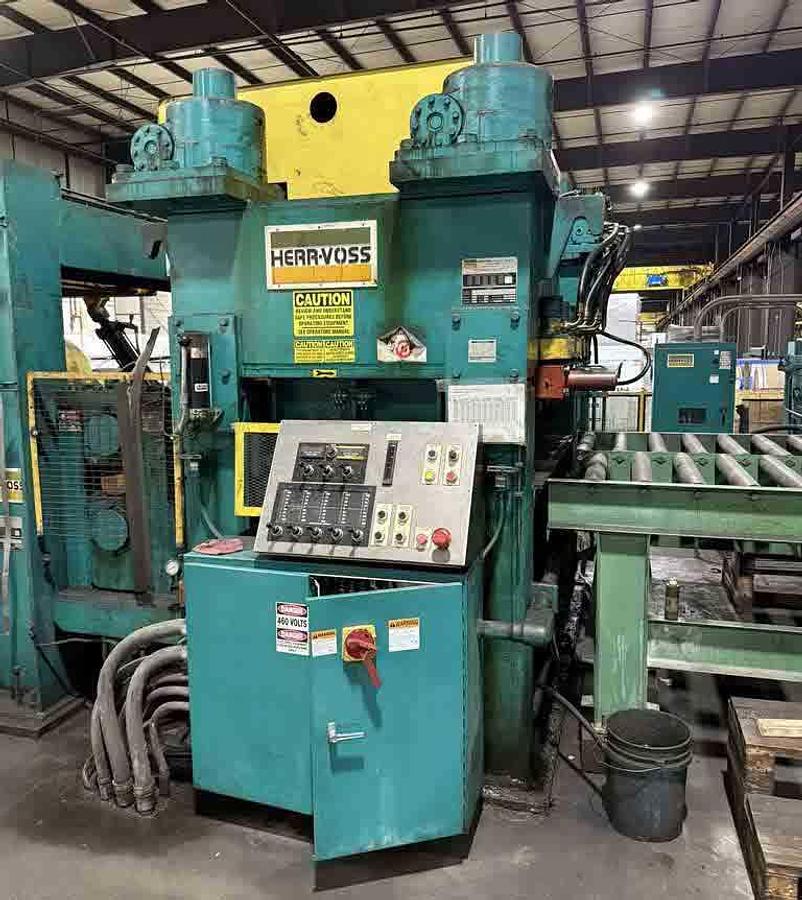

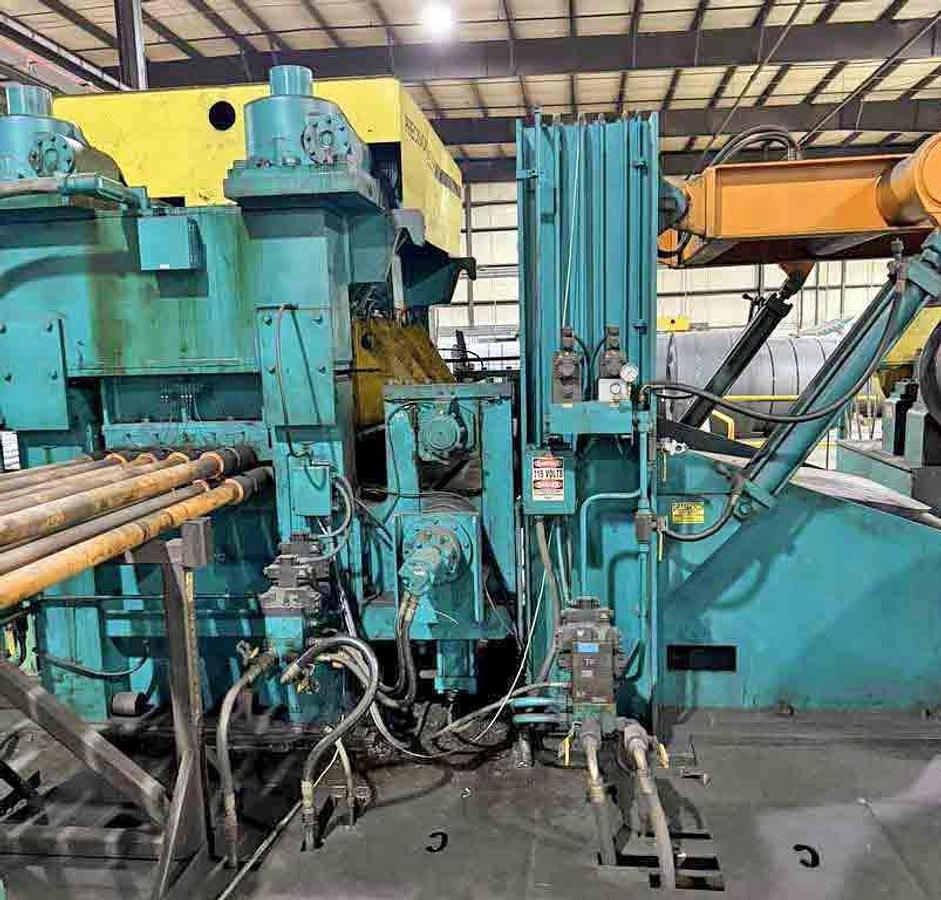

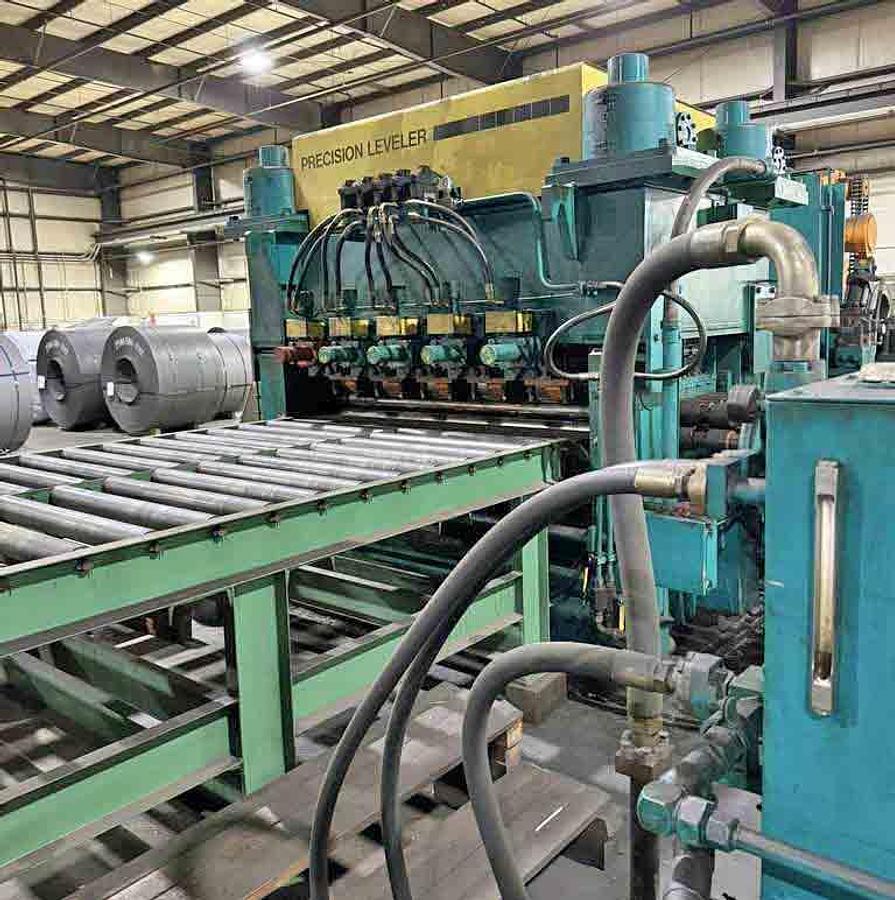

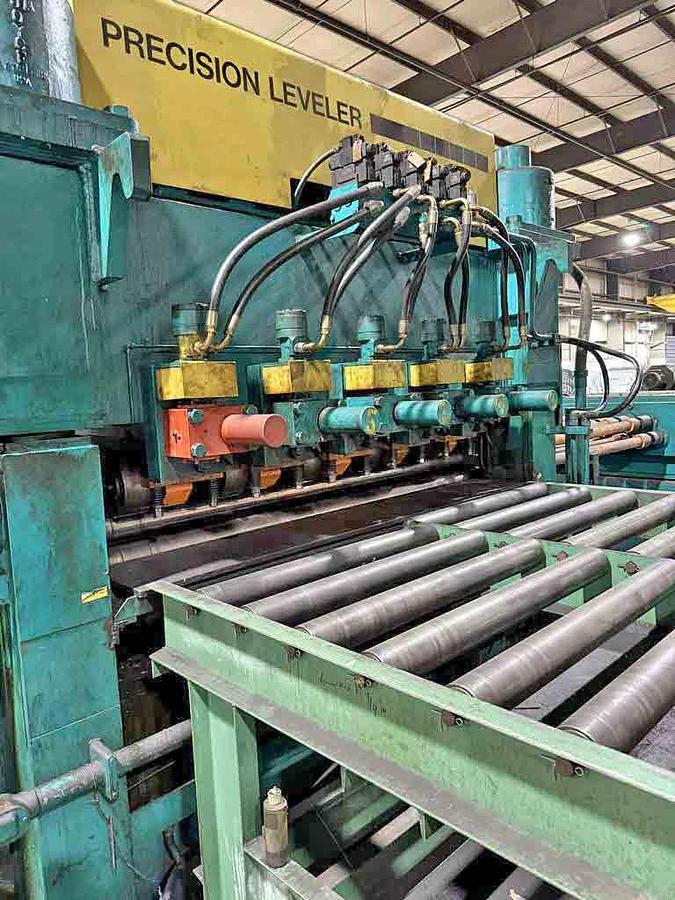

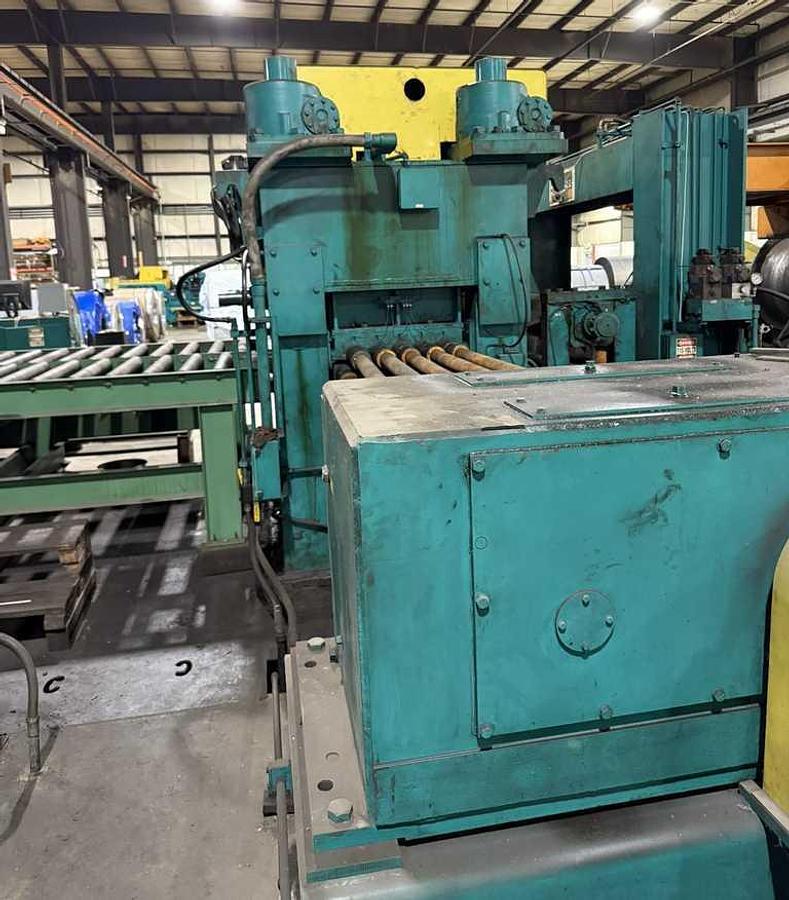

Keystone 4-High Precision Leveler
- Model: VKL 88/4.50-11/5 4 HI, LH
- Minimum Thickness: 0.096"
- Maximum Thickness: 0.375"
- 11 Work Rolls
- 4.50" Diameter x 88" Face Rolls
- Five (5) Flights of Motorized Backups
- 200 HP Reliance DC Motor
- 850/1,700 RPM
- 500V
Squaring Guides
- Powered Width Adjustment
- Opens to 80" Wide
Powered Tail-Out Pinch Rolls
- Hydraulic Cylinder Open & Close
Measuring Unit
- Entry Encoder Roll

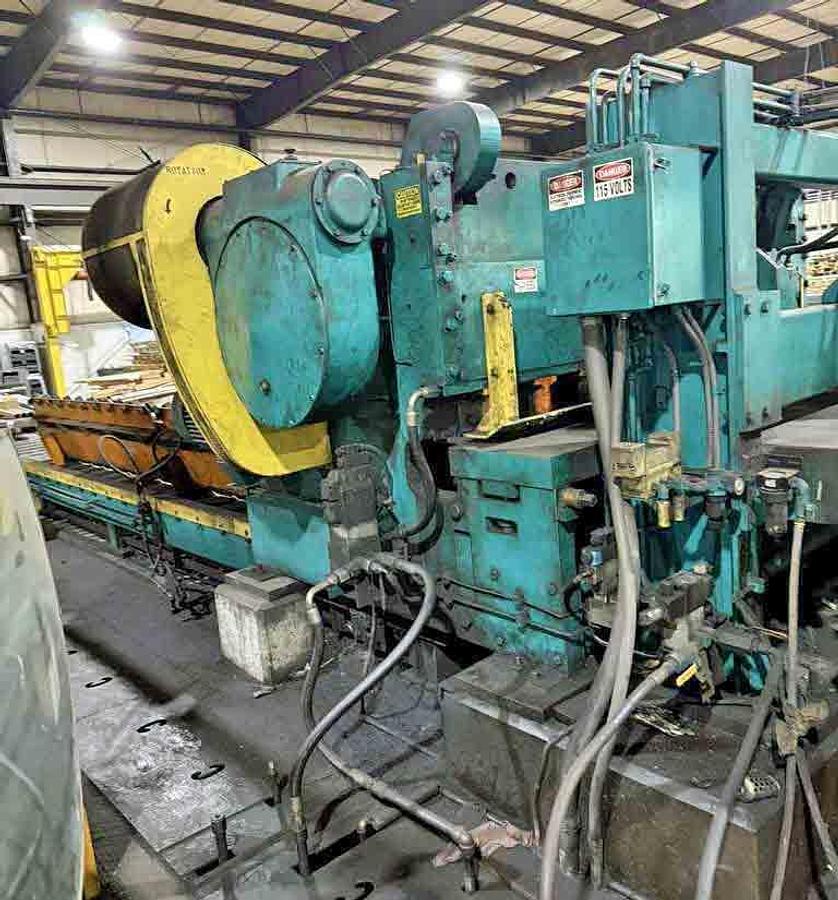

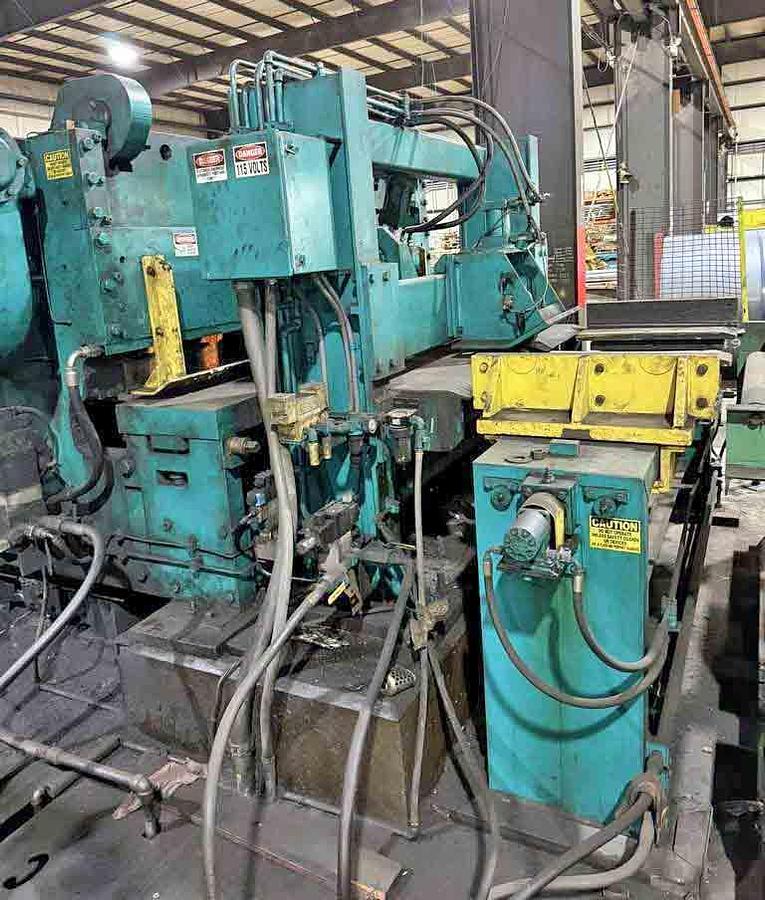

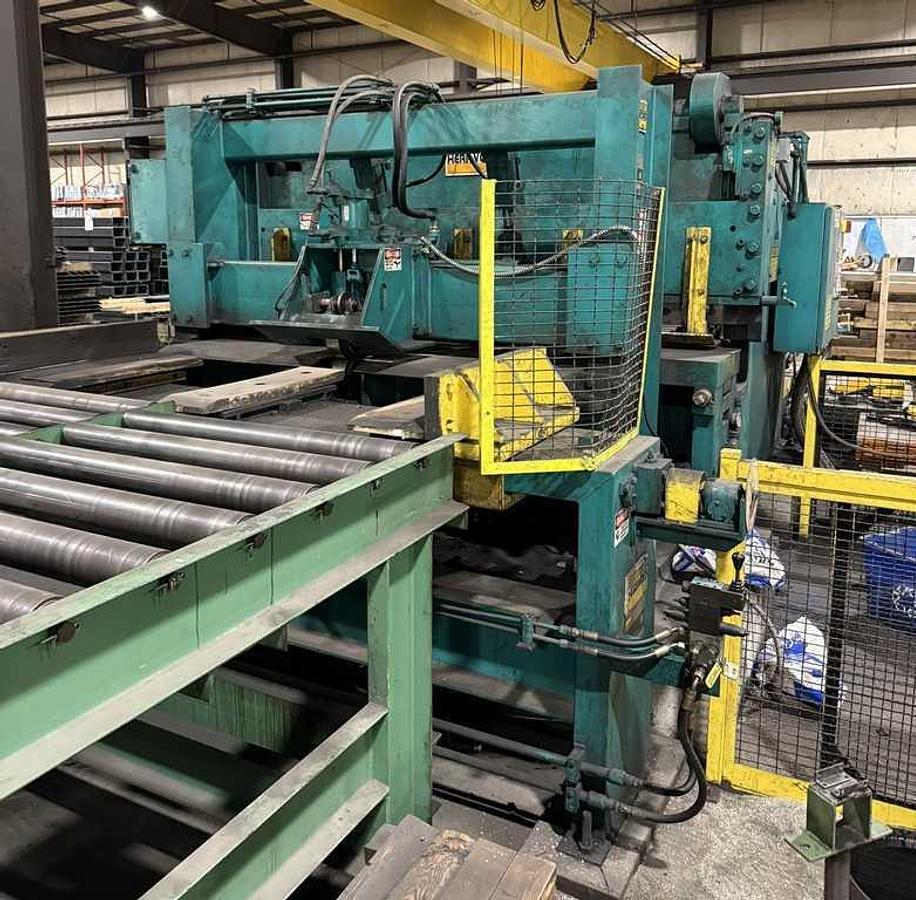

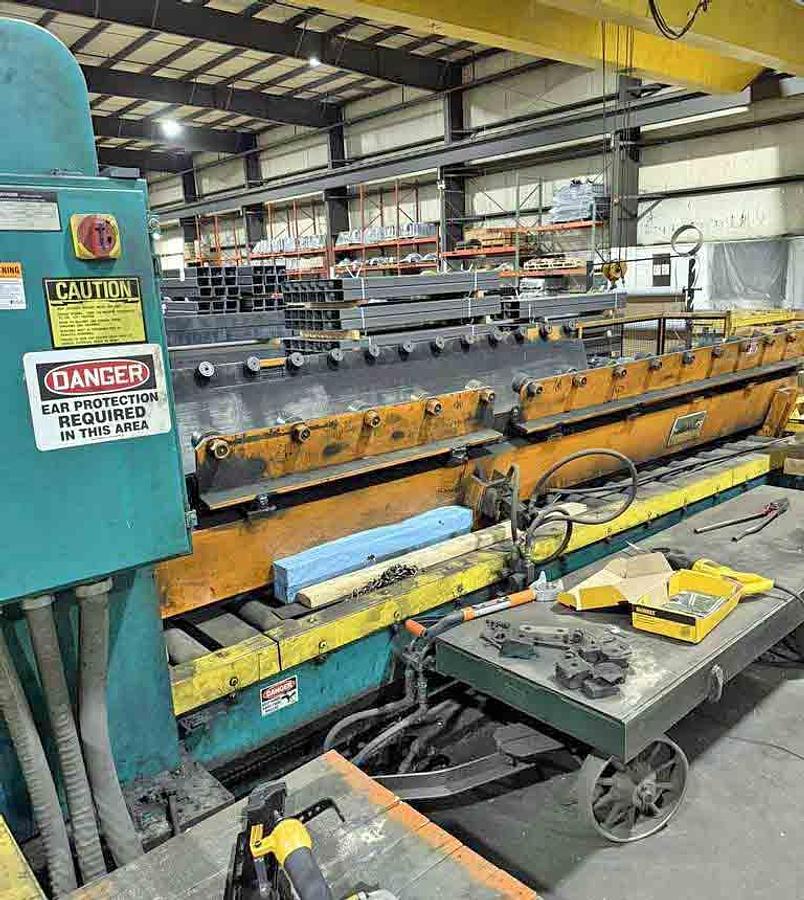

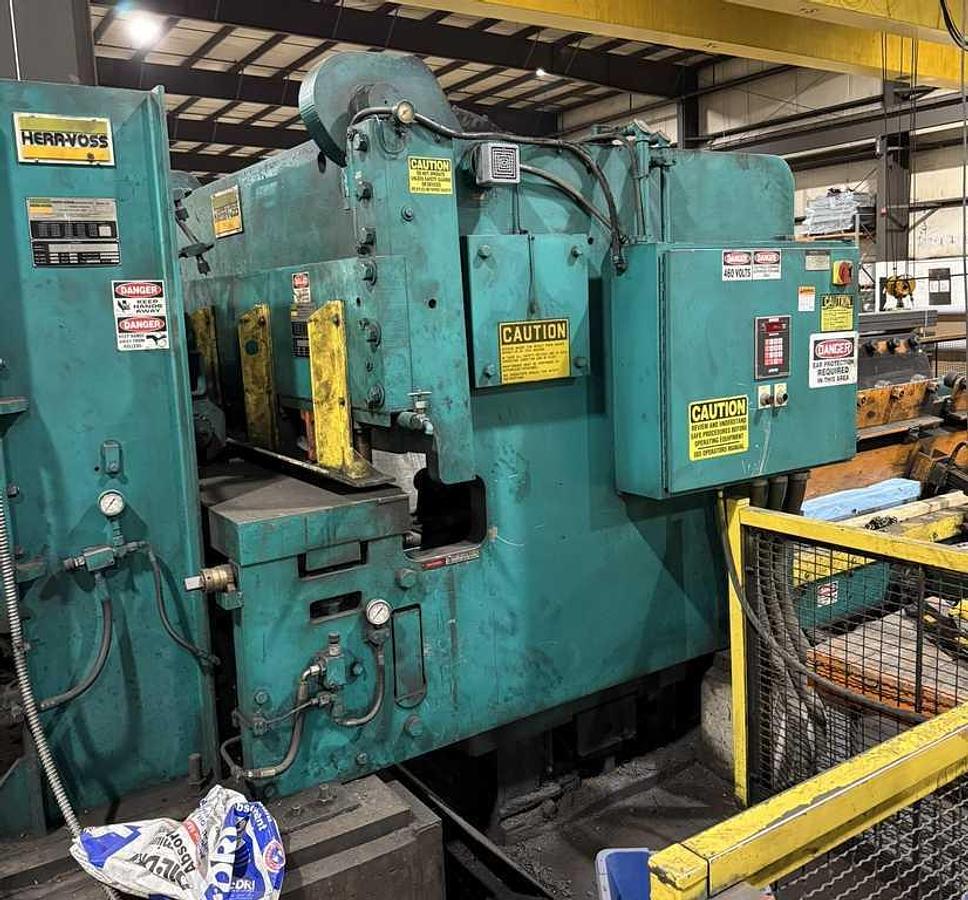

Herr Voss Mechanical Shear
- Blade Gap Adjustment Control
- Straight Blade Rake
- Material Hold-Downs
- AC Motor

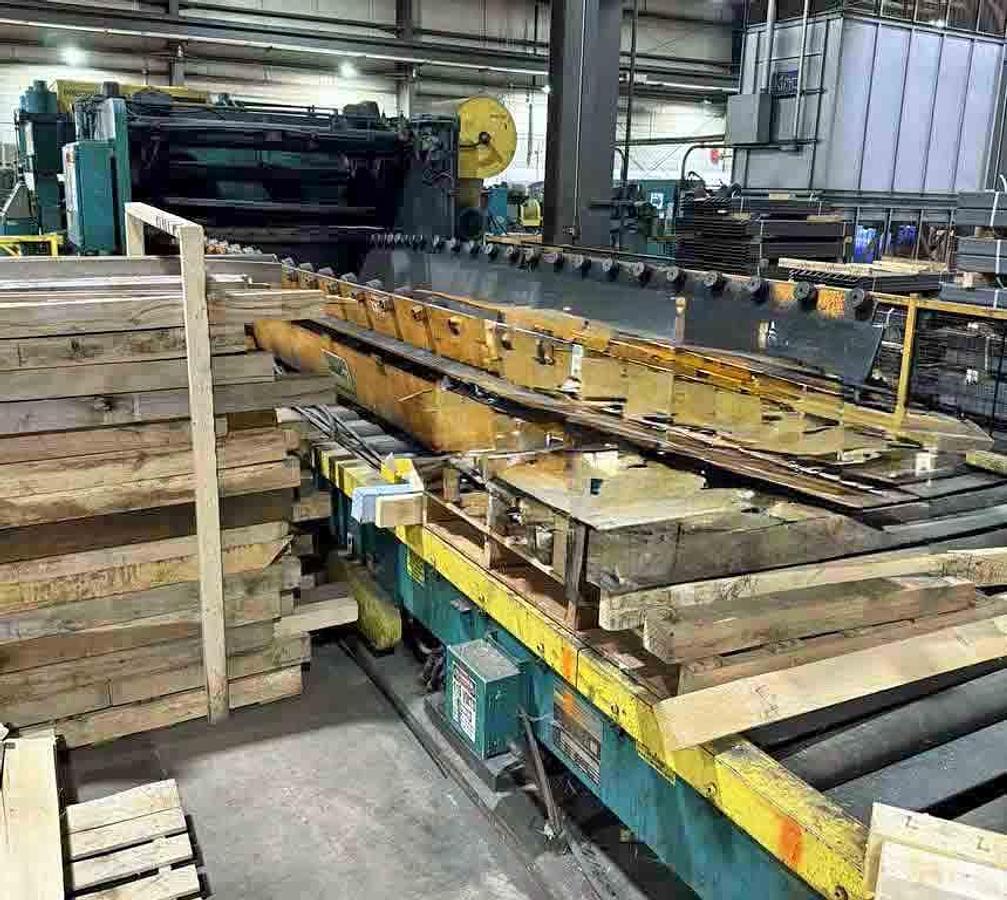

Drop-Type Stacker
- 40,000 Lb. Capacity
- Minimum Sheet Length: 24"
- Maximum Stacked Sheet Length: 24'
- Side Guide Retainers
- Powered Side Tap

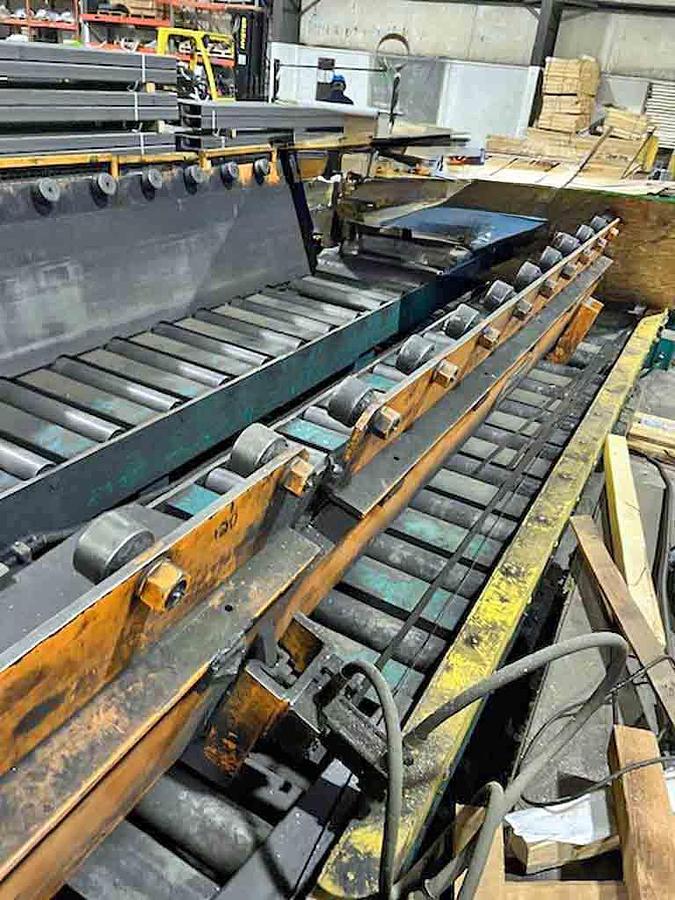

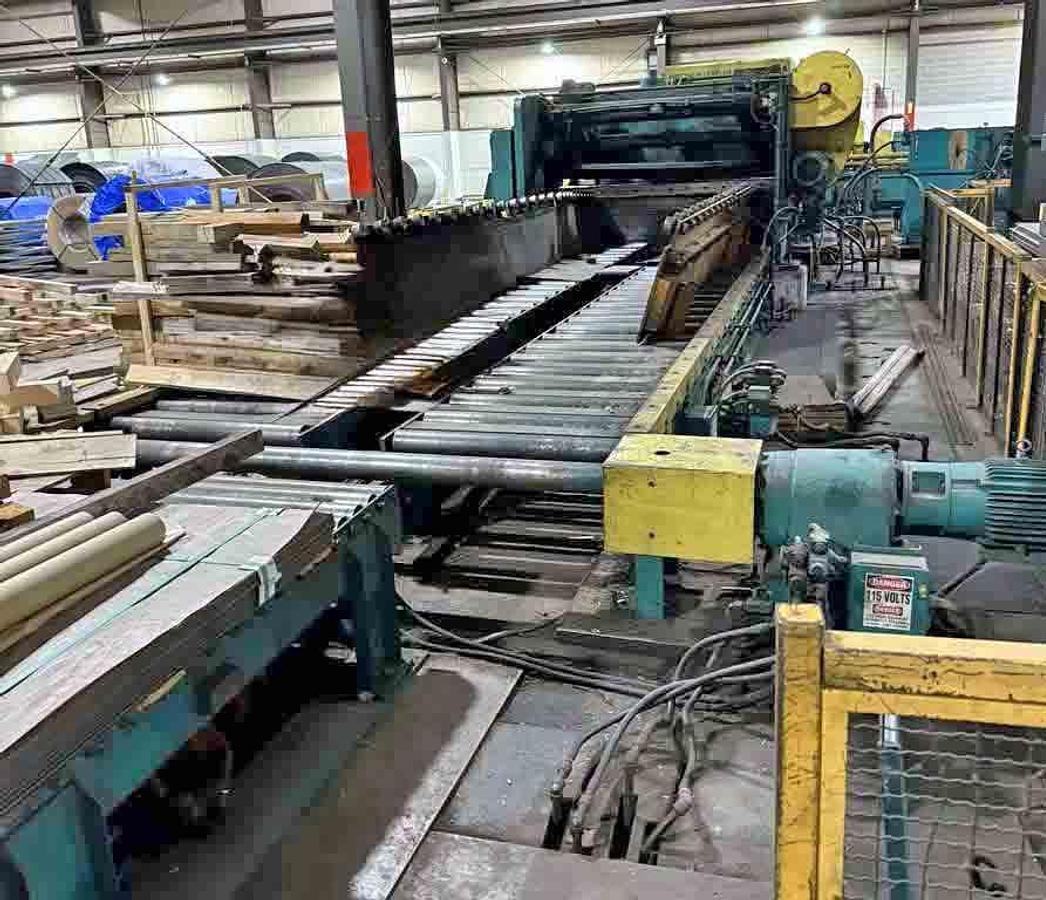

Runout Conveyor
- 40' Long

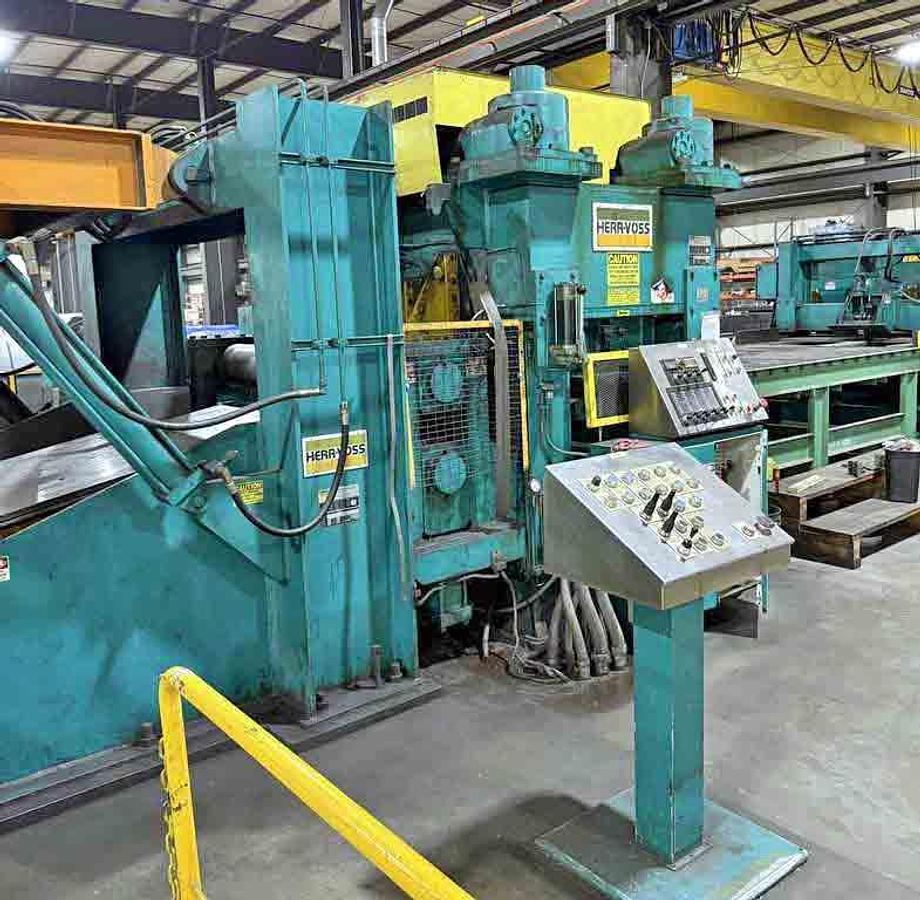

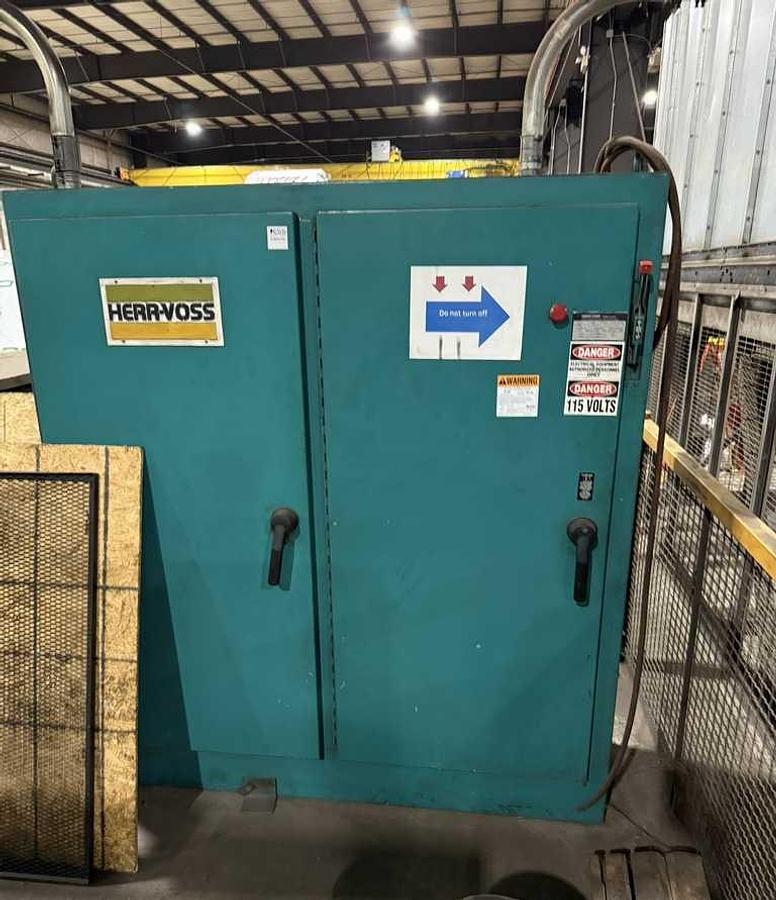

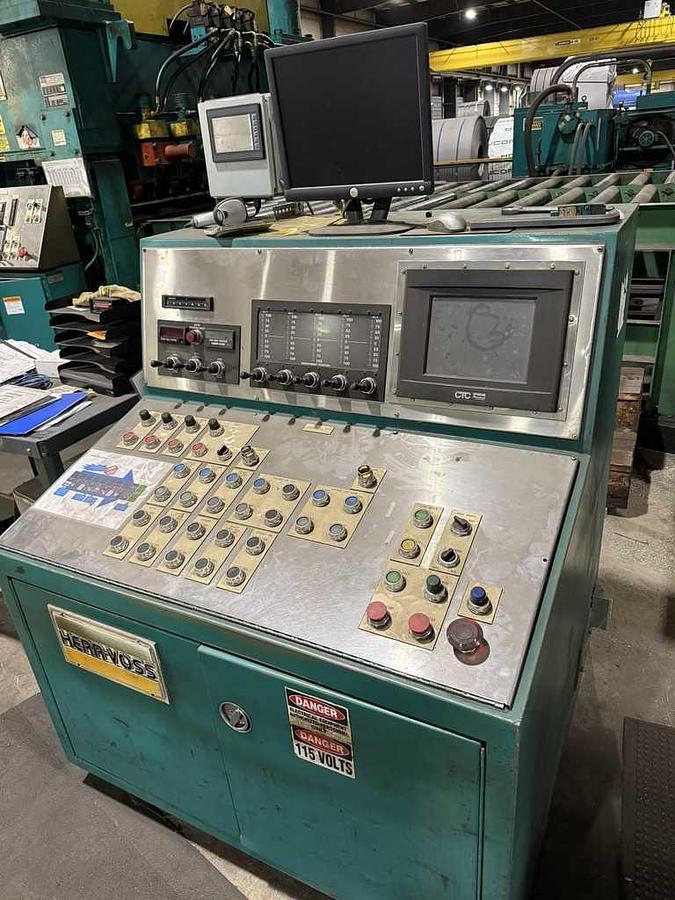

Main Operator Control Panel

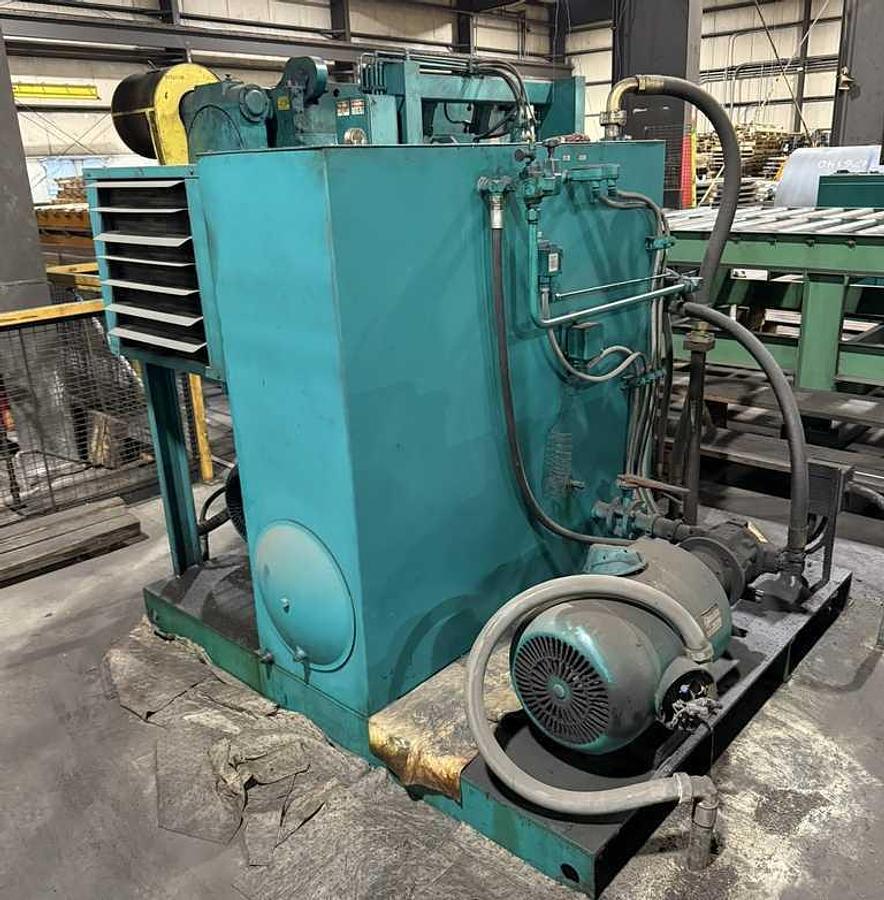

Main Hydraulic Power Unit
Complete Mechanical & Electrical Drawings
Operator Manual
