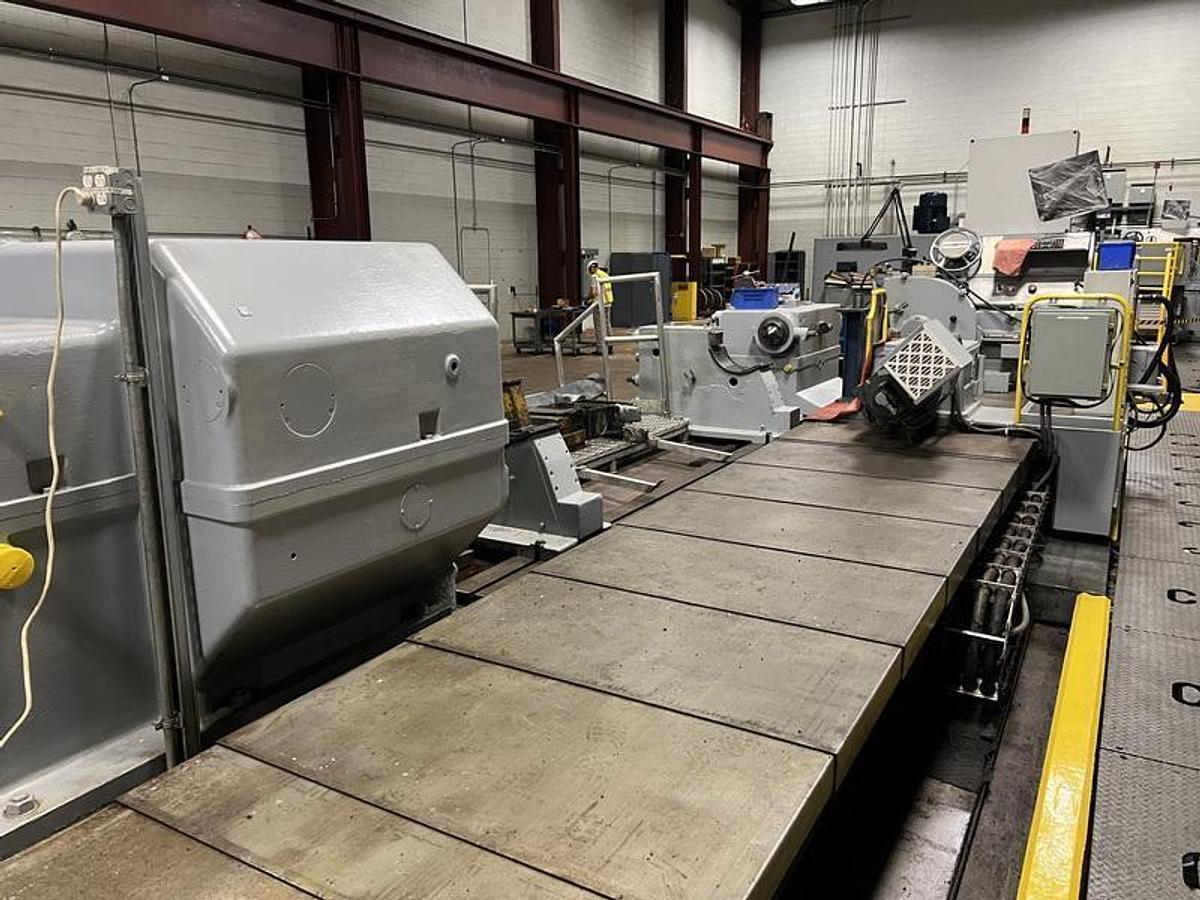

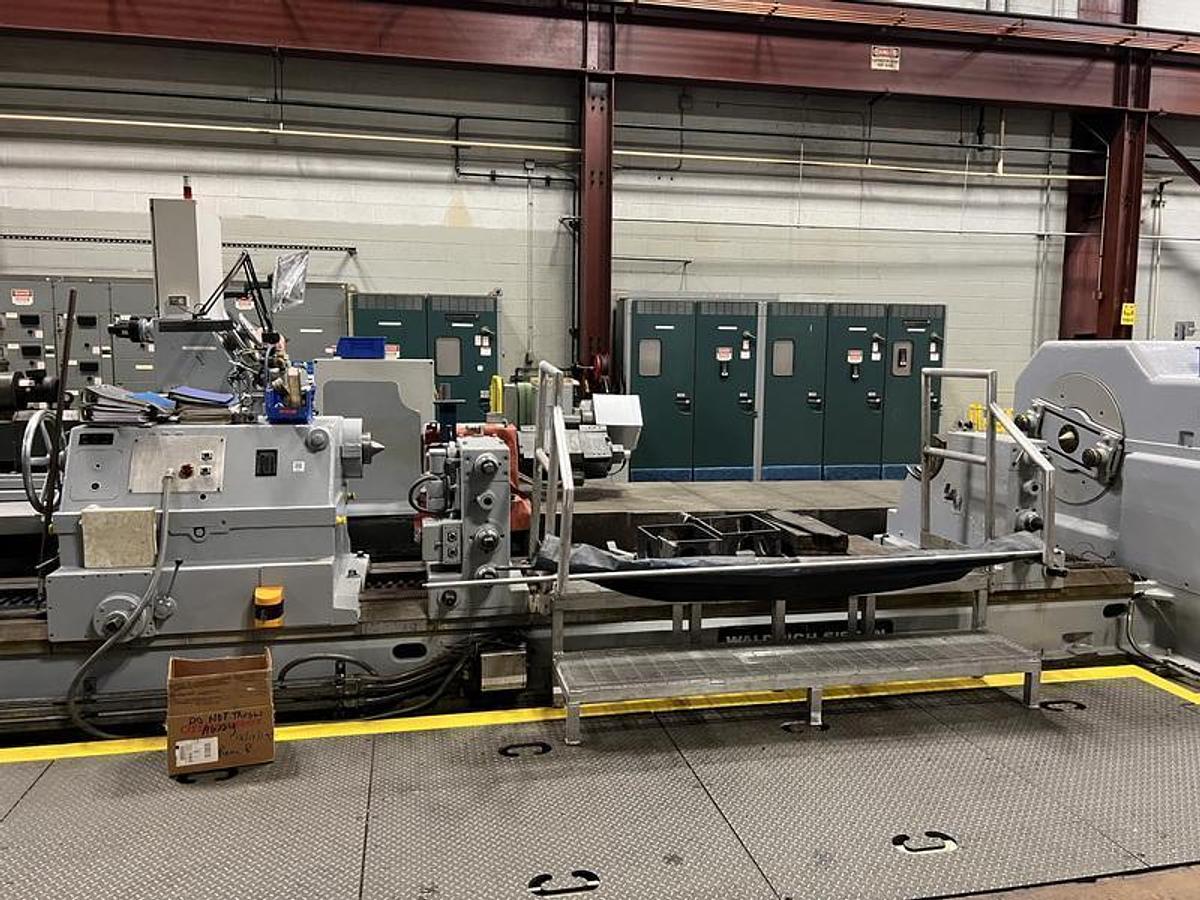

1260mm (50") x 5000mm (16') Waldrich Siegen Roll Grinder

Specifications

-Waldrich Siegen Roll Grinder

-Model: V/S II b 35 x 5000

-Crowning and Cambering Capabilities

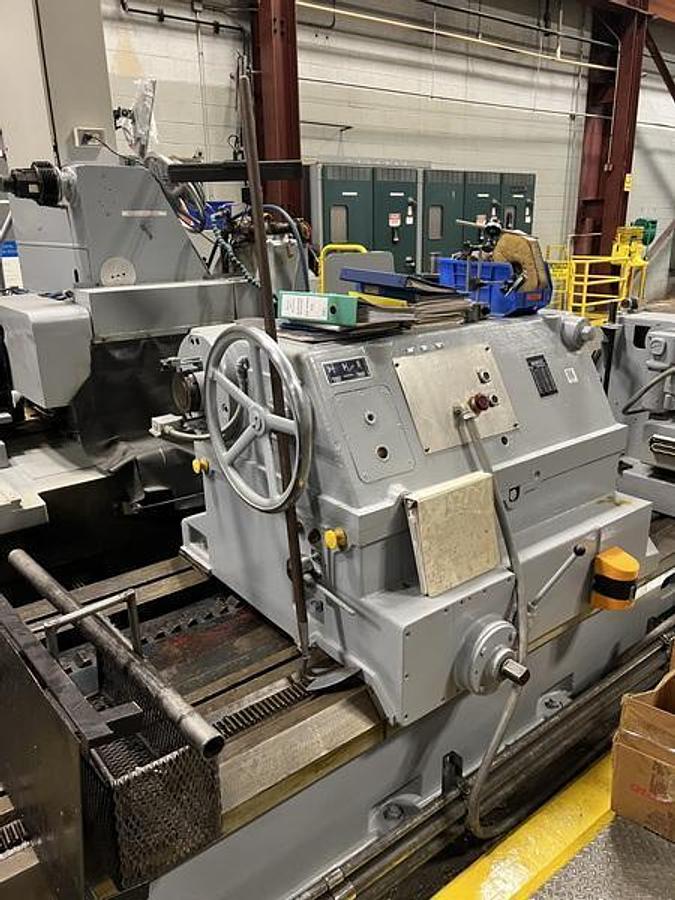

-Stationary Rotating Roll with Travelling Grinding Carriage

-2 Steadies

-Servo Drives: Headstock & Grinding Wheel

-Max Roll Diameter: 1260mm (50")

-Min Roll Diameter: 140mm (5.5")

-Distance Between Centers: 5000mm (16')

-Max Grinding Wheel Diameter: 800mm

-Max Roll Weight: 35 Tons (70,000 Lbs)

-Face Plate RPM: 7 - 70 RPM

-Grinding Carriage Feed: 60 - 4000 mm/min

-Cross Slide Traverse Infeed: 560mm

-Rapid Traverse Cross Slide: 400mm/min

-Fine In-Feed Hand Wheel: .0125mm/1 Umdr

-Coarse In-Feed Hand Wheel:  .25mm/1 Umdr

-End Feed by Motor: .01 - .1 mm/Hub

Grinding Wheel:

-Max Diameter: 800mm (31.5")

-Width: 80mm (3.15")

-Hole: 305mm (12")

-Headstock: 60 HP : 240/960/2400 RPM

-Grinding Wheel: 40 HP : 720/1800 RPM

-Carriage Drive: 5 HP : 24/1600 RPM

-Rapid Traverse Cross Slide

-Grinding Spindle Lubrication

-Bedway Lubrication

-Quill Rapid Traverse - Tailstock

-2008 Electrical Upgrade

-Computer Controlled

-Allen Bradley Powerflex Digital Drives

-Allen Bradley 1606-XL Power Supply

-N-Tron 508 XT Ethernet Card

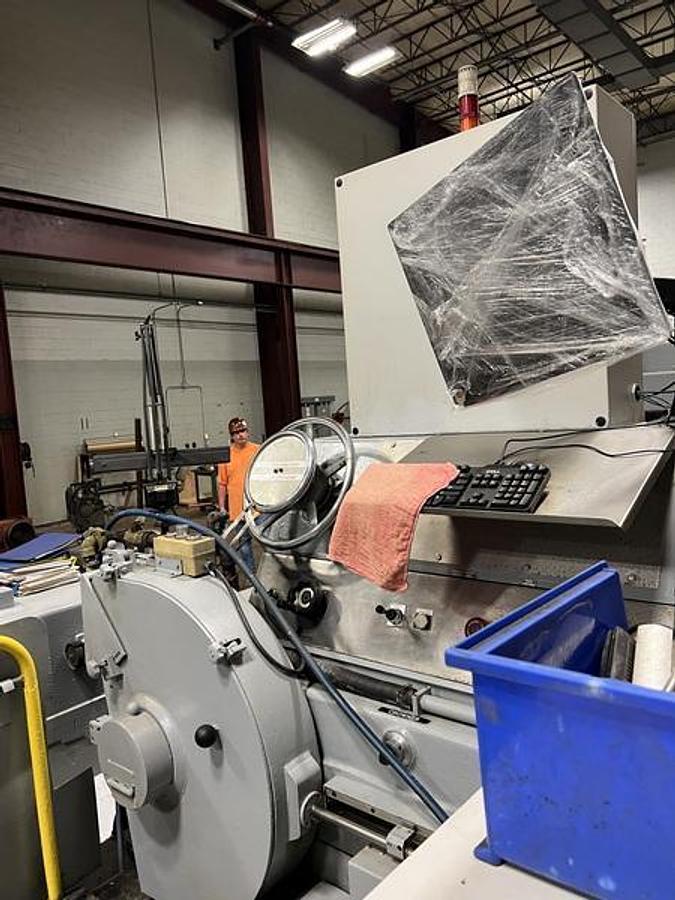

-Allen Bradley Panelview Plus 1250 Digital Readouts

-Allen Bradley PLC CompactLogix L32E
