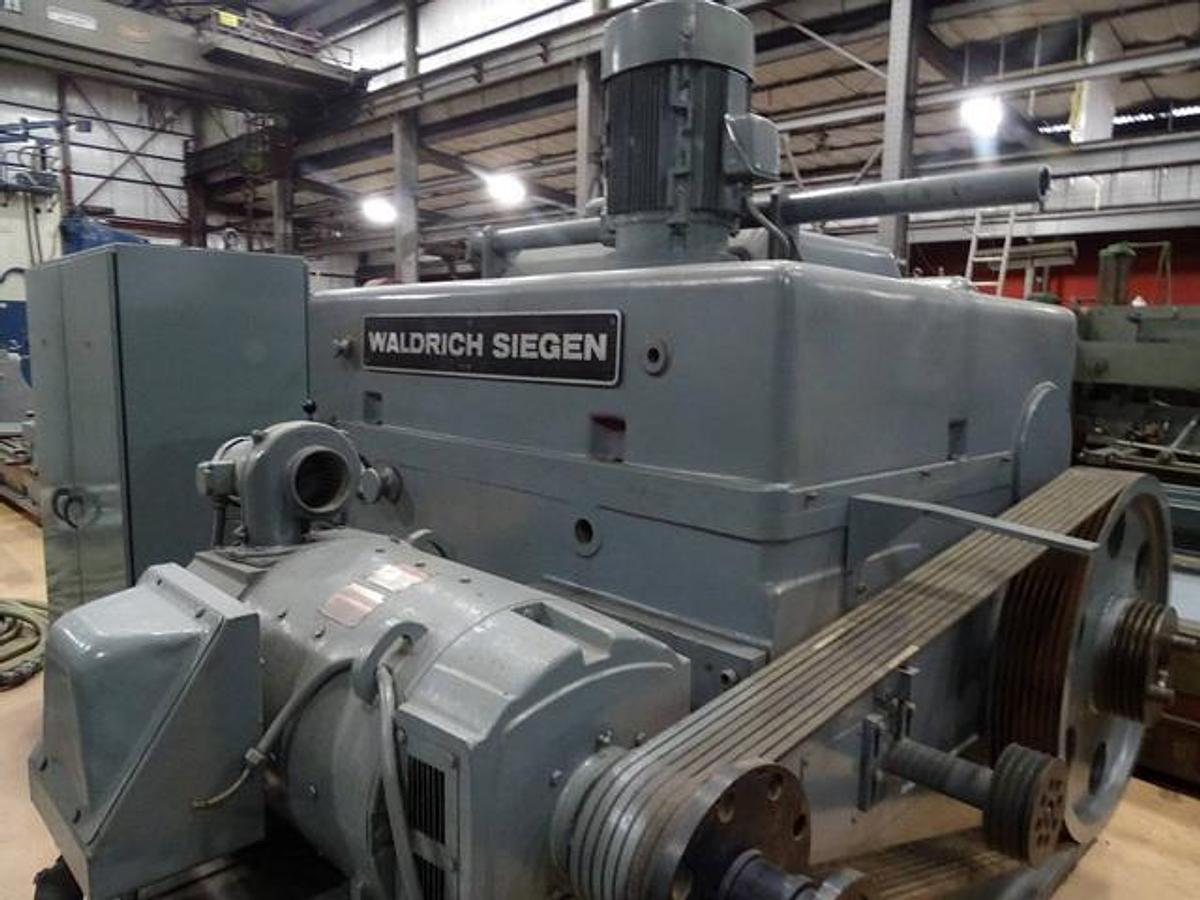

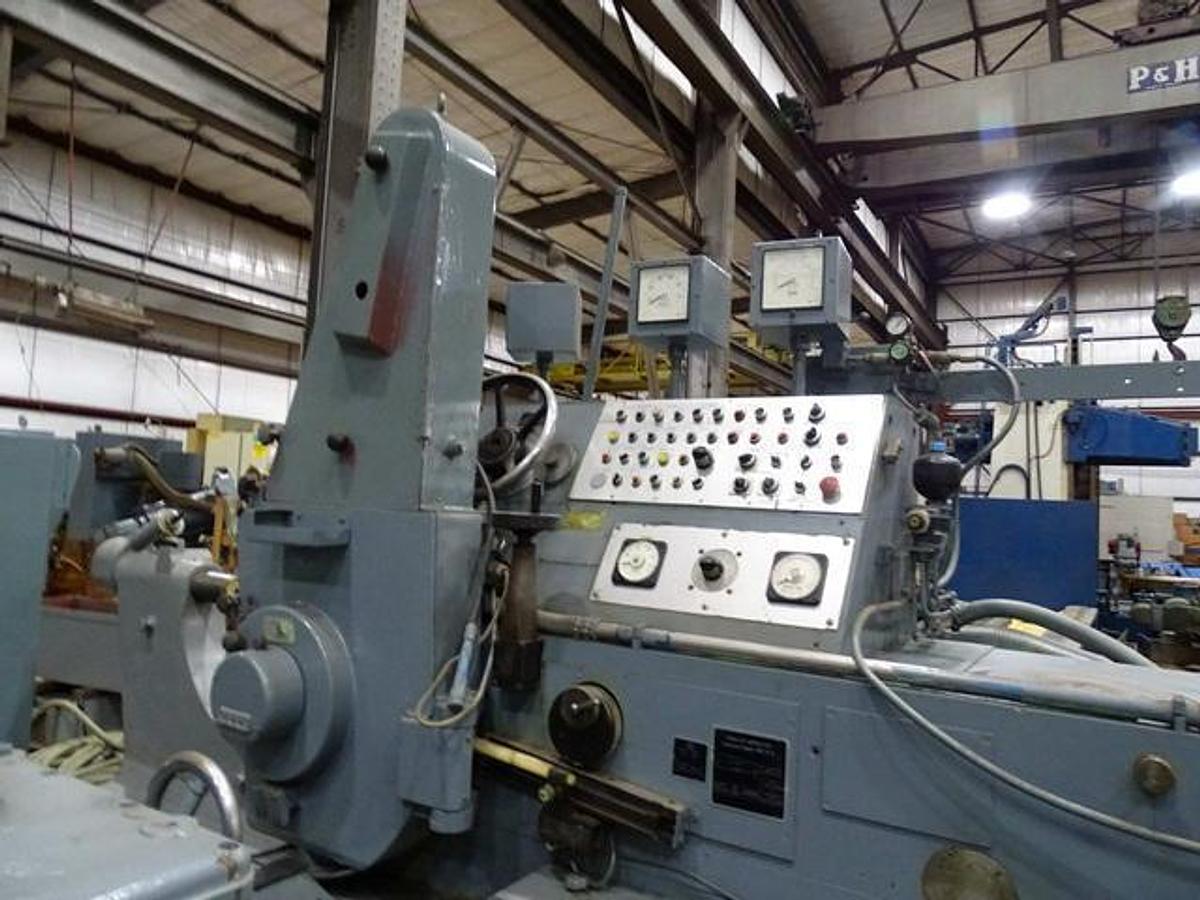

78” x 472” WALDRICH SEIGEN ROLL GRINDER

Specifications

Manufacturer Waldrich Seigen

Model WST IV H80 x 12000

Year 1981 / Installed 1982

-Maximum Grinding Diameter 78.00 in 1981.20 mm

-Distance Between Centers 472.40 in 12000.00 mm

-Maximum Workpiece Weight 176000.00 lbs 80000.00 kg

-Wheel Width Maximum 4.00 in 100.00 mm

-Wheel OD Diameter 32.00 in 812.80 mm

-Wheel ID 12.00 in 305.00 mm

-Wheelhead Angle 90 Degrees To Workpiece Axis

-Wheel Spindle Power 27 - 59/59 HP 20 - 44/44 kW

-Wheel Spindle Speed 450 - 1800 RPM Infinitely Variable

-Wheel Dresser Bed Mounted Roll

-Wheelhead Cross Travel 25.60 in 650.00 mm

-Wheelhead Longitudinal Travel 488.40 inch, 12405 mm

-Wheelhead Speed 157.5 inches/min, 4000 mm/min

-Workhead Power 1.9 - 59/59 HP 1.4 - 44/44 kW

-Workhead Speed .5 - 300 RPM

-Sludge Conveyor None

-Coolant Yes

-Filtration System Combination 2 Cartridge And Fabric Filter

-Ways Cast Iron Full Hydrostatic

-Way Covers Metal Telescopic

-Power Existing

Additional Waldrich Siegen 4 in (100 mm) width roll belt grinding attachment, roll cambering / crowning, range of table setting for camber / convex: .0005 - .292 mm, range of table setting for camber / convex / and concave .0004 - .1024 mm, range of table setting for camber based on radius: .0039 - .1496, 2 - 2 jaw steady rests: diameter range 7.88 - 20 in (200 - 510 mm), cross adjustment of steady rests: 23.6 in (600 mm)

-Machine Length 732.00 in 18600.00 mm

-Machine Width 219.00 in 5570.00 mm

-Machine Height 91.00 in 2320.00 mm

-Weight 134000.00 lbs 60800.00 kg
