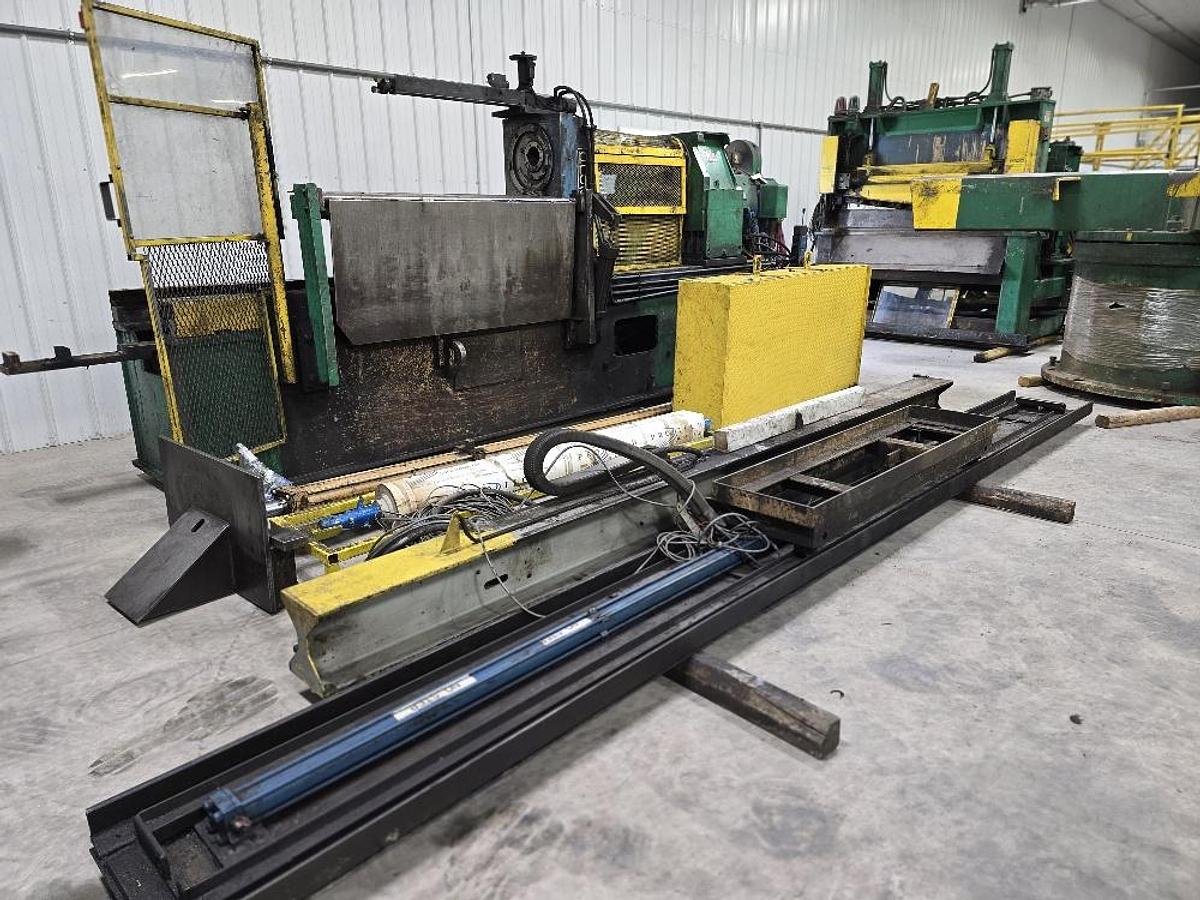

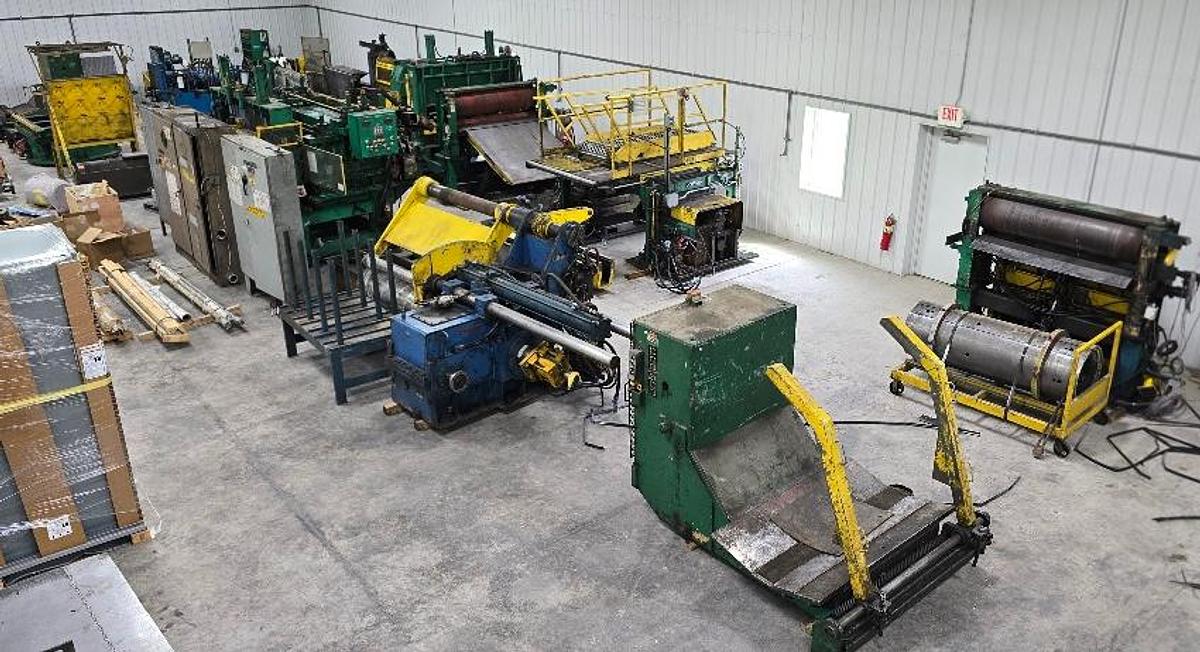

60” x 0.250” x 50,000 lb Pro-Eco Slitting Line

Specifications:

Manufacturer: Pro-Eco

Year: 1991

Line Direction: Left to Right

Coil Width: 60”

Thickness: .020" - 0.250” (1/4”)

Max Coil Weight: 50,000 lbs.

Max OD: 72”

Coil ID Range: 20”–24”

Line Includes:

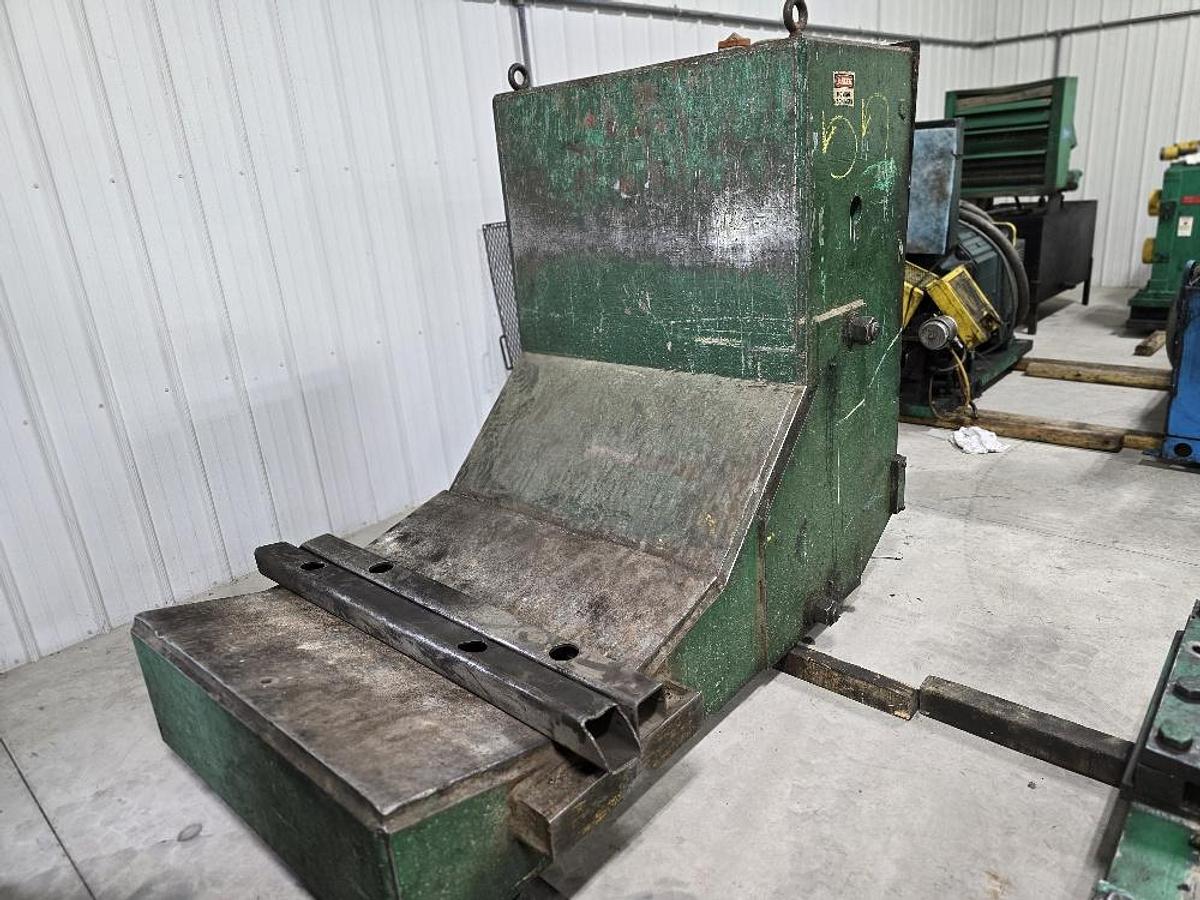

Entry Coil Car

– Above-floor hydraulic design

– 48” wide bed

– 72” OD capacity

– 50,000 lb capacity

– Self-contained hydraulics

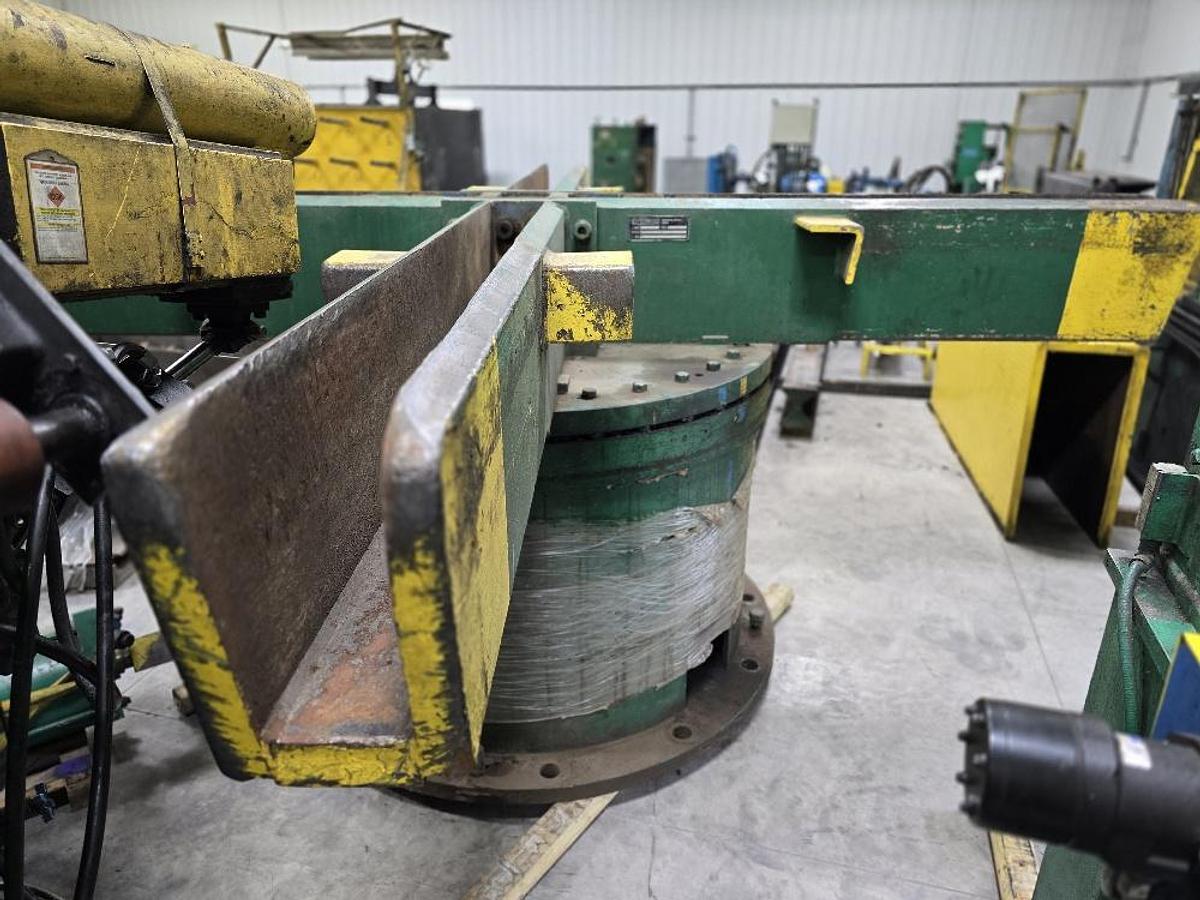

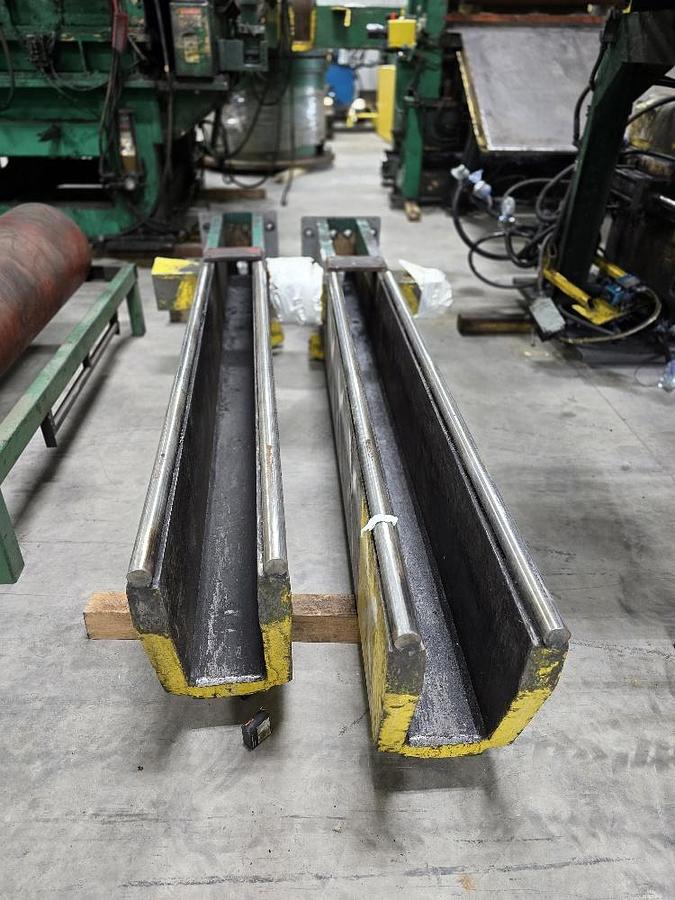

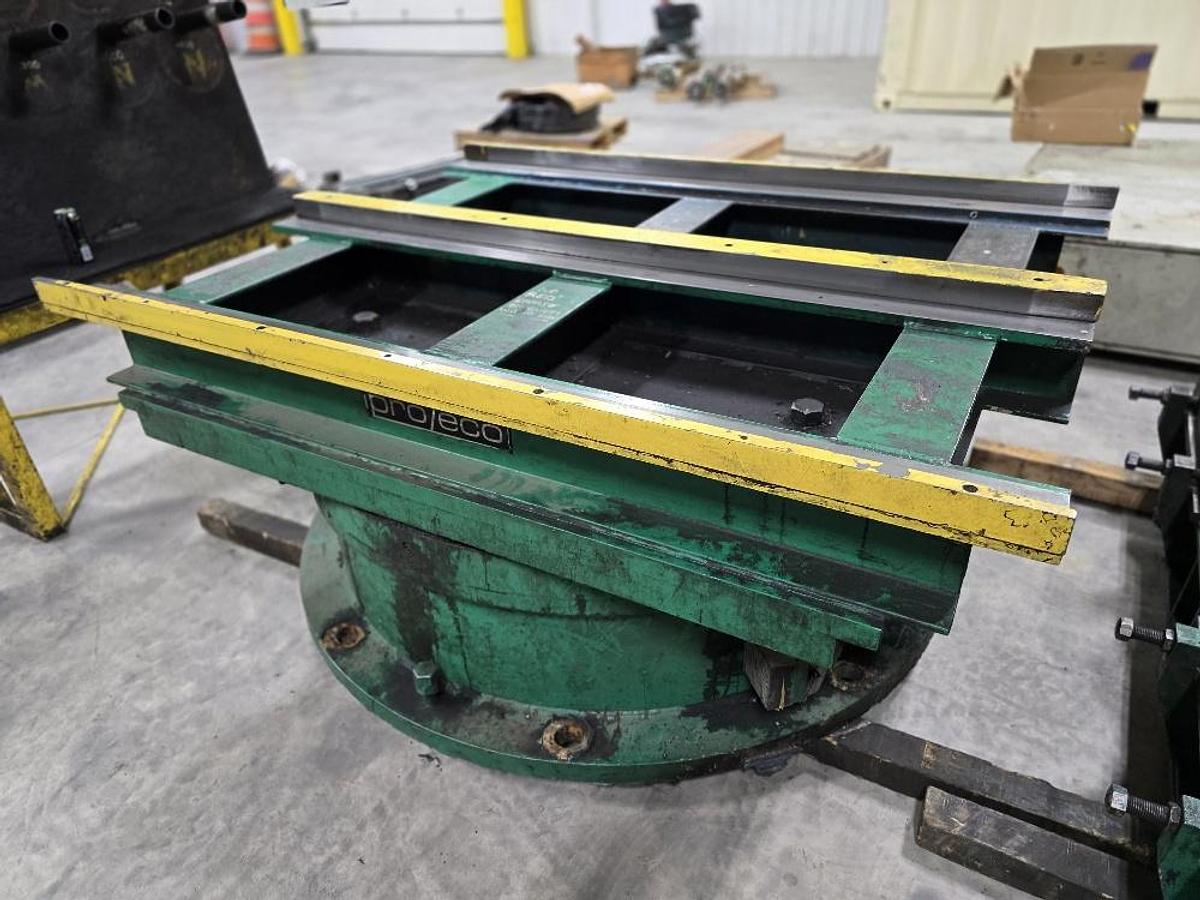

Entry Turnstile

– 4-arm hydraulic rotate design

– Arm length: 40”

– 6” wide C-hook slot

– 50,000 lb capacity/arm

Uncoiler Base (Mandrel Missing)

– Hydraulic sliding base

– Gibs present

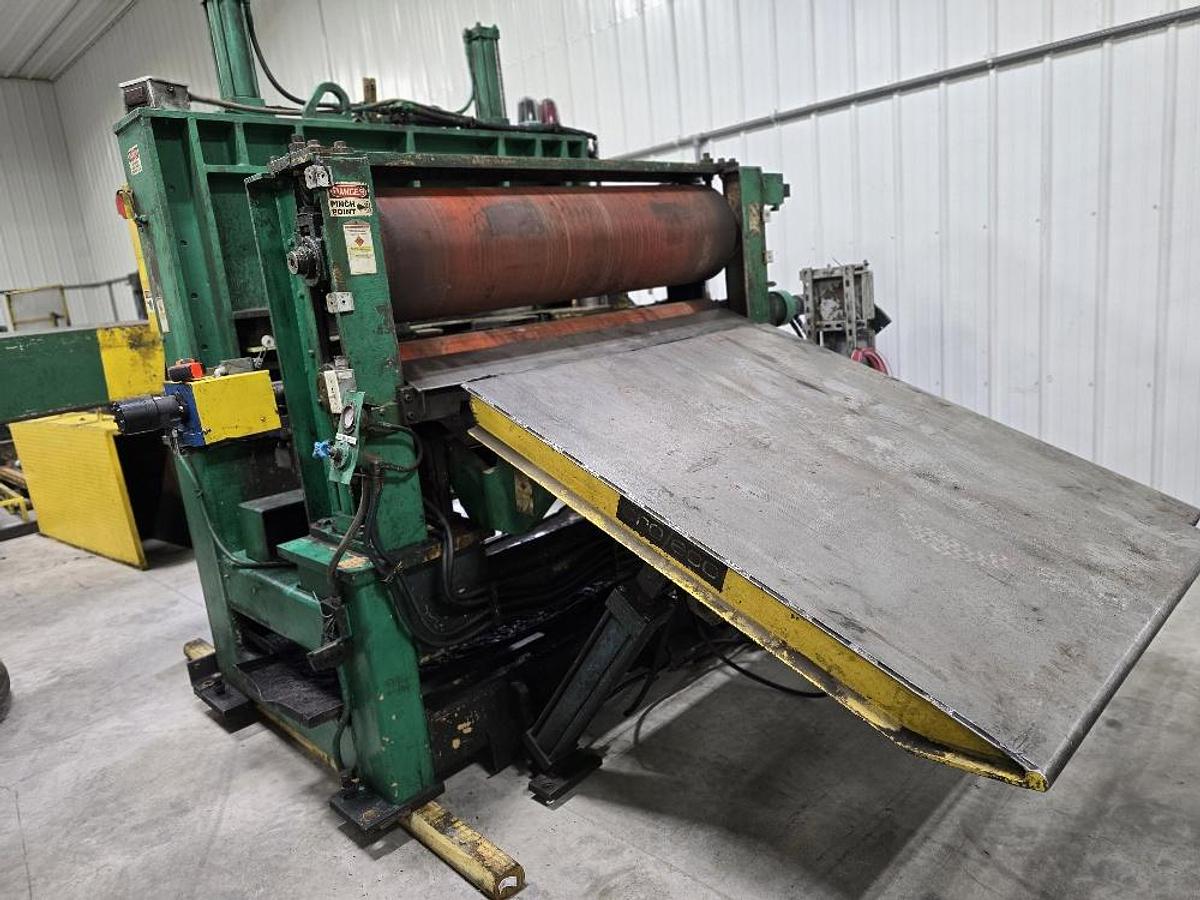

Peeler Blade

– Width: 60”

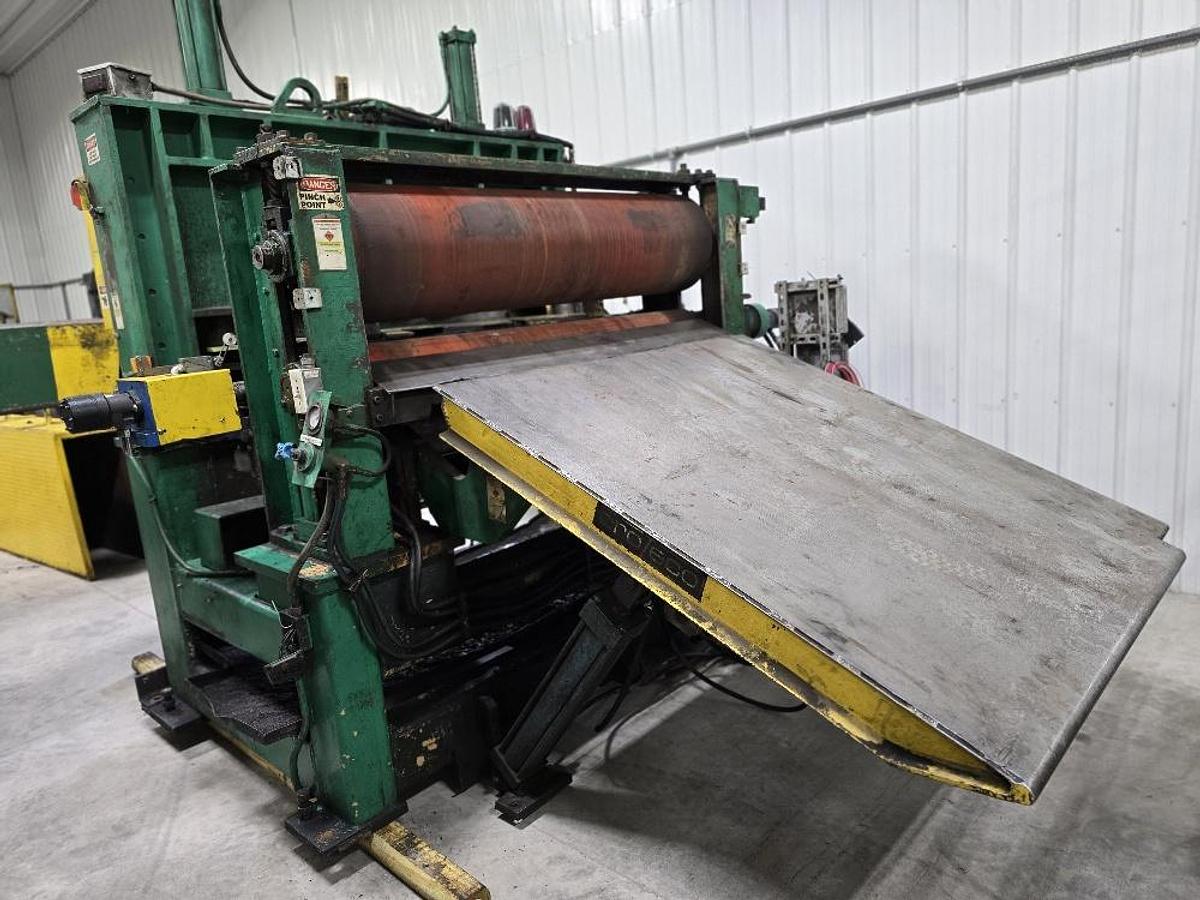

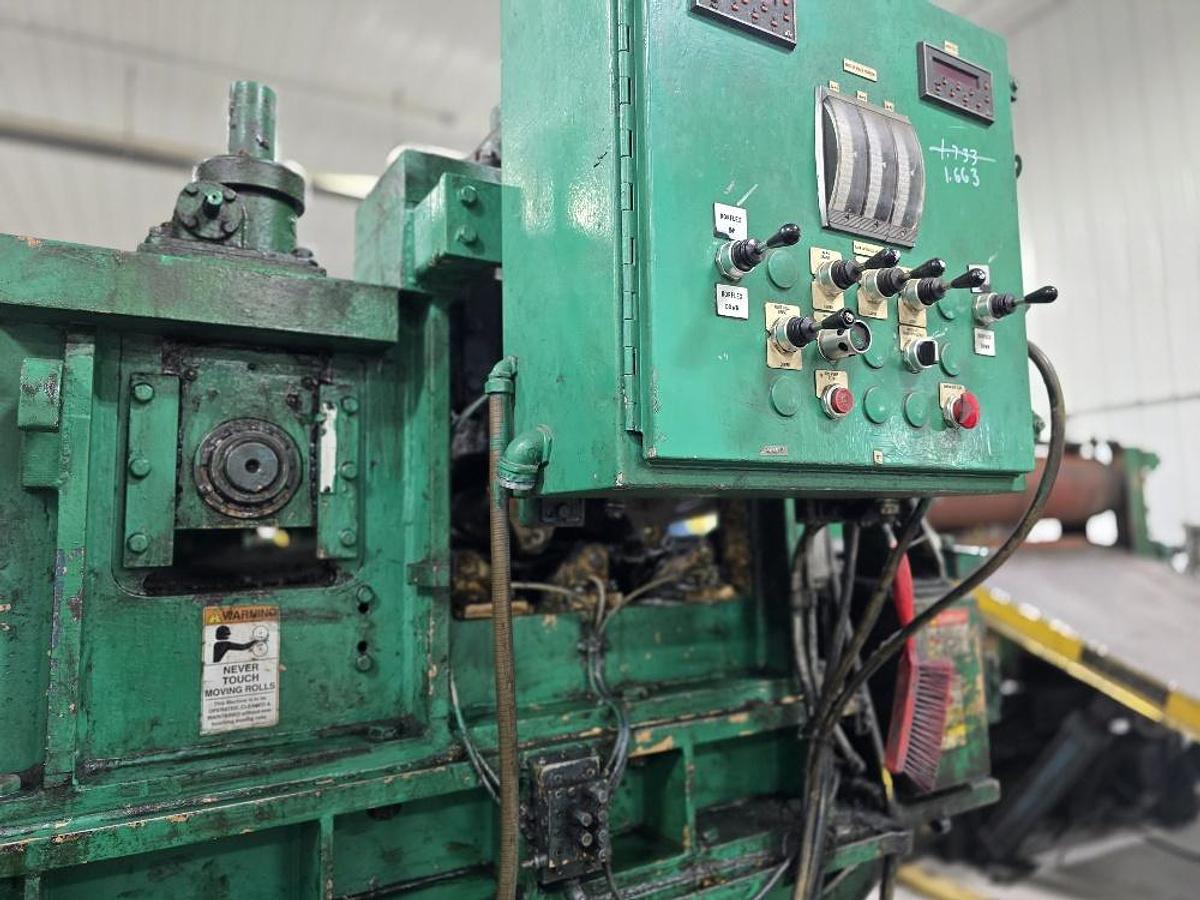

Pinch Rolls

– Bottom Roll: 8” diameter, hydraulically driven

– Top Roll: 14” diameter

Edge Guides

– Single-screw system

– One guide roll per side

Hydraulic Entry Shear

– Down-cut design

– Blade width: 64”

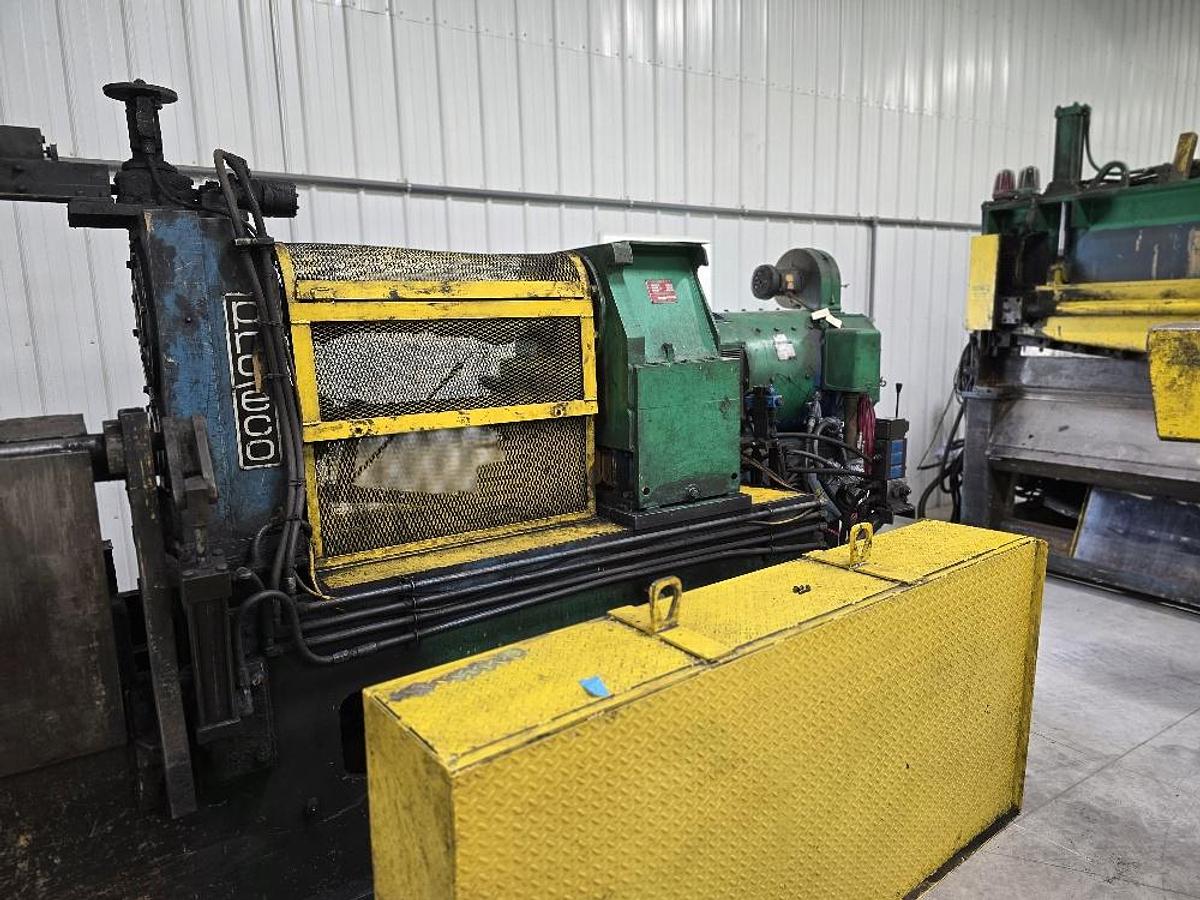

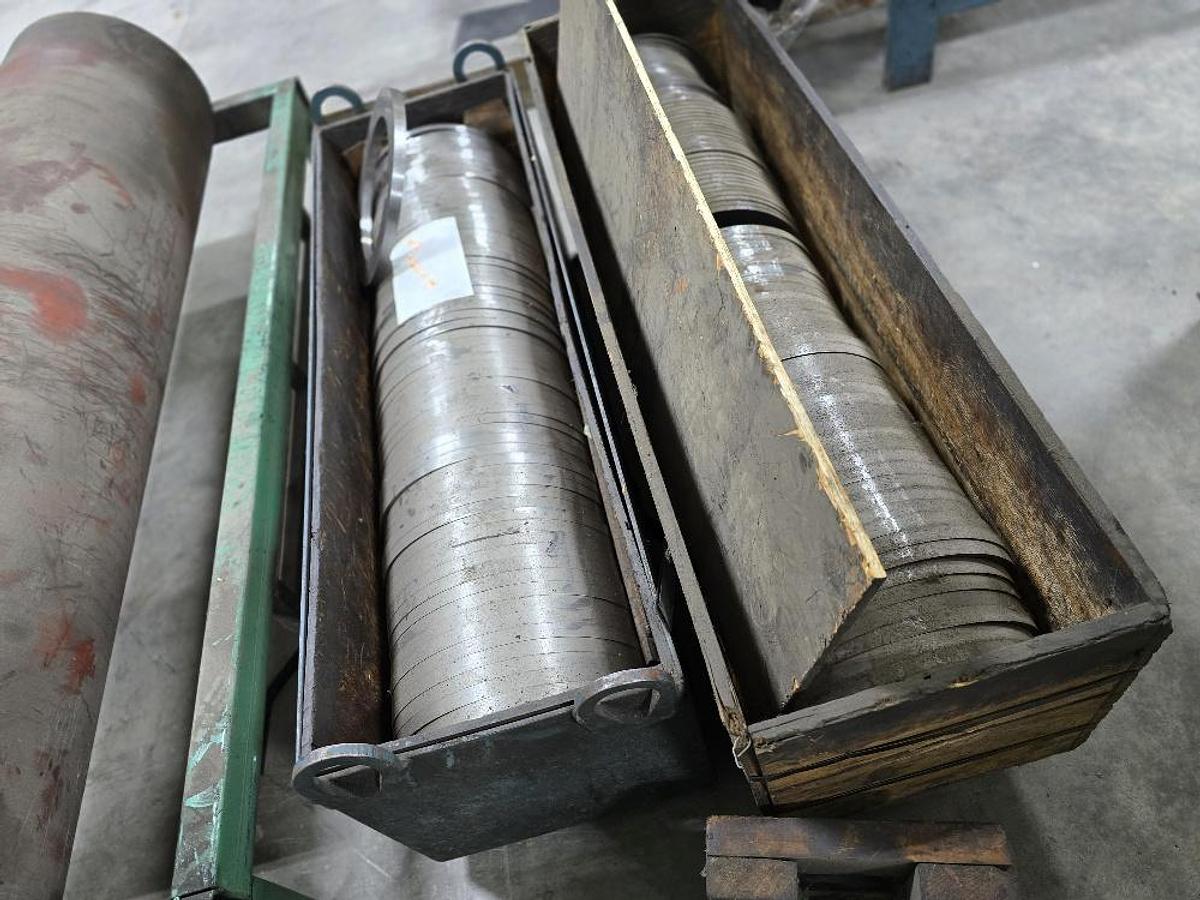

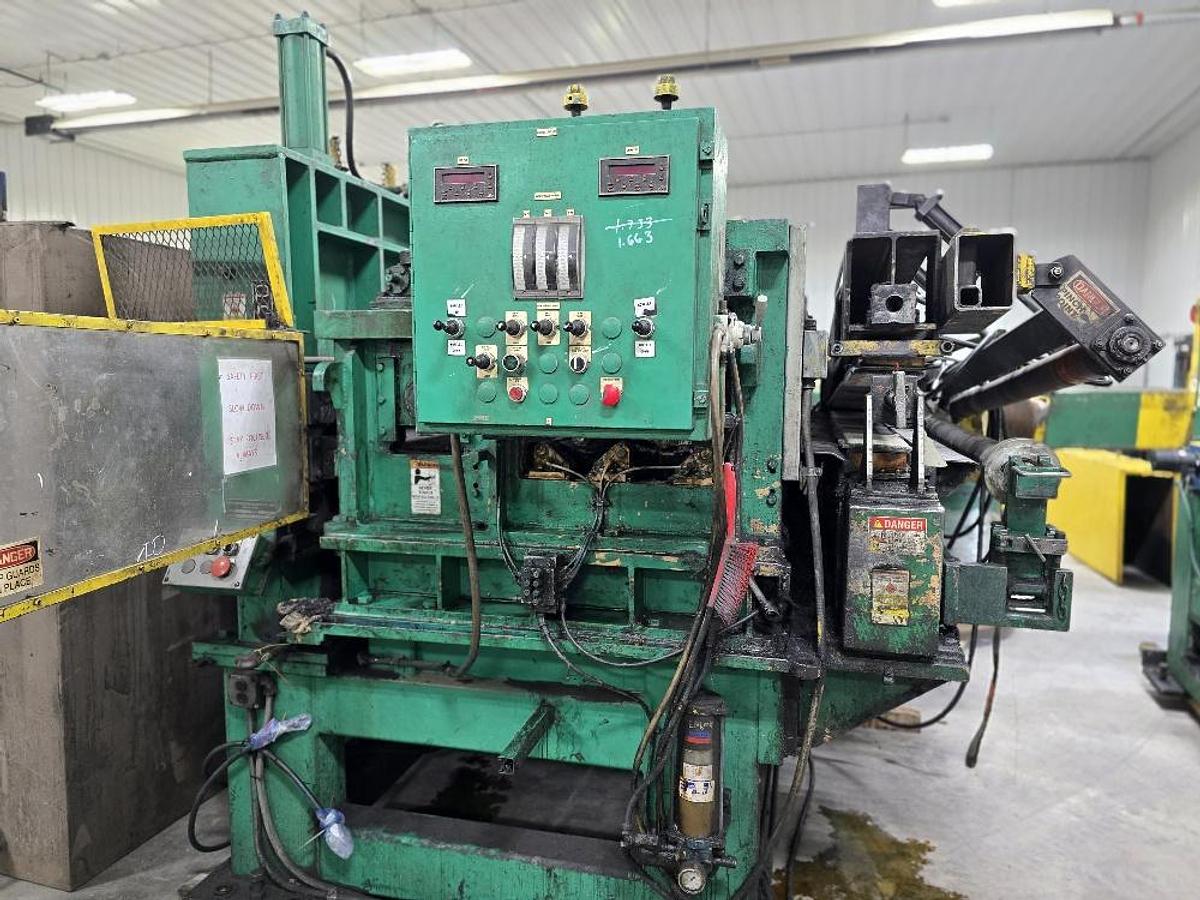

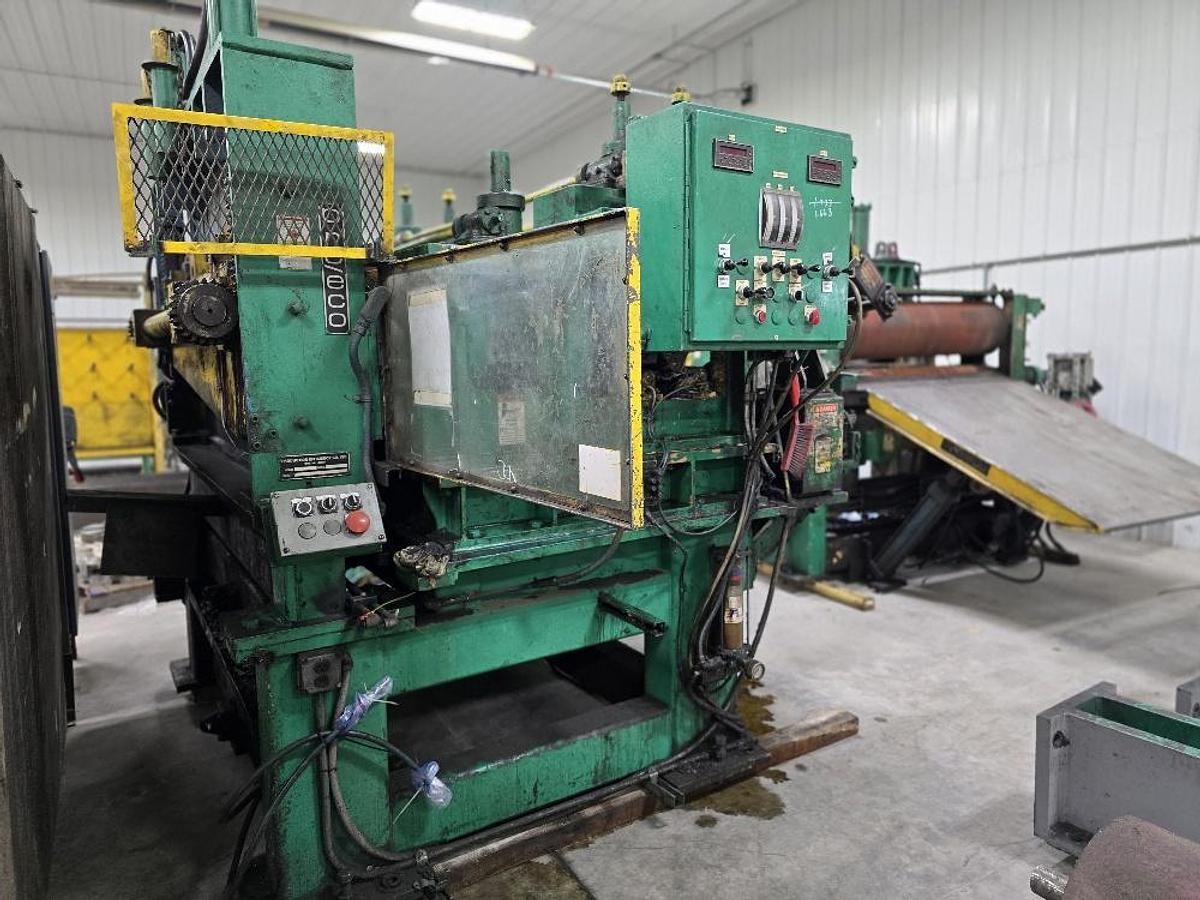

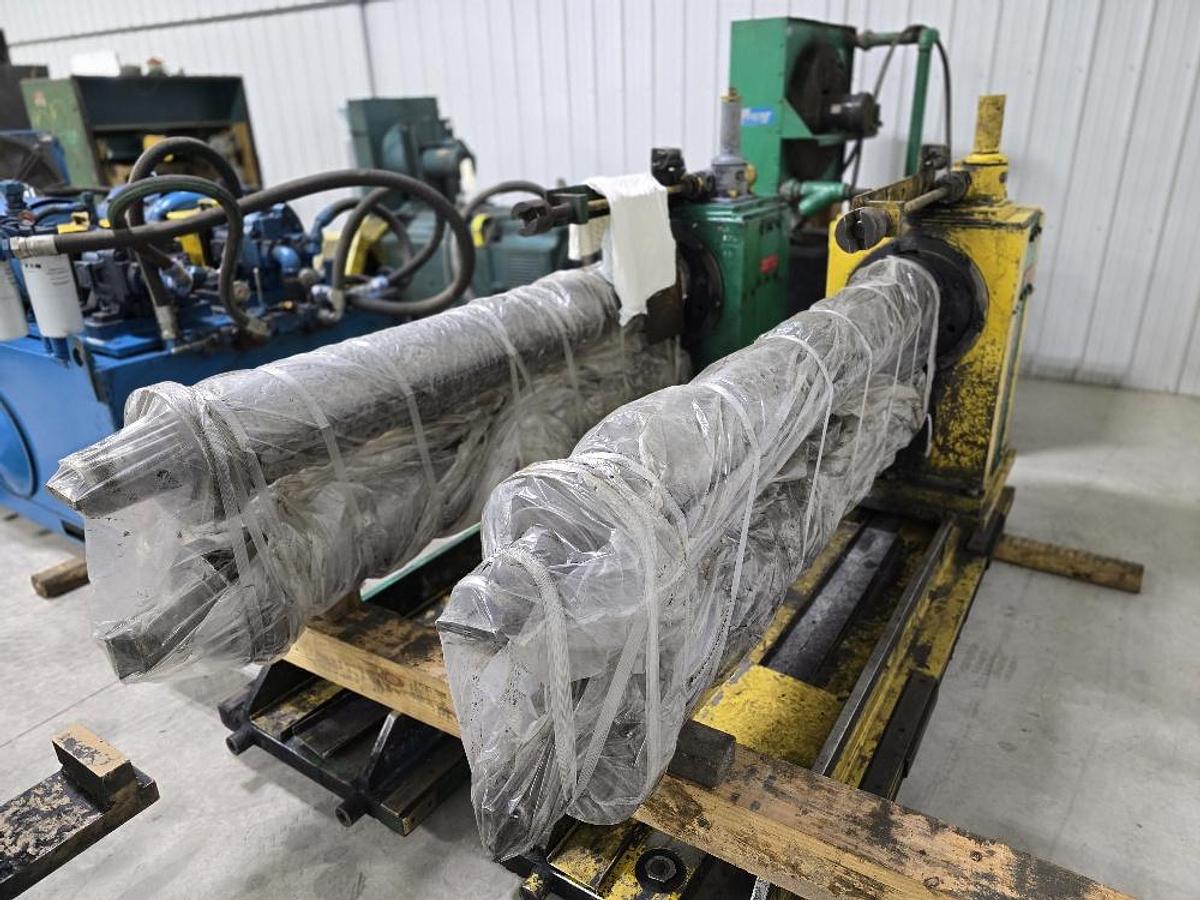

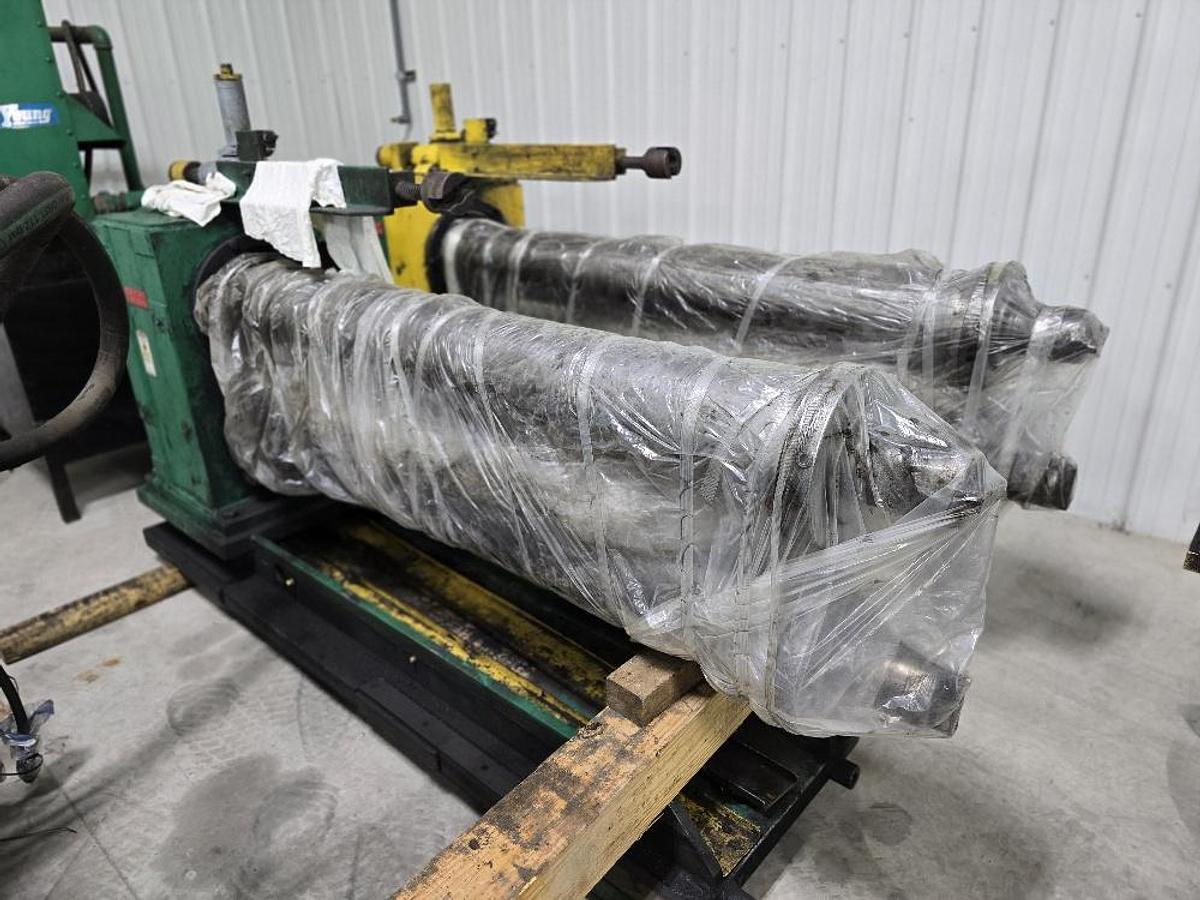

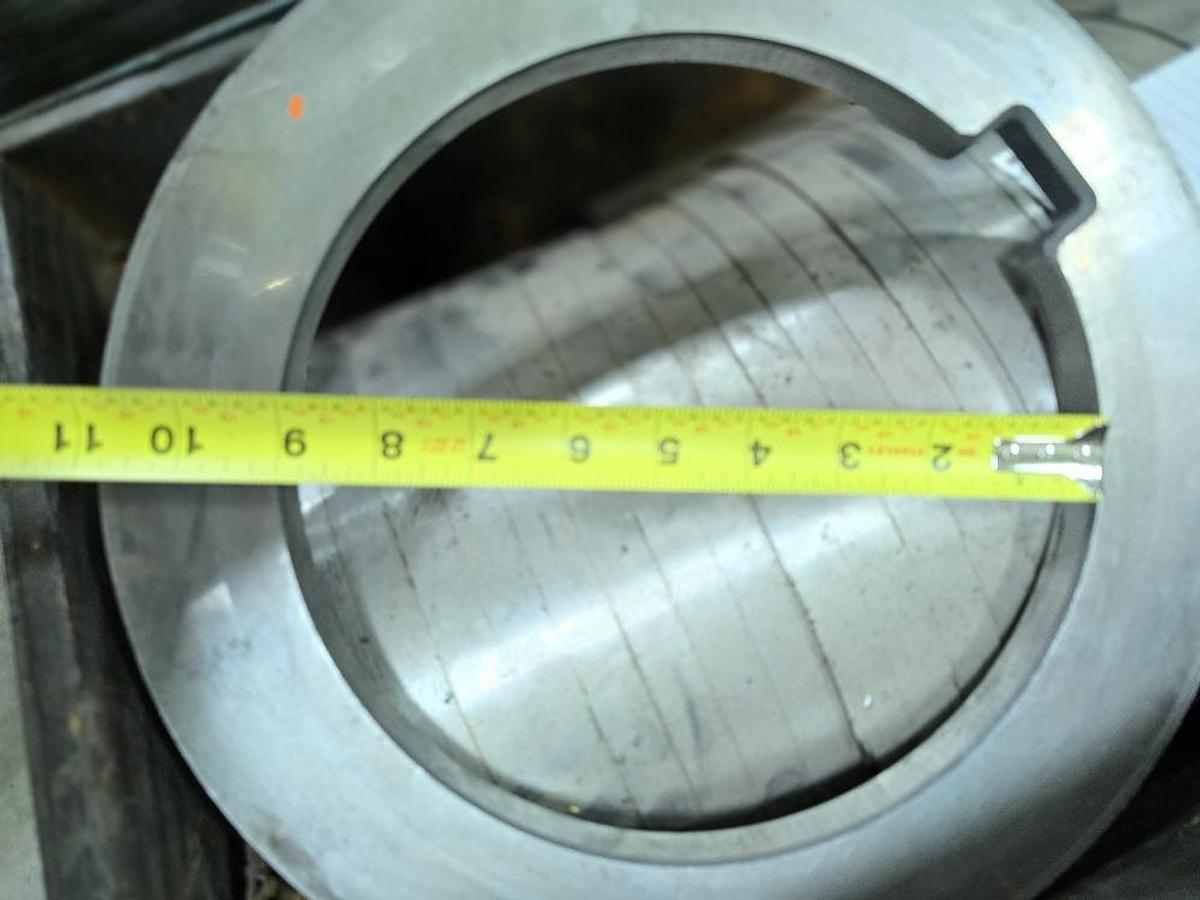

Pro-Eco Injector Head Slitter

– 9” arbors

– 64” width

– Rotating injection system design

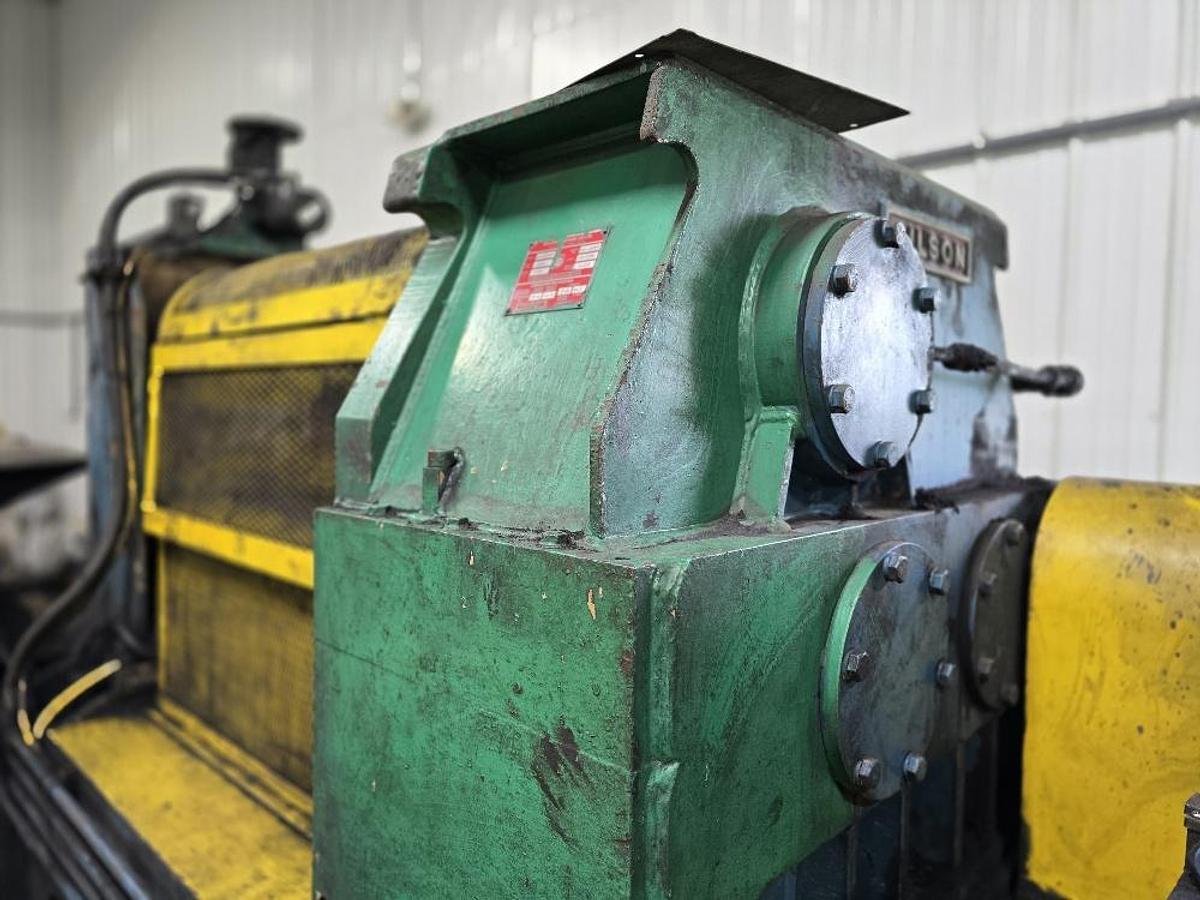

Slitter Base + Gearbox + Motor

– Gearbox:

– Rated 150 HP

– Input: 850 RPM

– Ratio tag: 10.379:1

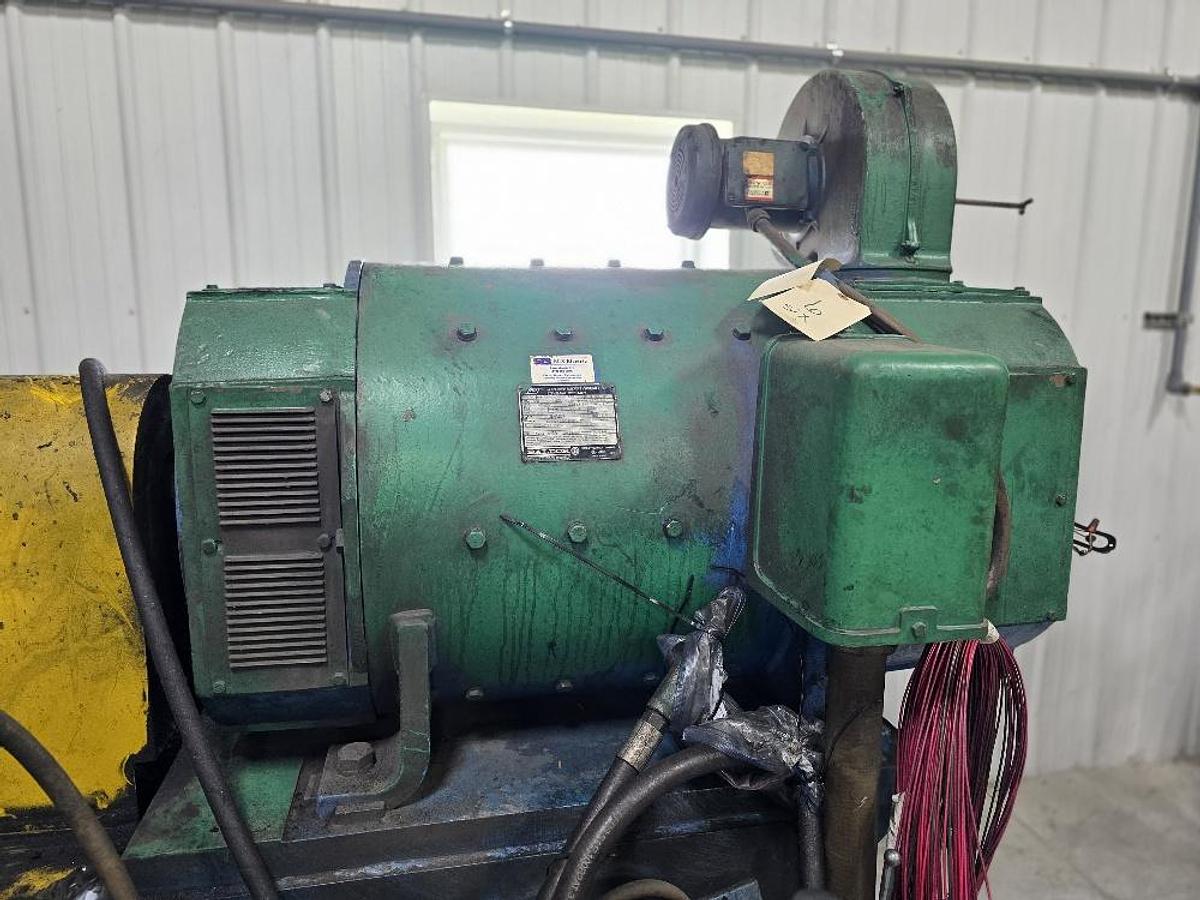

Slitter Motor:

– 150 HP

– 850–1950 RPM

– 500V DC

– Cleveland Machine Controls

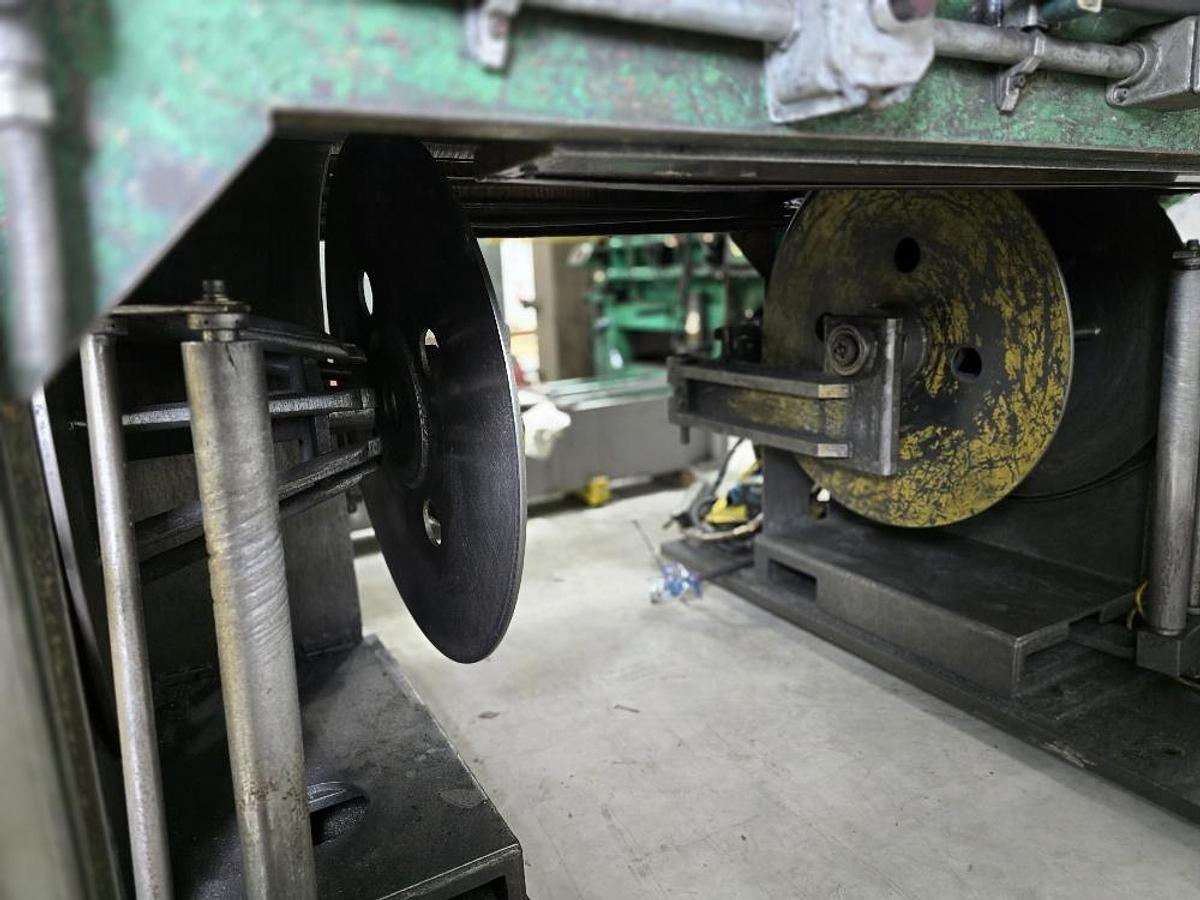

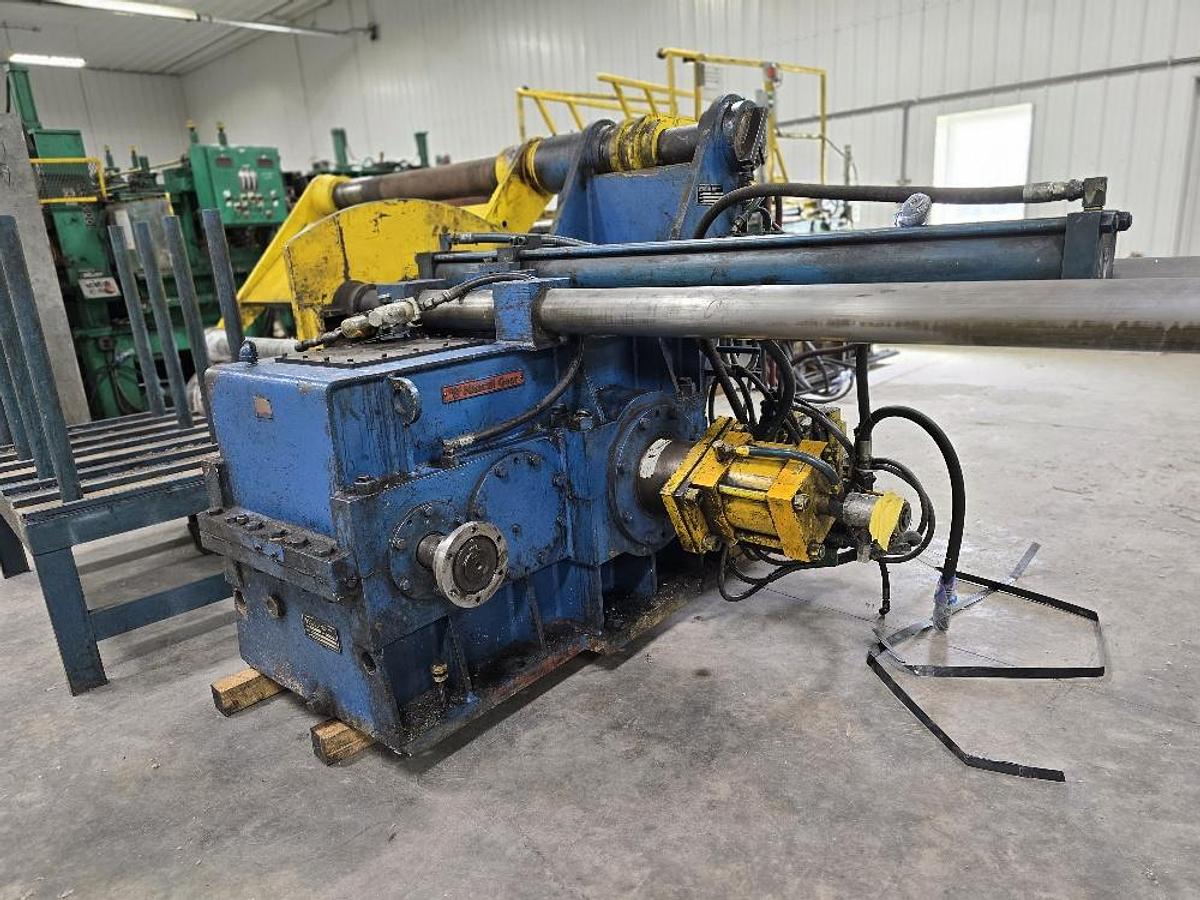

Scrap Handling

– (2) Hydraulic Scrap Winders

– Oscillating eye design

– Platform overhead

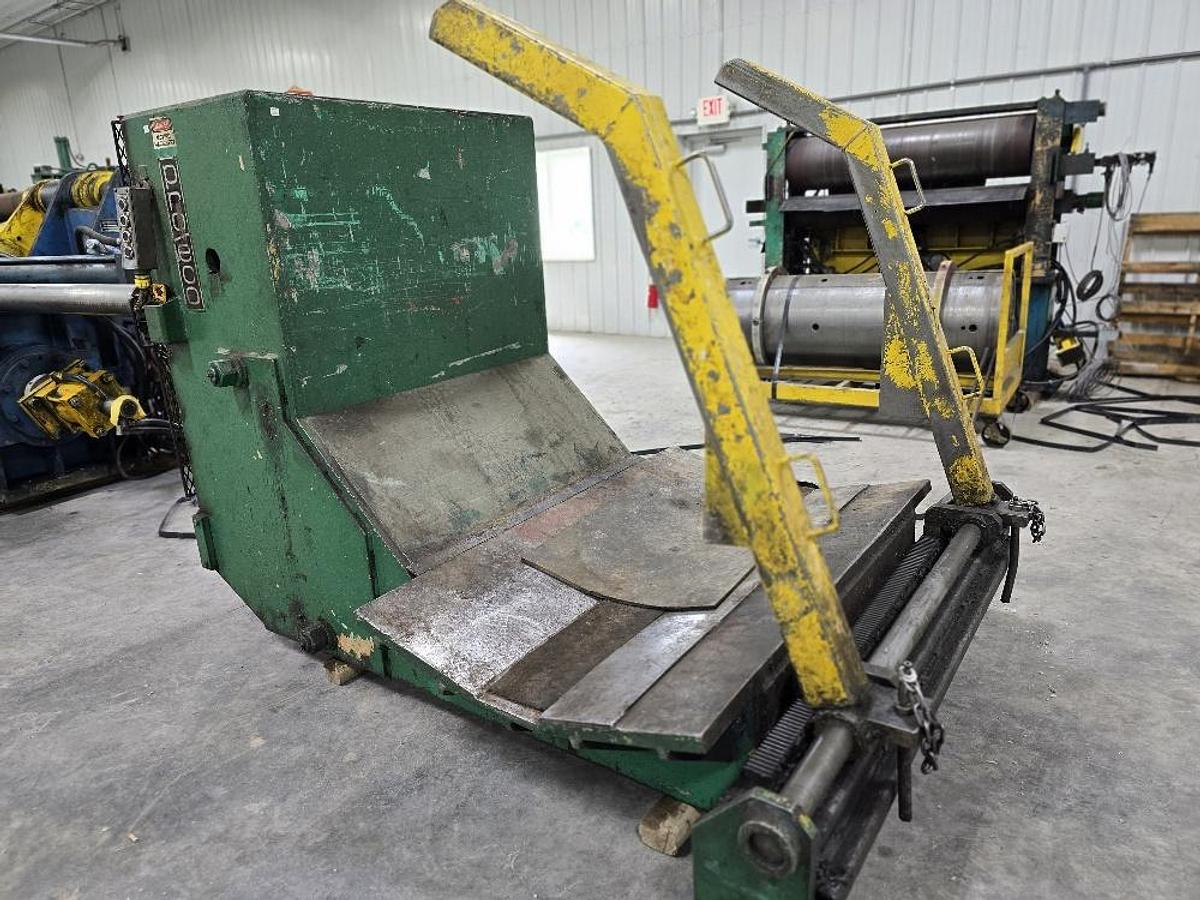

Crossover Table + Feed Equipment

– Loop pit crossover table

– Feed table and pinch rolls included

– Positioned after slitting and scrap section

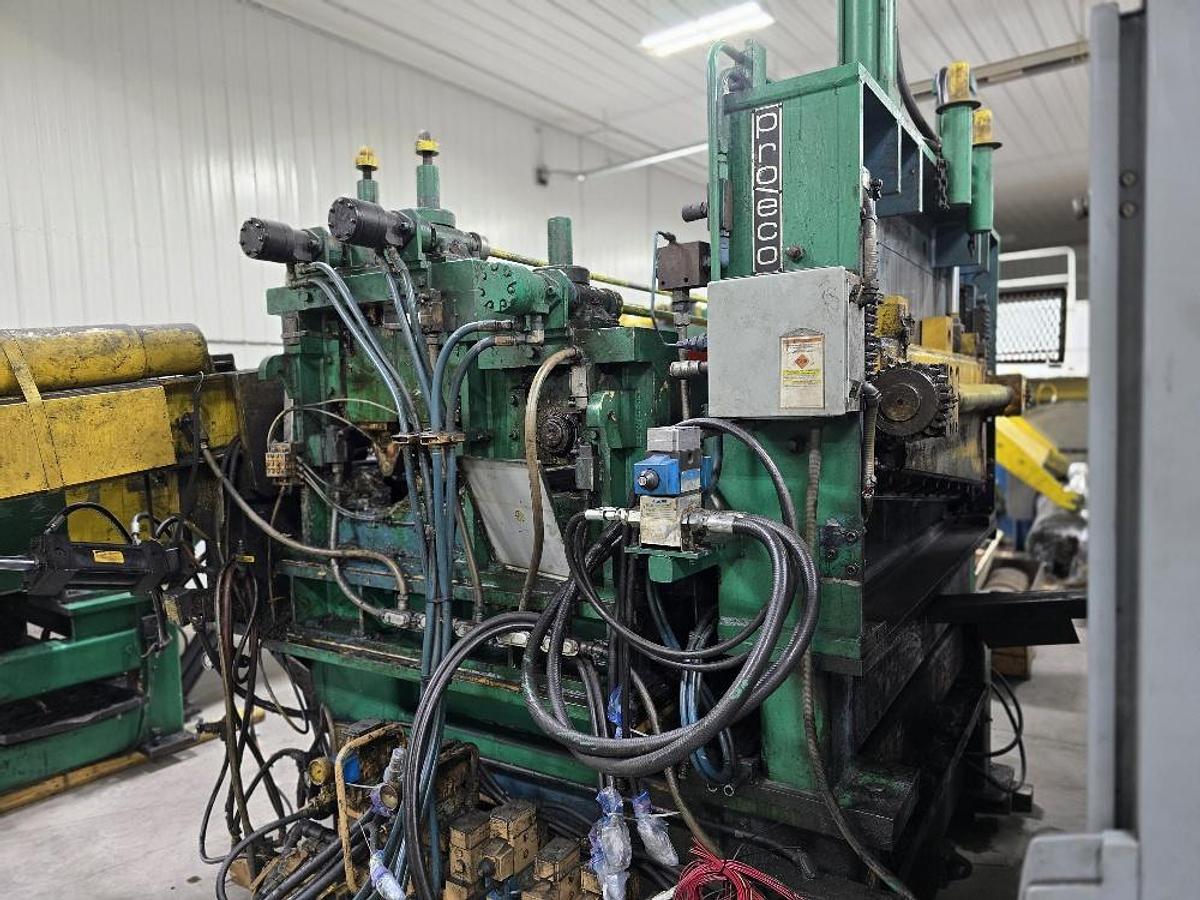

Pro-Eco "Preflex" Leveler

– 2-over-3 roll configuration

– Backup rolls throughout

– Roll Diameter: 2”

– Designed for light gauge material

Pass Line Roll

– Positioned directly after leveler

Tension Stand

– Pad-Type

Hydraulic Exit Shear

– Blade width: 64”

– Down-cut design

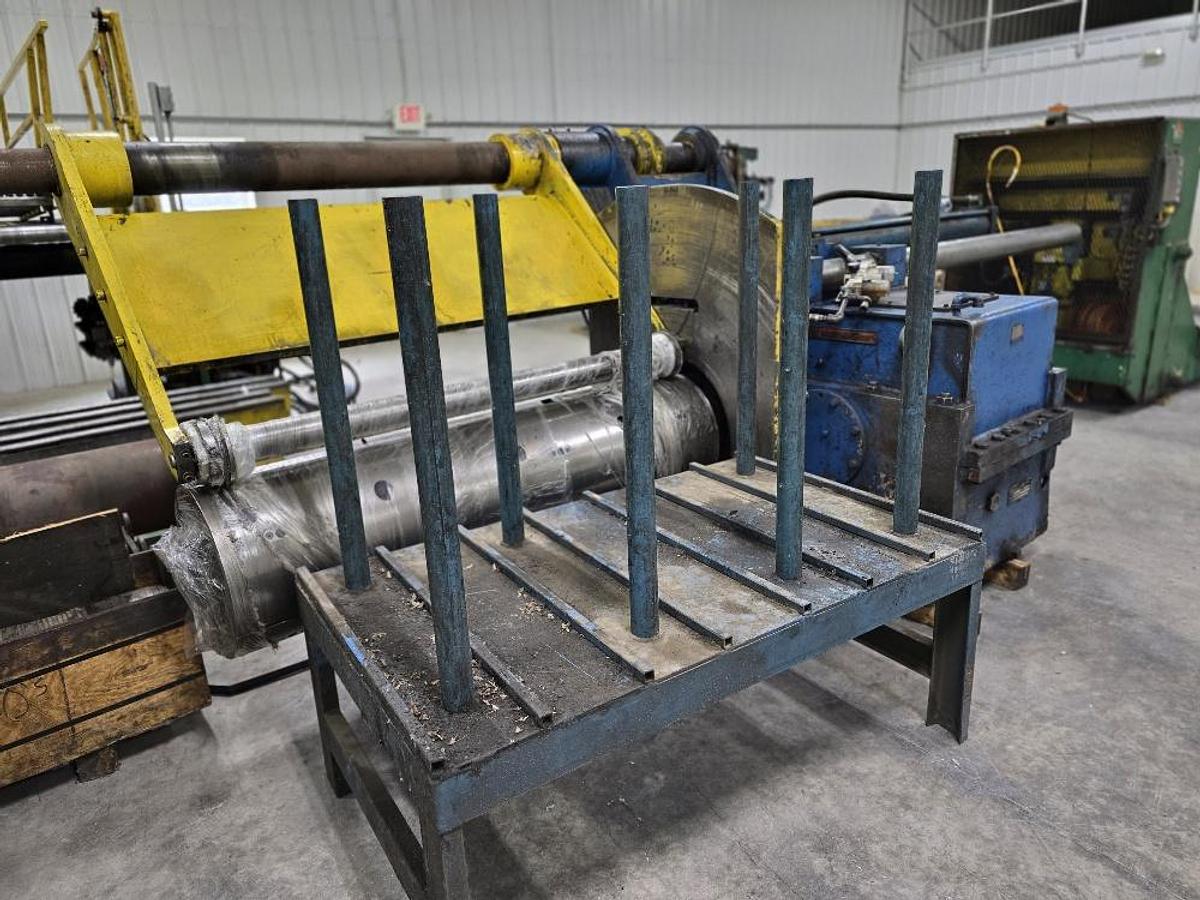

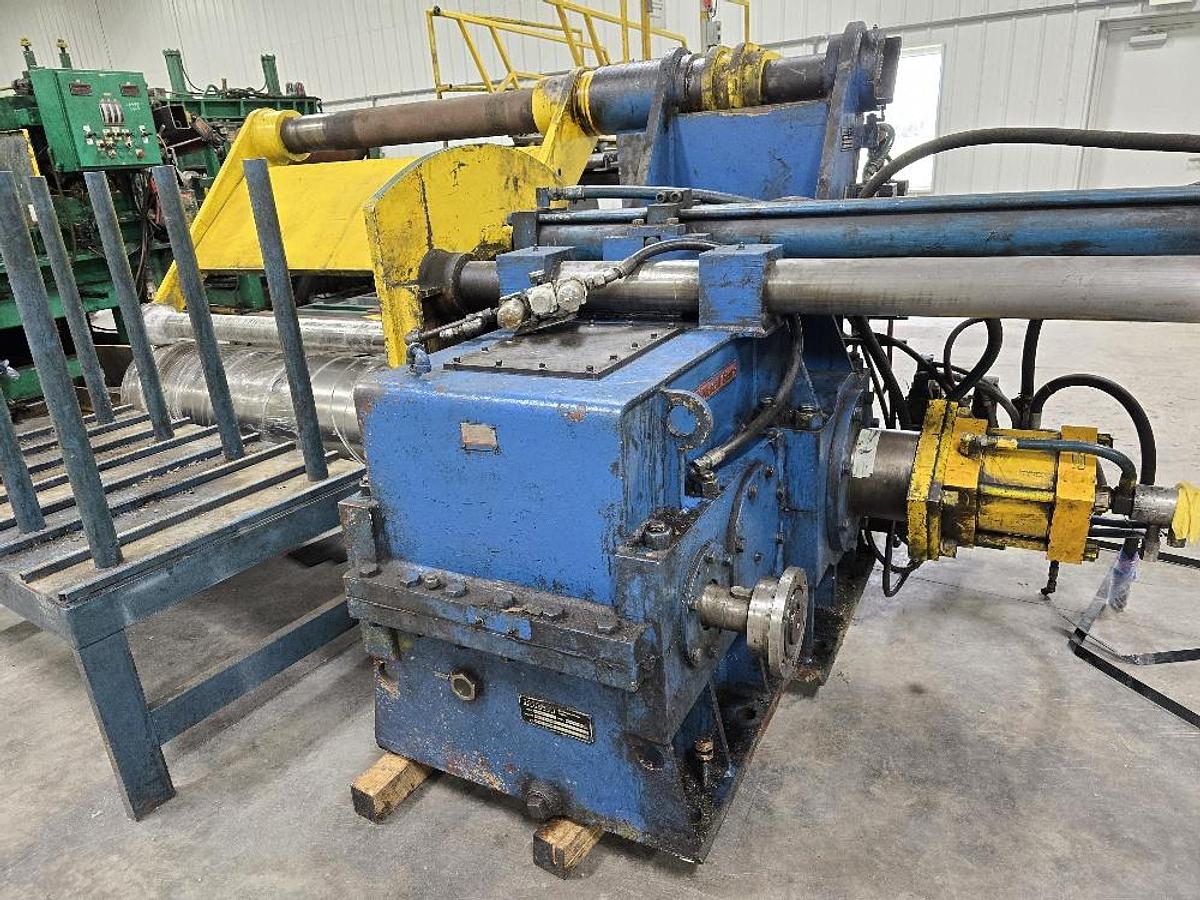

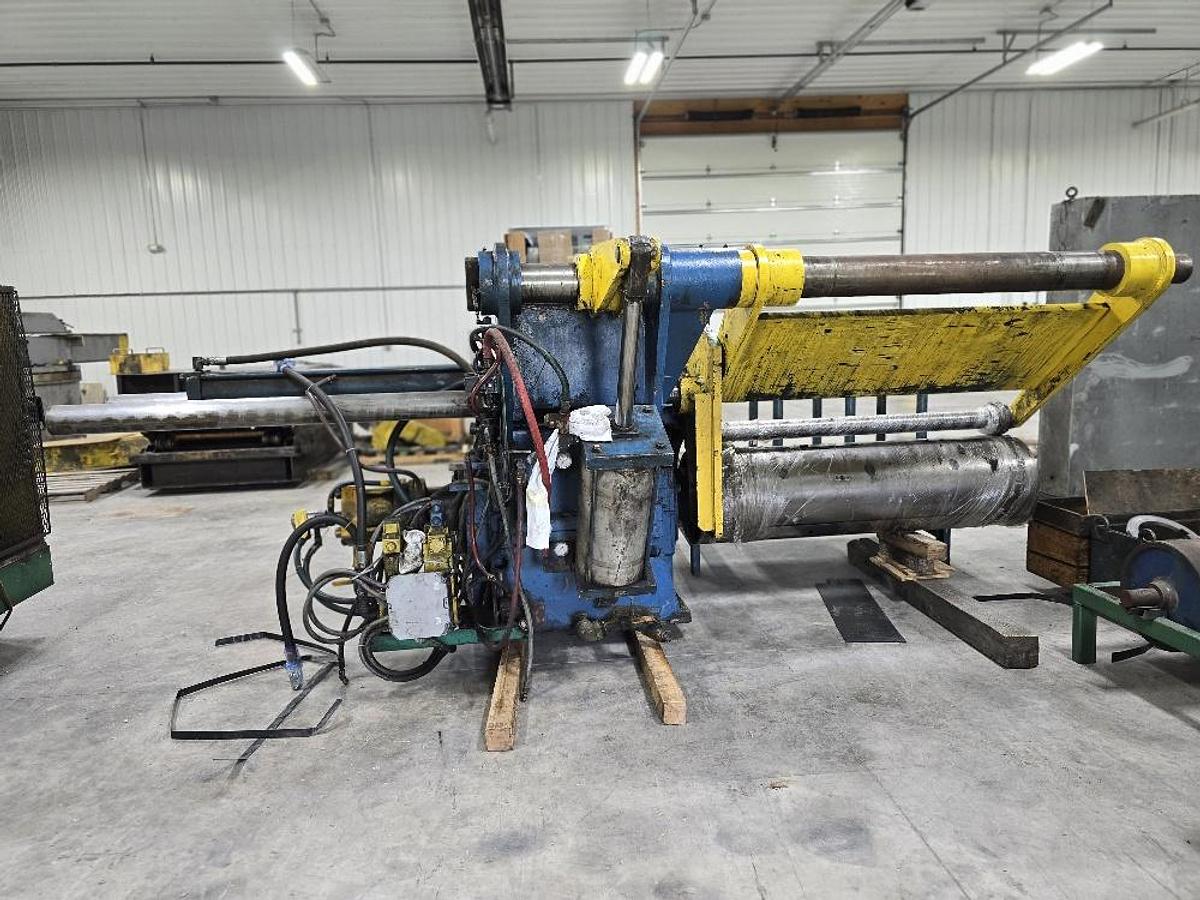

Recoiler

– Width: 70”

– Collapsed ID: 19.5”

– Pads included for 20”/24” coils

– Tag: 50,000 lb x 60” wide x 72” OD x 20/24” ID

– Gripper slot direction: Left to Right

– Attached overarm separator

– Push-off system

– Recoiler feed table

Recoiler Drive Motor

– 300 HP Reliance Electric DC

– 600–1950 RPM

– 500V

Recoiler Gearbox

– Gear Ratio: 20.5037:1

– Replaced in 2020

Exit Coil Car

– Above-floor hydraulic design

– 67” wide bed

– 22” lift

– 50,000 lb rated

– Rack & pinion keeper arms

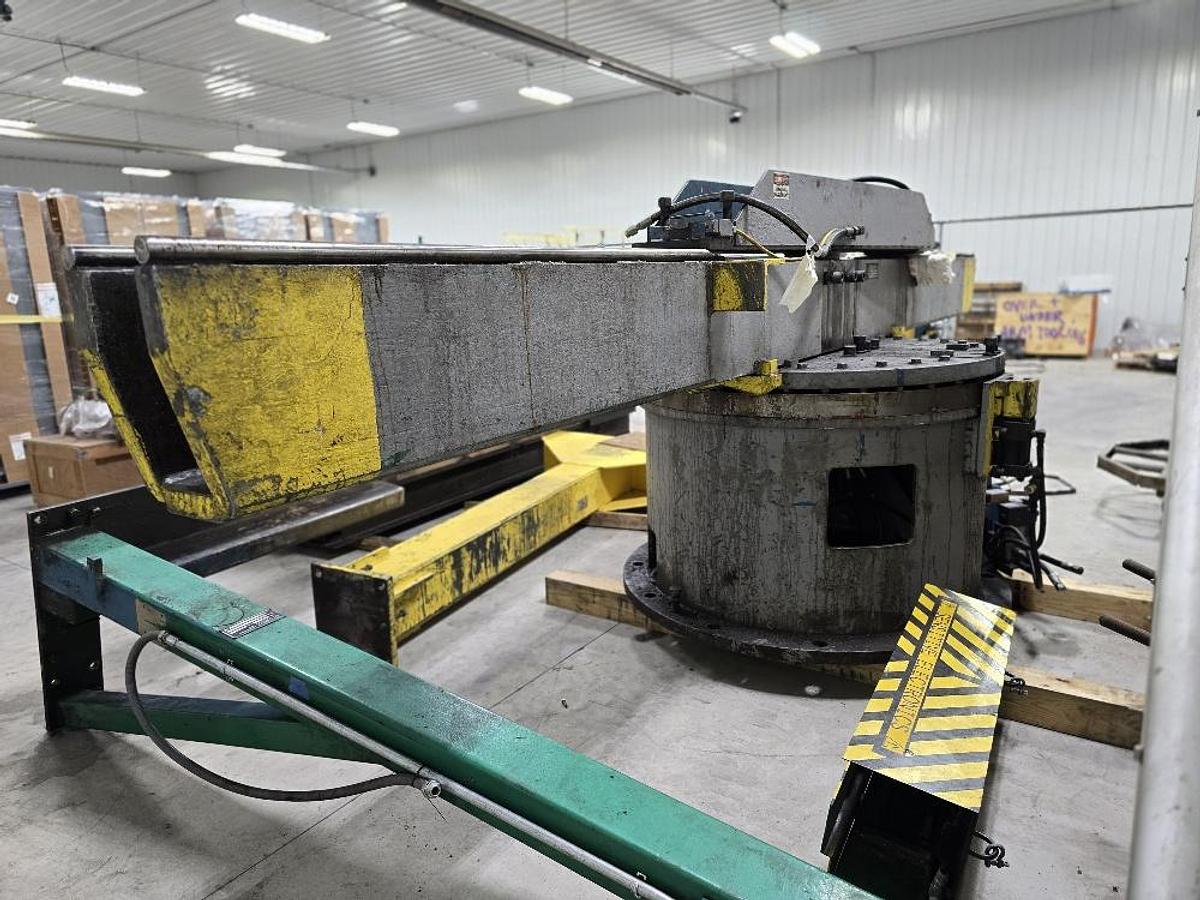

Exit Turnstile

– 4-arm Pro-Eco pull-off design

– Arm length: 66”

– 2 arms installed, 2 removed for shipping

– Tag: 50,000 lb x 60” wide x 72” OD x 20”/24” ID

Hydraulic Unit

– Twin 40 HP motors

– Thicker, upgraded pumps

– Replaced 8 years ago

– Powers recoiler/slitter and possibly entry section

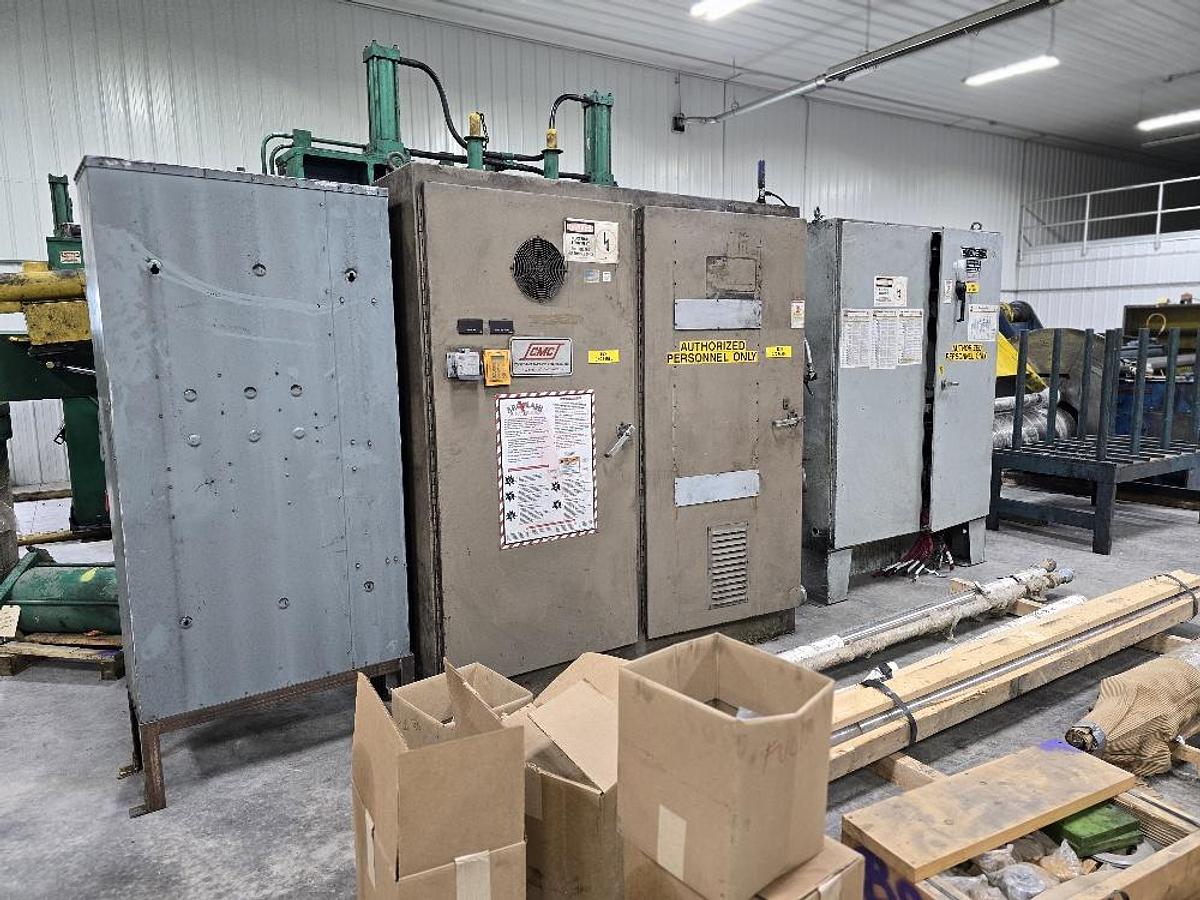

Solid-State Rectifiers

– Cleveland Machine Controls

– Power the 300 HP recoiler and 150 HP slitter motors

Transformers

– Stored in container onsite

Miscellaneous Parts

– Electrical cabinets

– Brake units

– Hydraulic cylinders

– Scattered/stored throughout facility
