36” x .250" x 30,000 Lbs. Nova Slitting Line

Specifications:

Line Type: Slitting Line

Max Coil Width: 36”

Max Coil Weight: 30,000 Lbs.

Slit Coil Width Capacity: 38”

Gauge Range: 0.020” to 0.240”

Line Direction: Right to Left

Line Includes:

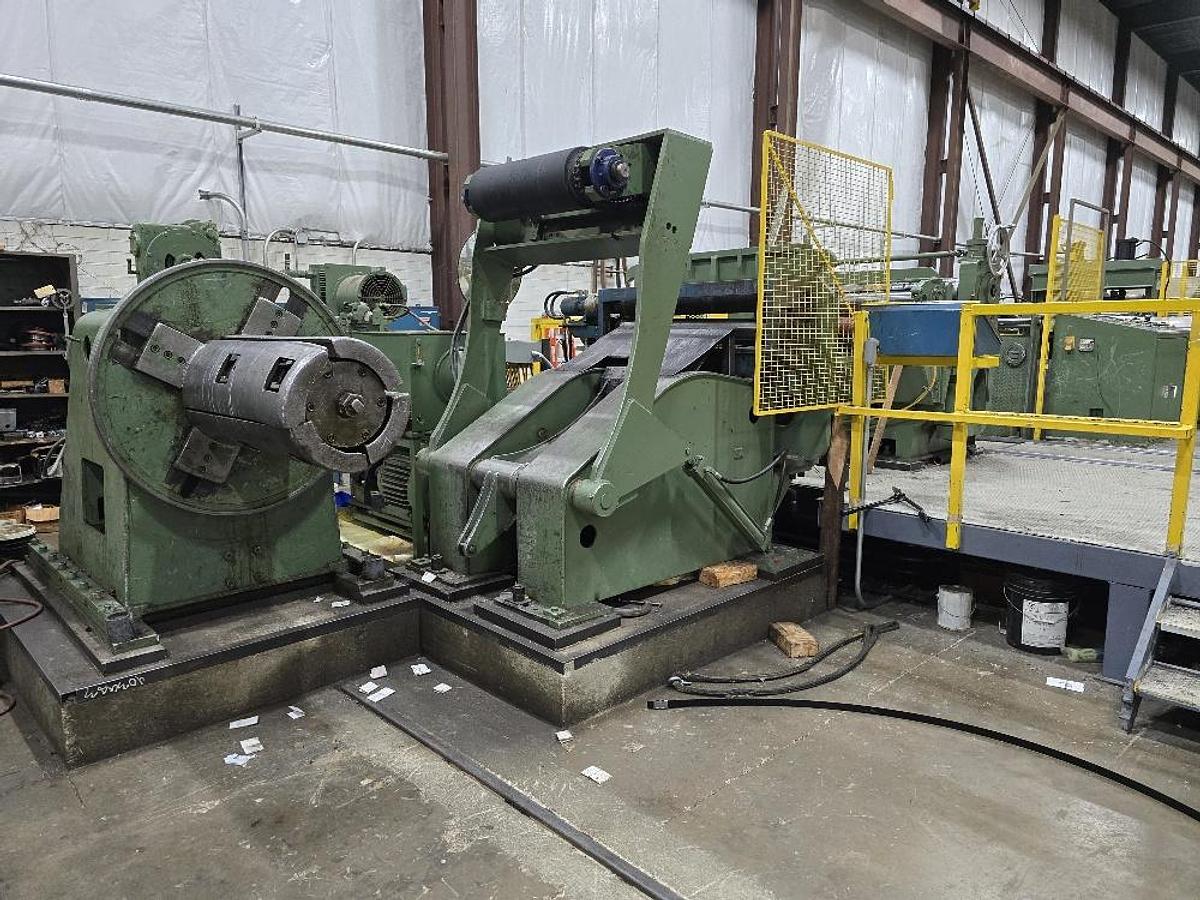

Uncoiler:

-37" Wide x 20" ID Mandrel

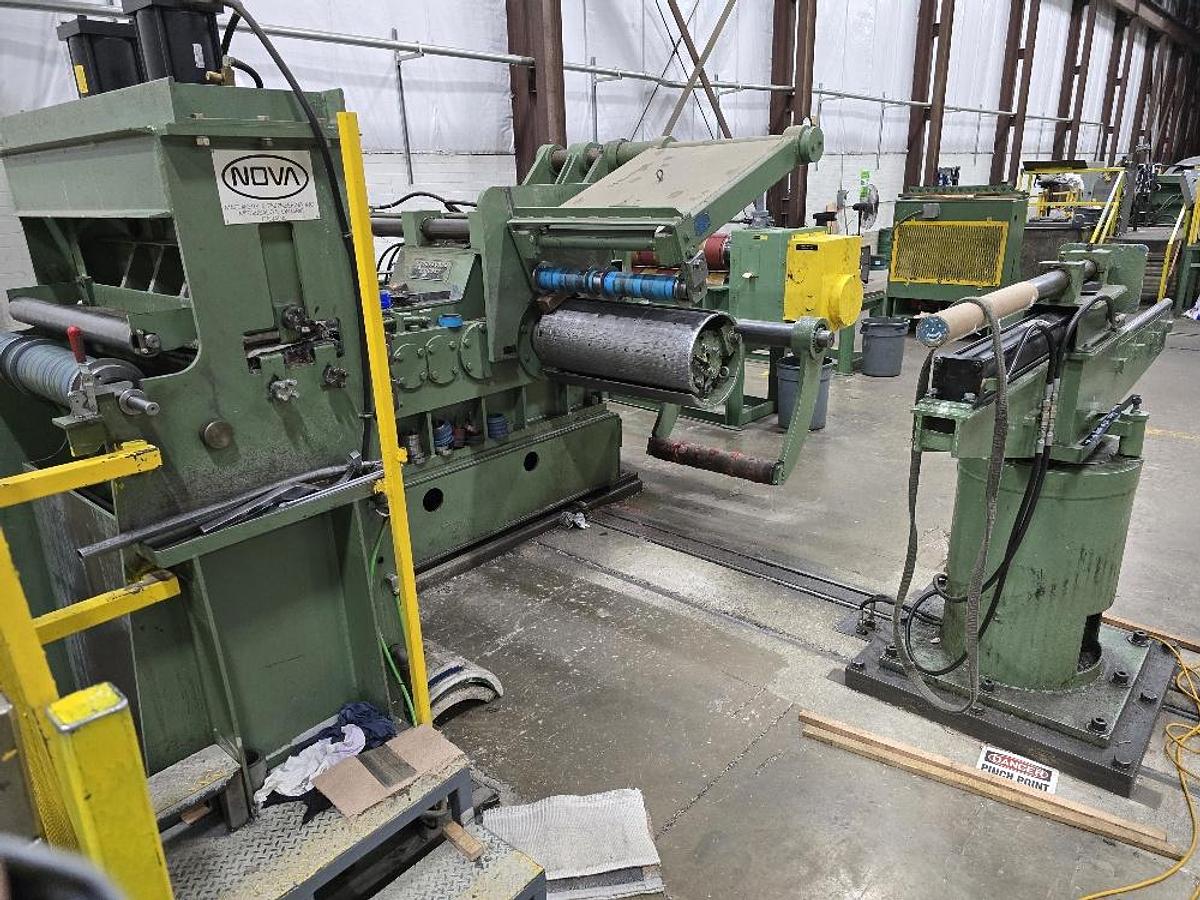

Entry Unit

-Peeler/Hold-Down/Pinch Roll/Hydraulic Upcut Shear

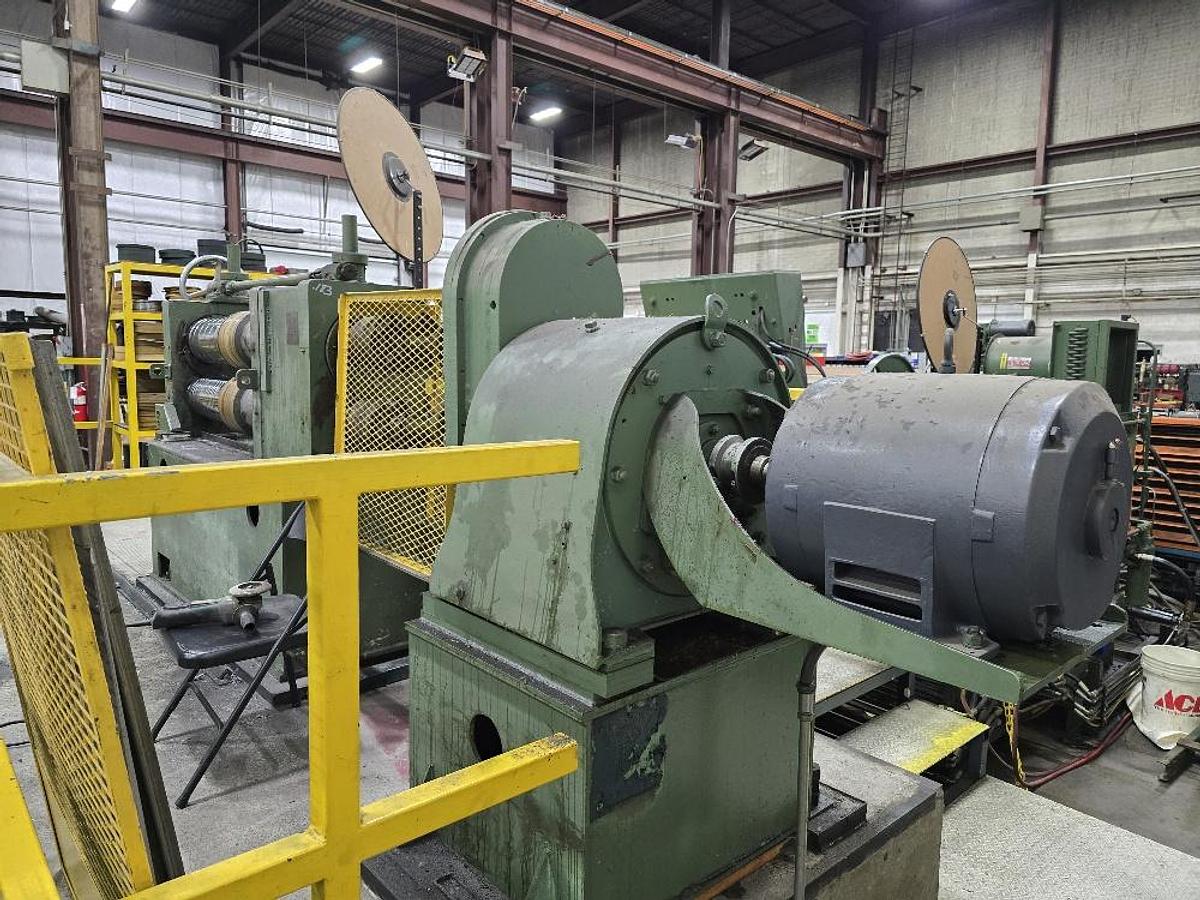

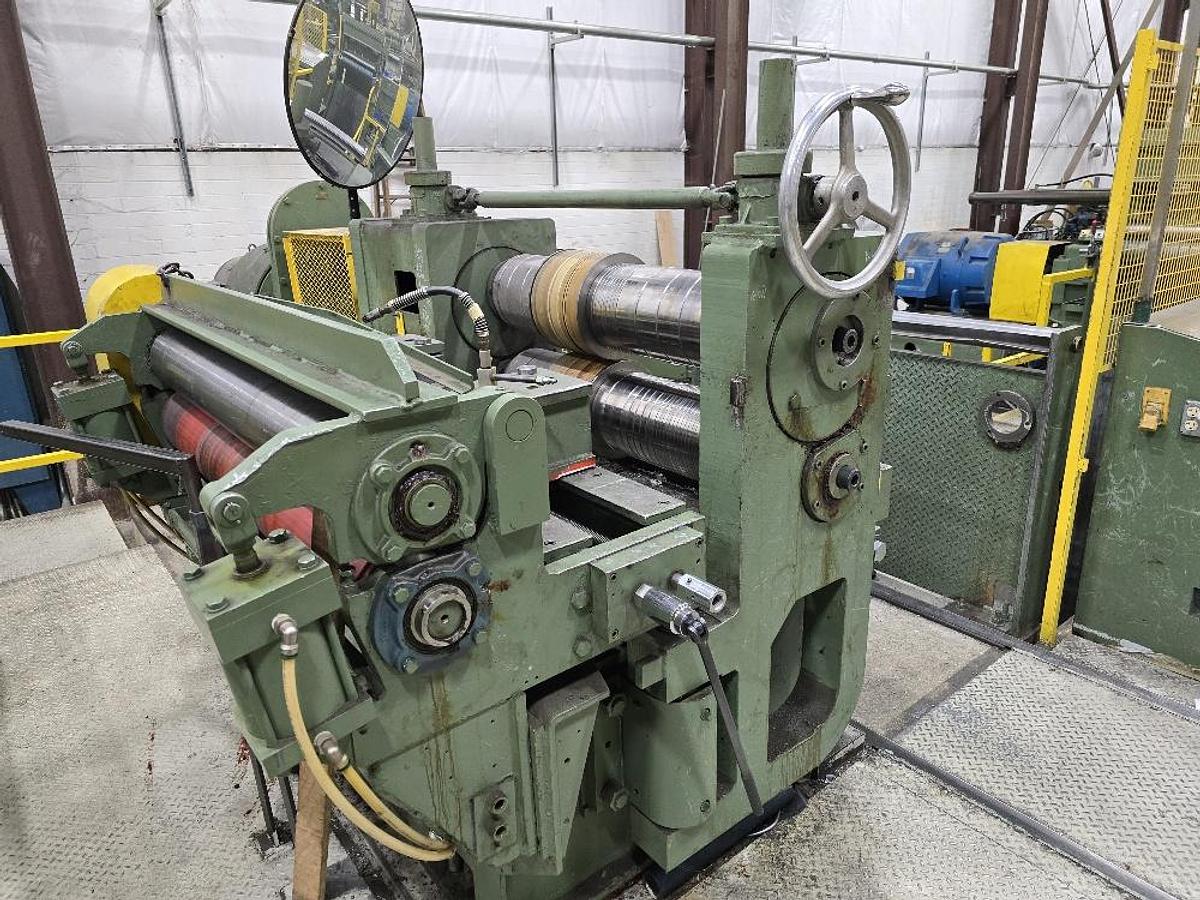

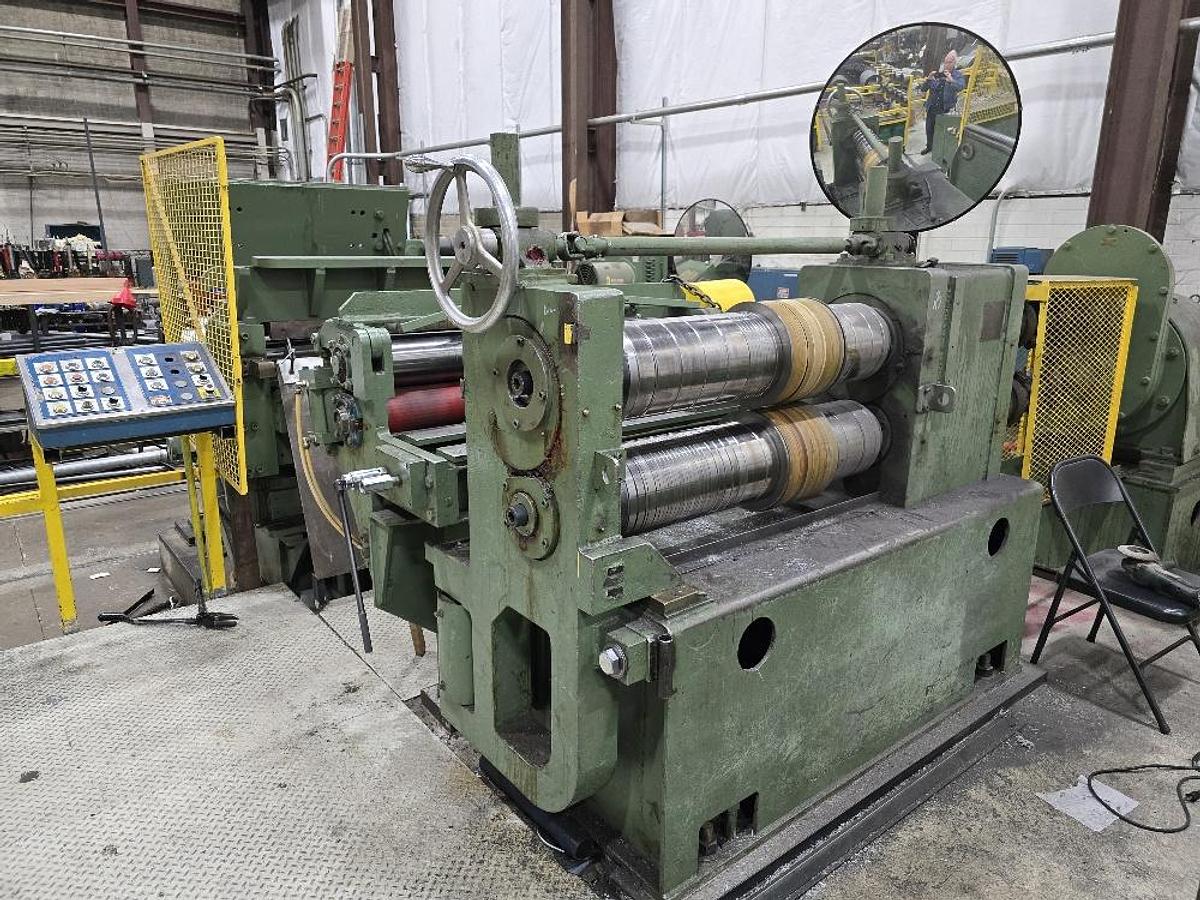

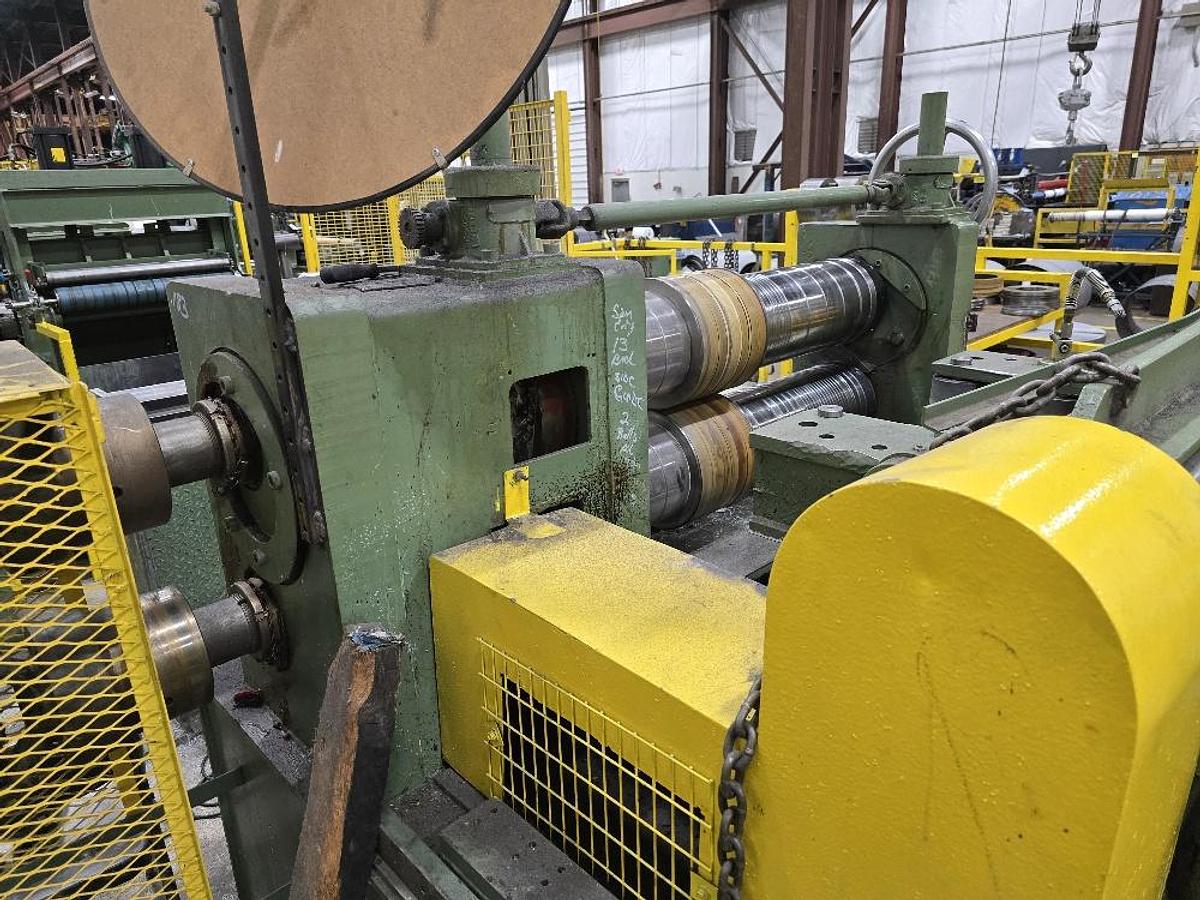

Slitter Head – Single Head

-6” Arbor X 38” Wide – (3) Sets of Tooling

Looping Pit –

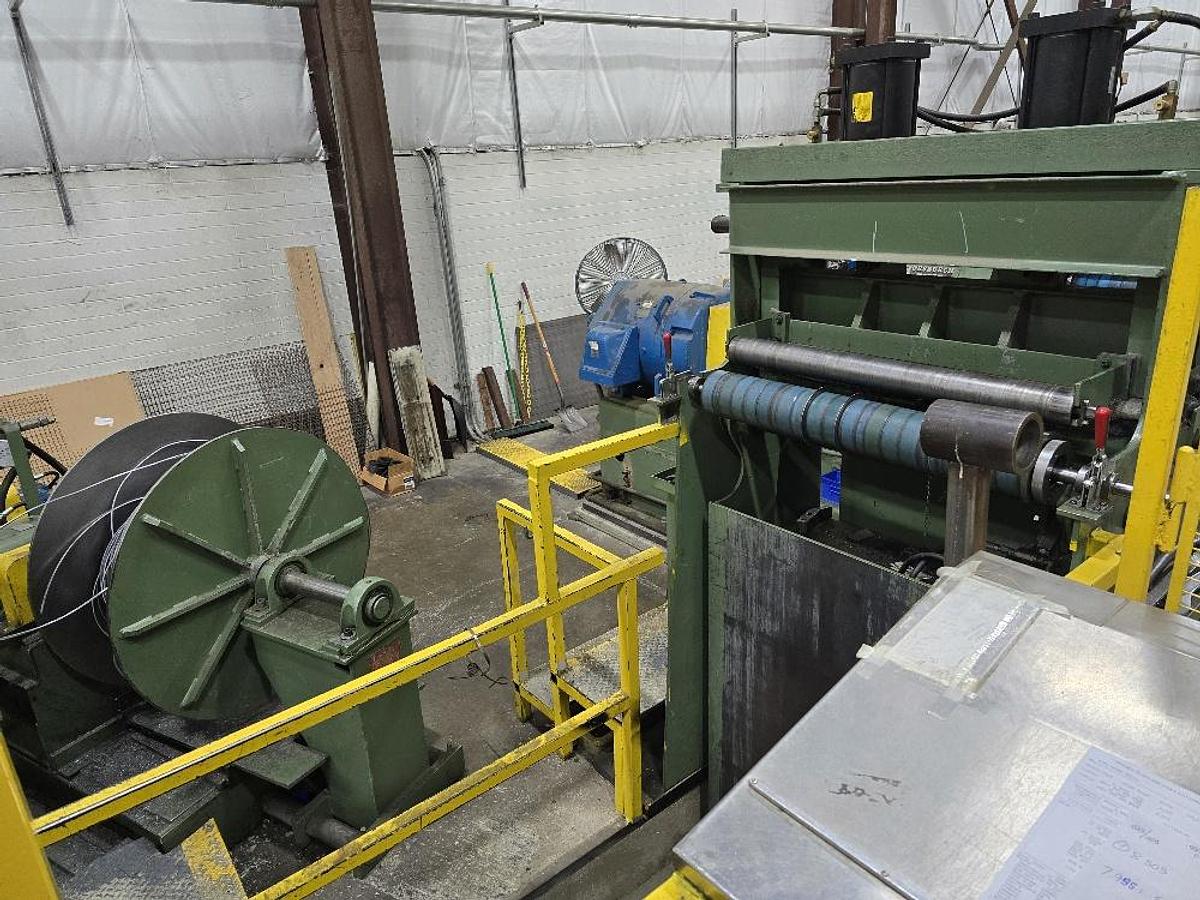

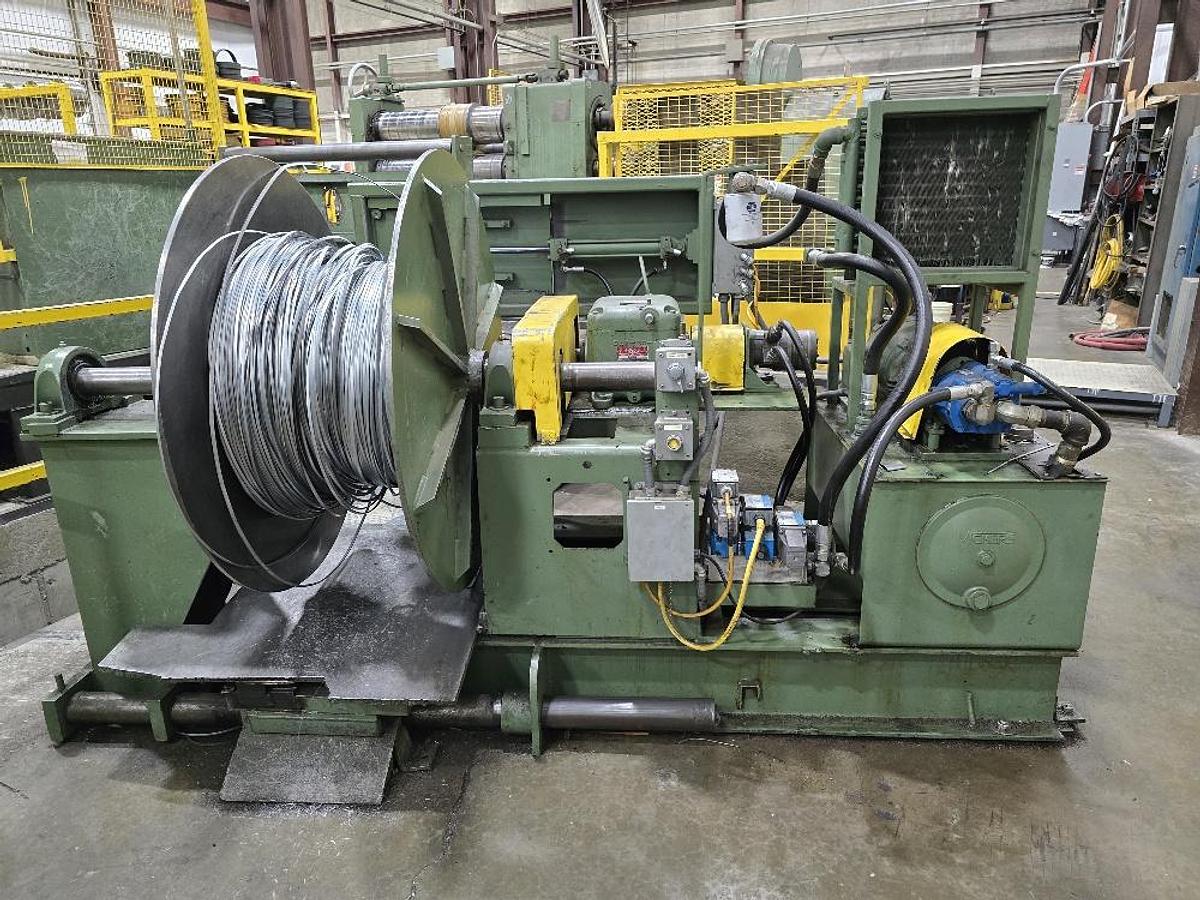

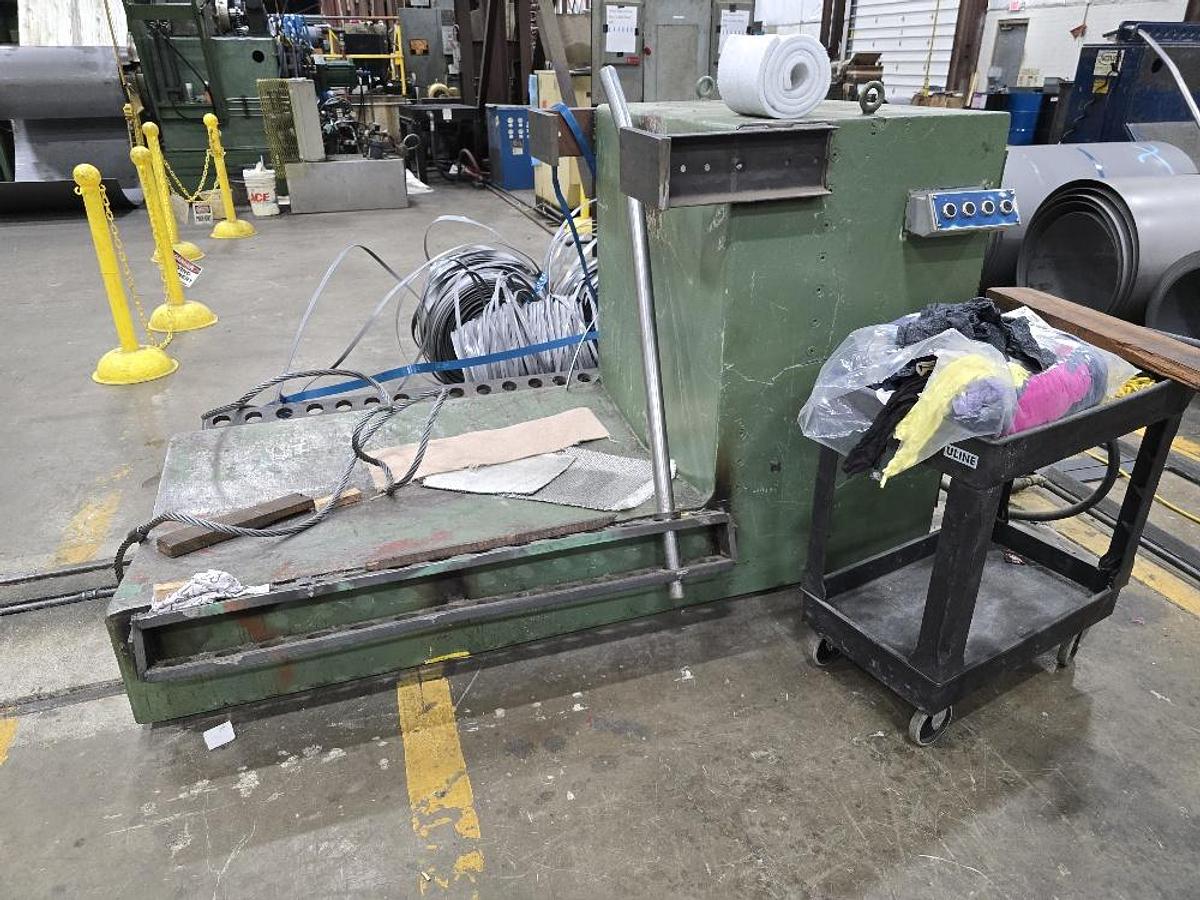

Tension Stand – Pad Type w/ Separator Arm – Single Scrap Winder With Oscillation

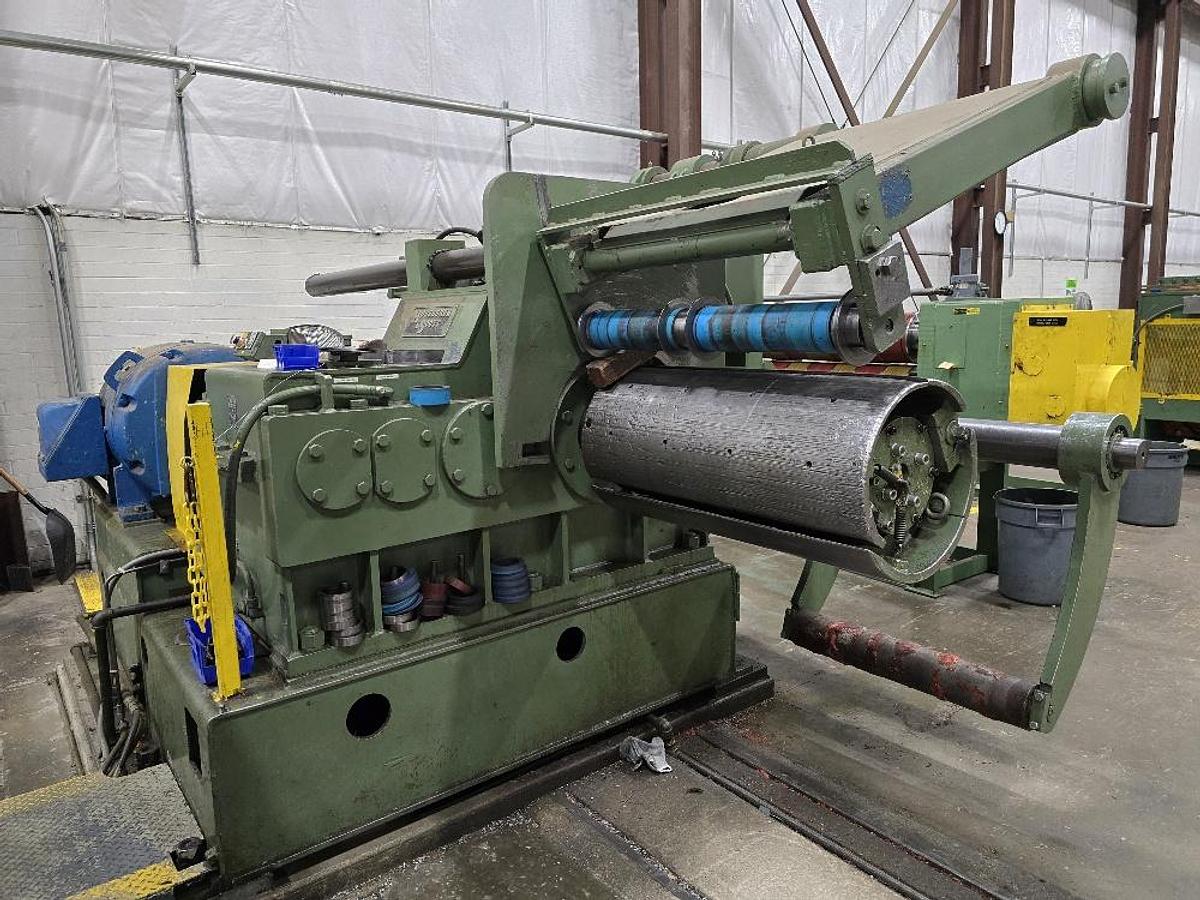

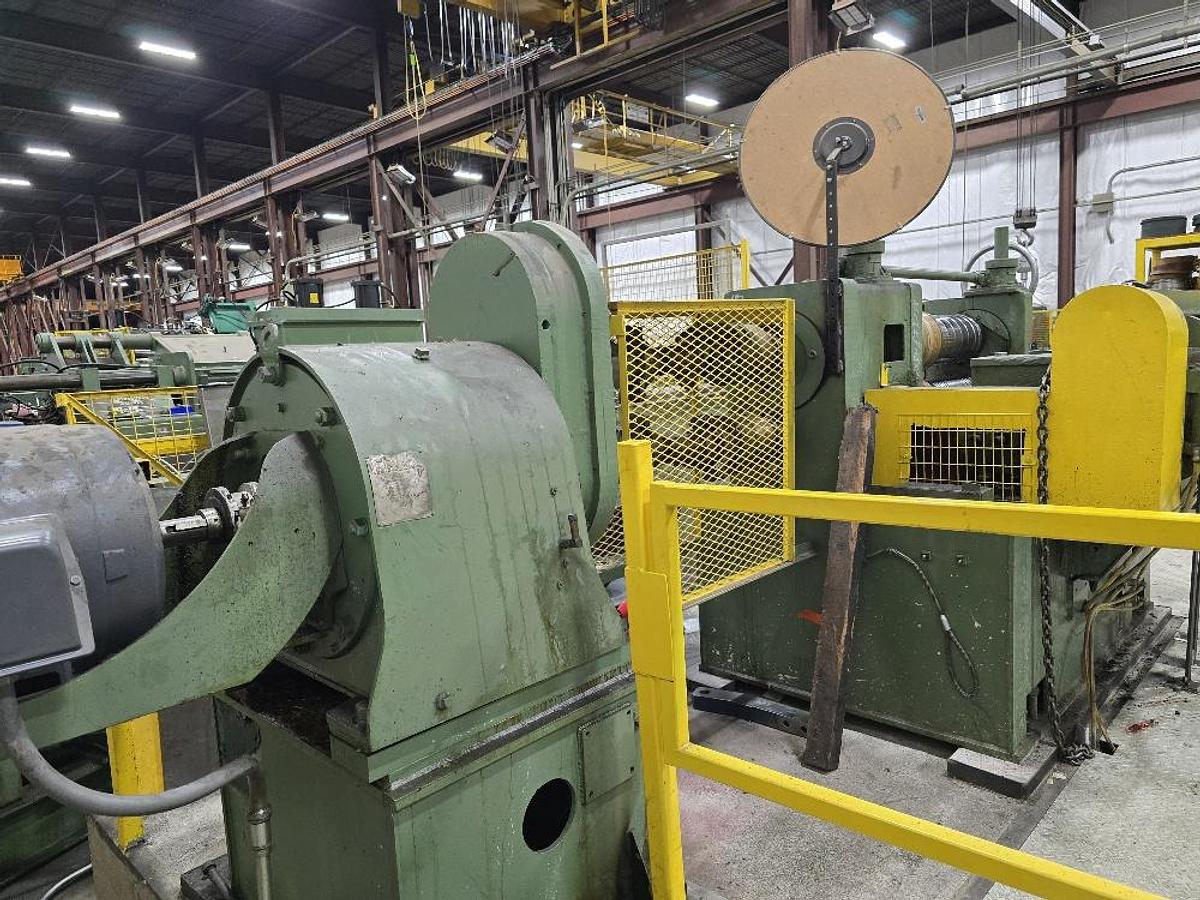

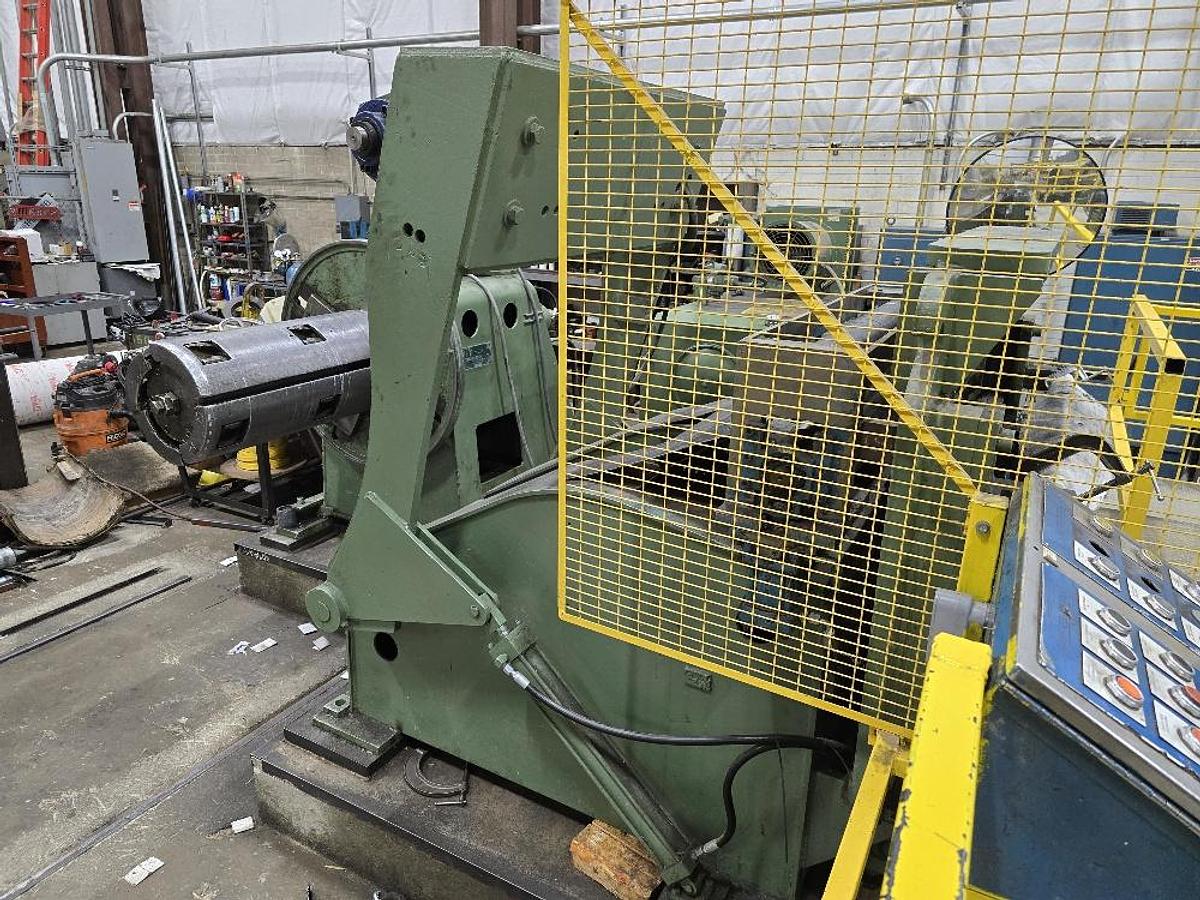

Recoiler:

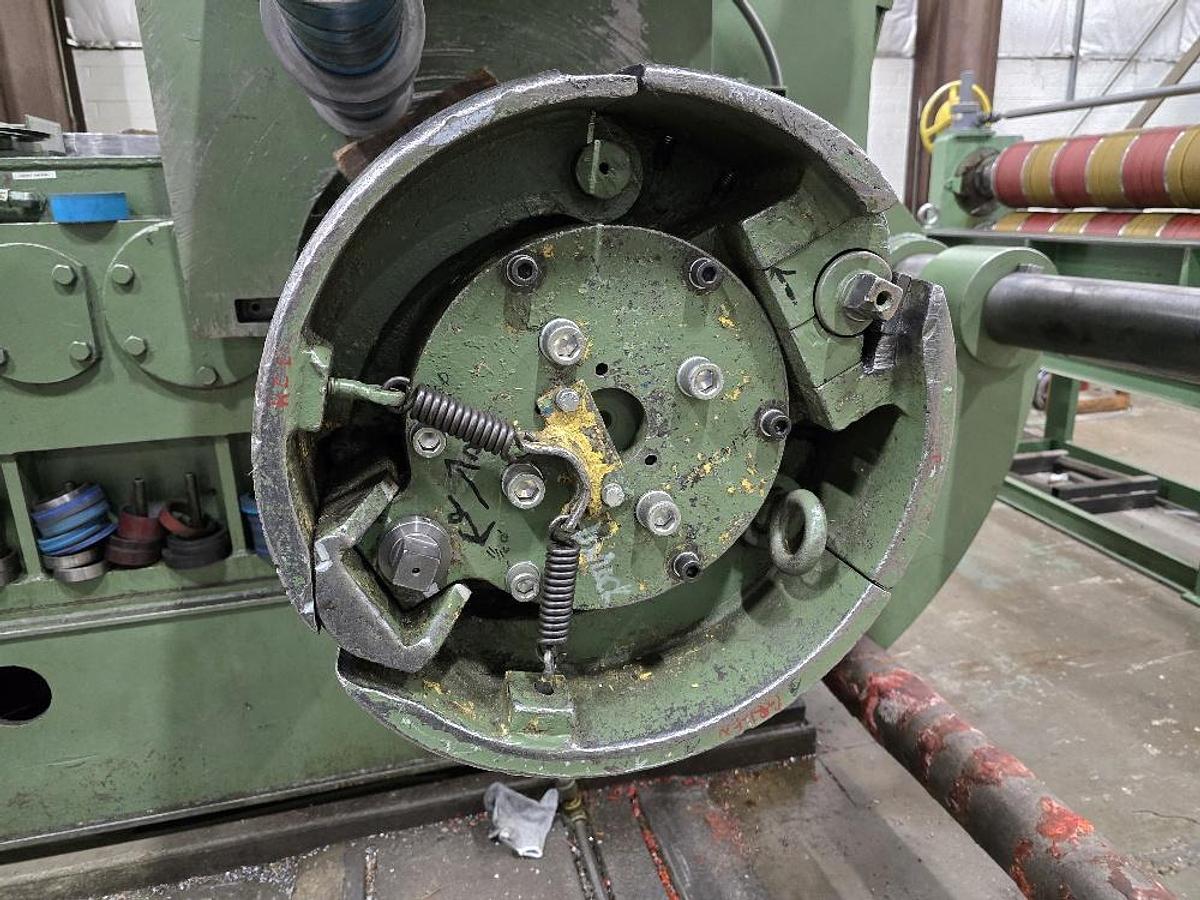

42" Wide x 20” Mandrel – Manual Gripper – Manual Expand/Collapse

-Attached overarm separator

-Hydraulic Push-Off –

-35,000 Lbs Wt. Capacity

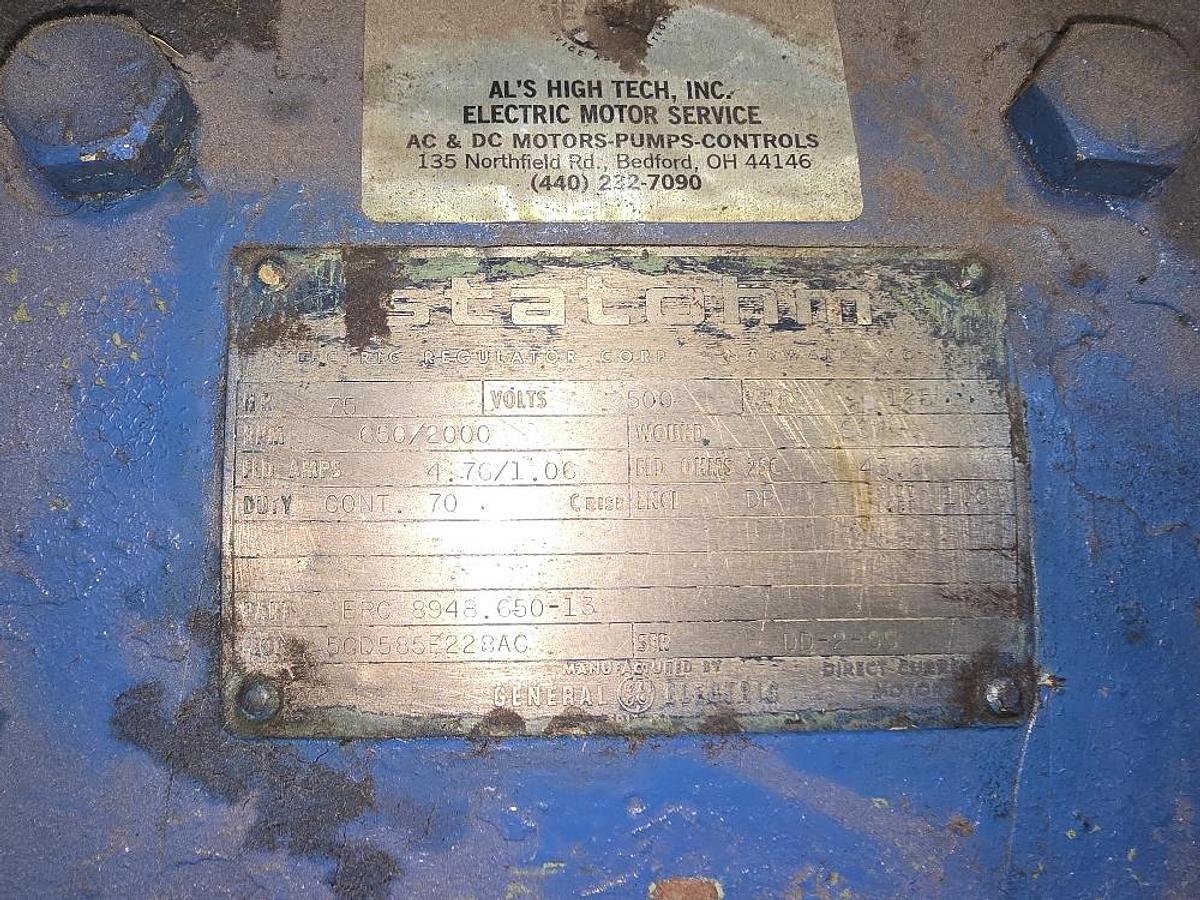

-Drive: 75 HP DC – 500V – 650–2000 RPM – 27:1 Gearbox Ratio

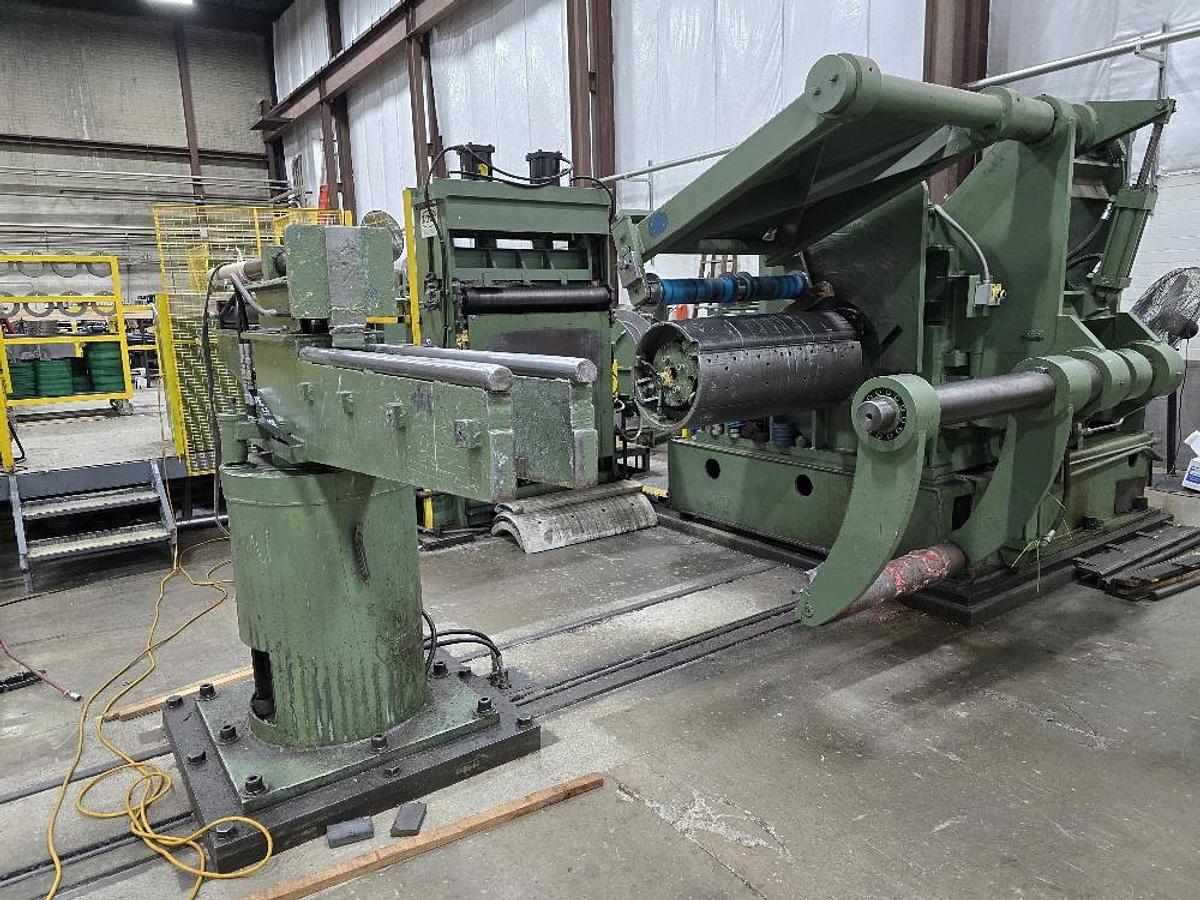

Turnstile – Single-Arm – Manual Rotate (Hydraulic) – Hydraulic Push-Off

Features:

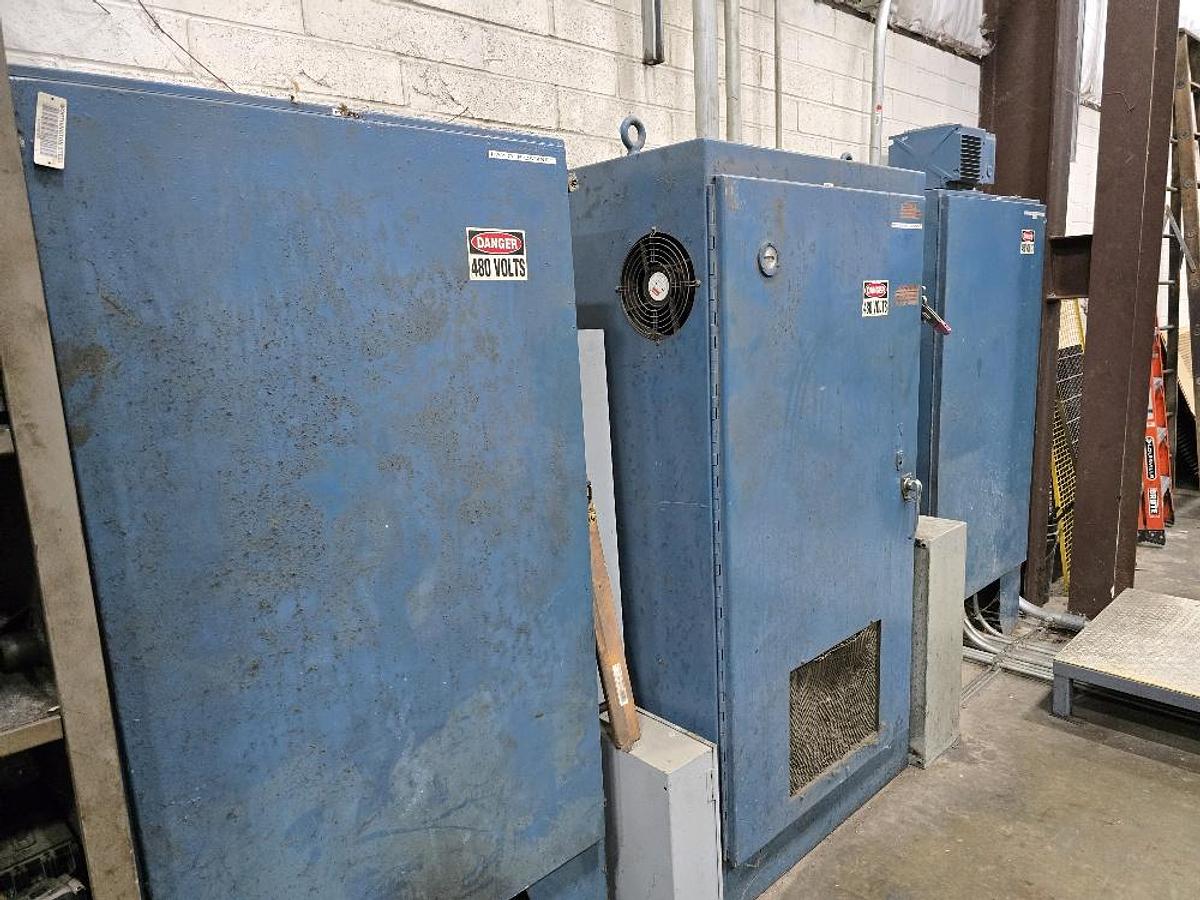

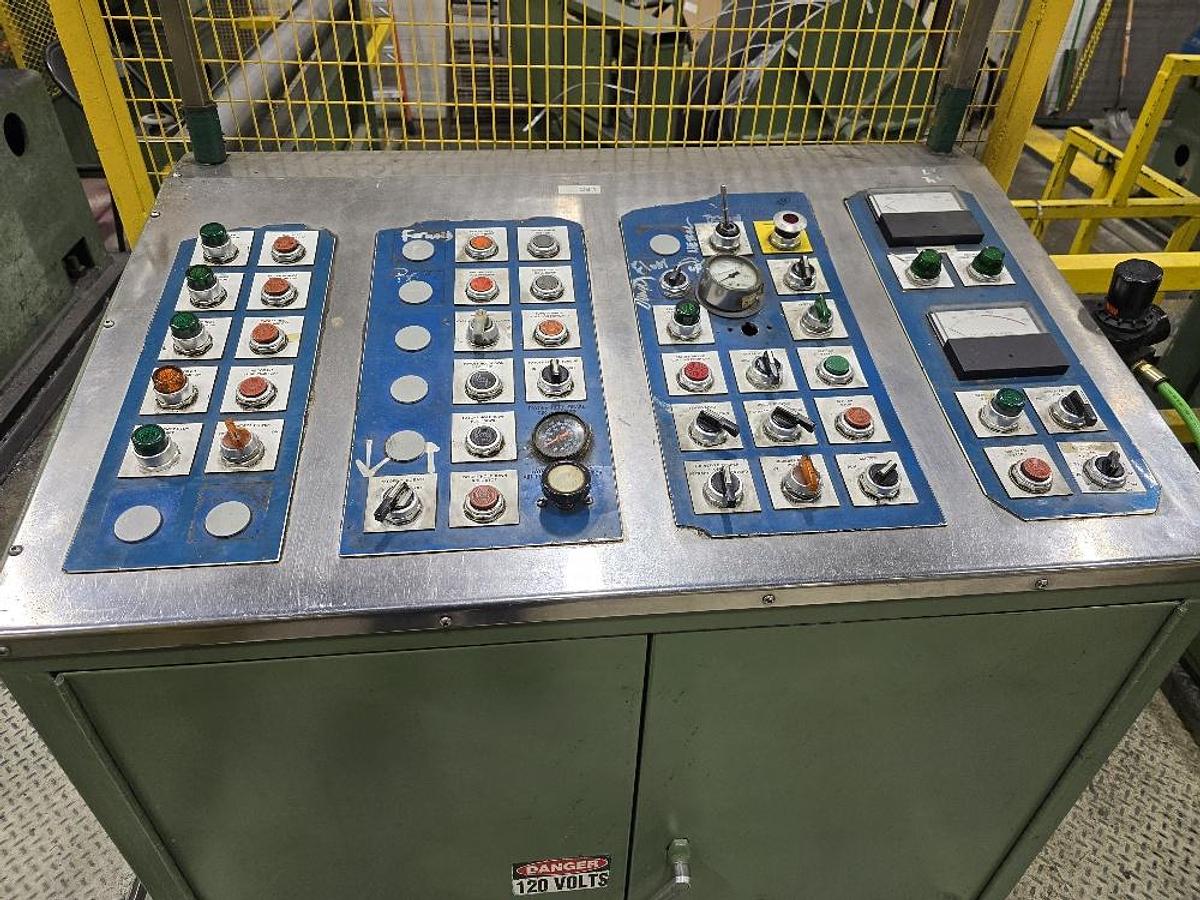

Update Controls

LOTS of Tooling
