60” x .240" x 50,000 Lbs. Loopco Slitting Line

Specifications

ManufacturerLoopco
ConditionUsed
Stock NumberVX-35690

Description

Specifications:

Manufacturer: Loopco

Line Type: Slitting Line

Max Coil Width: 60”

Max Coil Weight: 50,000 Lbs

Gauge Range: 0.080” to 0.240”

Line Direction: Right to Left


Line Includes:

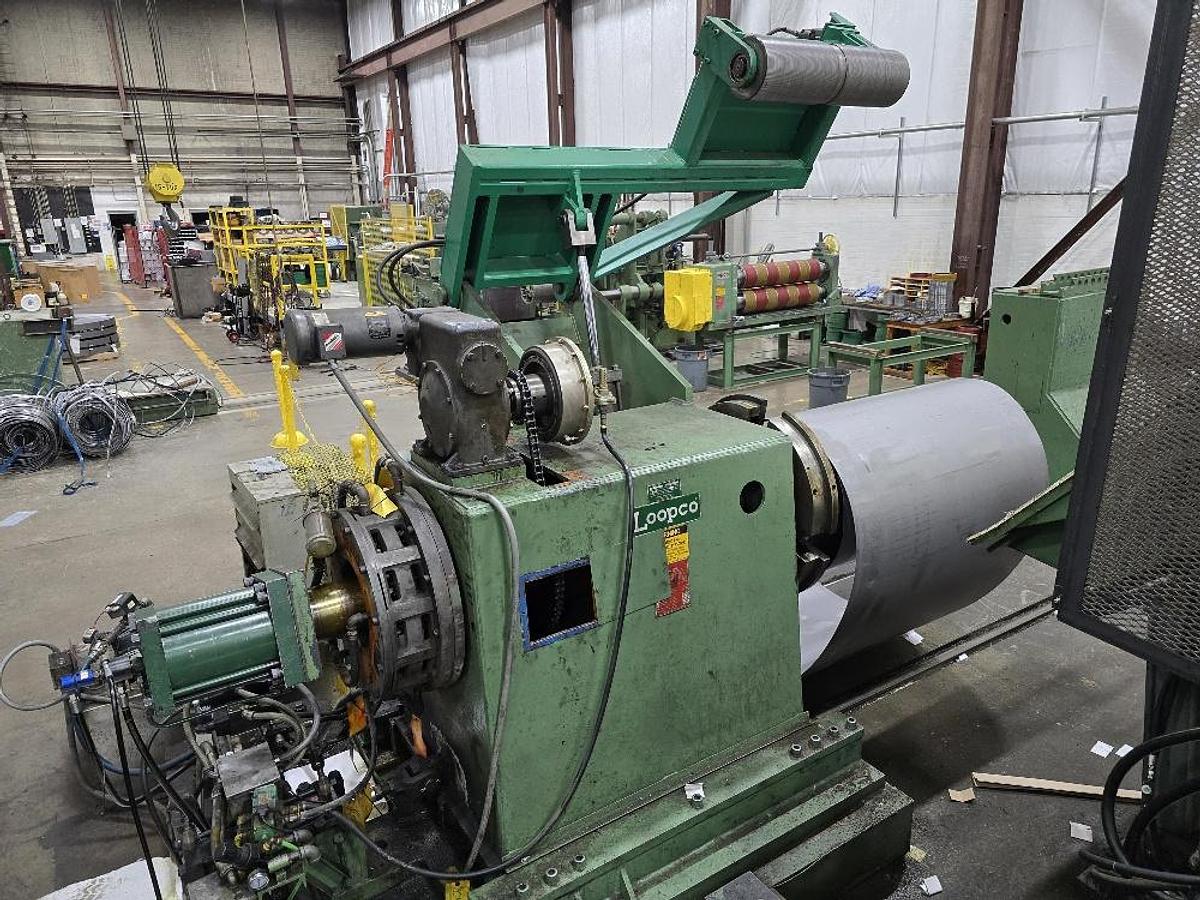

Uncoiler

-Mandrel Type

-50,000 Lbs Weight Capacity

-18.5”–24.5” Hydraulic Expansion-

-Water-Cooled Wichita Brake

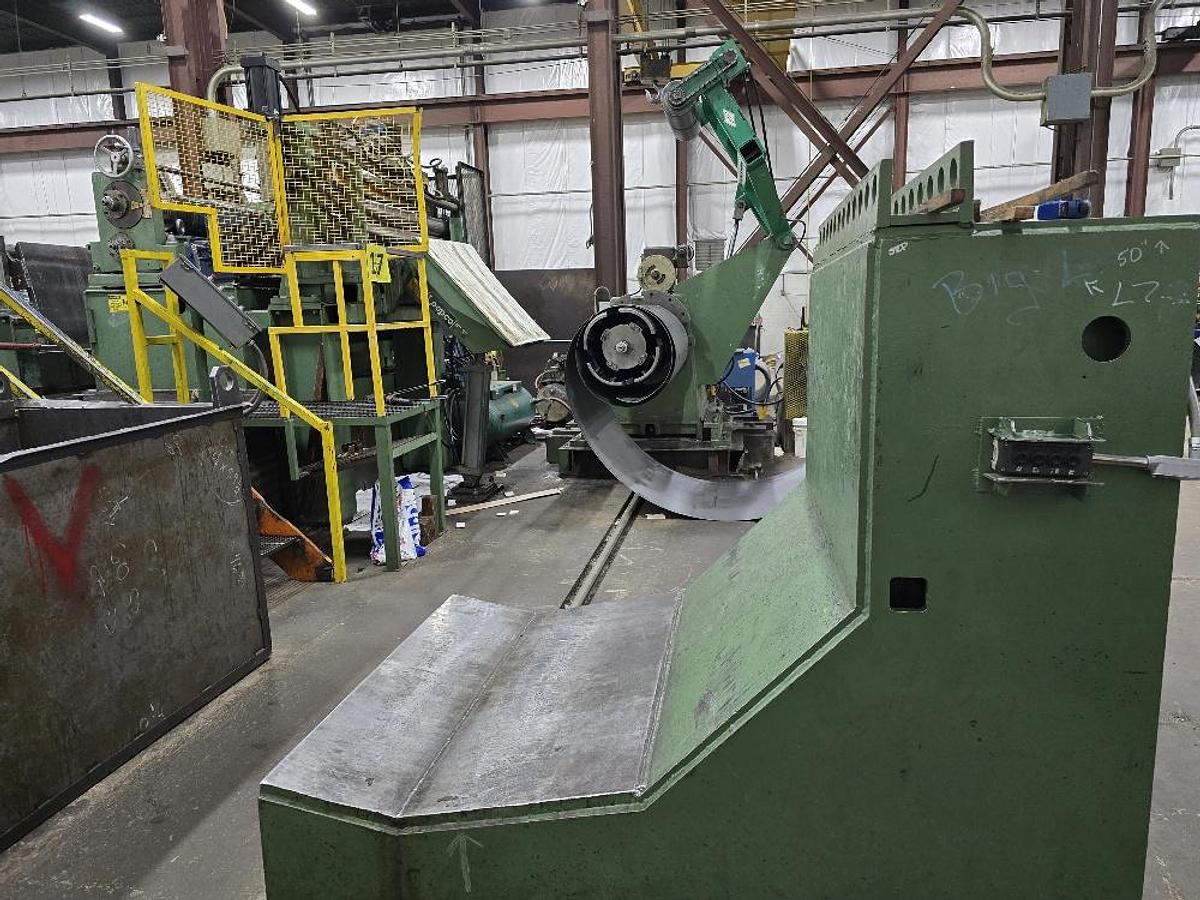

Entry Coil Car

-Self-Contained Hydraulics

-55” Bed Width

-72” OD Coil

Entry Unit

-Peeler Blade-46” Wide, Hydraulic In/Out, Up/Down

-Pinch Rolls – 76” Wide, 6” Dia.

-Edge Guides – Manual Adjust

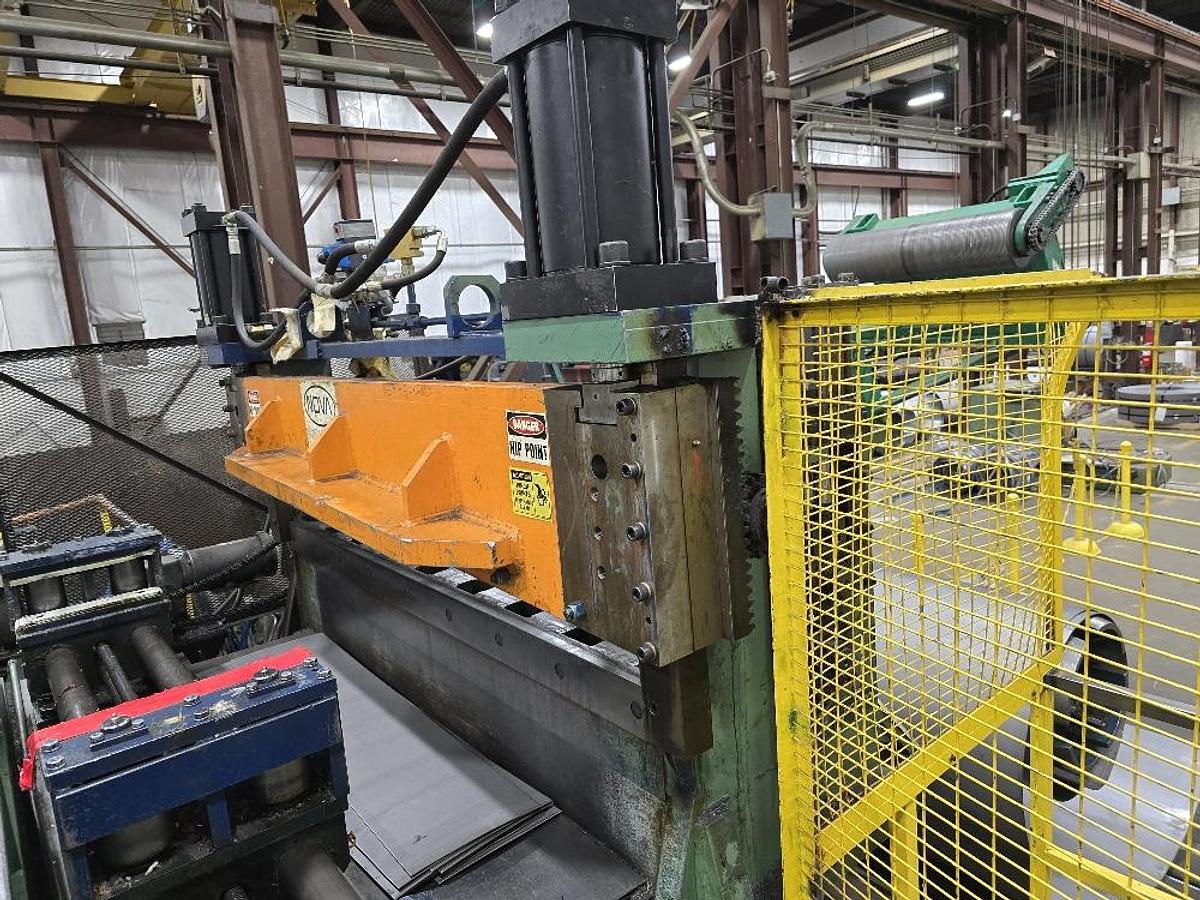

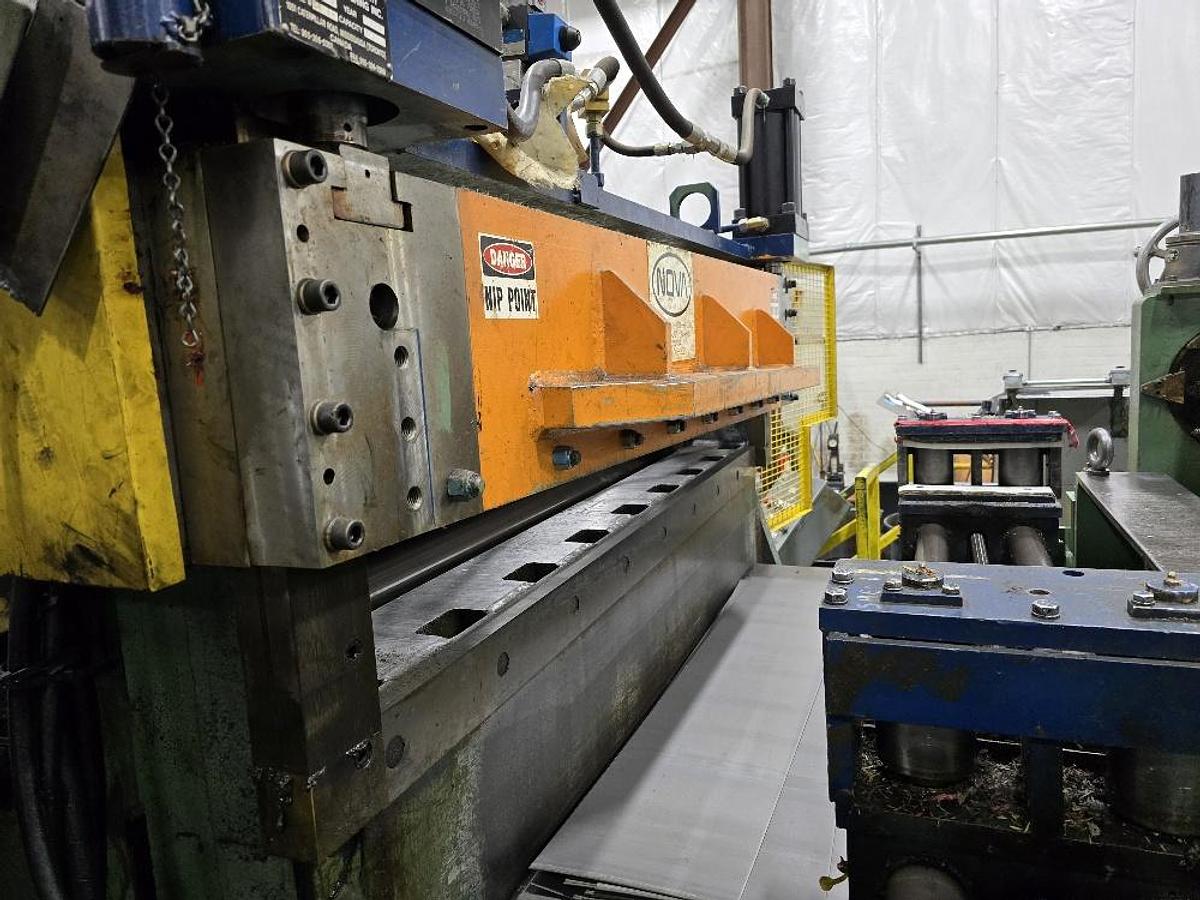

-Crop Shear - Downcut

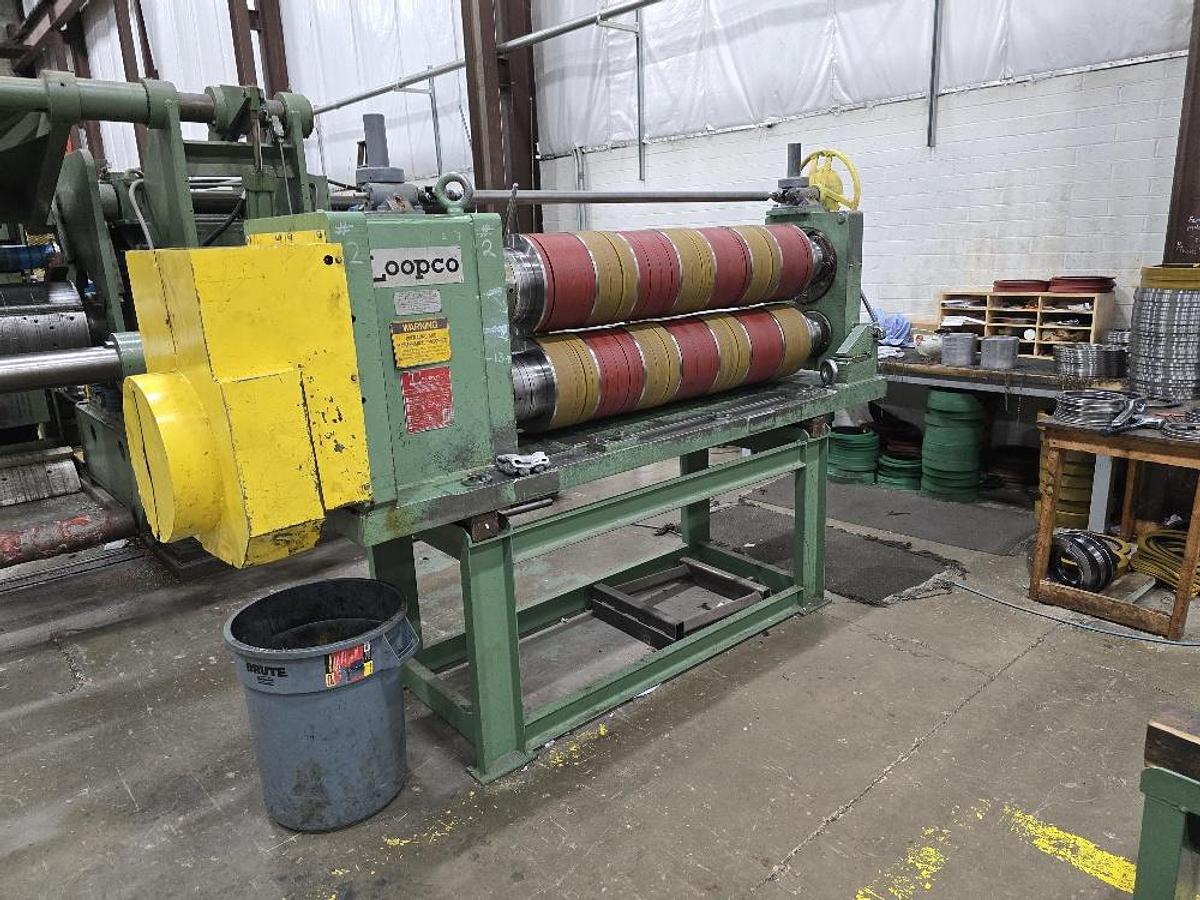

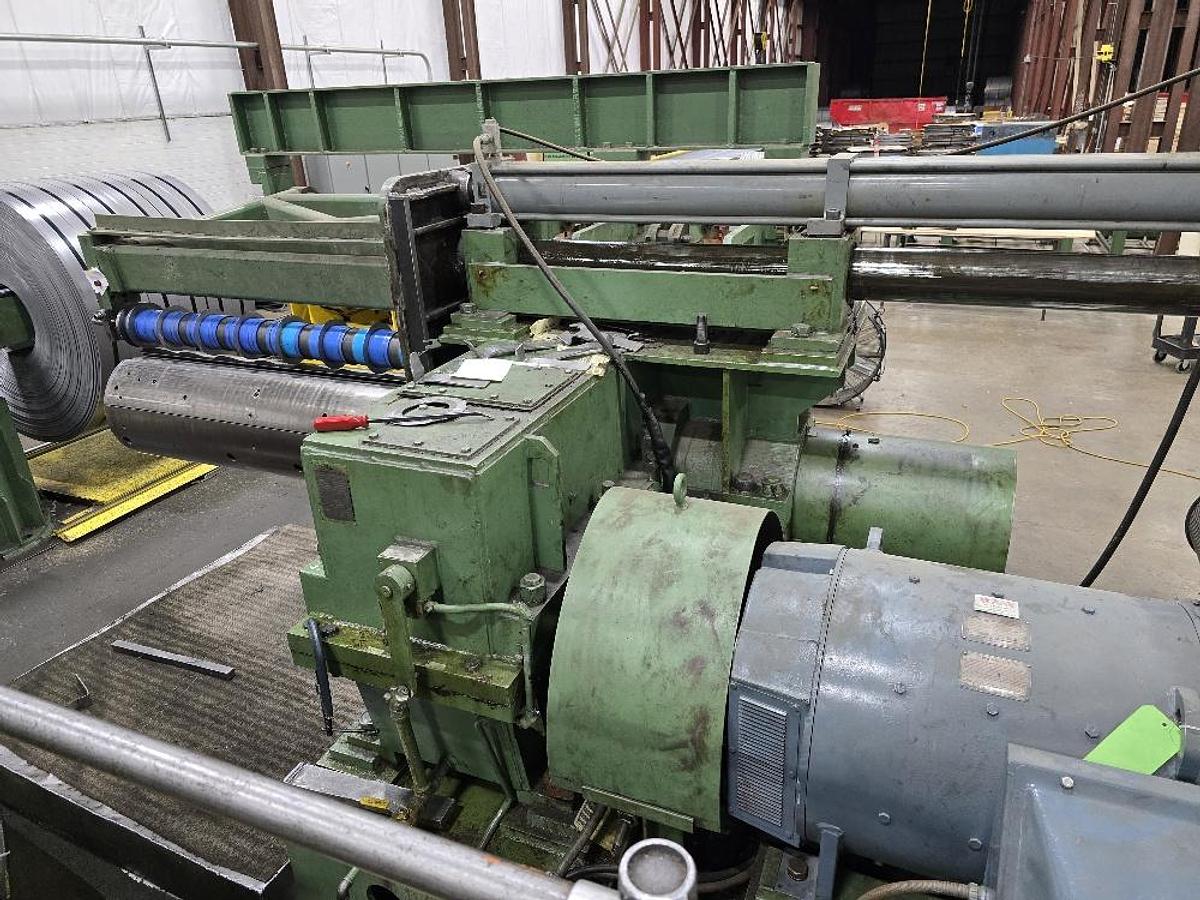

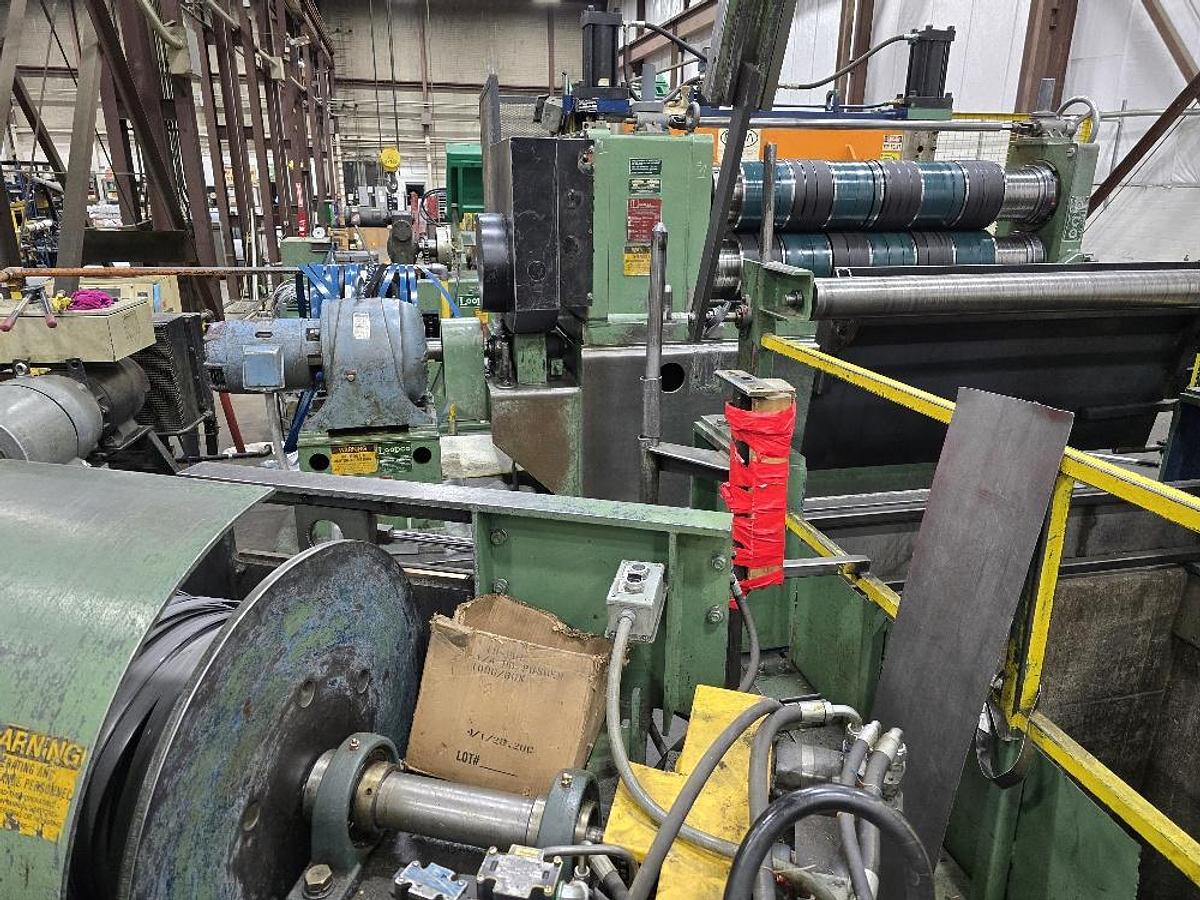

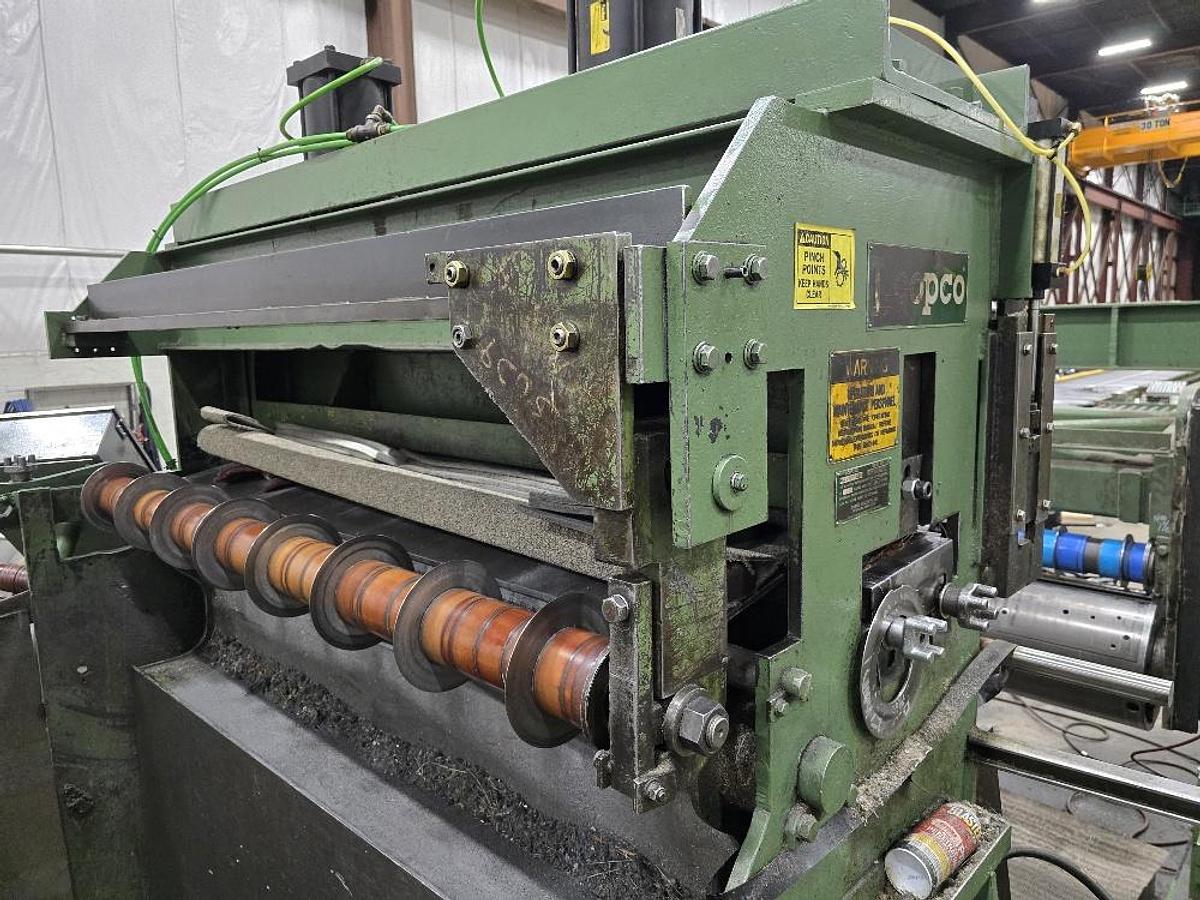

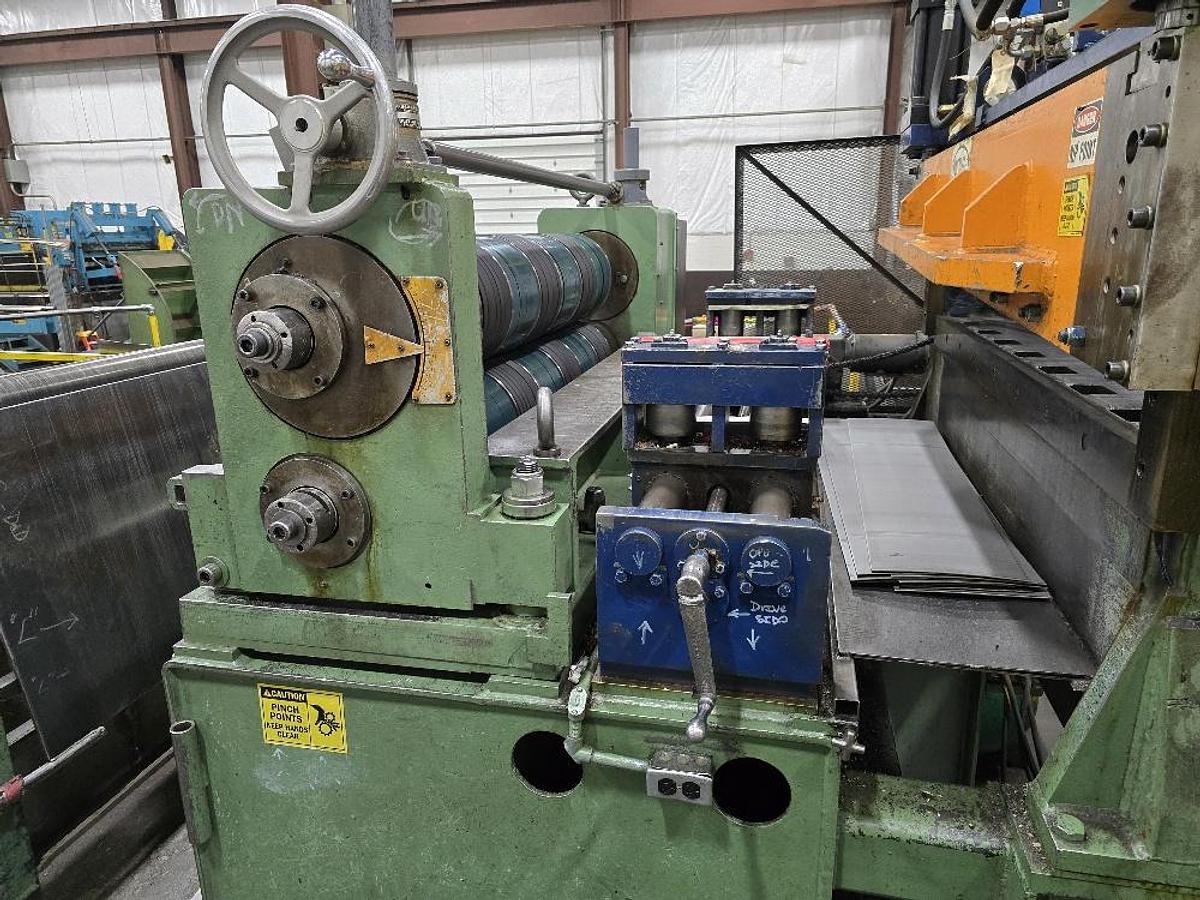

Slitter Head, (2) heads

-62” Wide x 8” Arbor, Freestanding Head

-Crane In/Out

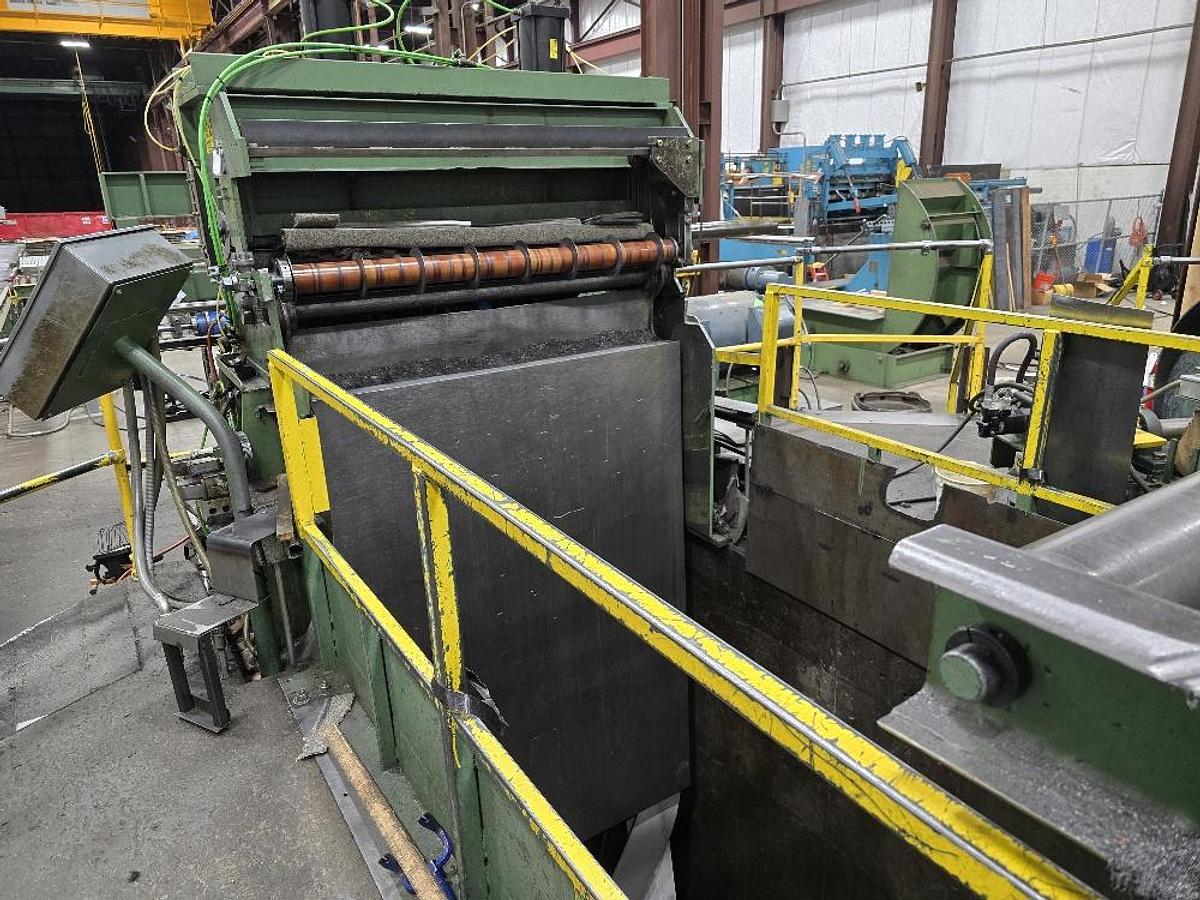

Pinch Roll Bottom-Driven With AC Motor + Gearbox

Looping Pit

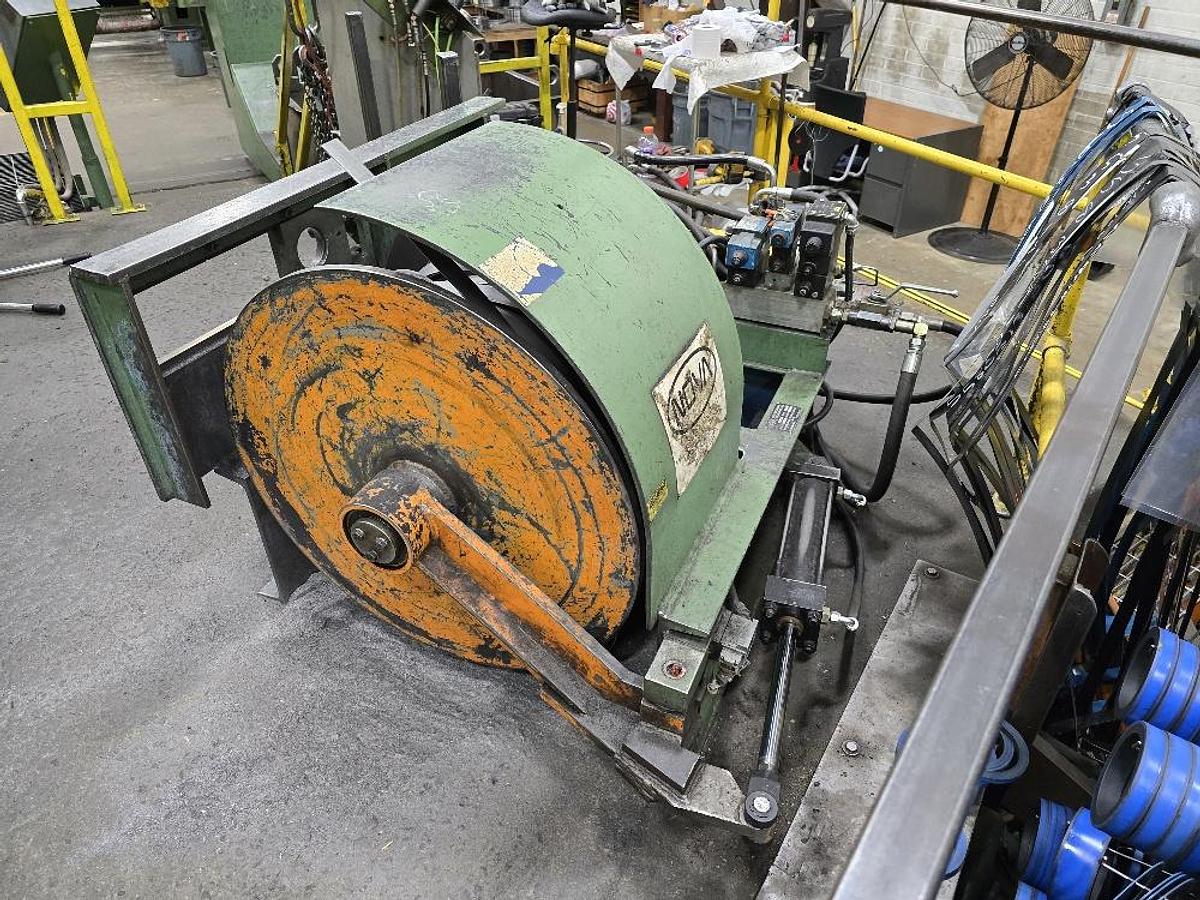

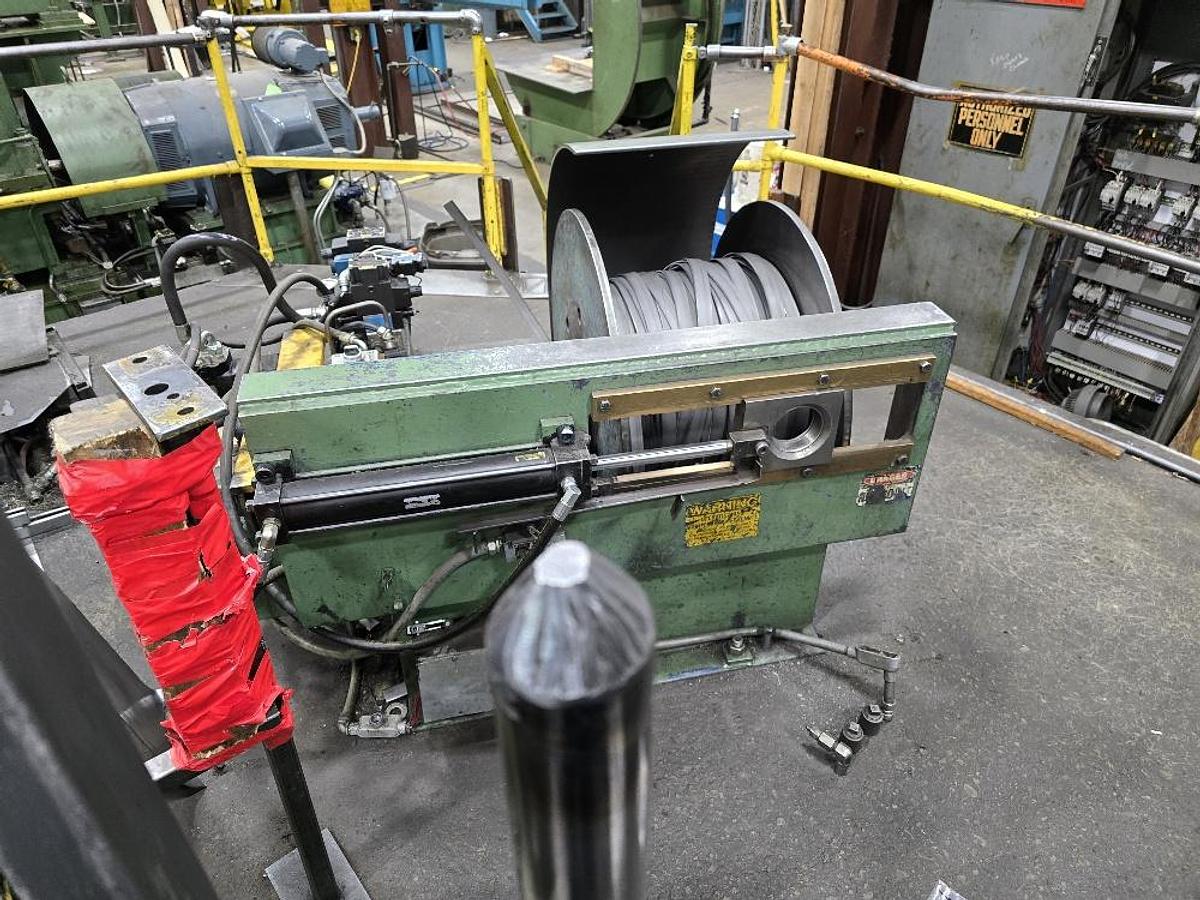

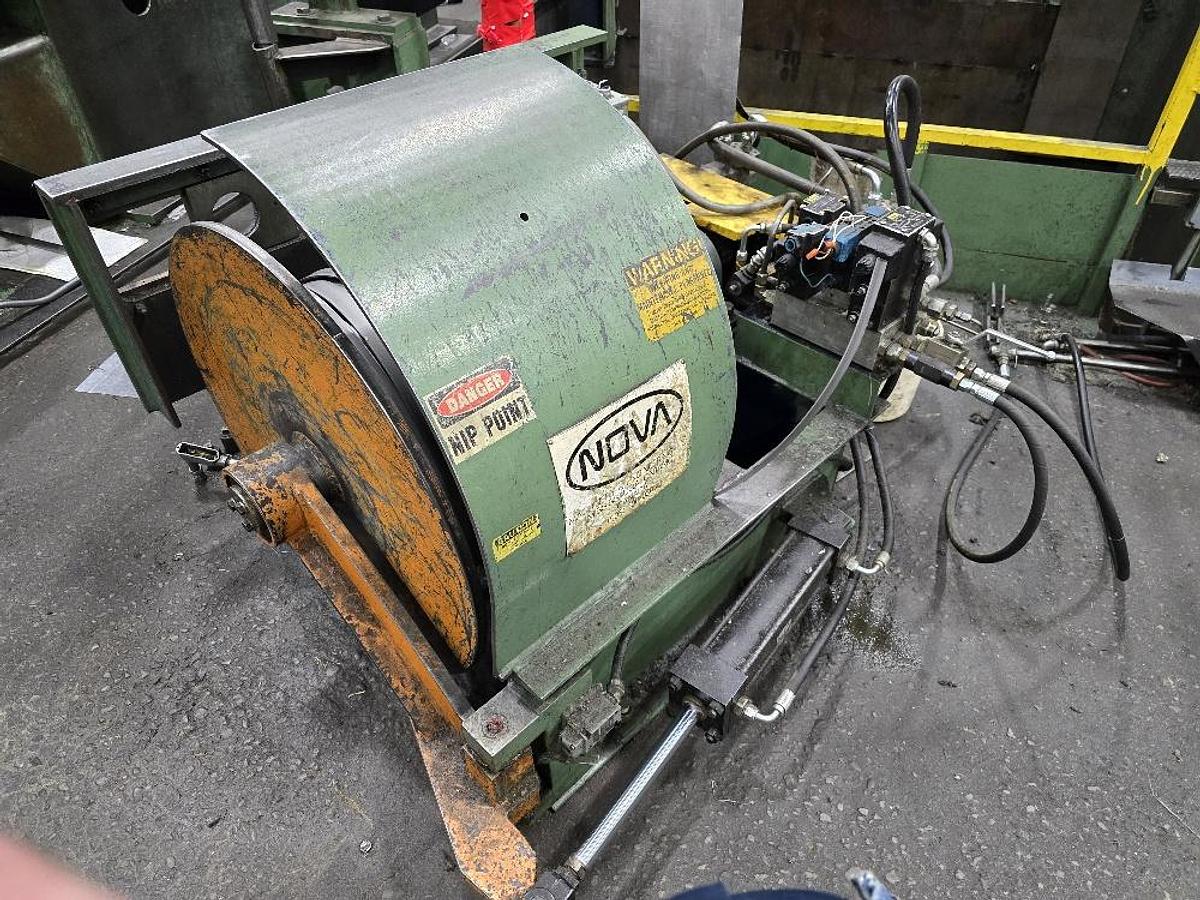

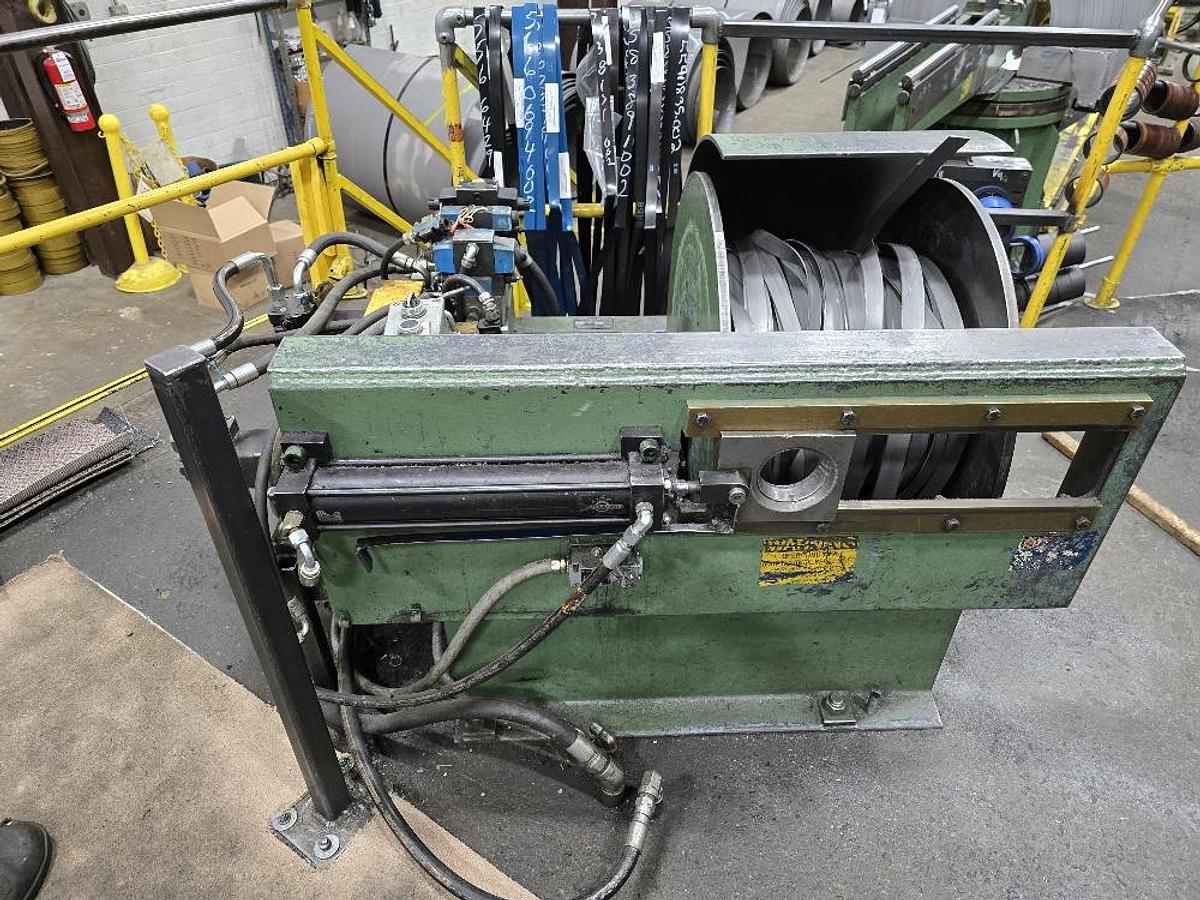

-Approx. 30 Ft Deep | (2) Nova Scrap Winders With Oscillation

Tension Stand

-Pad-Type Tension Stand With Entry Separator

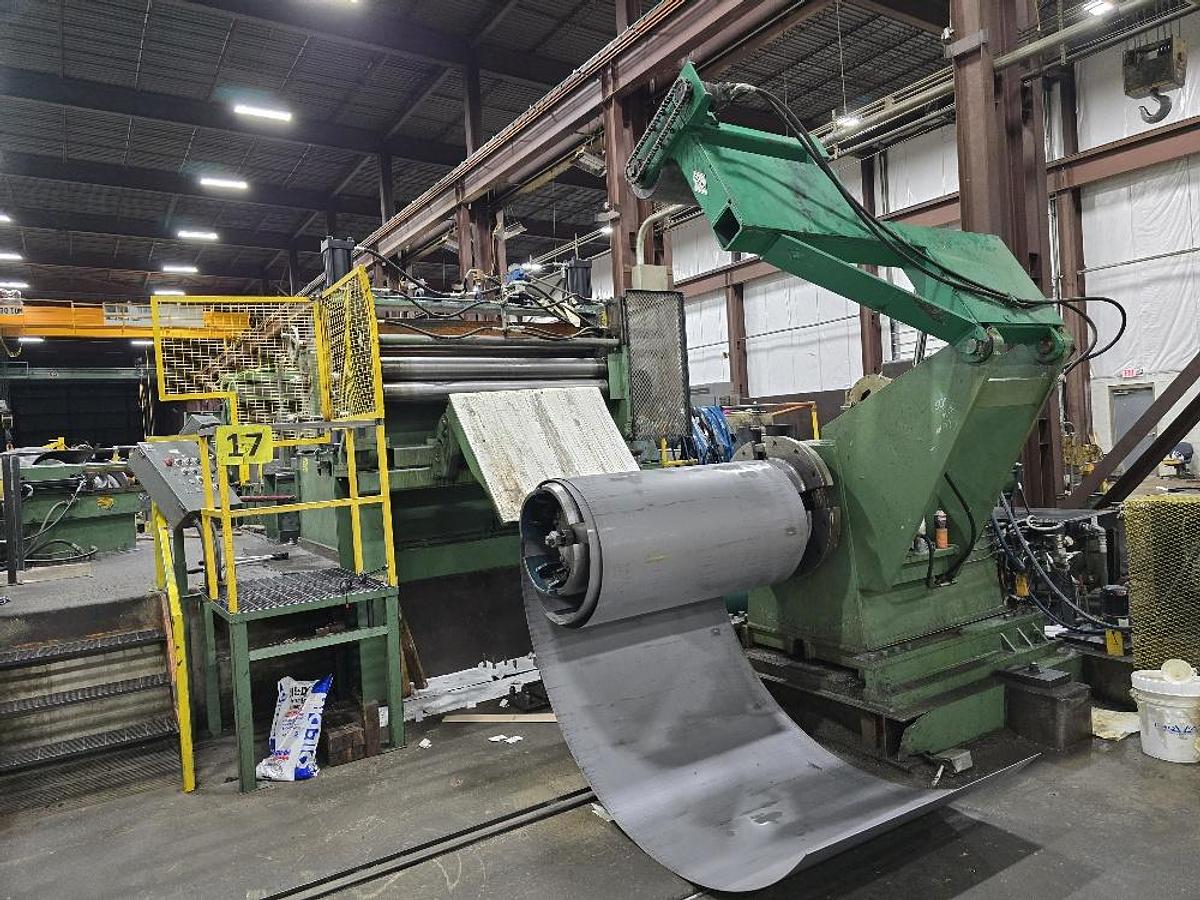

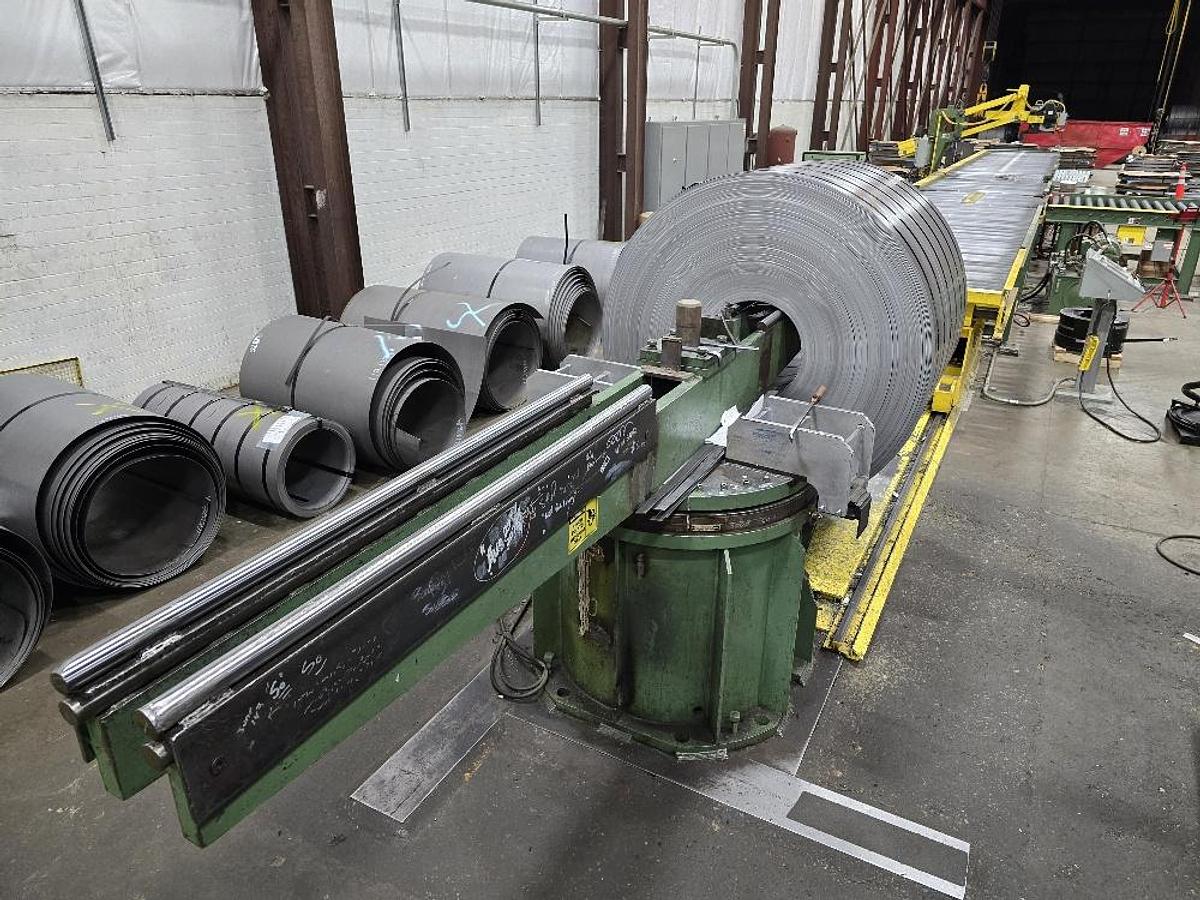

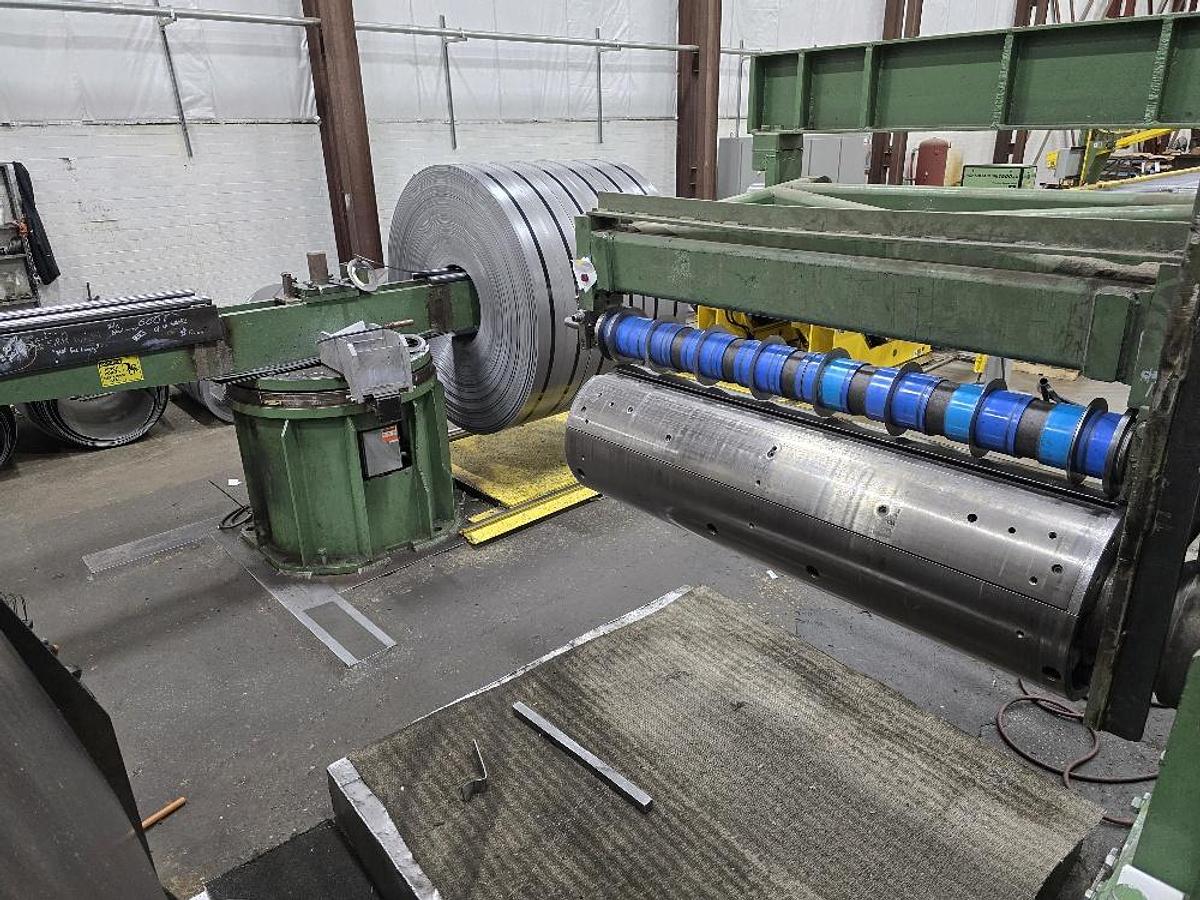

Recoiler

-66” Wide | 20” Hydraulic Drum + Gripper

-Two-Speed Gearbox: 59.7:1 And 30.9:1

-Shaft: 13” | Rated 50,000 Lb

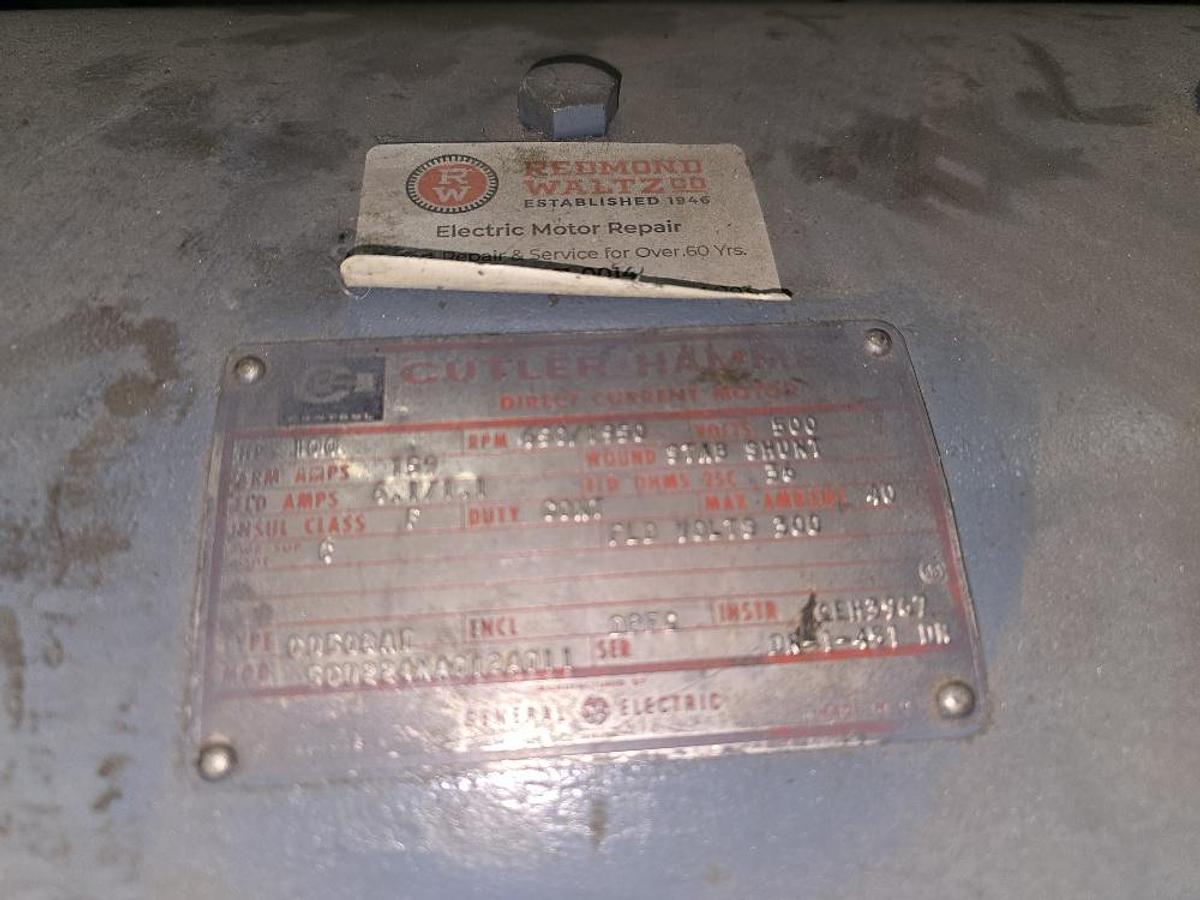

-100 HP DC Motor

Exit Turnstile:

-2-Arm | 70” Wide Arms | 6” C-Hook Opening | Hydraulic Rotate
