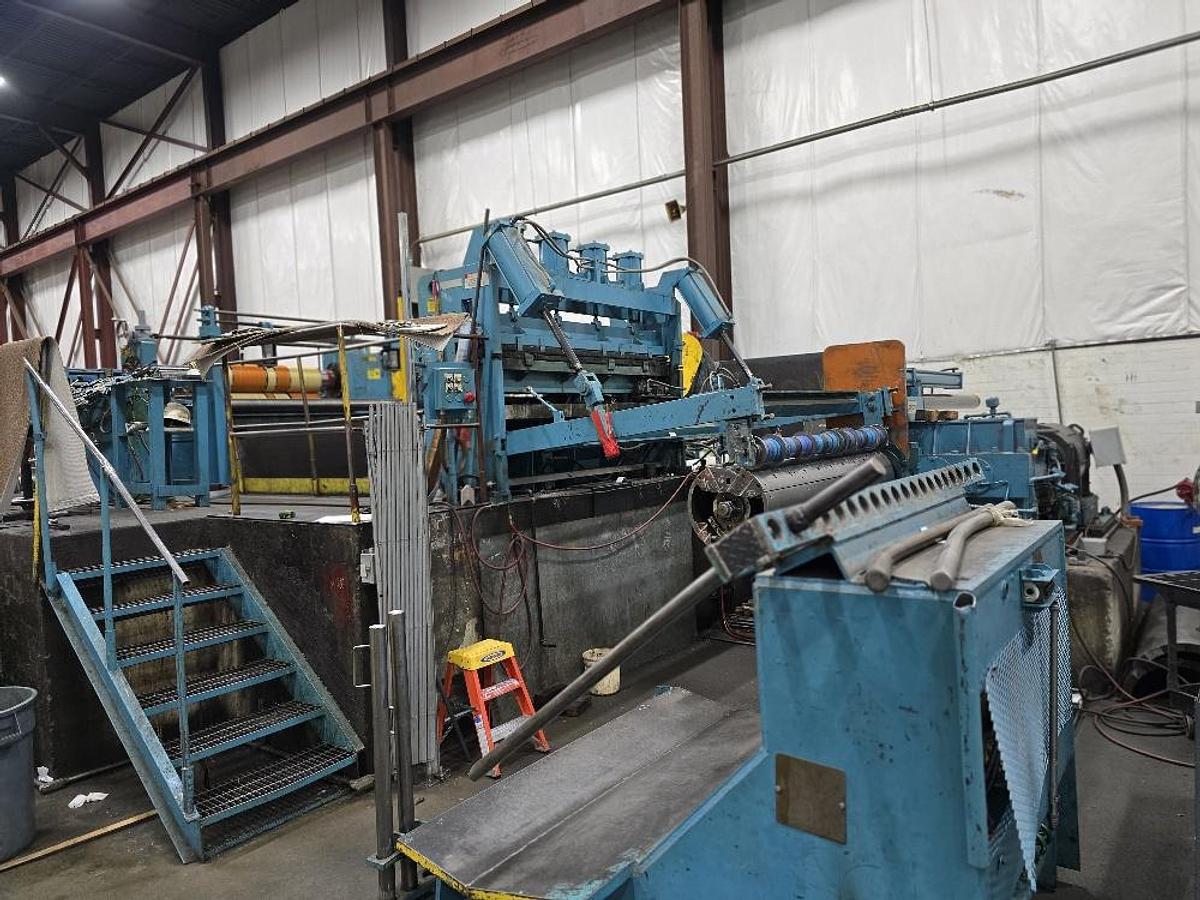

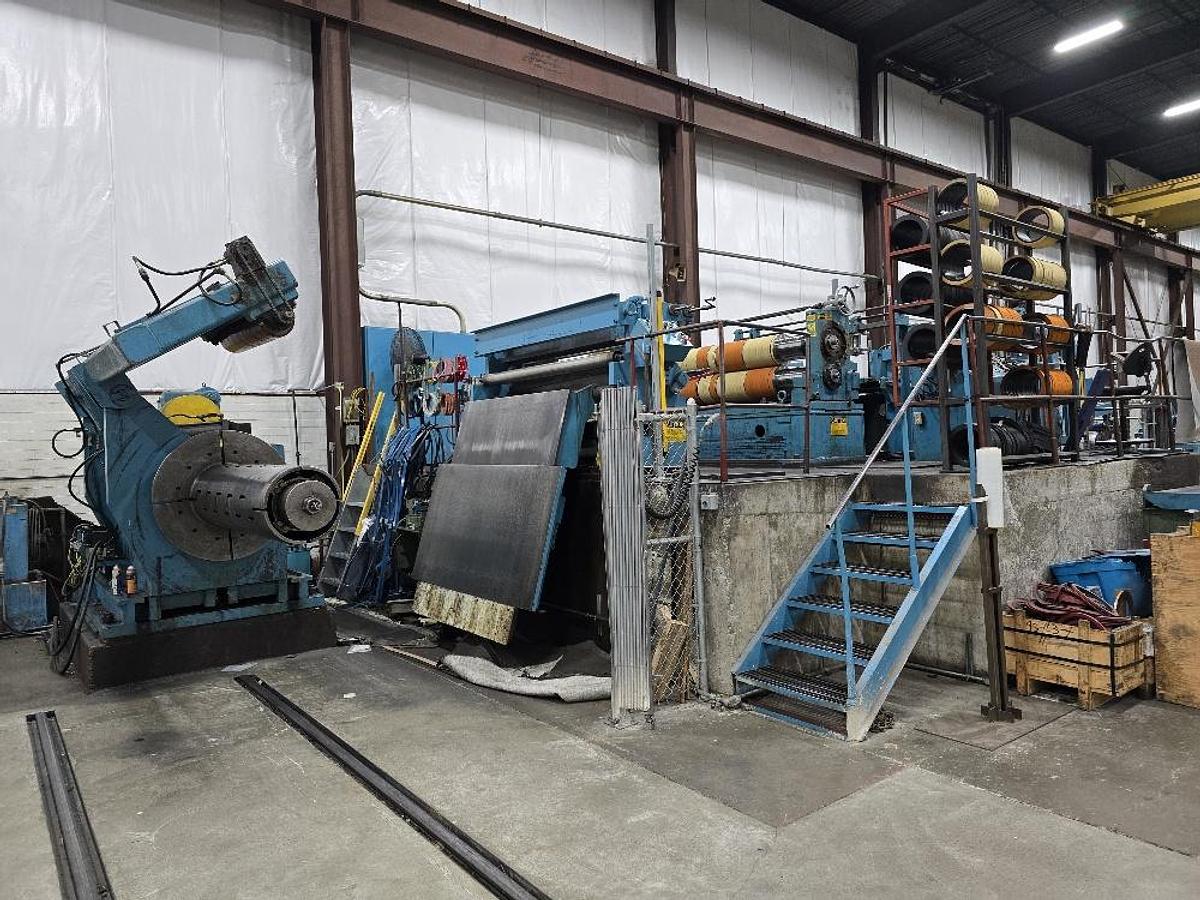

72” x .187" x 50,000 Lbs. Loopco Slitting Line

Specifications:

Manufacturer: Loopco

Max Coil Width: 72”

Max Coil Weight: 50,000 Lb

Gauge Range: 0.020” to 0.185”

Line Direction: Left to Right

Line Includes:

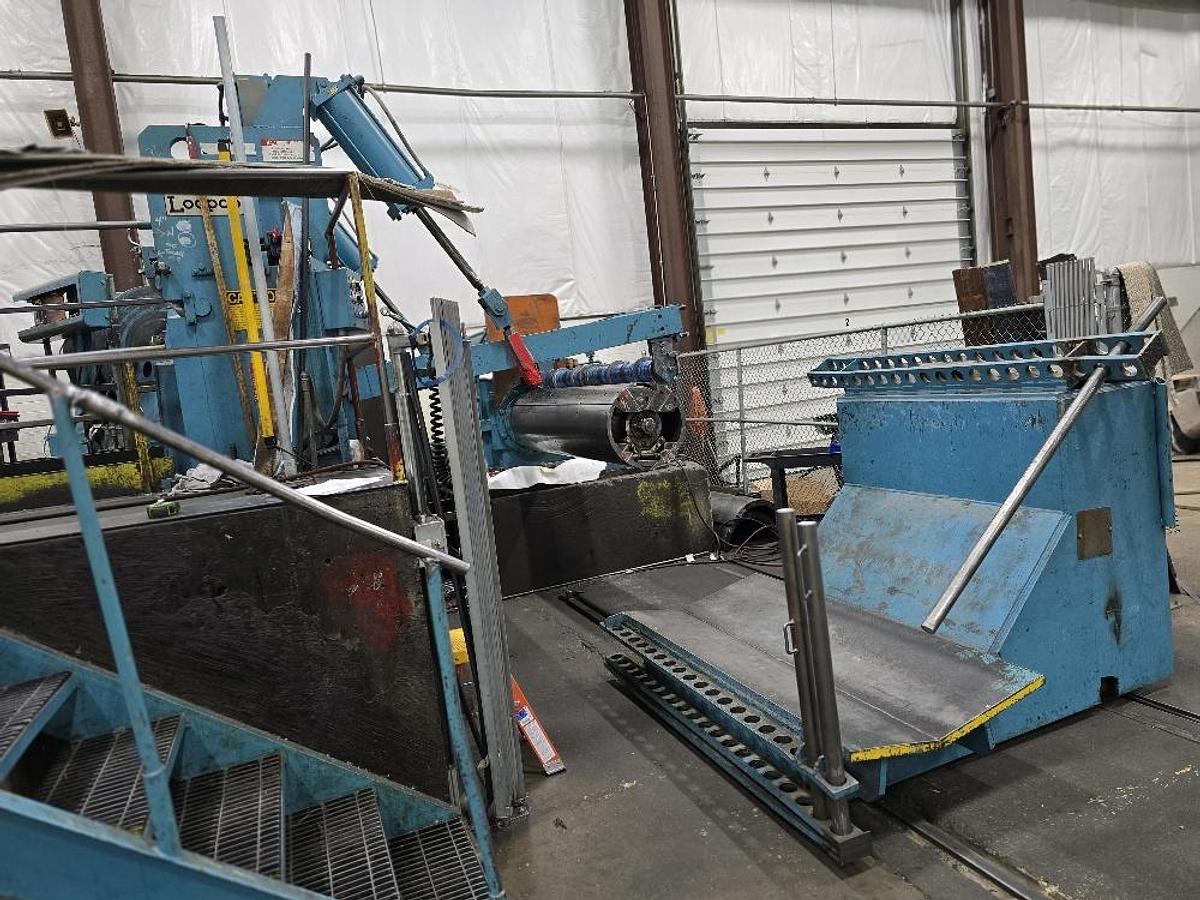

Coil Car, Nova (2011)

-64” Wide

-72” OD

-50,000 Lb

-Pendant Control

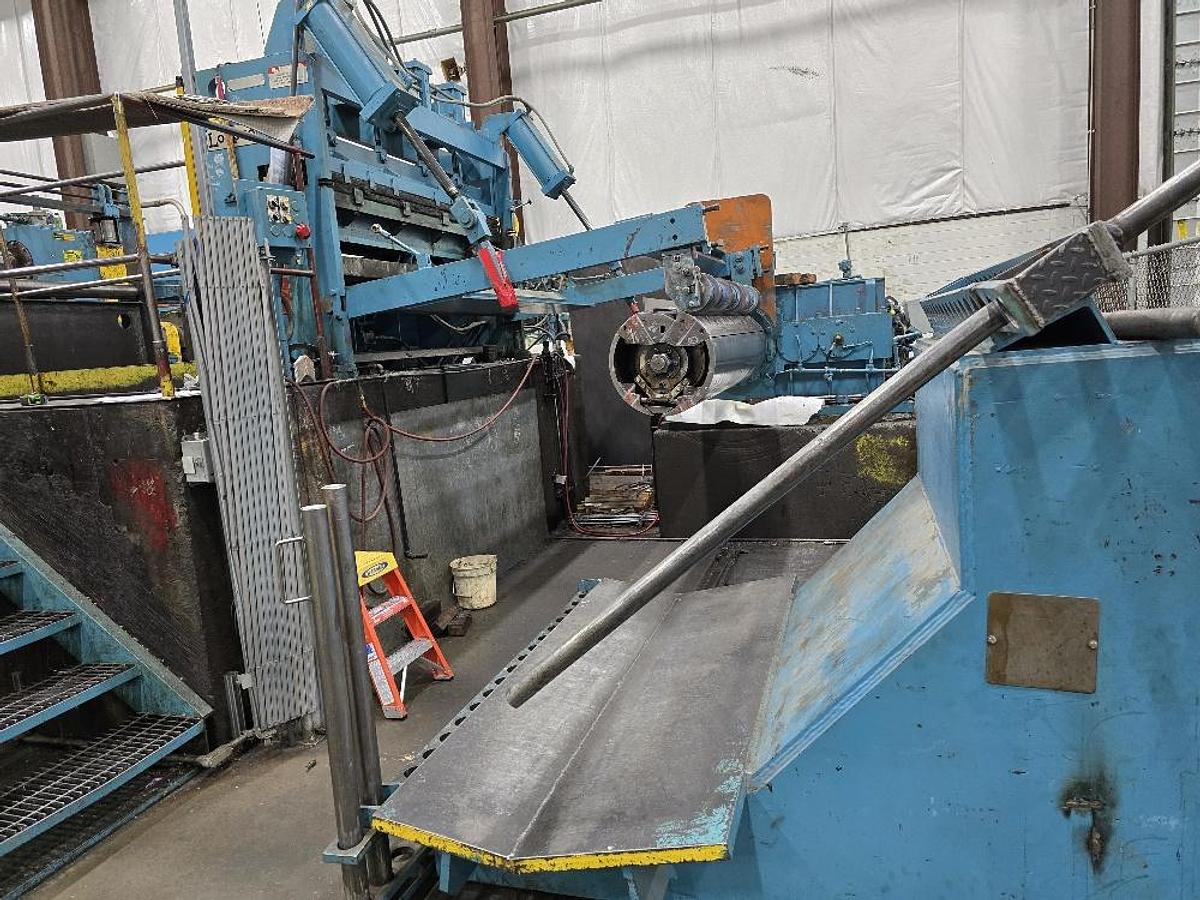

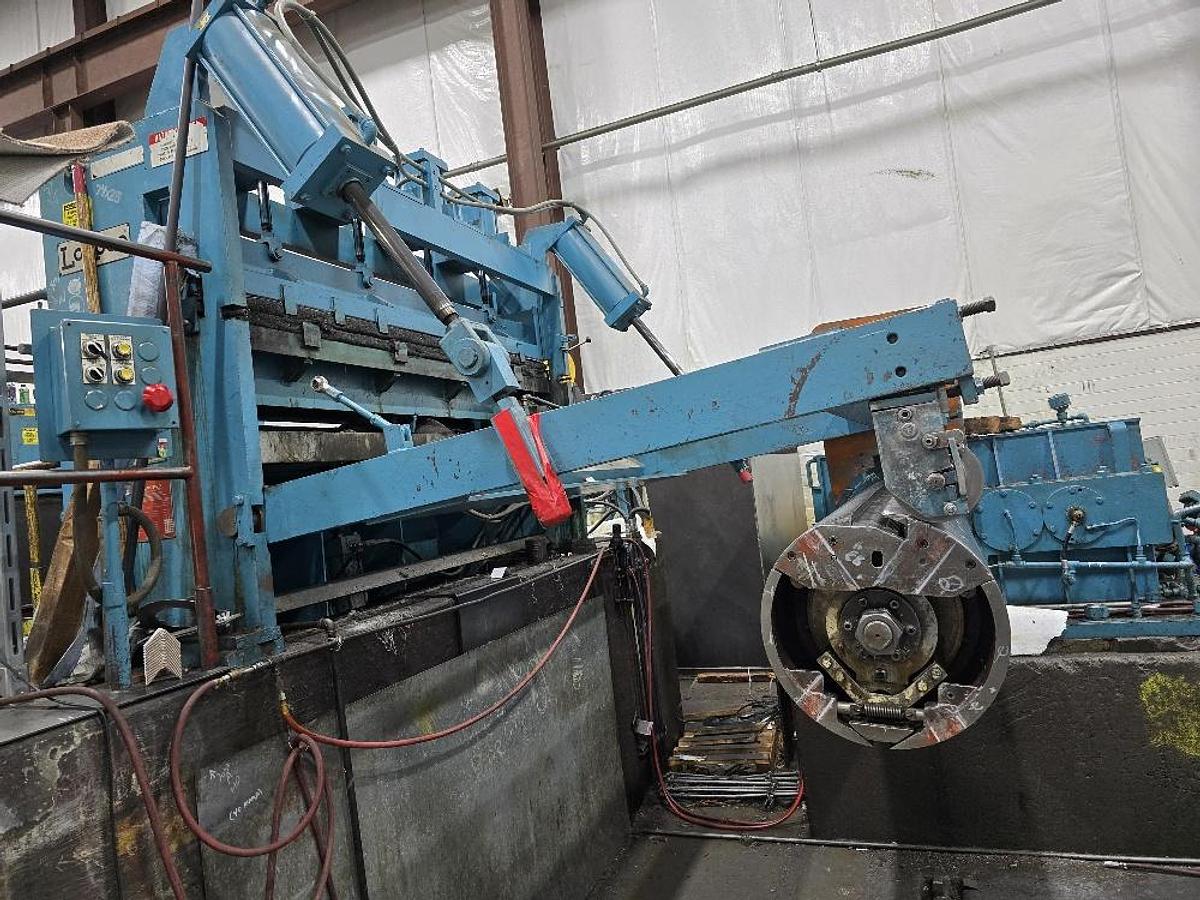

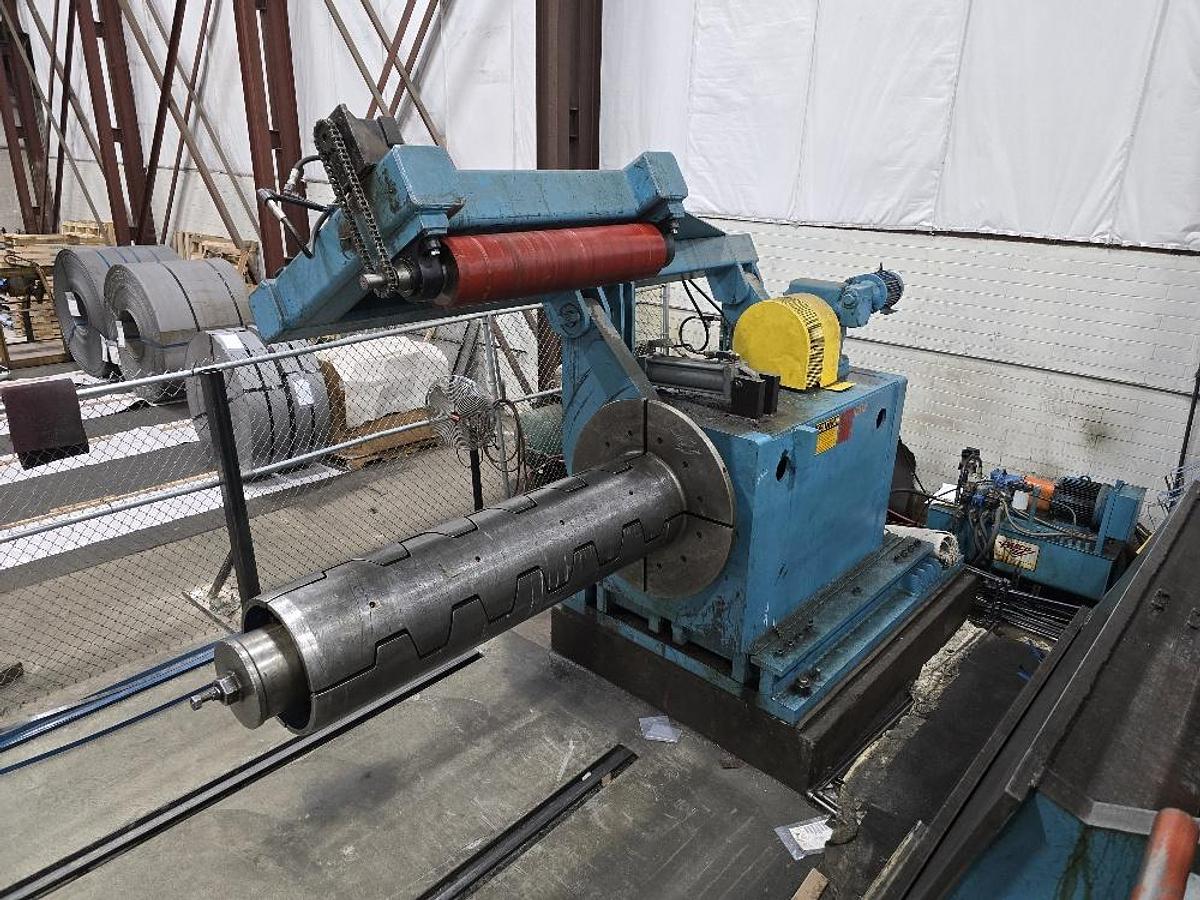

Uncoiler

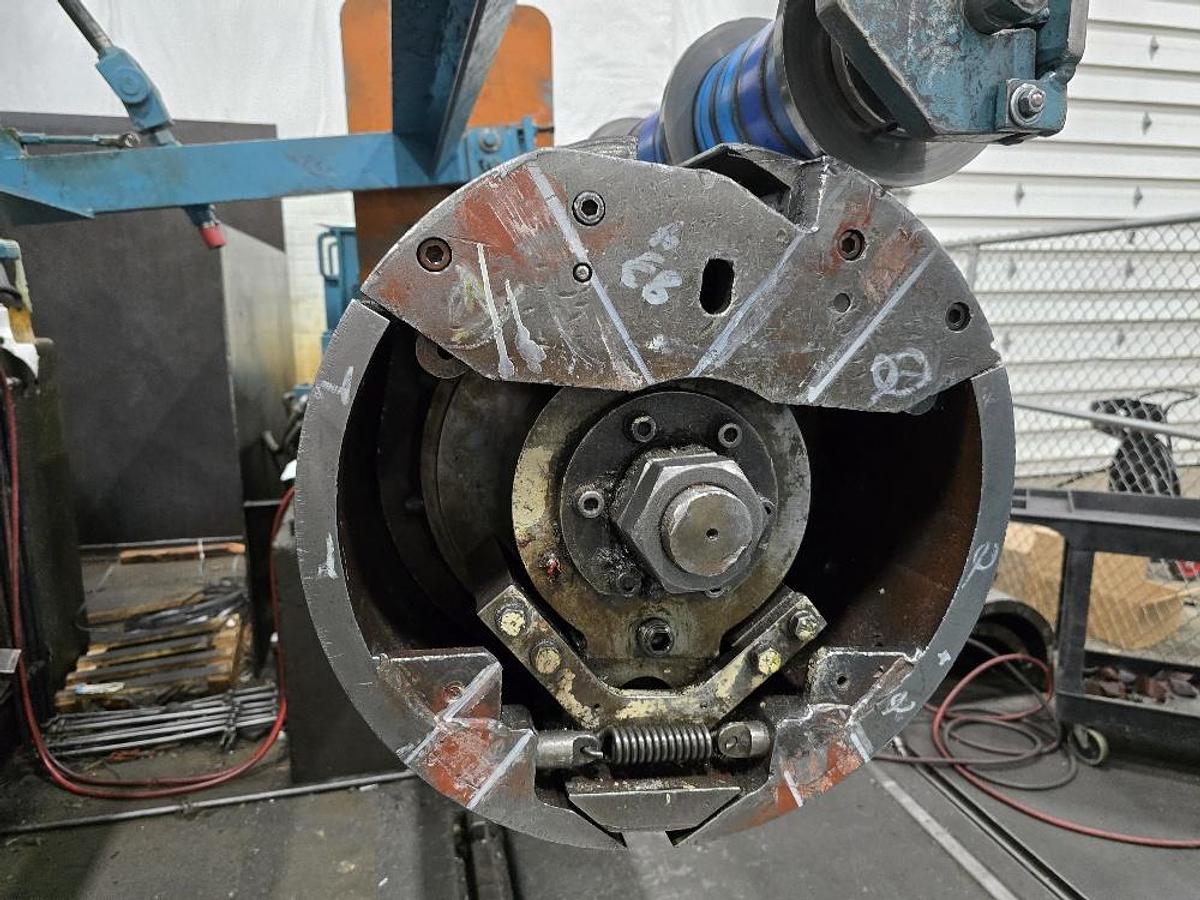

-18.5”–24.5” Hydraulic Expansion/Hydraulic Sliding Base

-Water-Cooled Wichita Brake

-Driven Hold-Down Roll

Peeler

-64” Wide

-Hydraulic In/Out, Up/Down

Shear

-74” Hydraulic Upcut

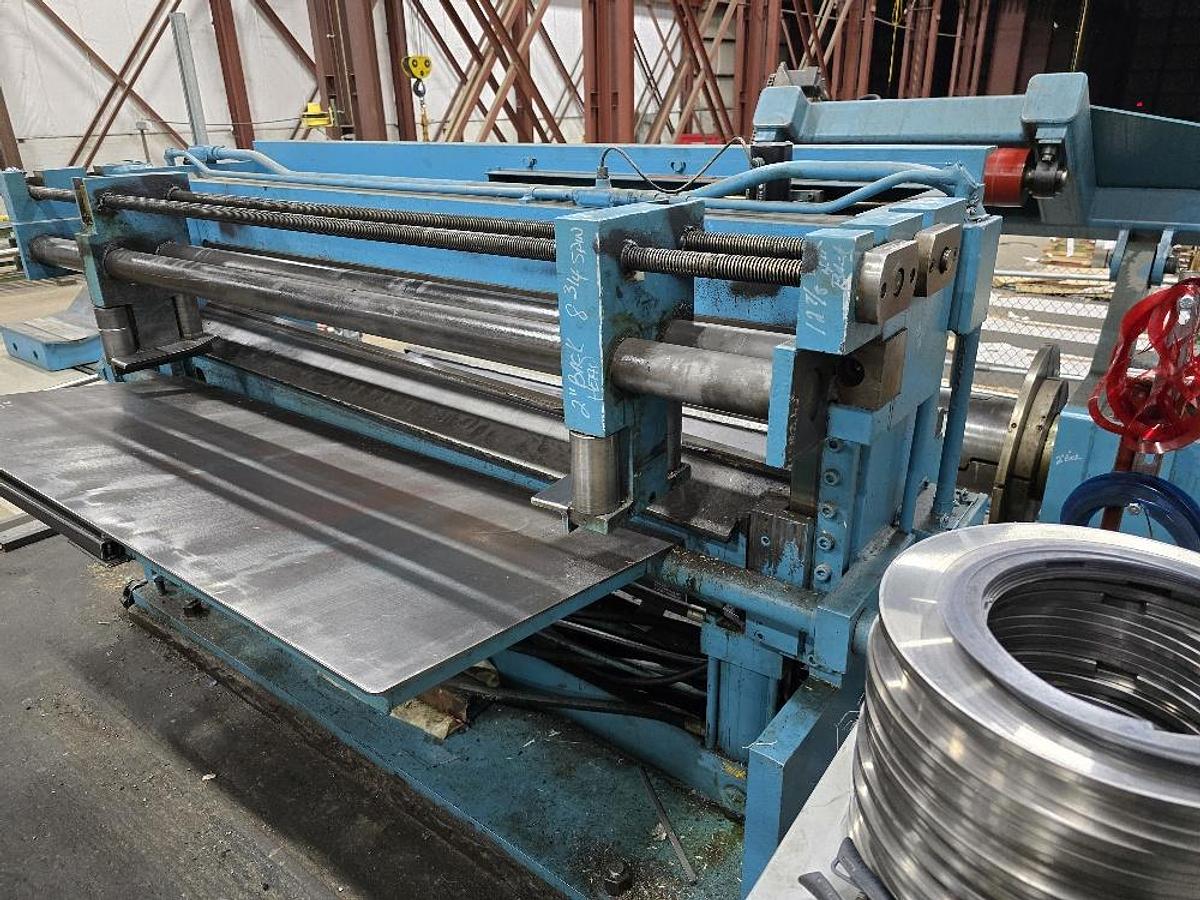

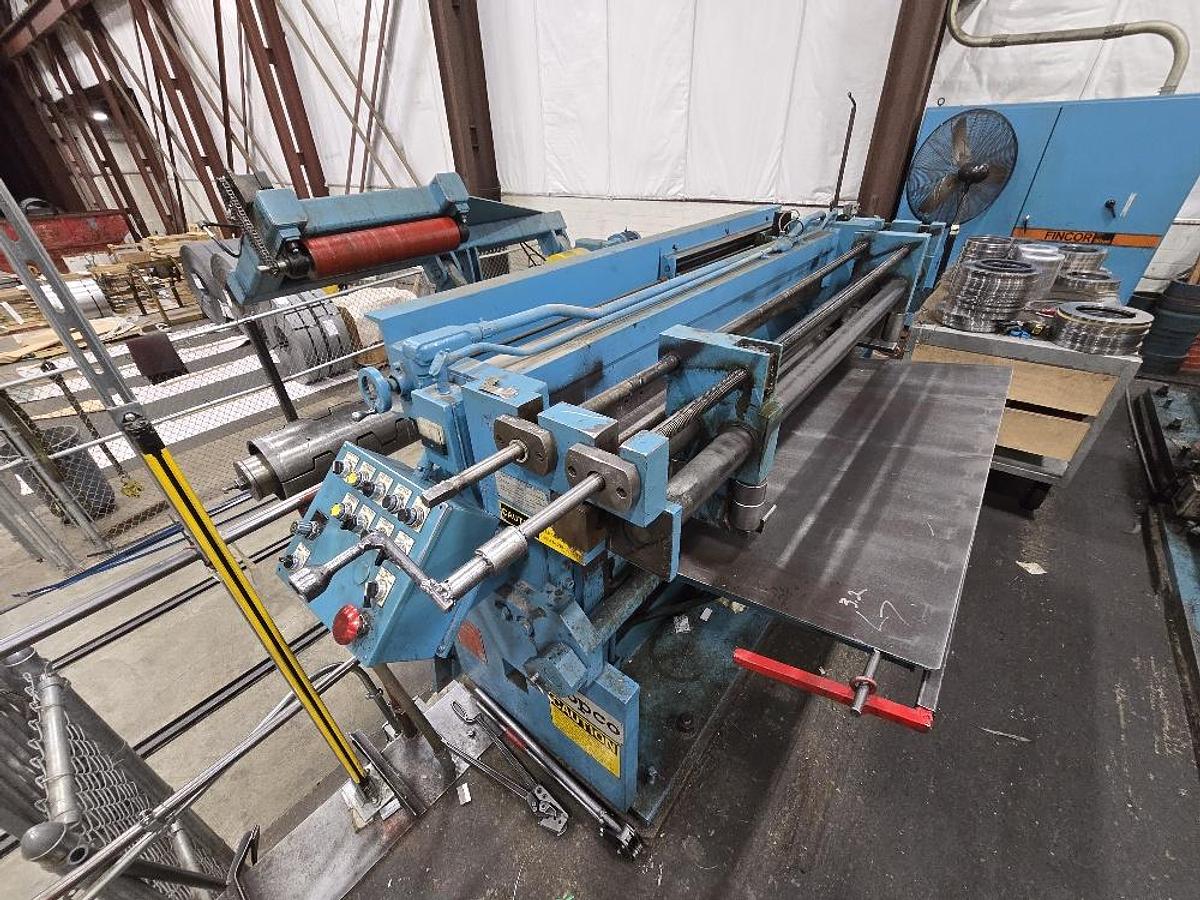

Side Guides

-Twin-Screw

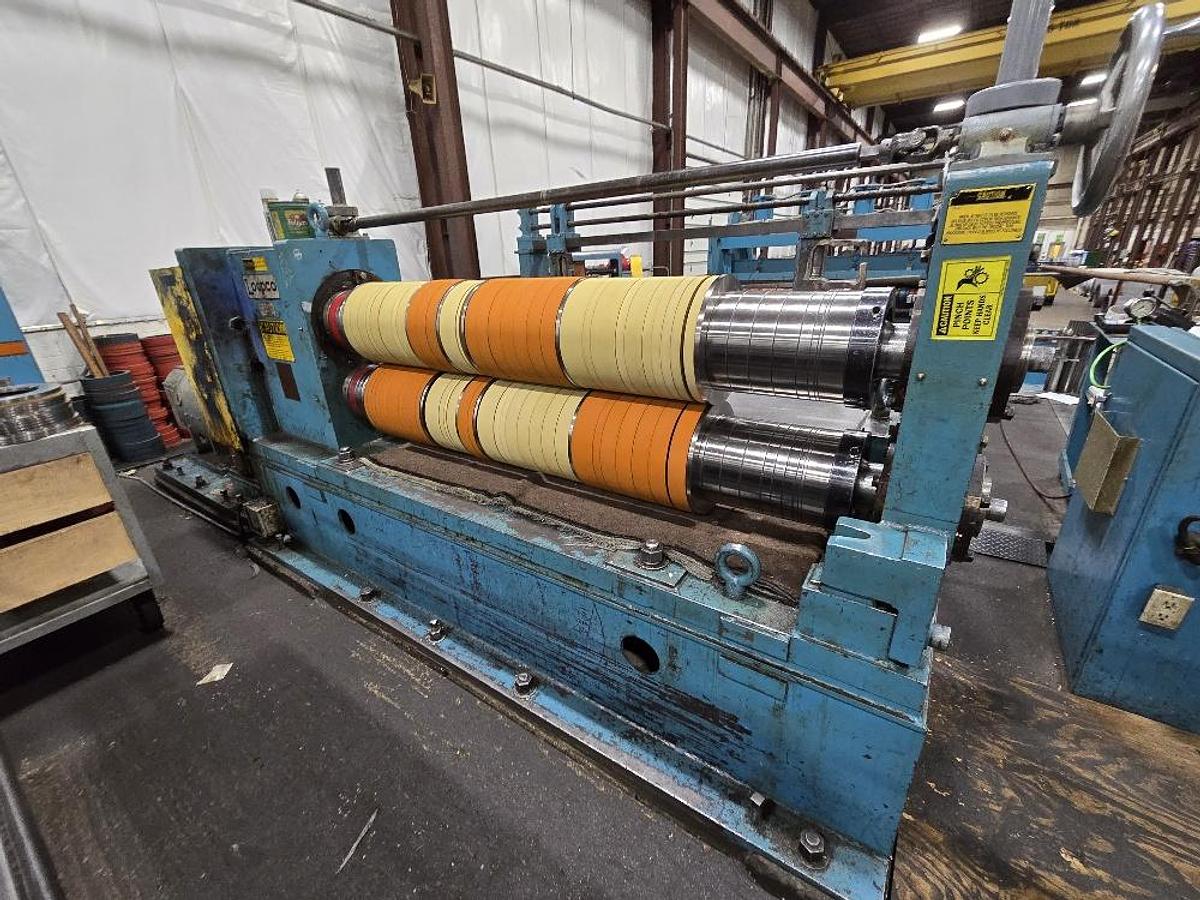

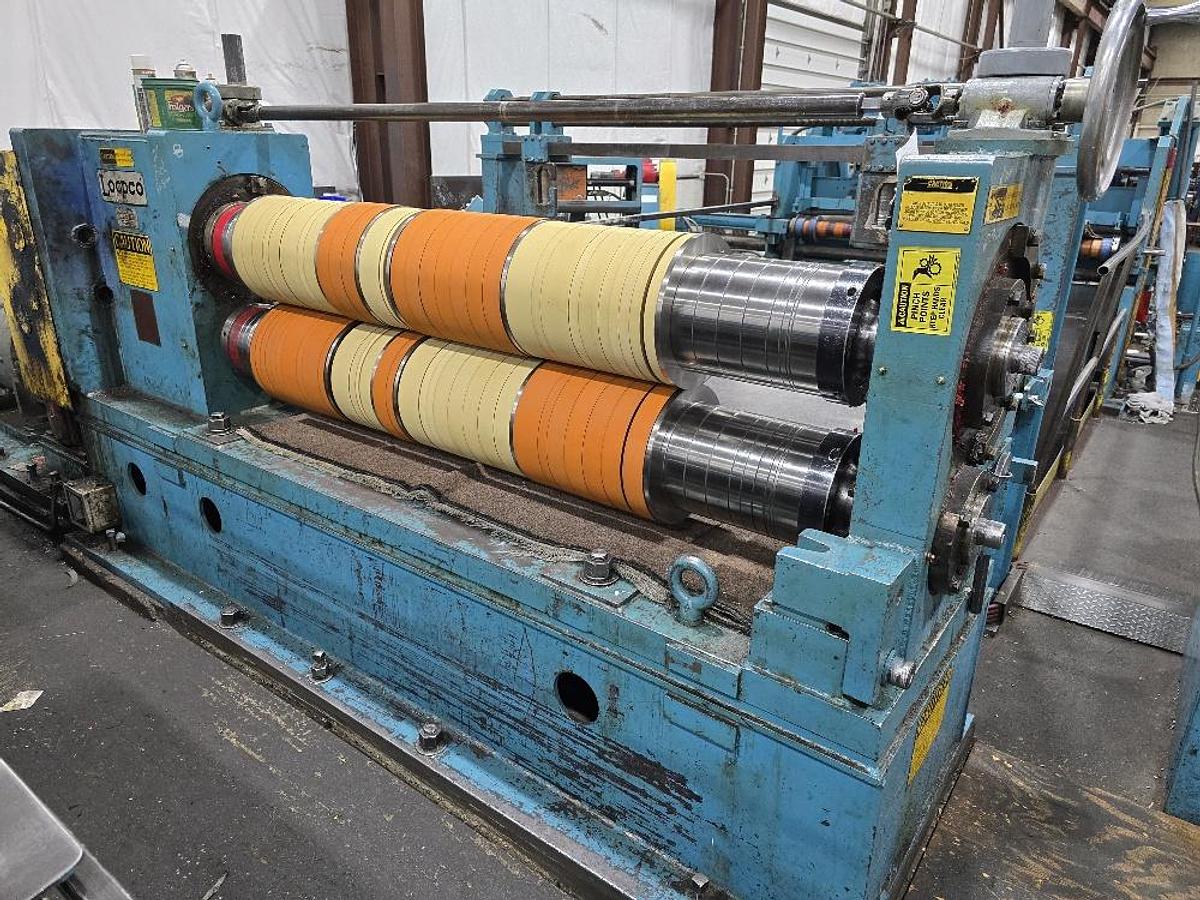

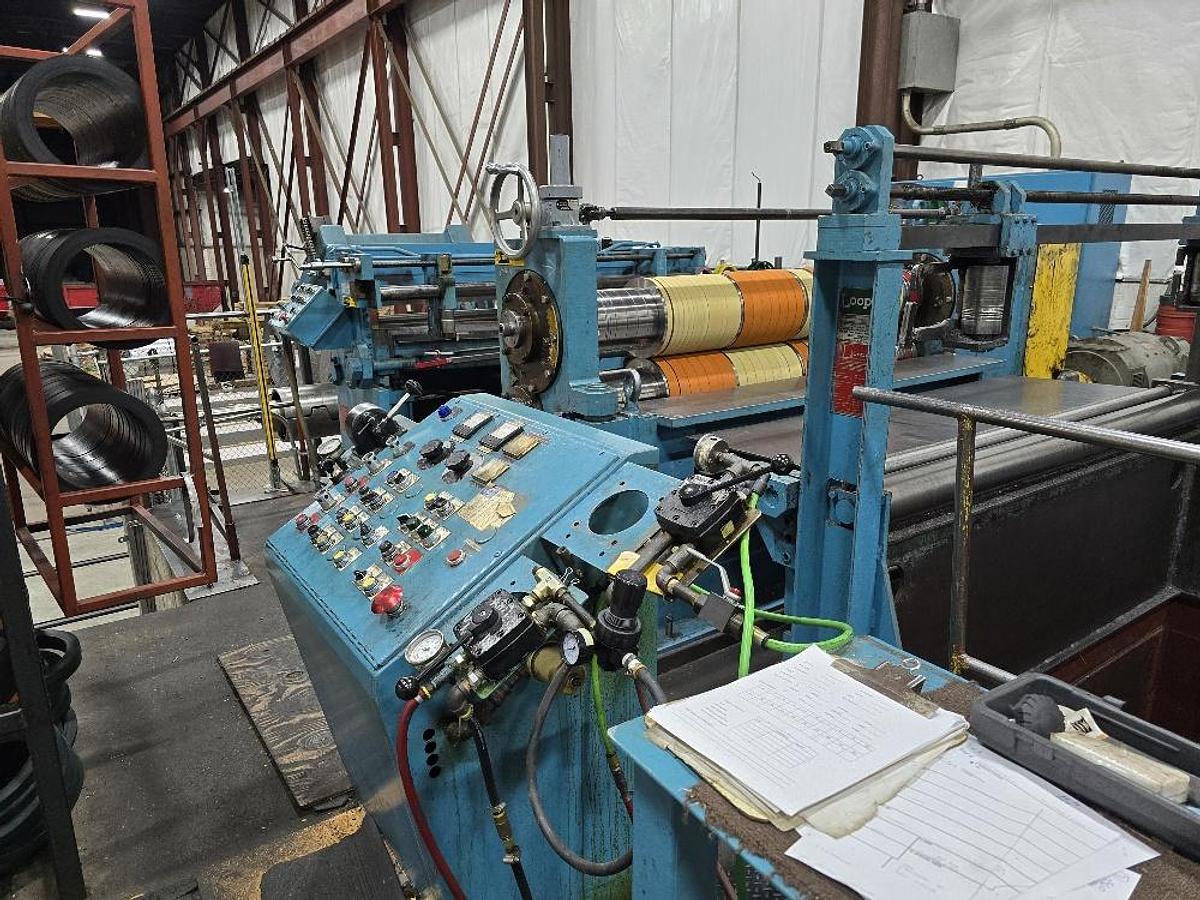

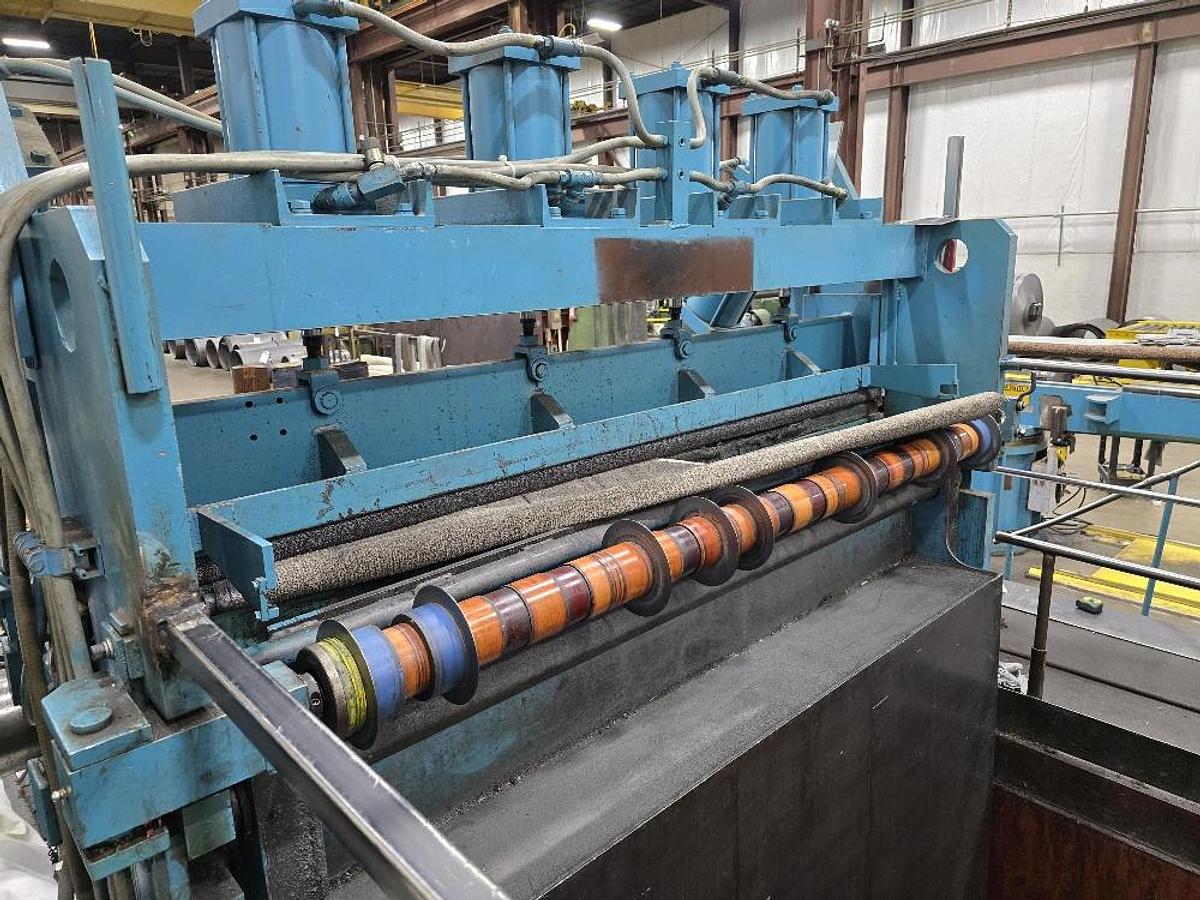

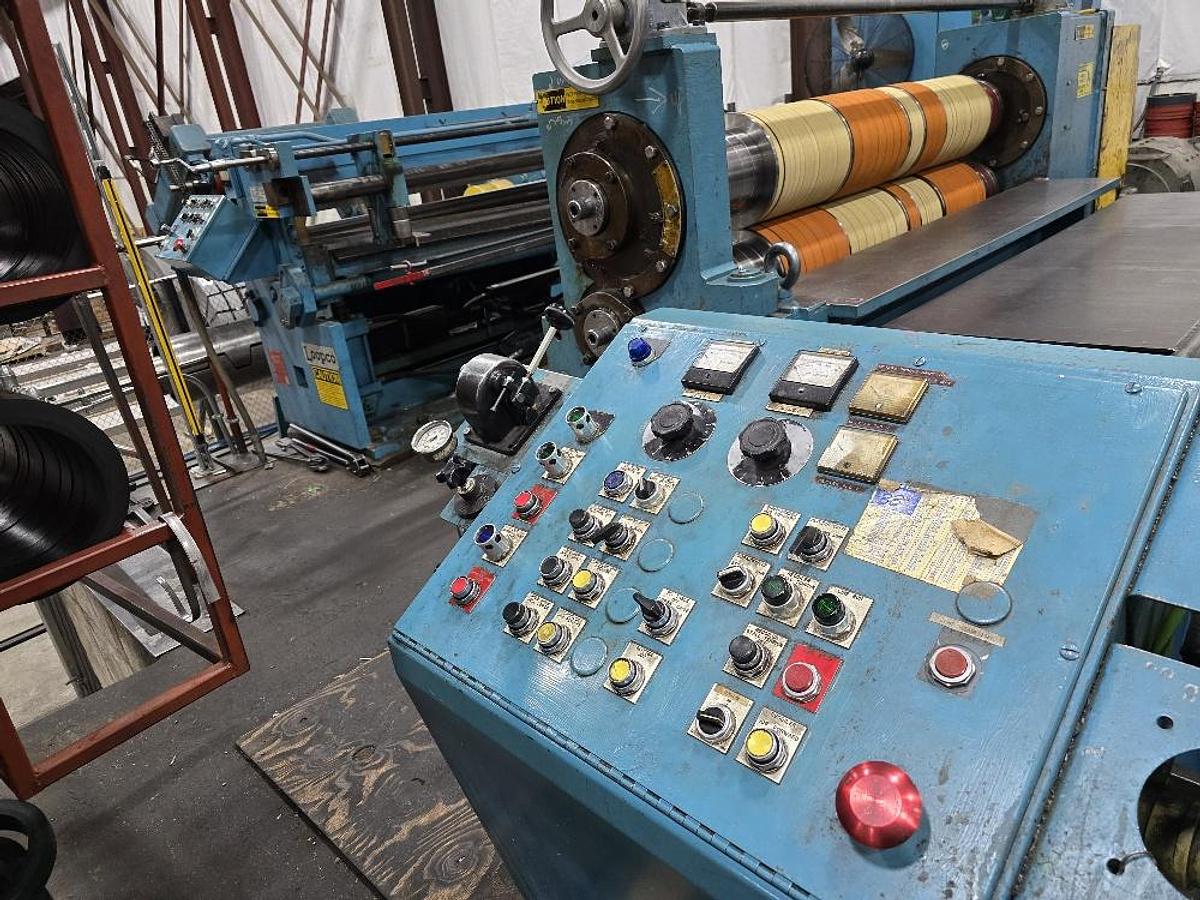

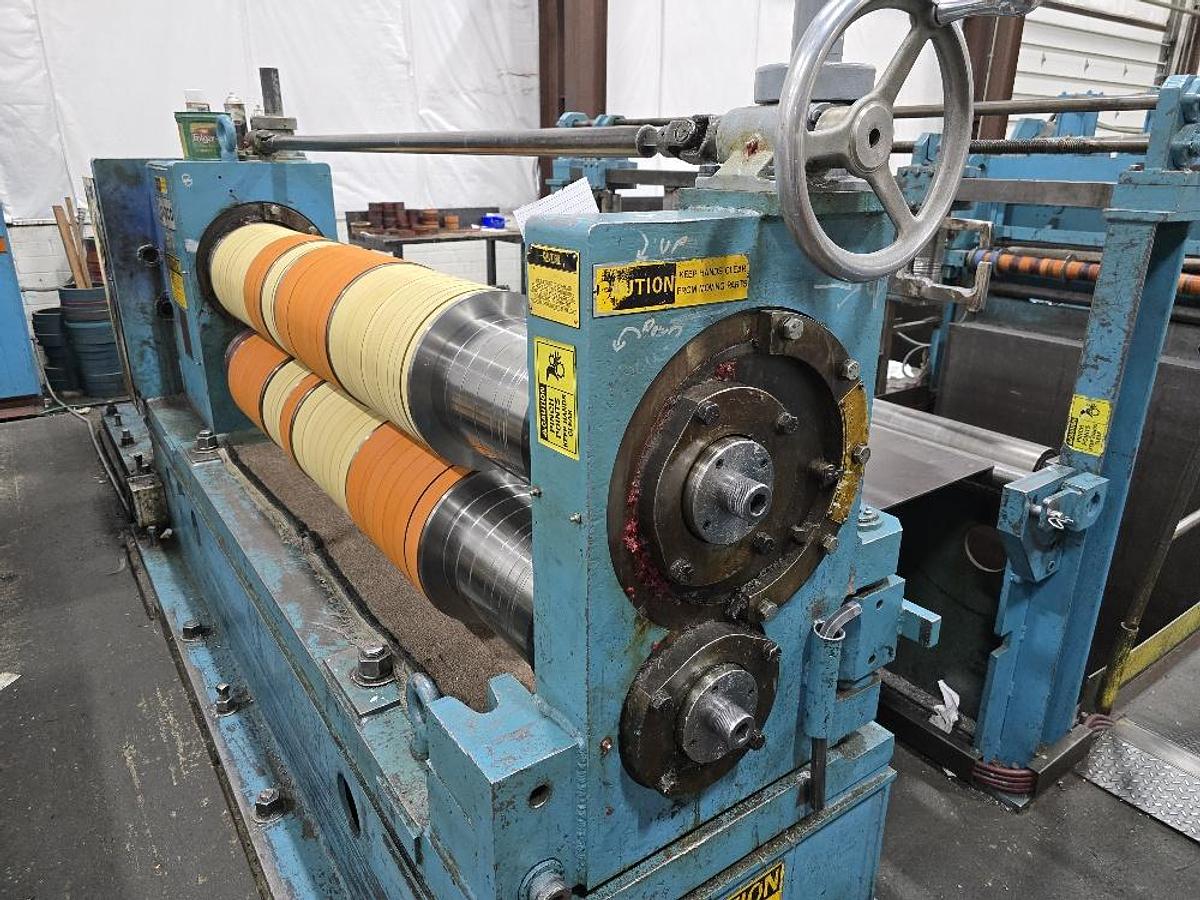

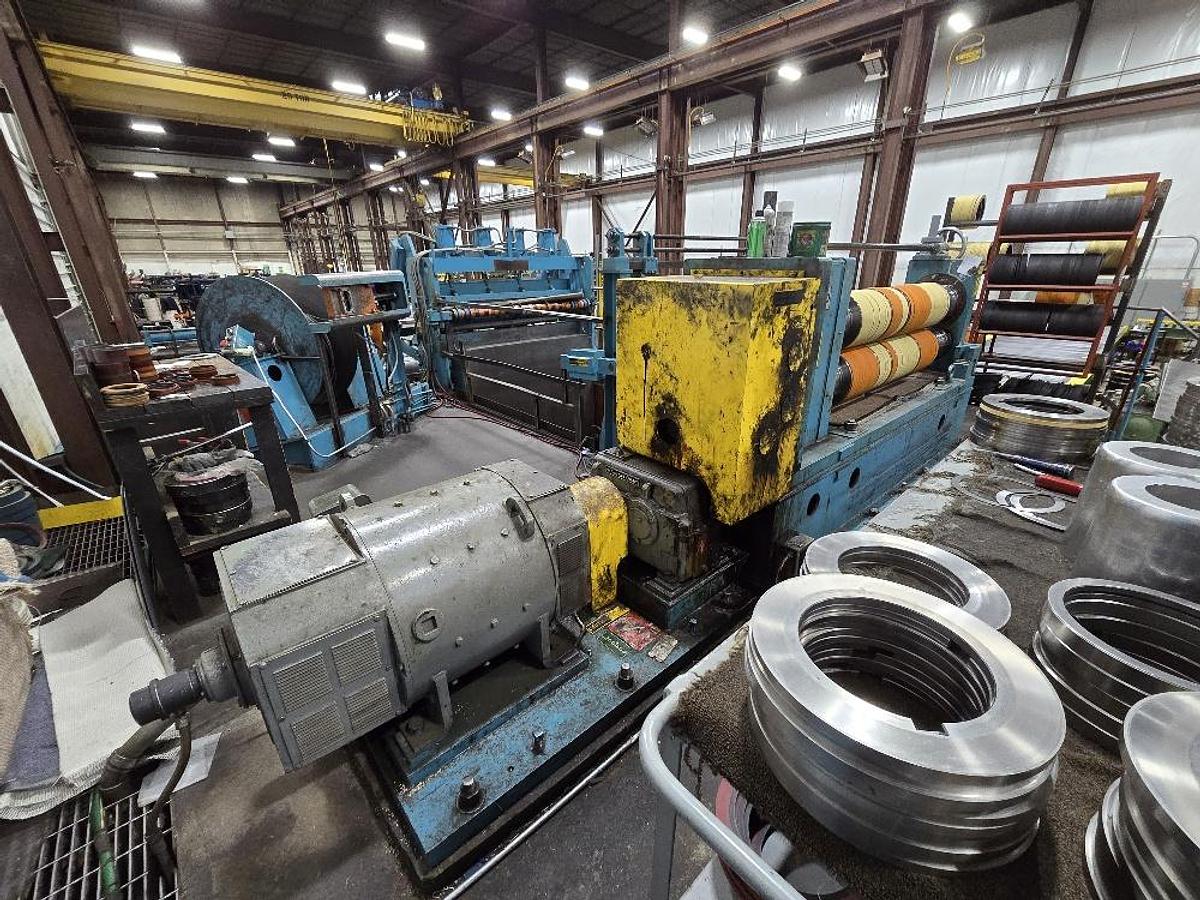

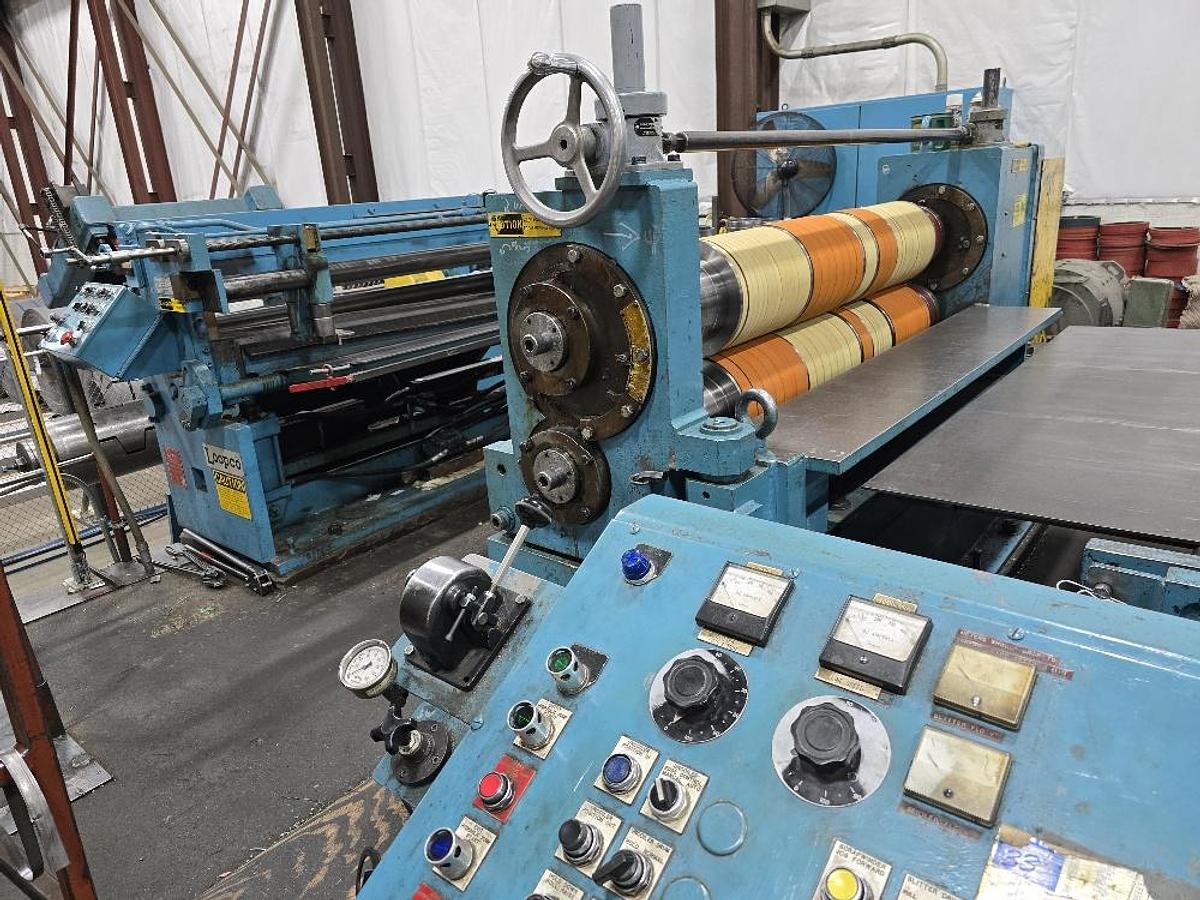

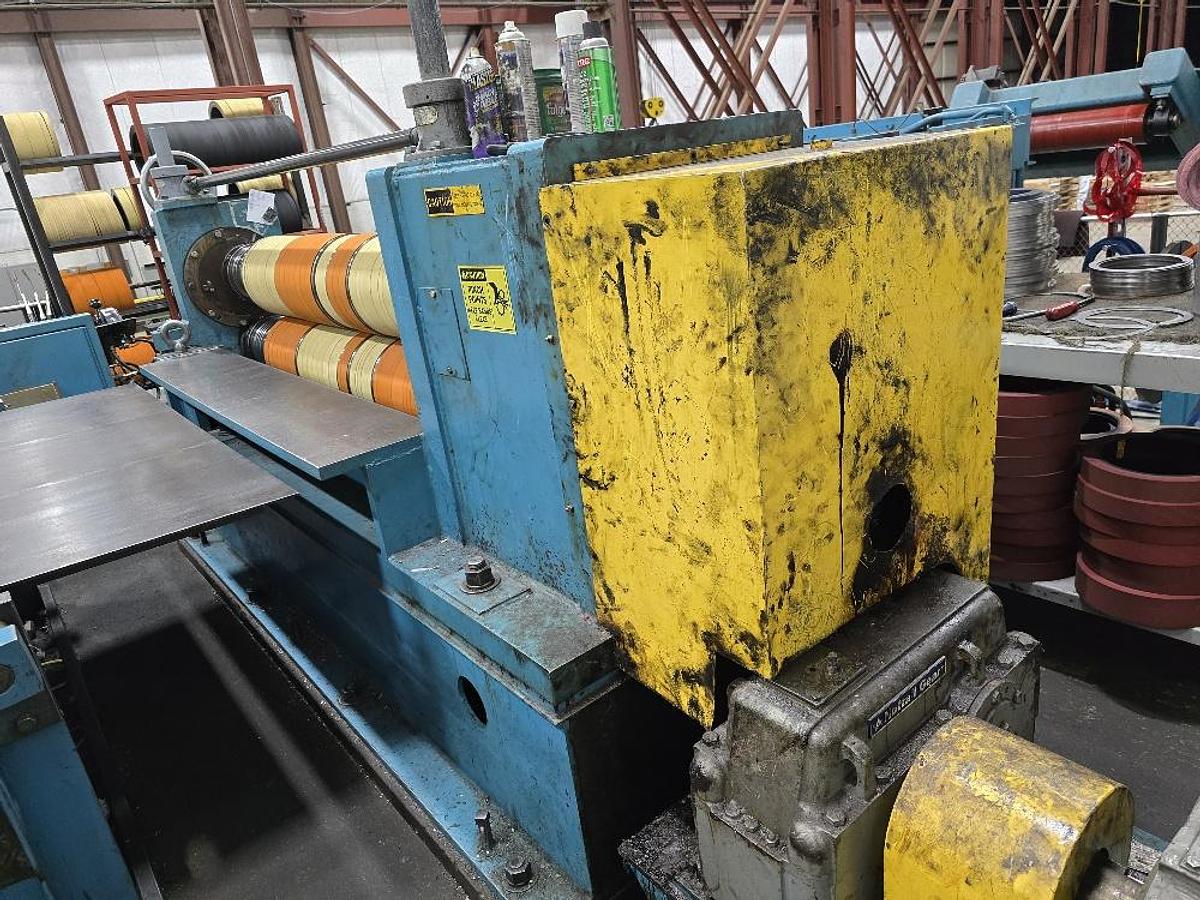

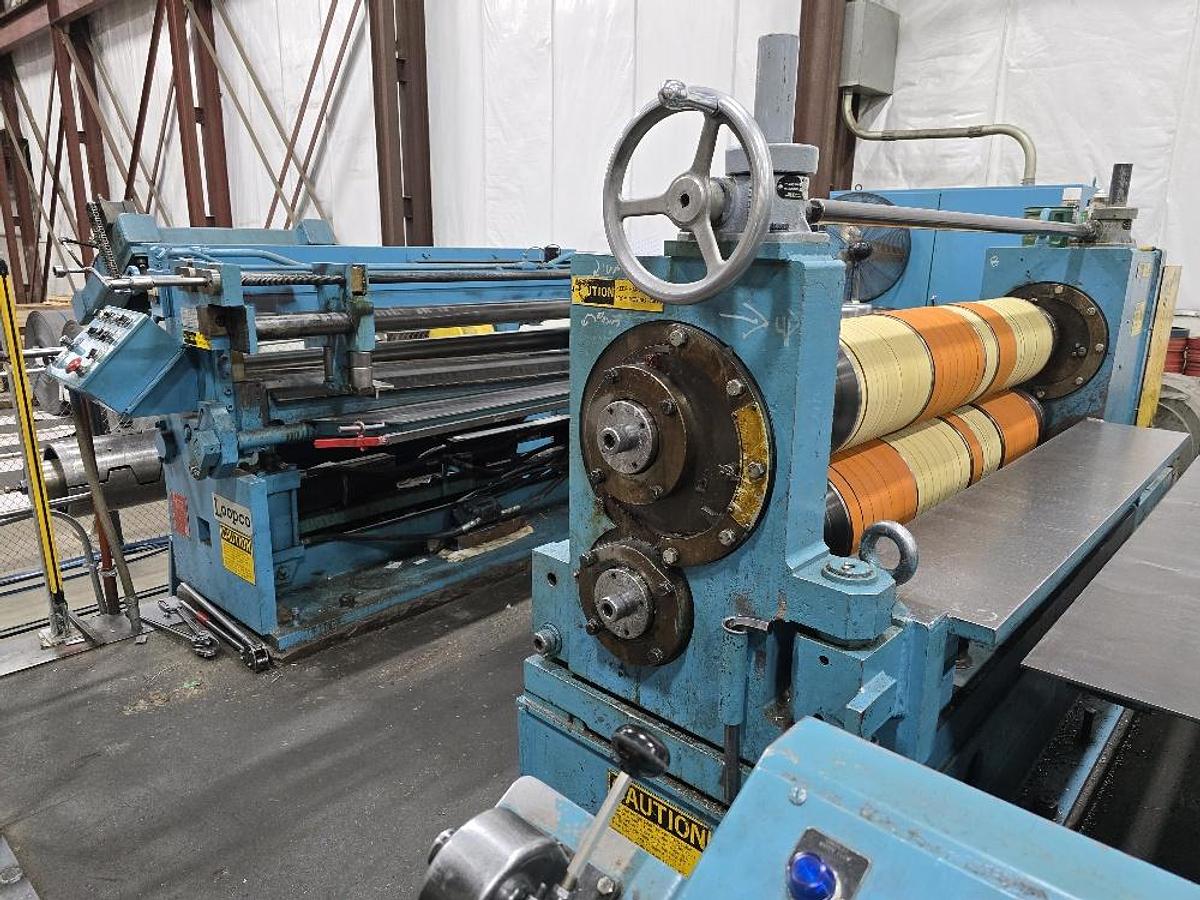

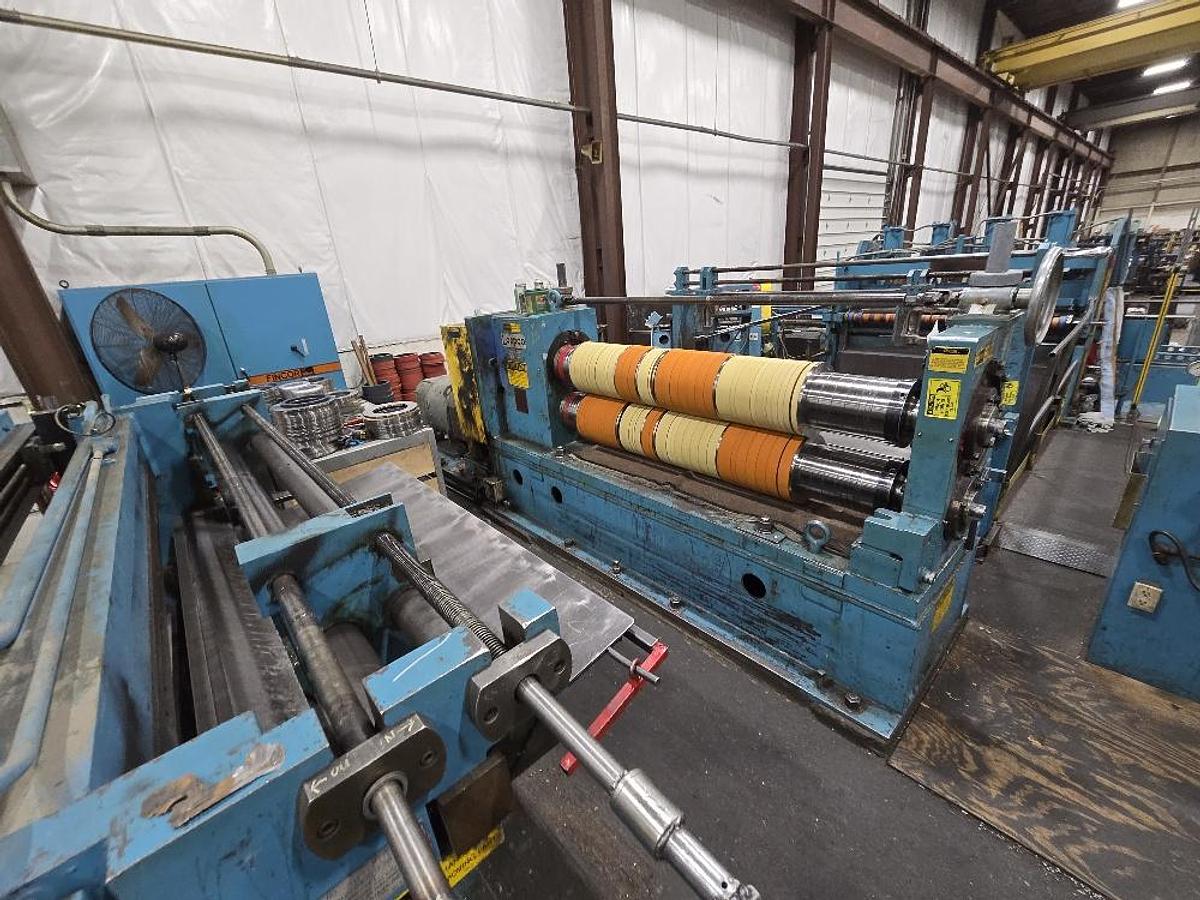

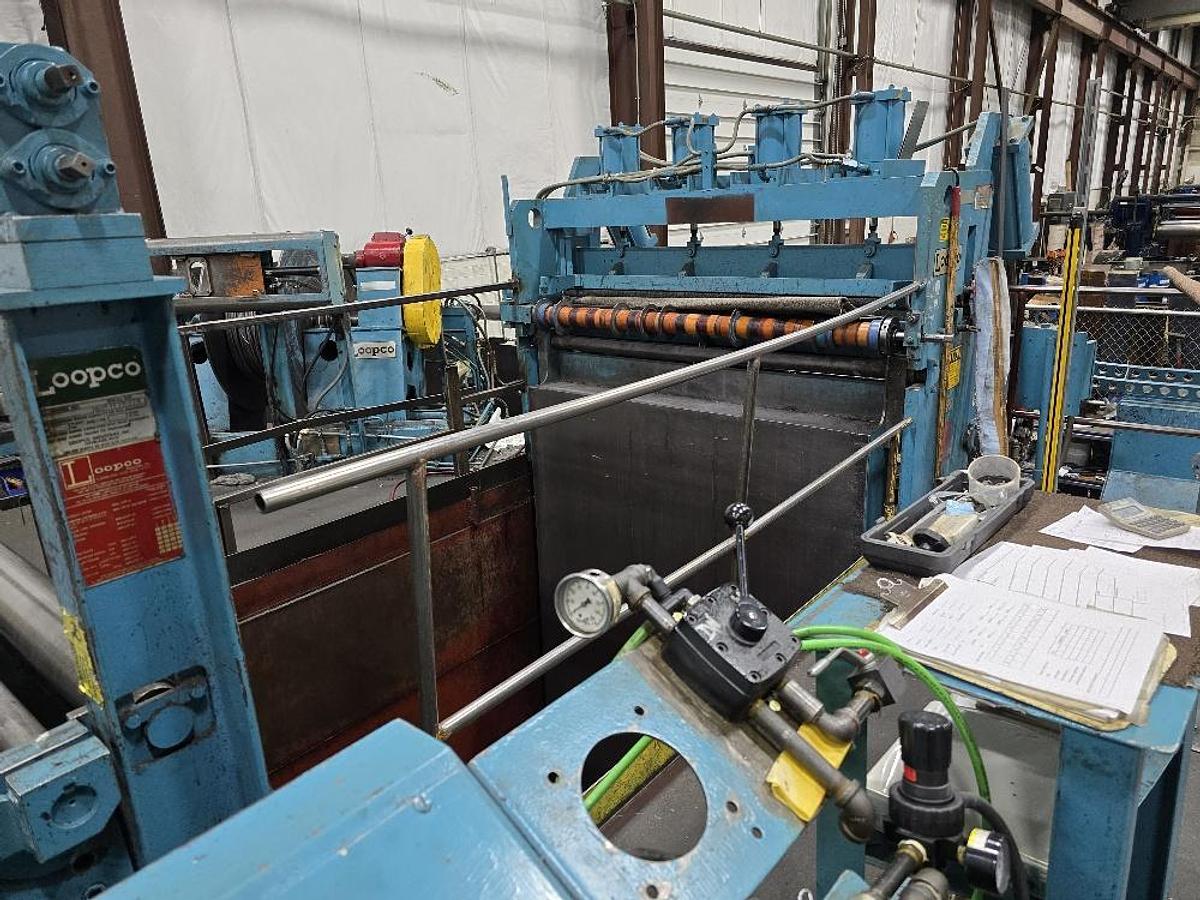

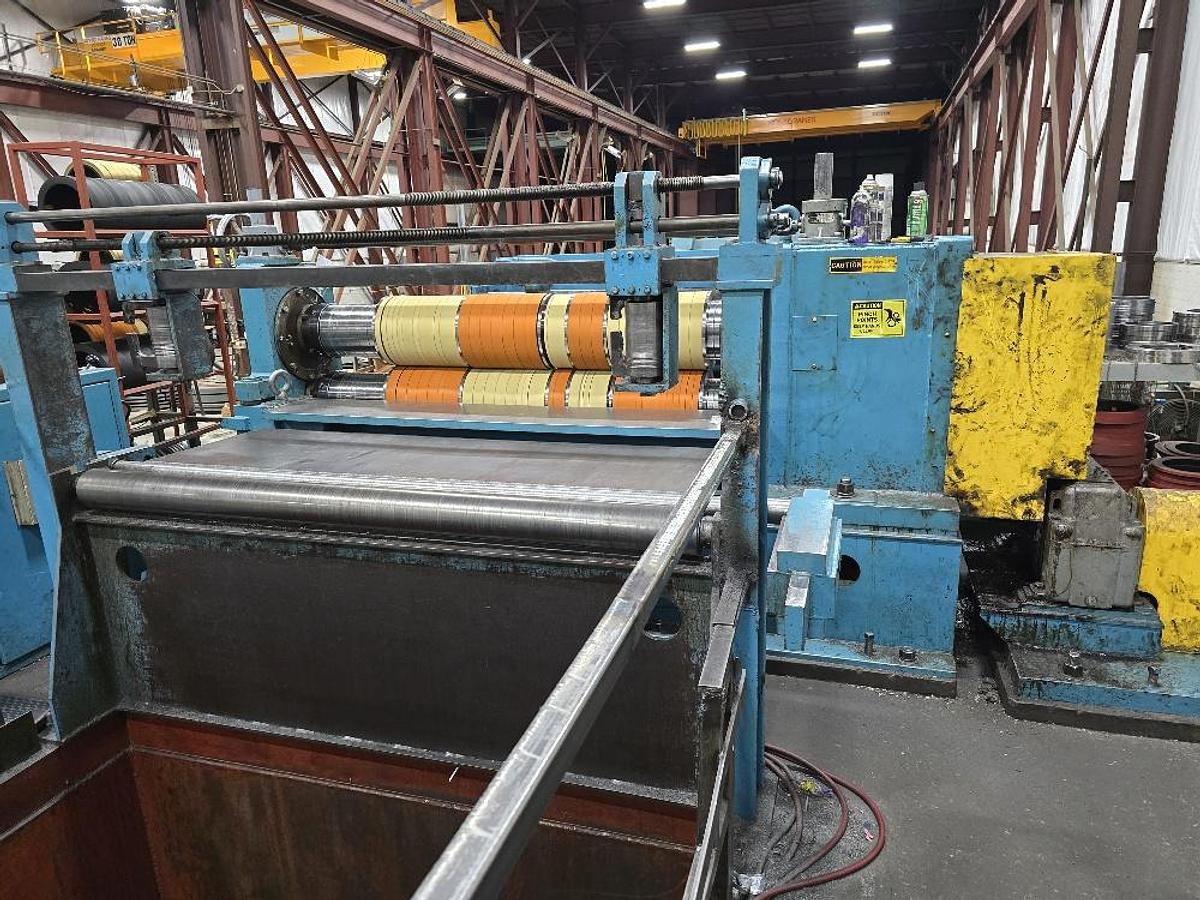

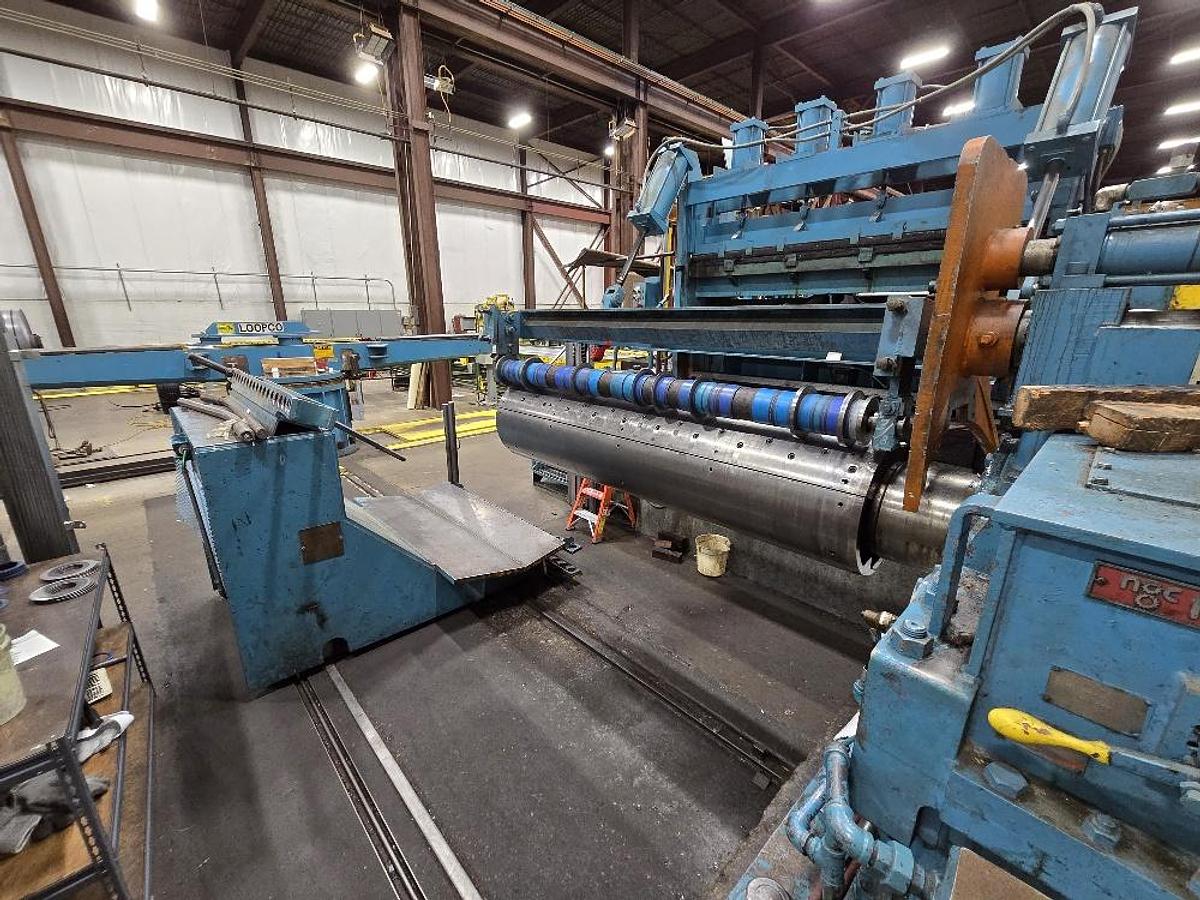

Slitter Head:

-75” Wide x 8” Diameter Arbor

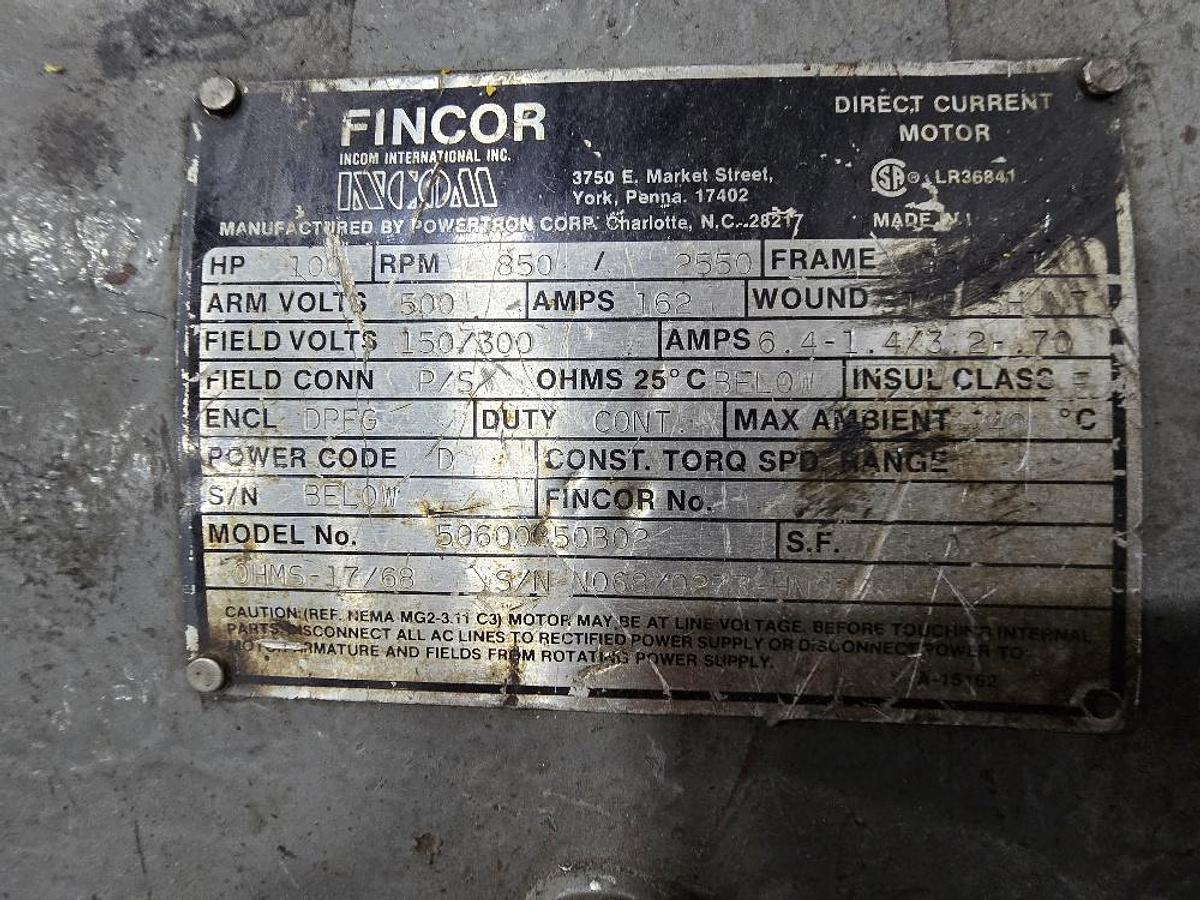

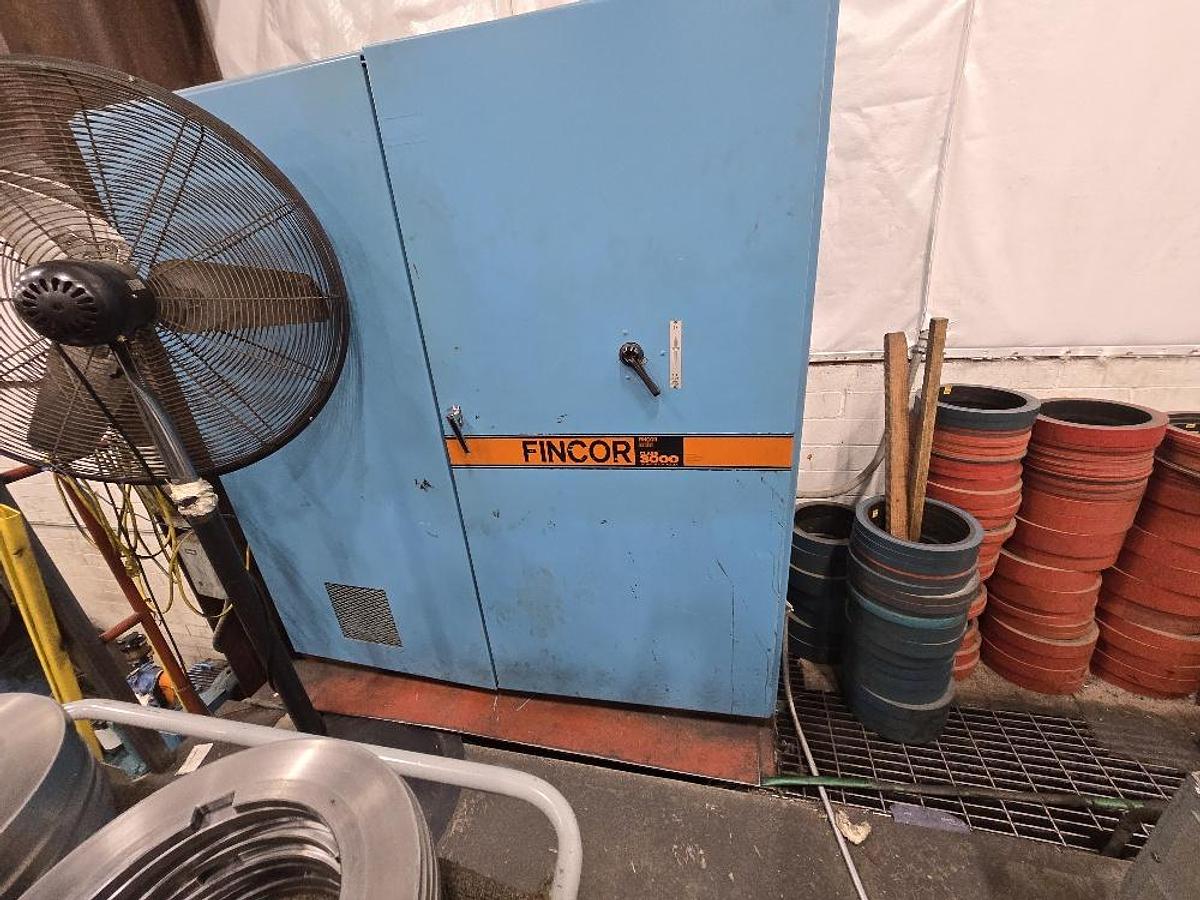

-Drive: 100 HP Fincor DC Motor, 850/2550 RPM, 500V

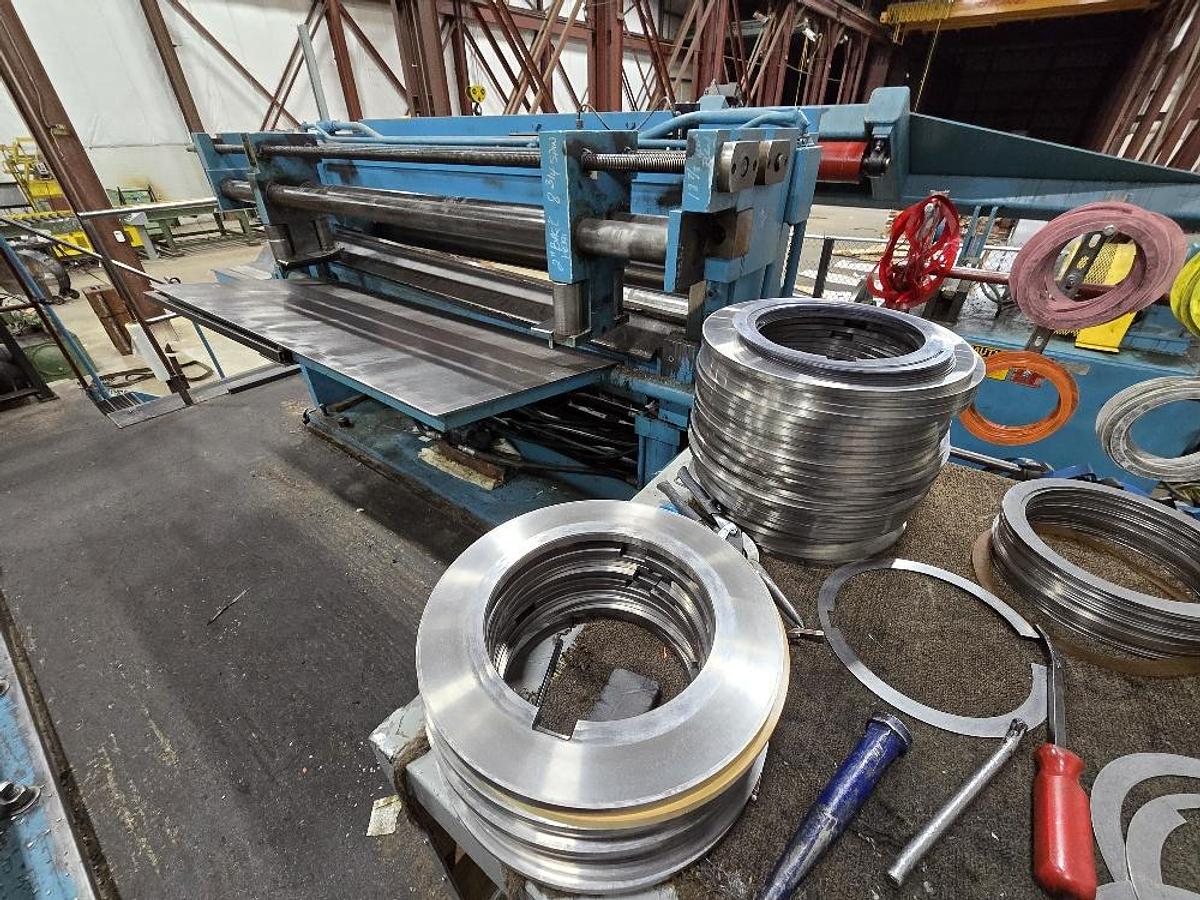

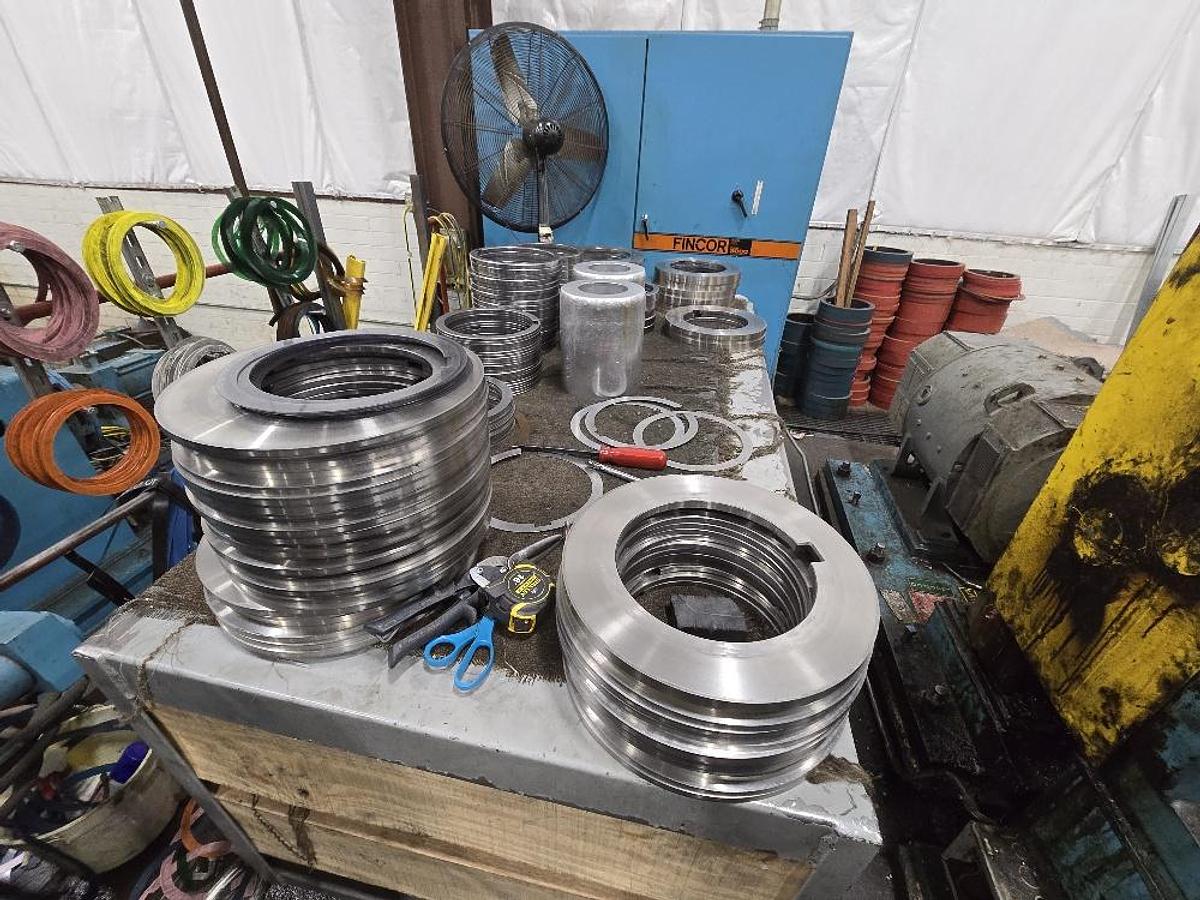

-Tooling – Includes Plastic Shims

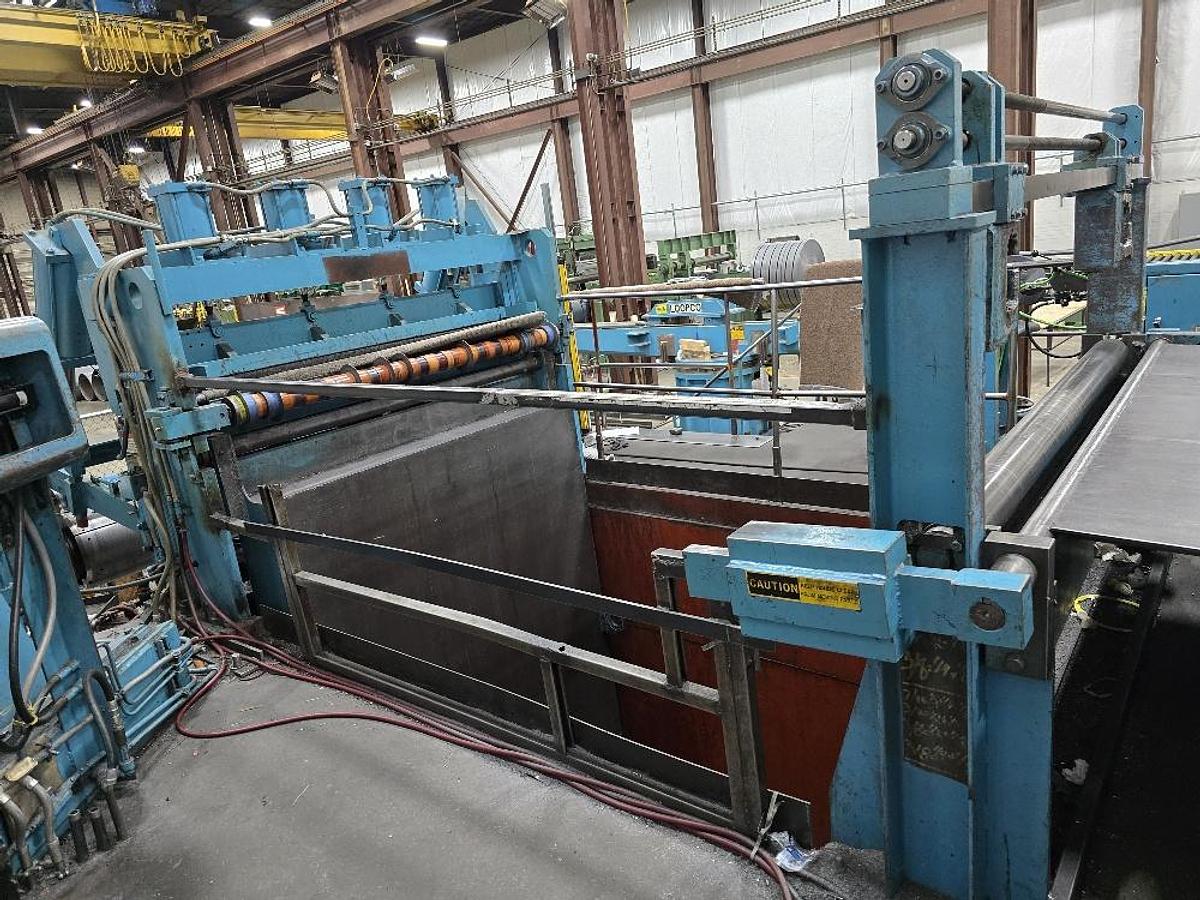

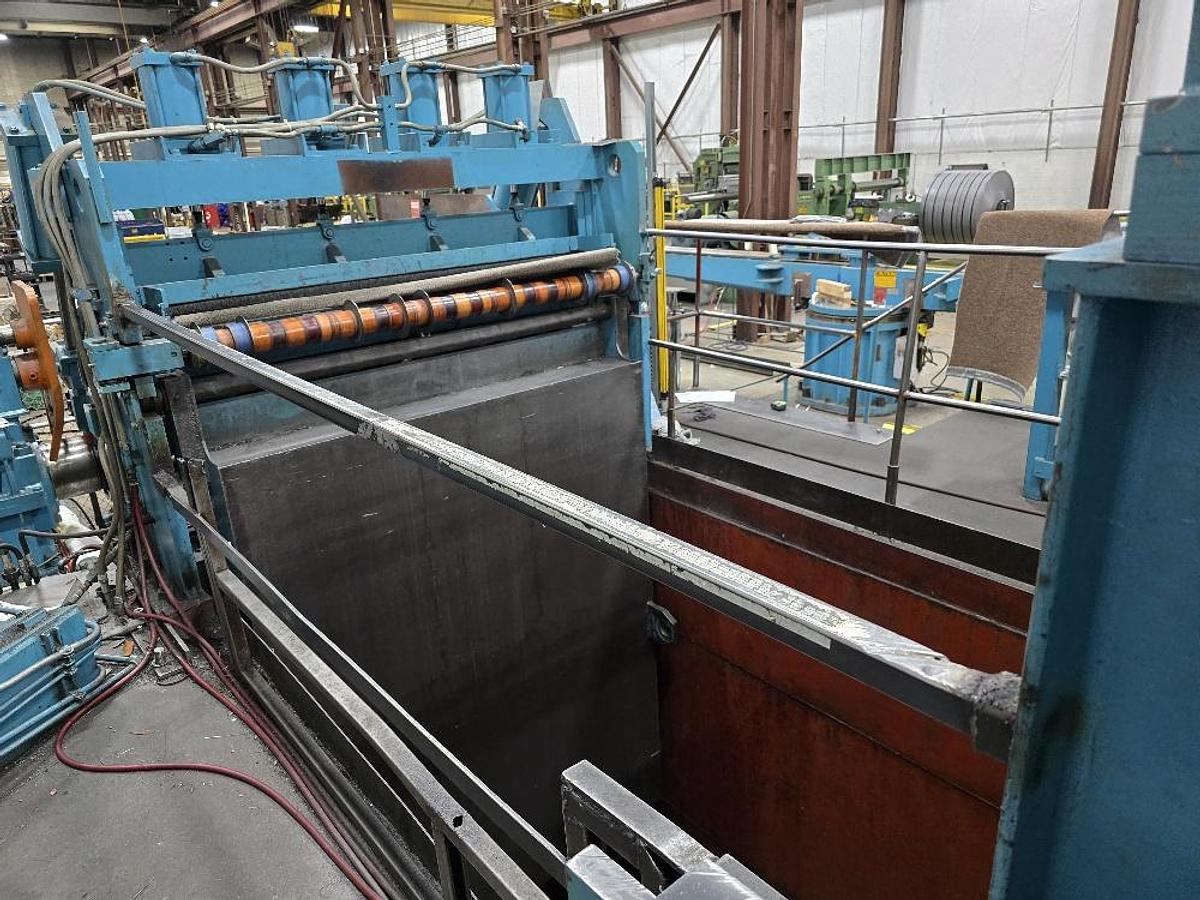

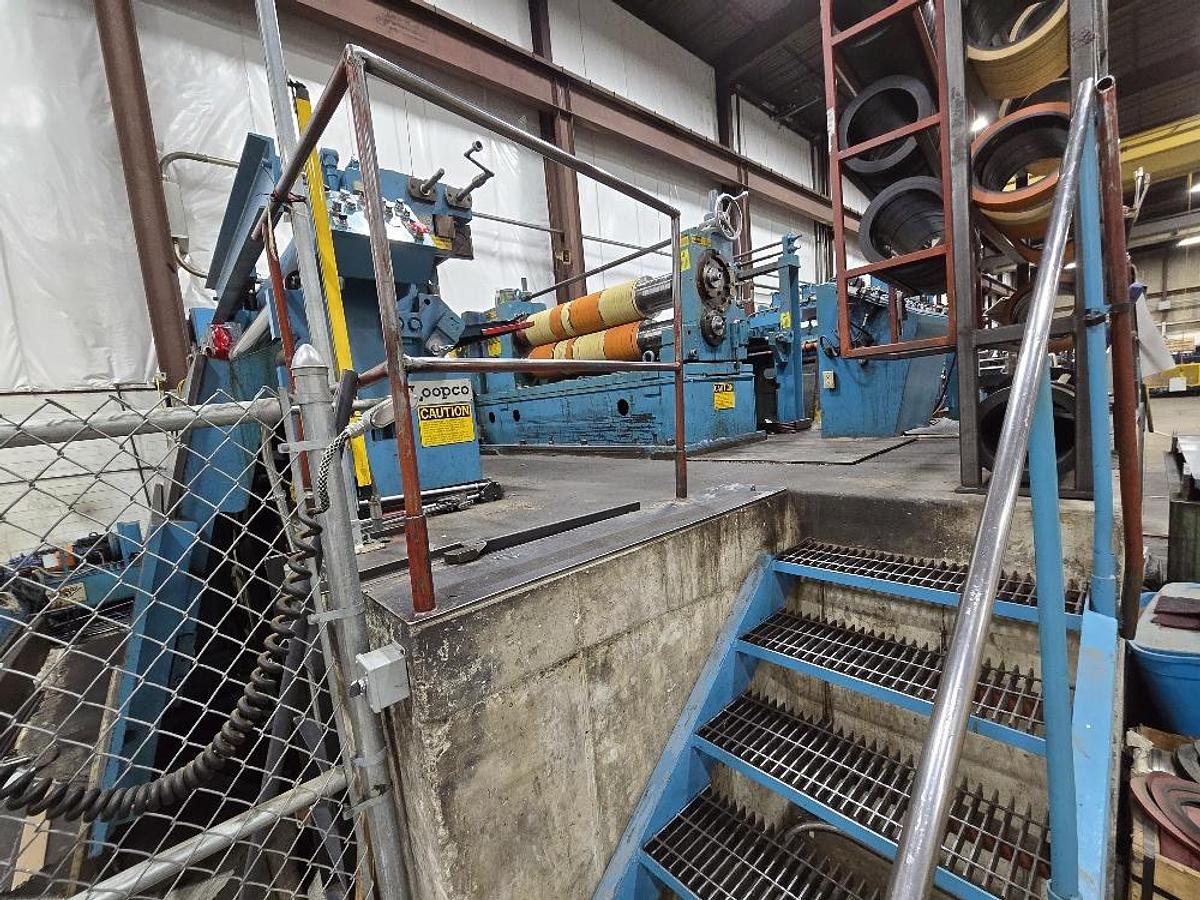

Looping Pit – Approx. 25 Ft Deep X 12 Ft Long

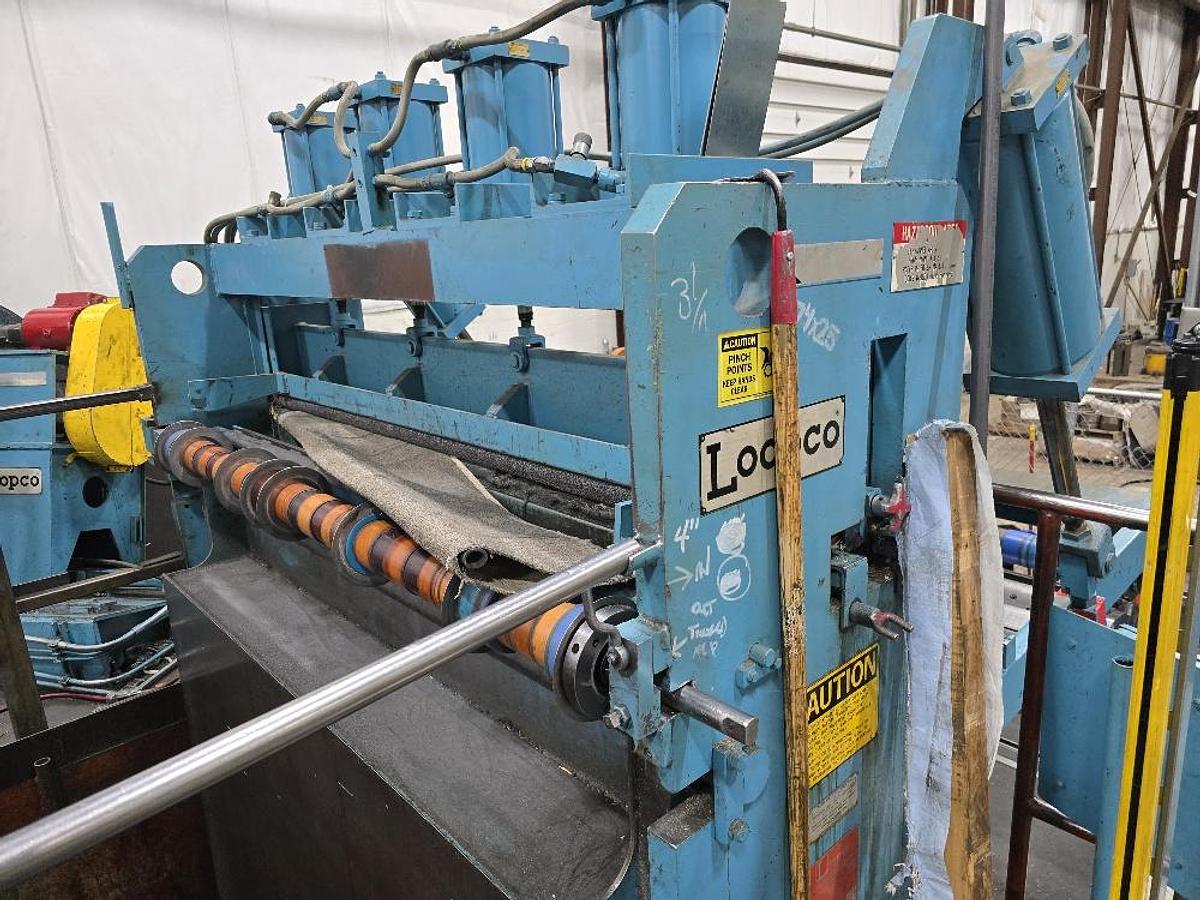

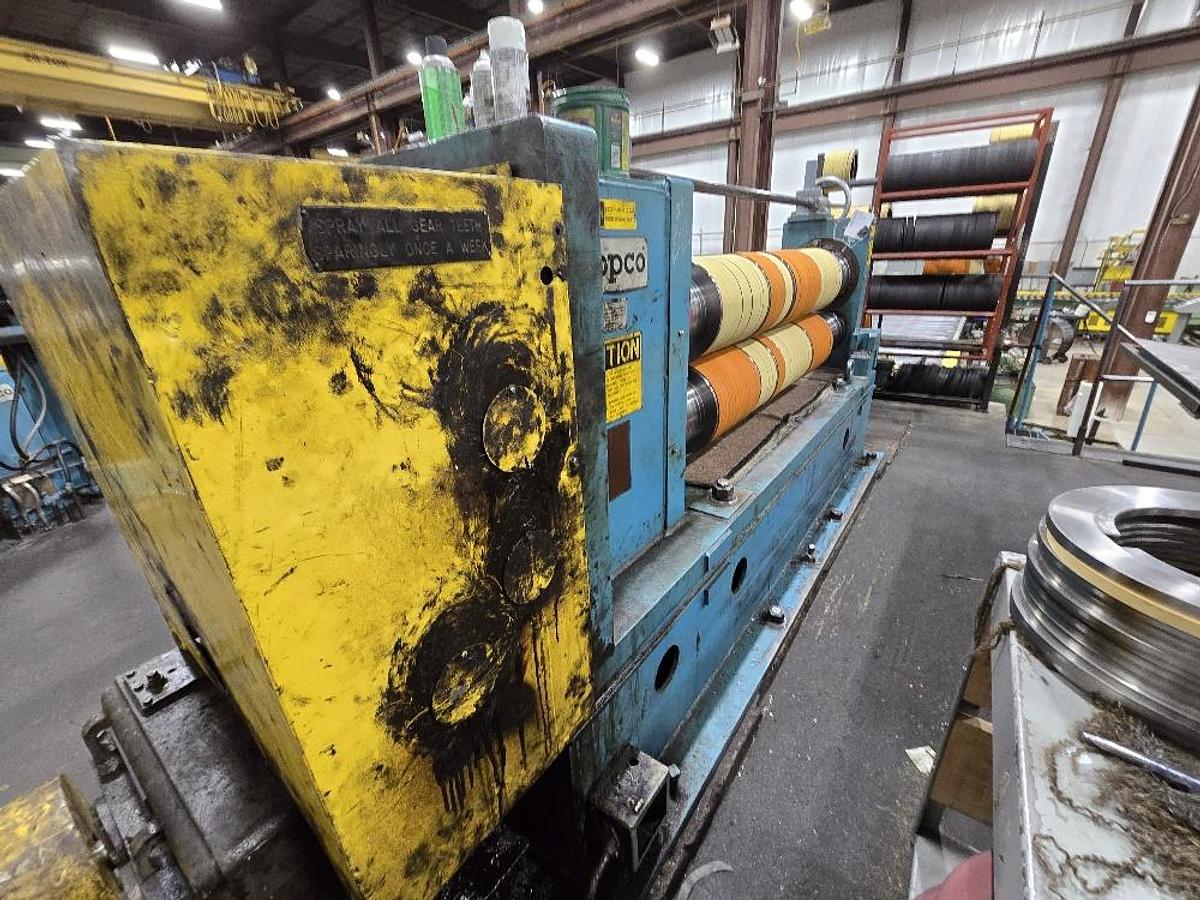

Tension Stand – Pad-Type Tension Stand

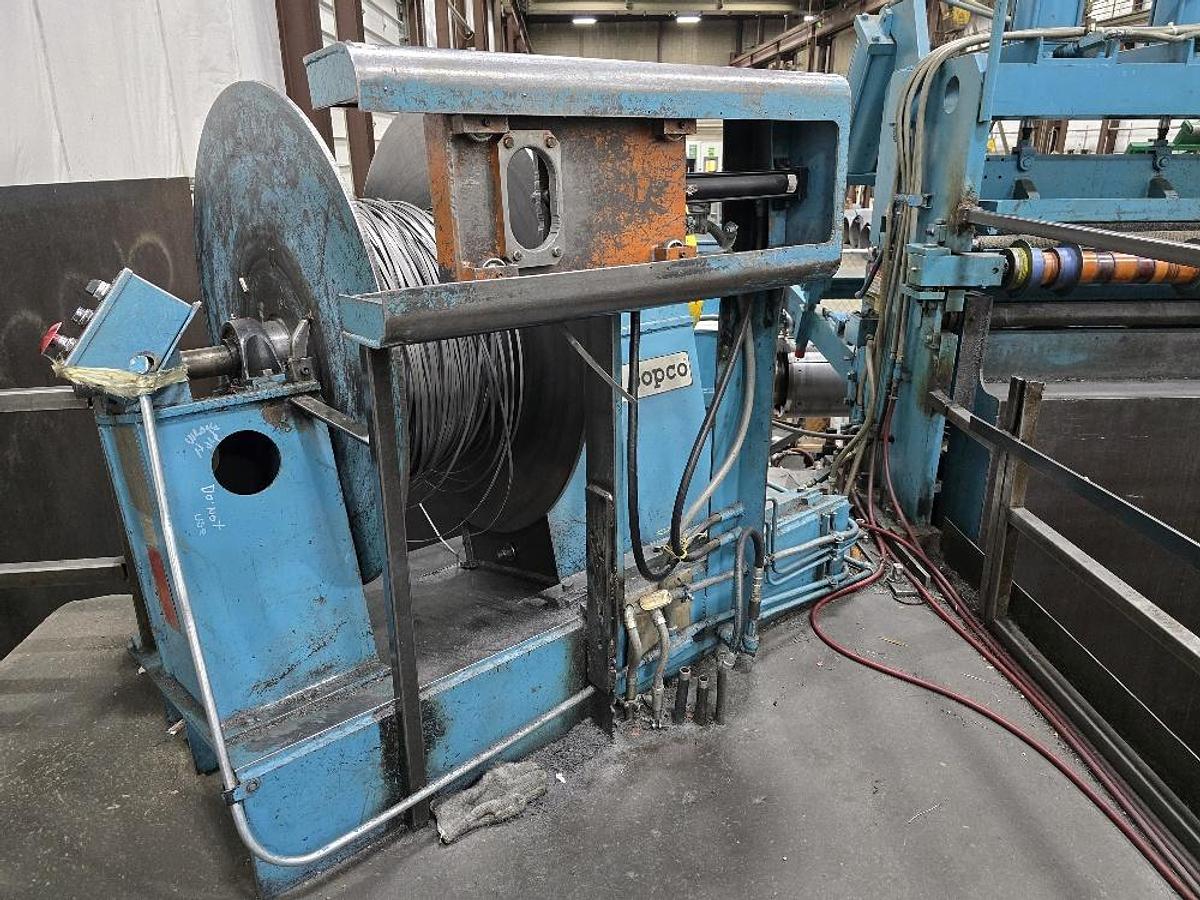

Scrap Winder – Loopco, Hydraulic With Oscillation

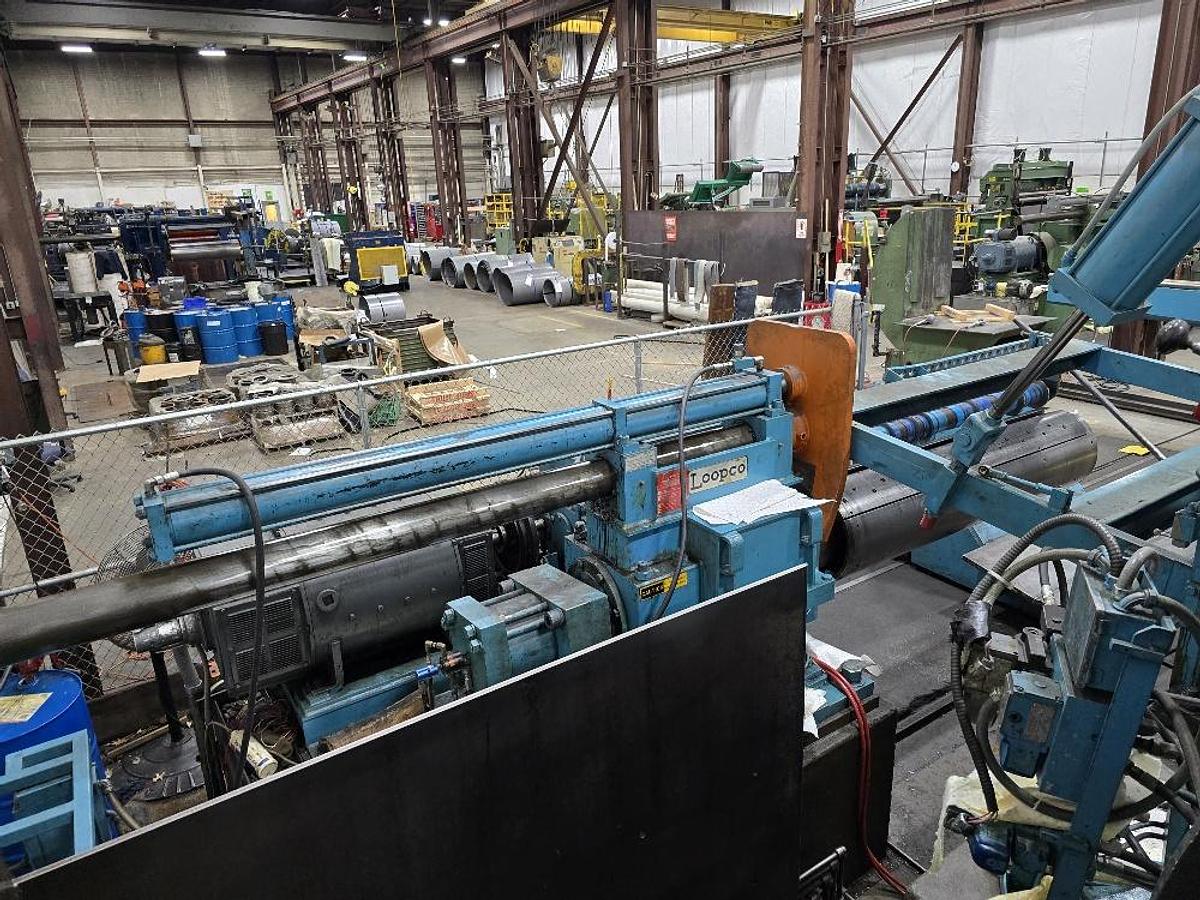

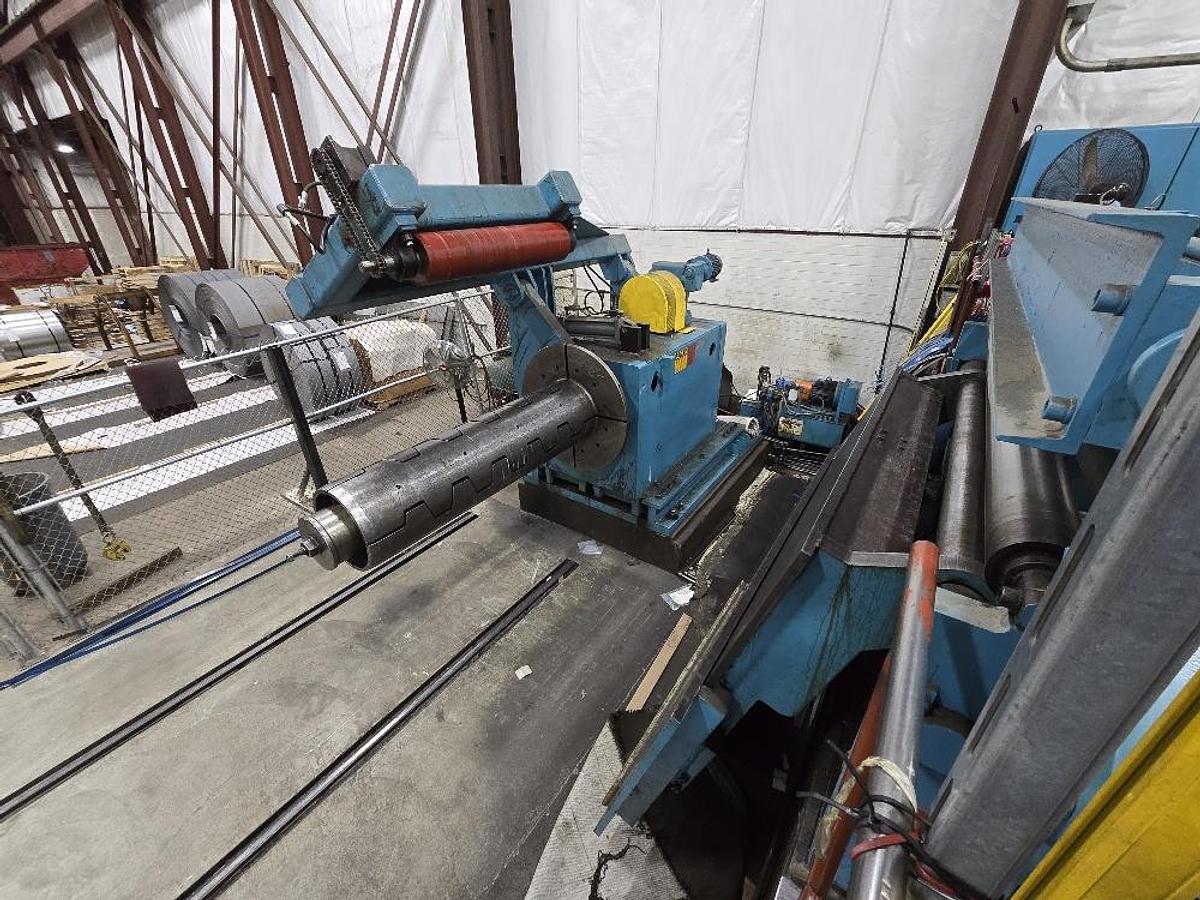

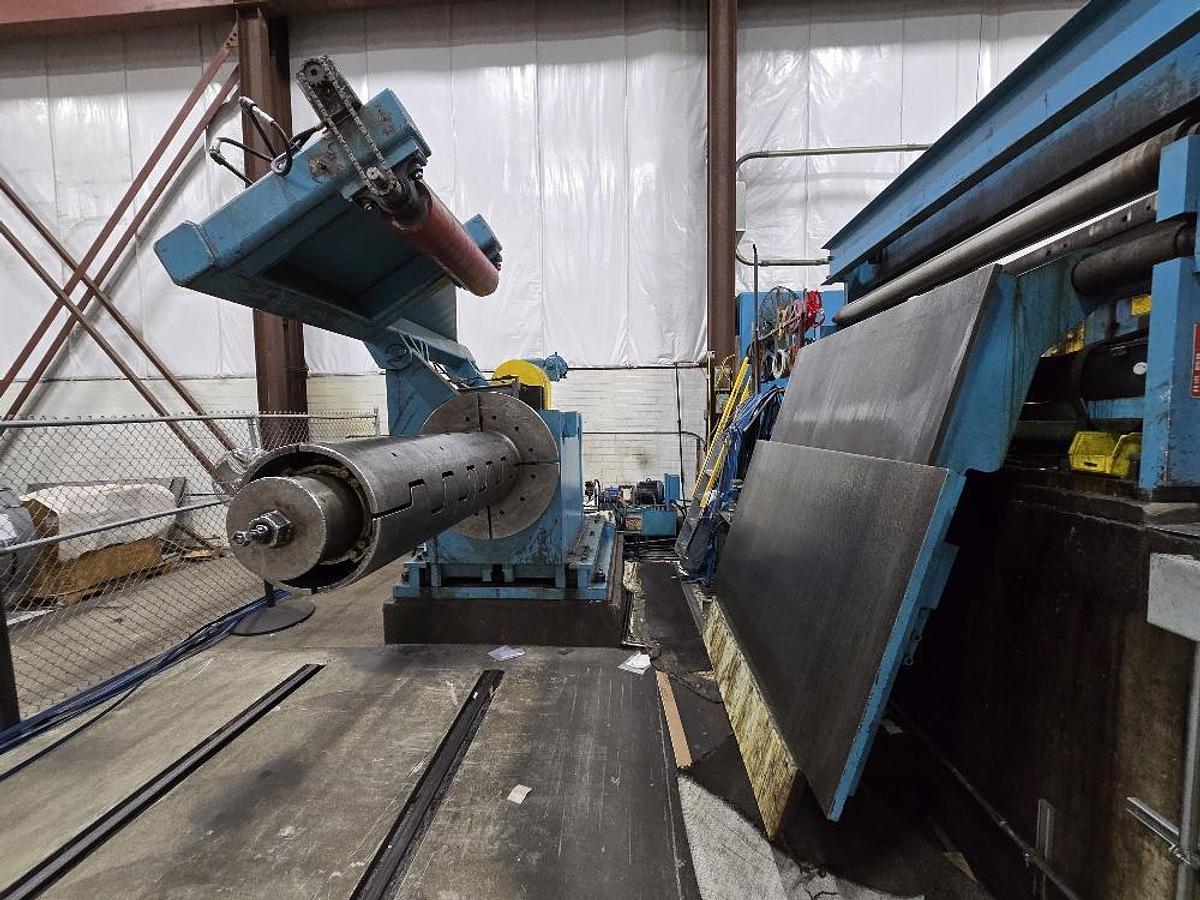

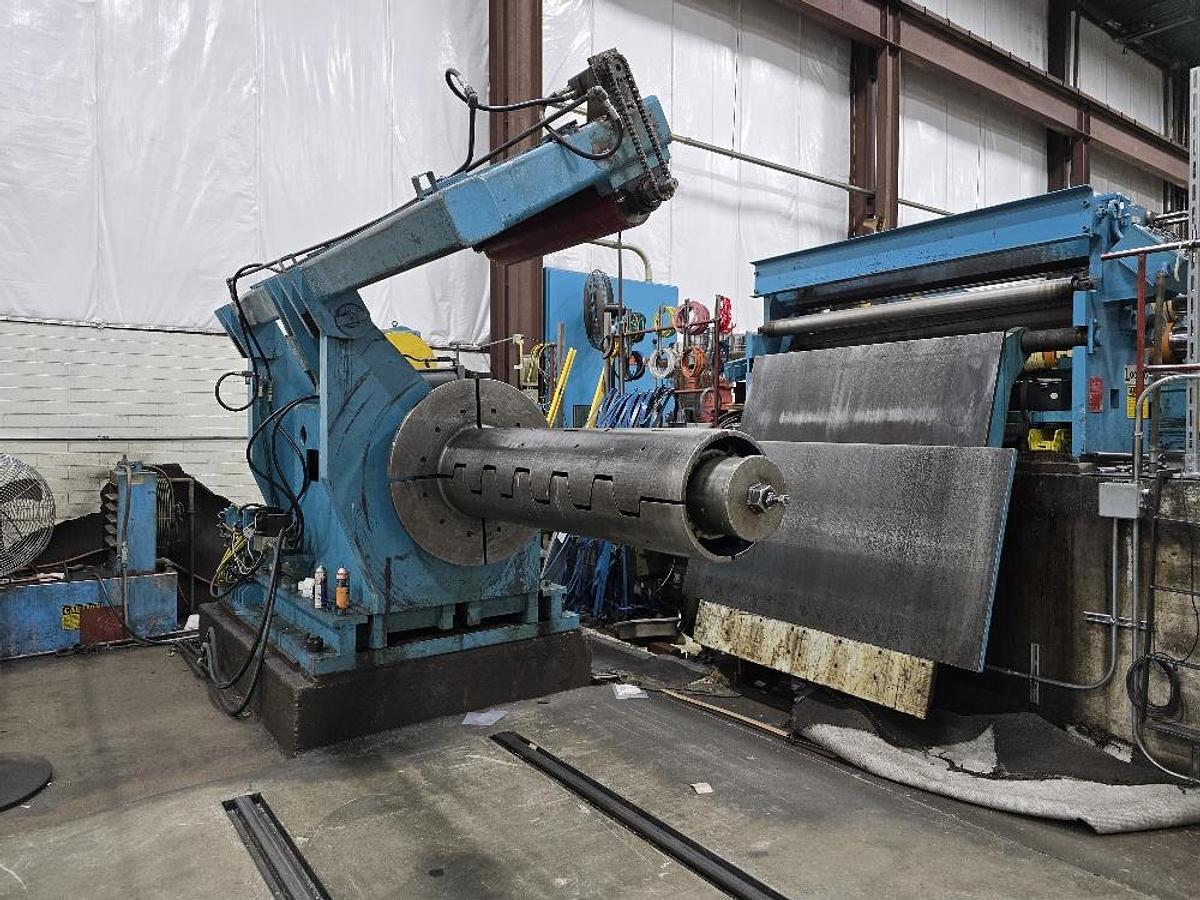

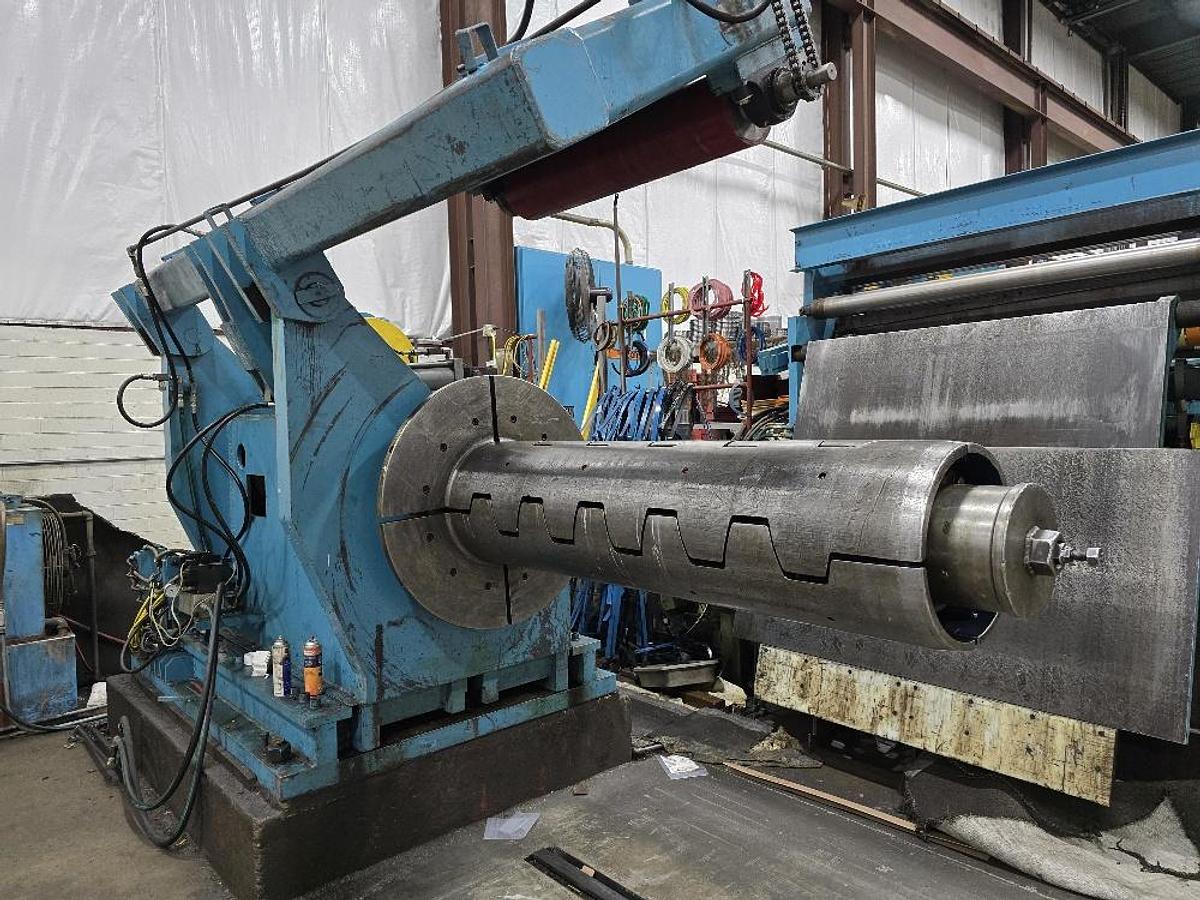

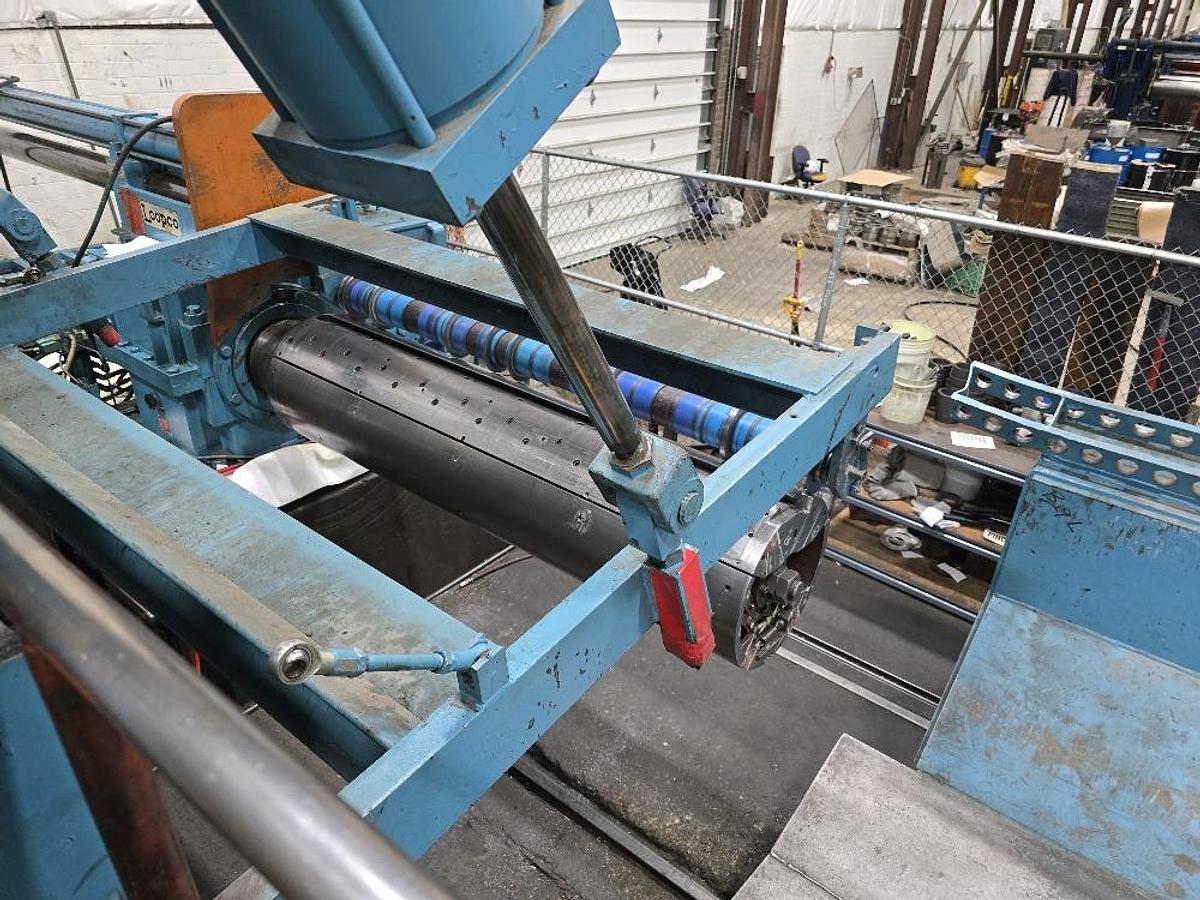

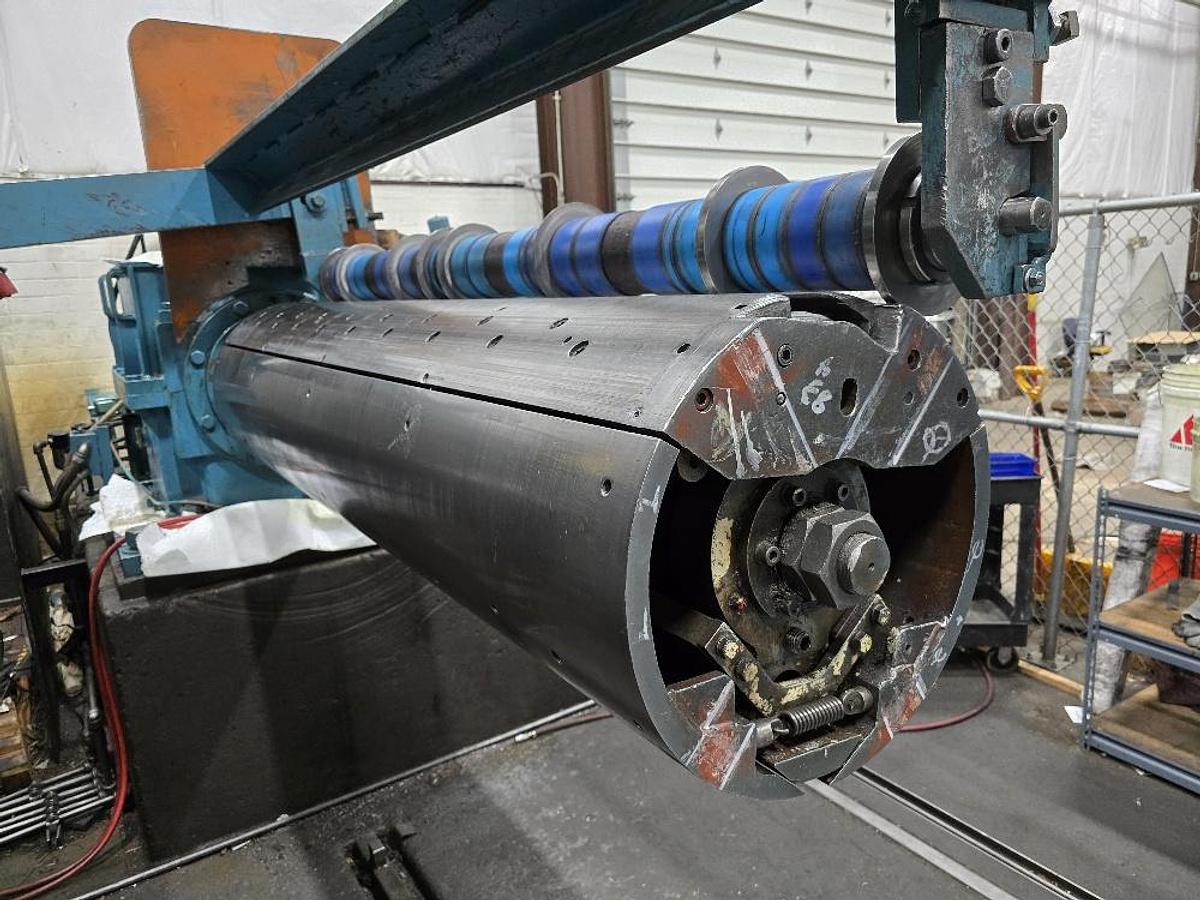

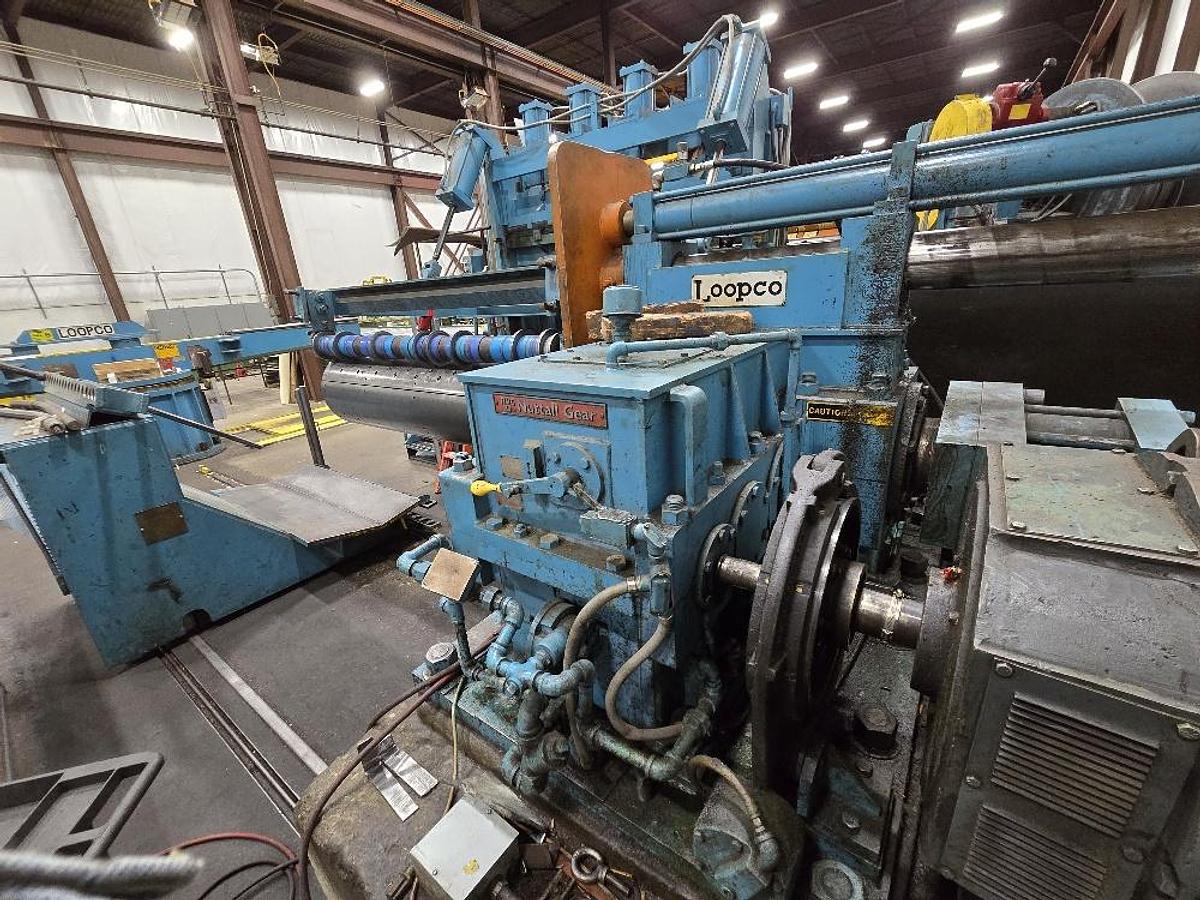

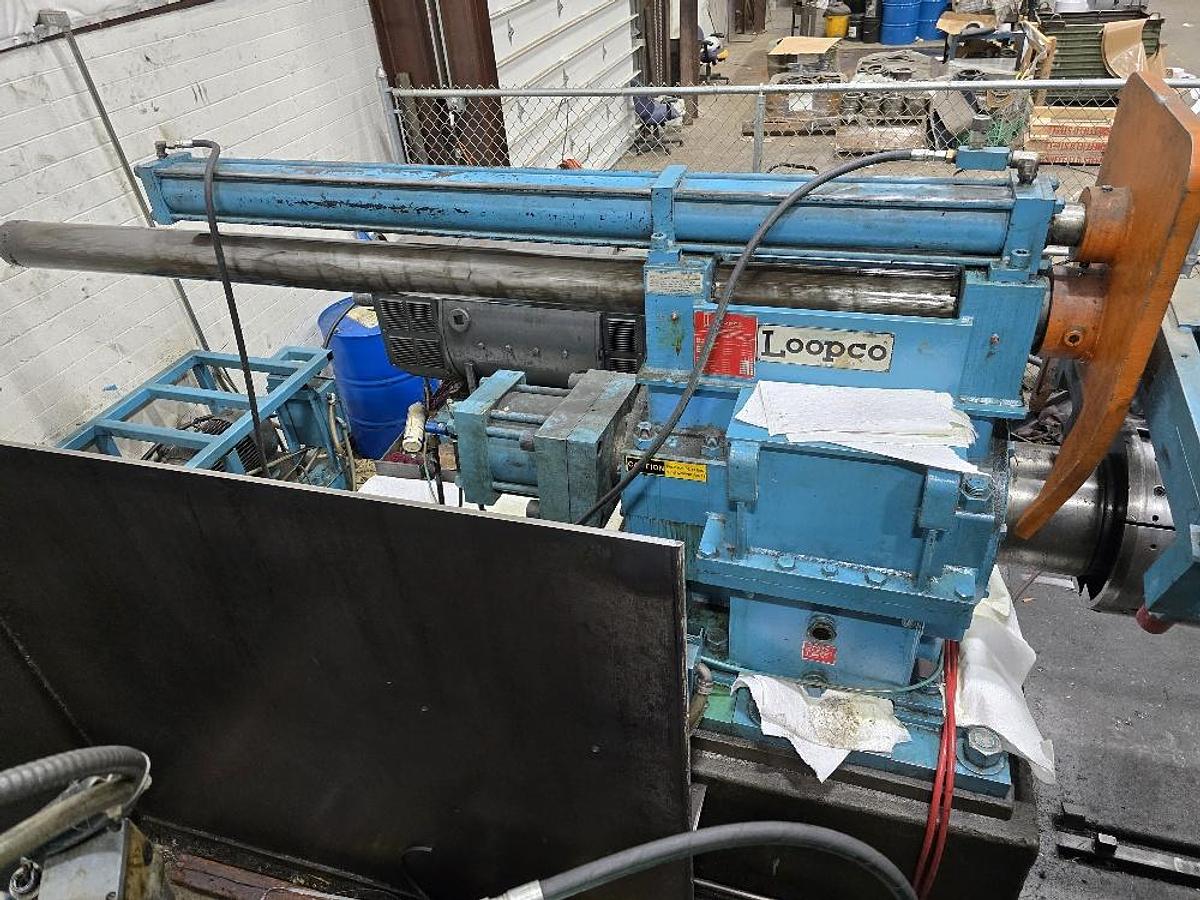

Recoiler:

-80” Wide x 20” Hydraulic Drum + Gripper

-Pads For 24” ID

-Two-Speed Gearbox – 20:1 & 50:1

-150 HP DC Motor

-50,000 Lb

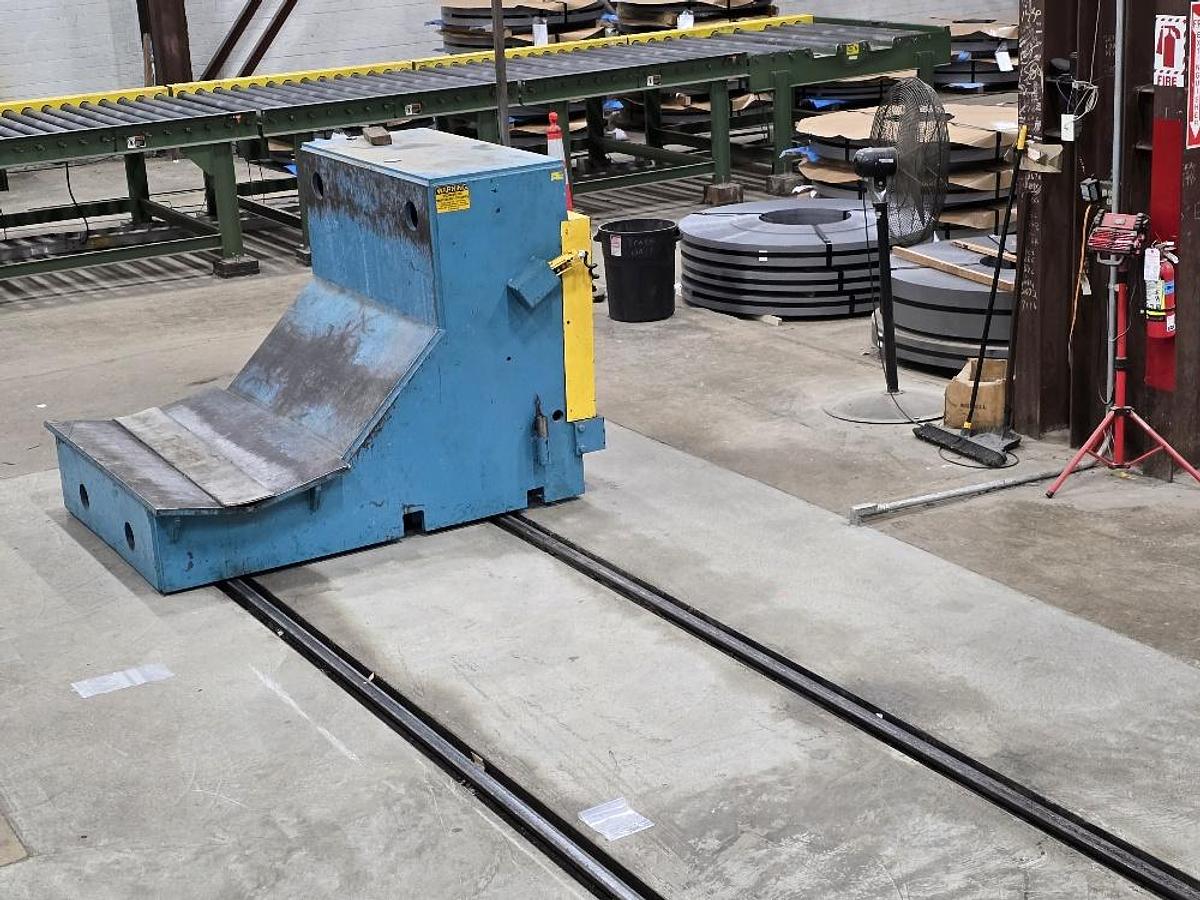

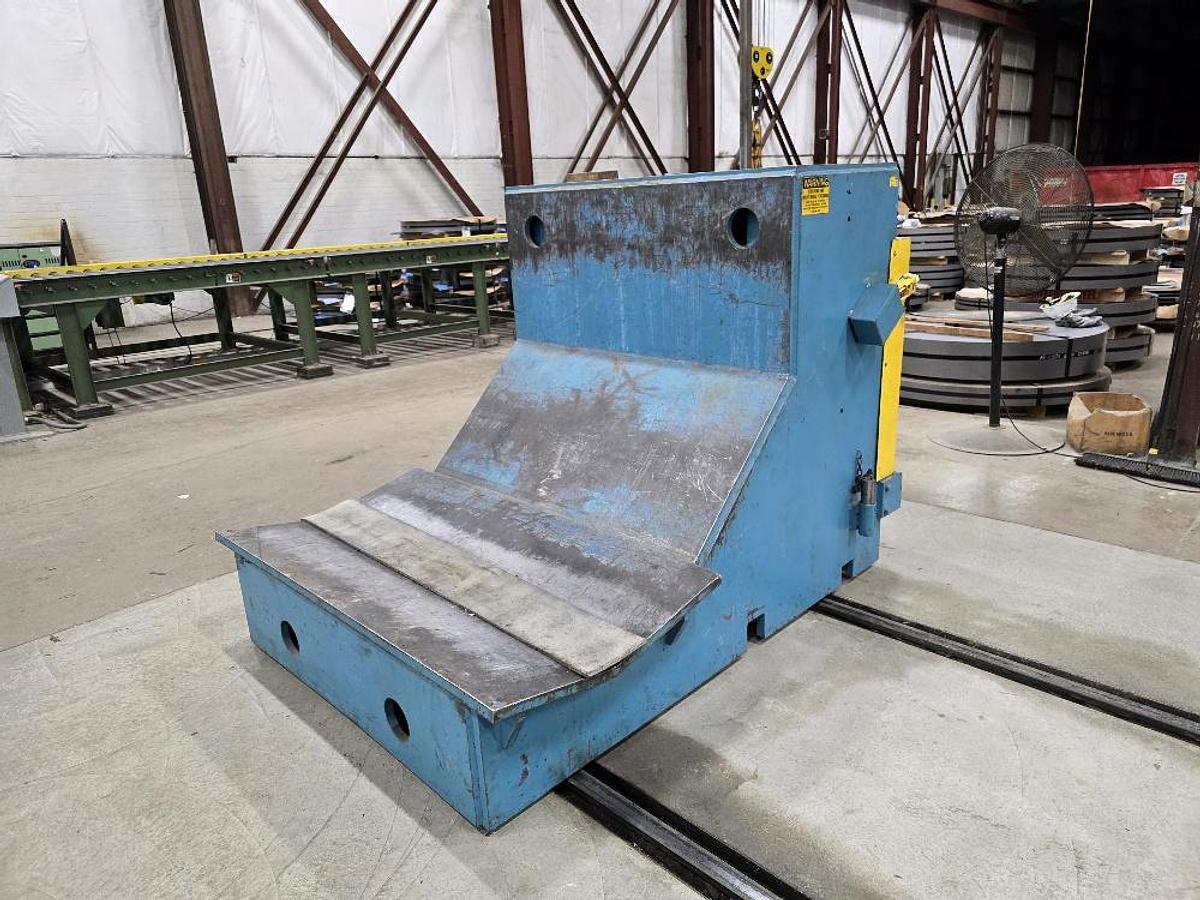

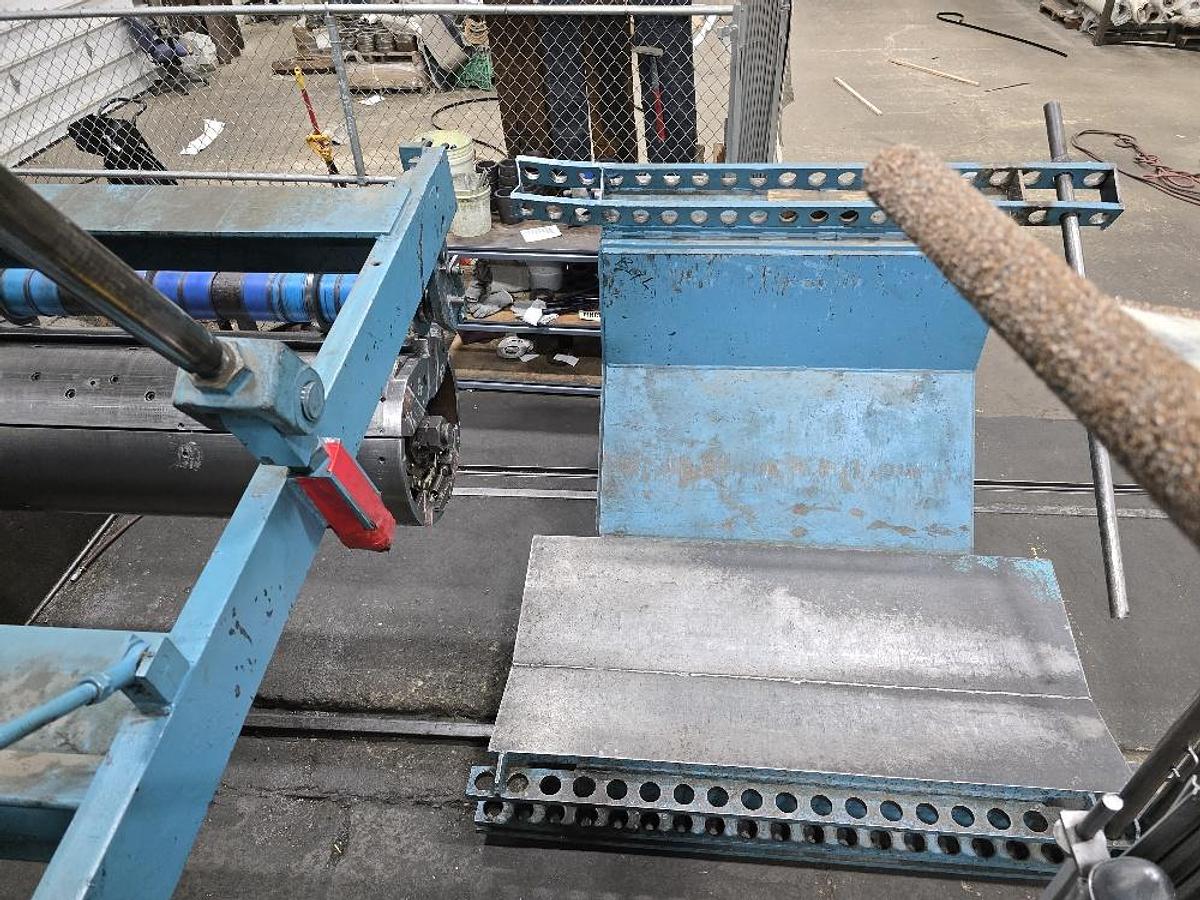

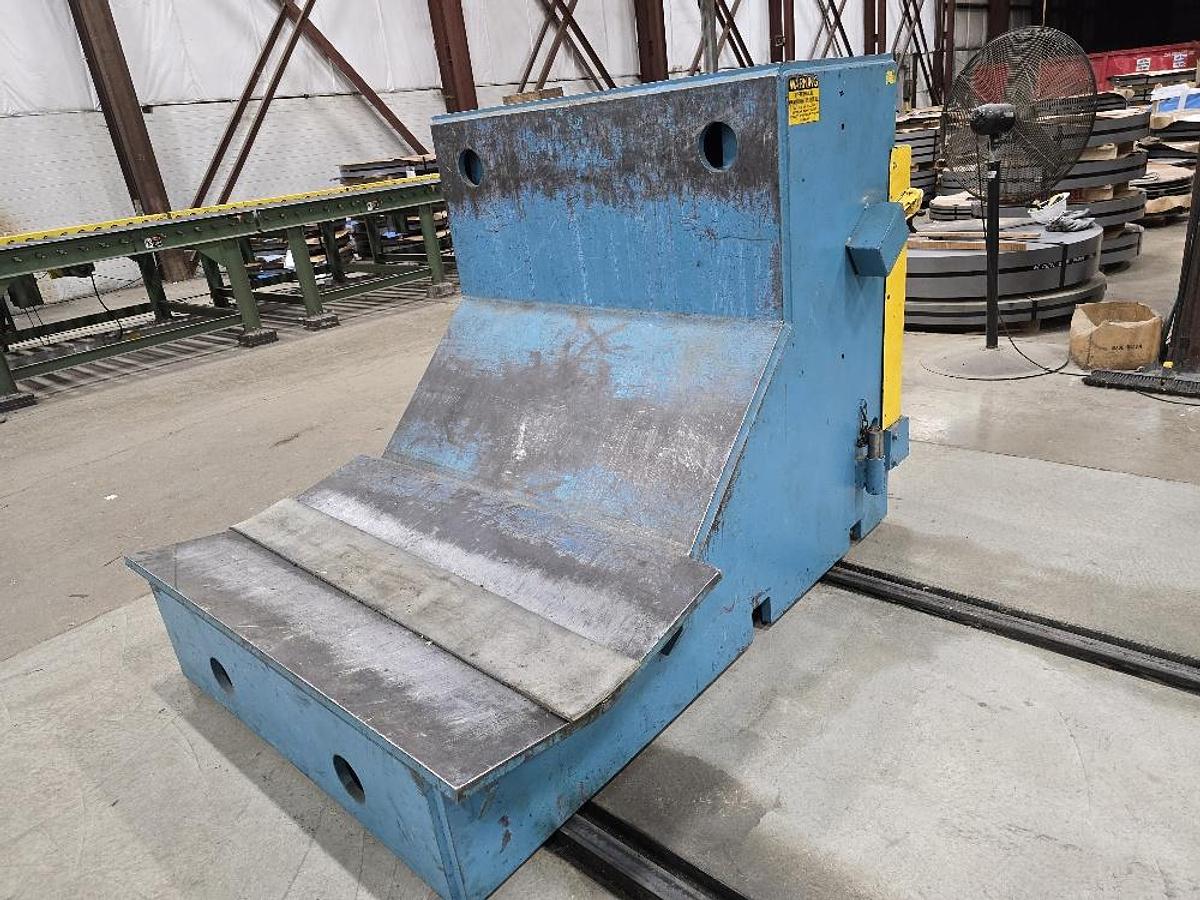

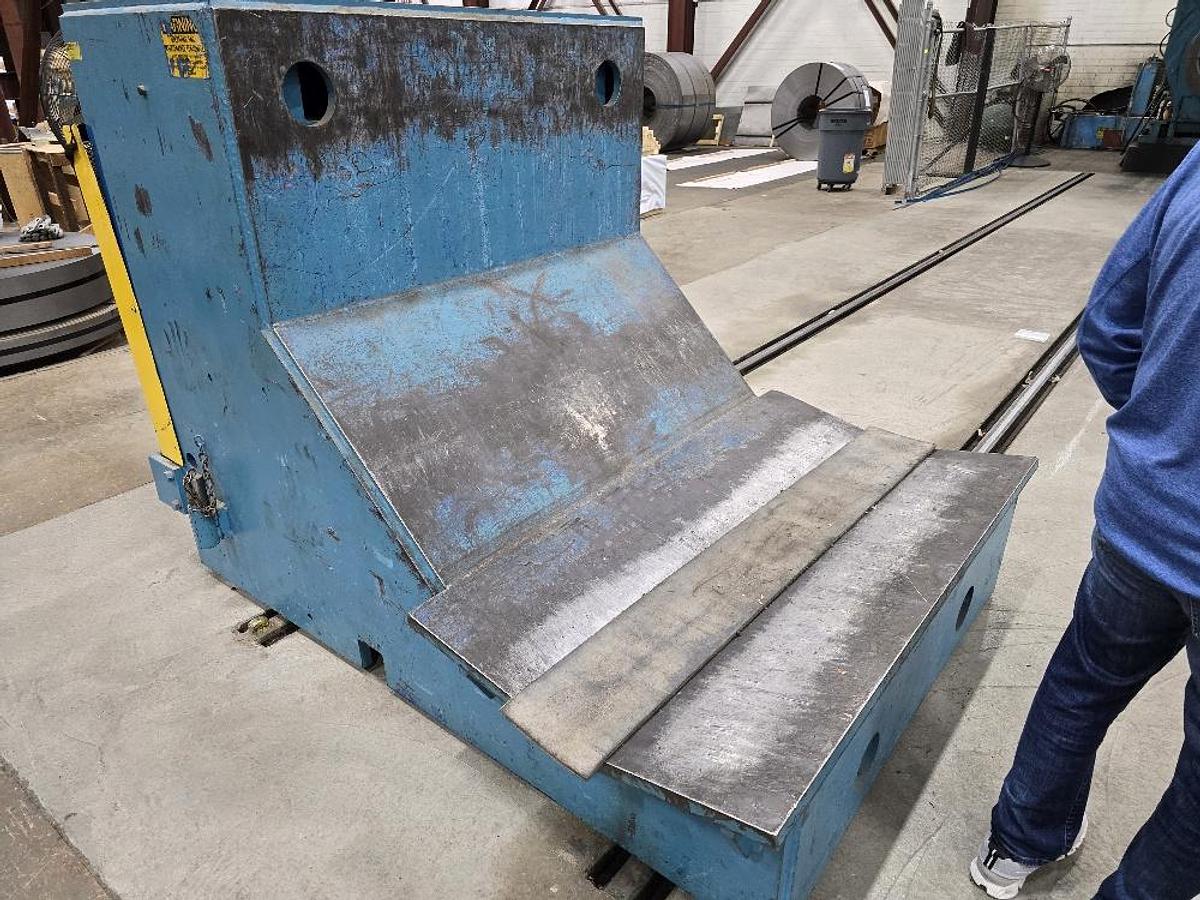

Exit Coil Car

-76” Wide Bed

-72” OD

-Self-Contained Hydraulics

-Keeper Rods

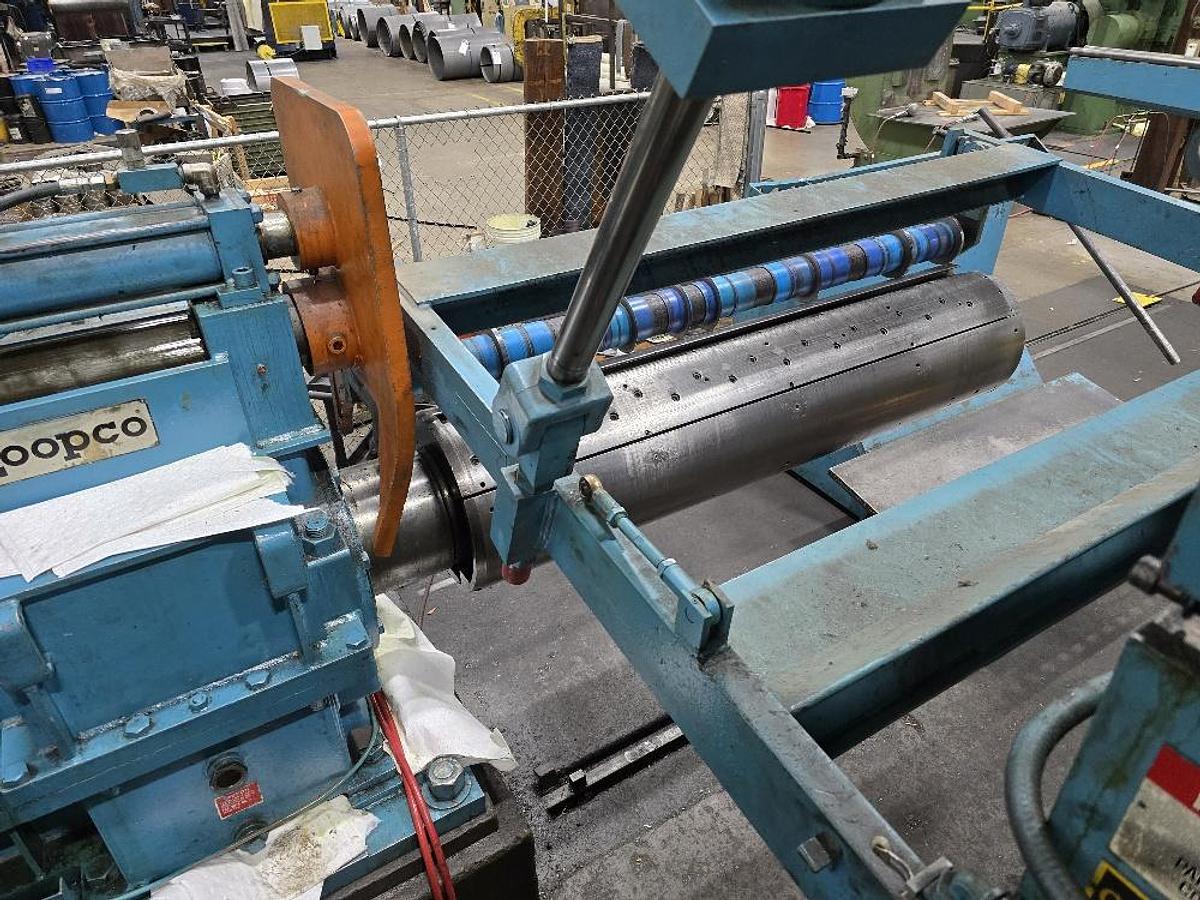

-Overarm Separator – Attached To Tension Stand

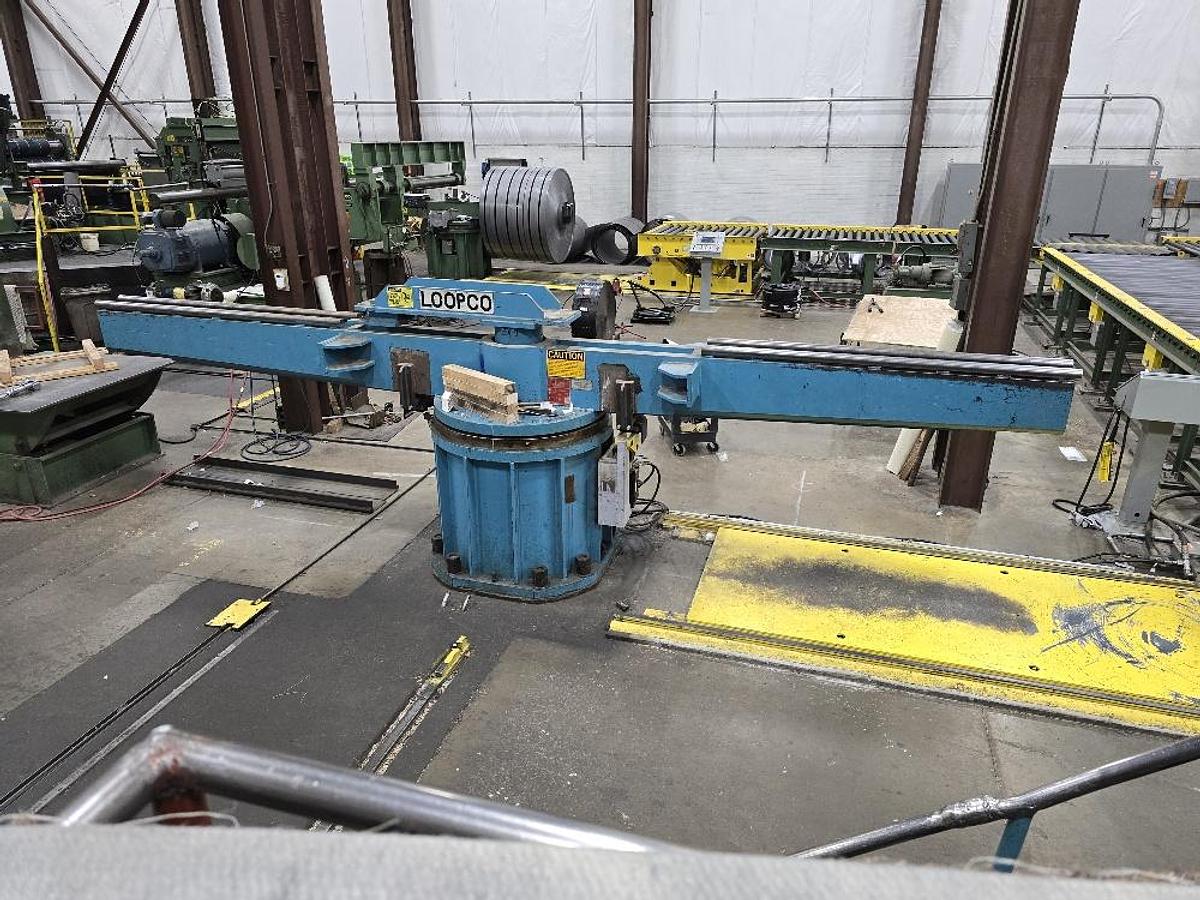

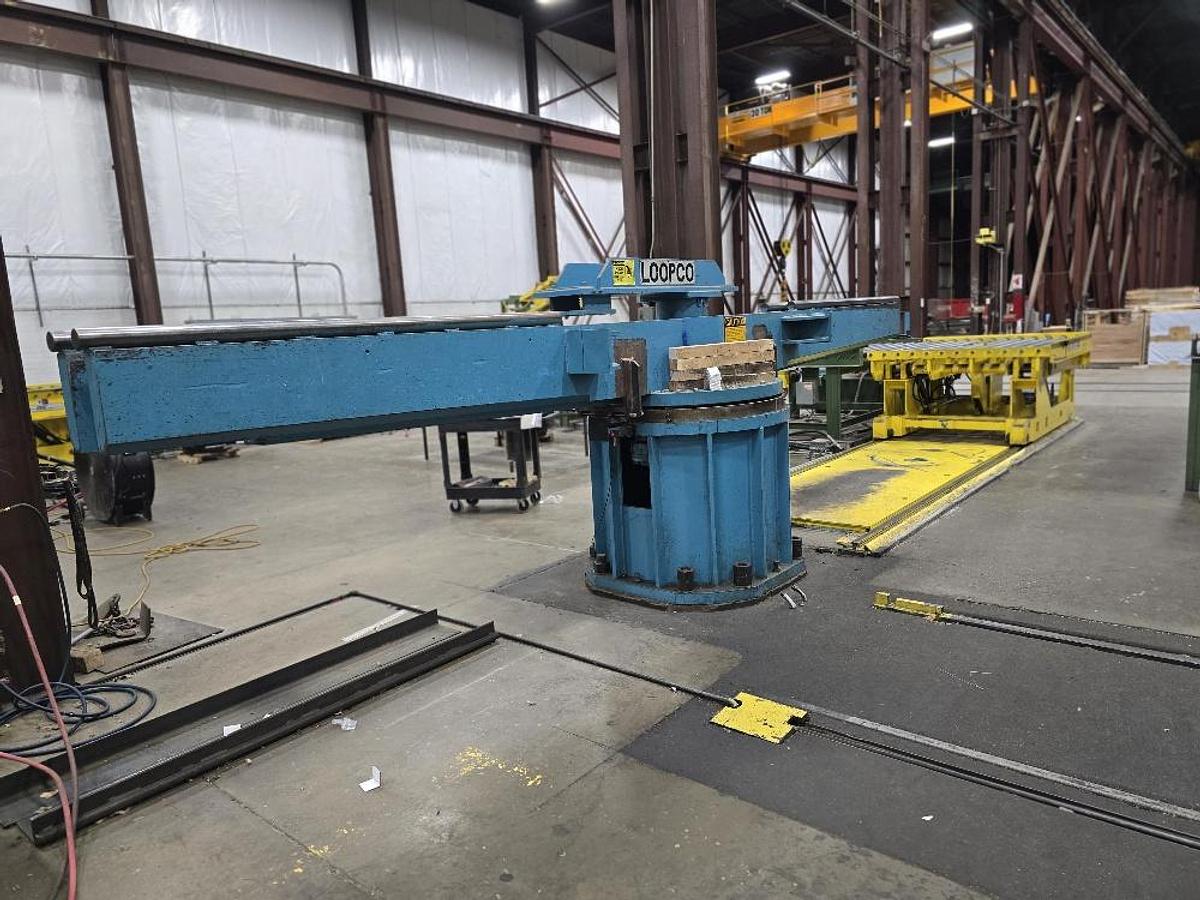

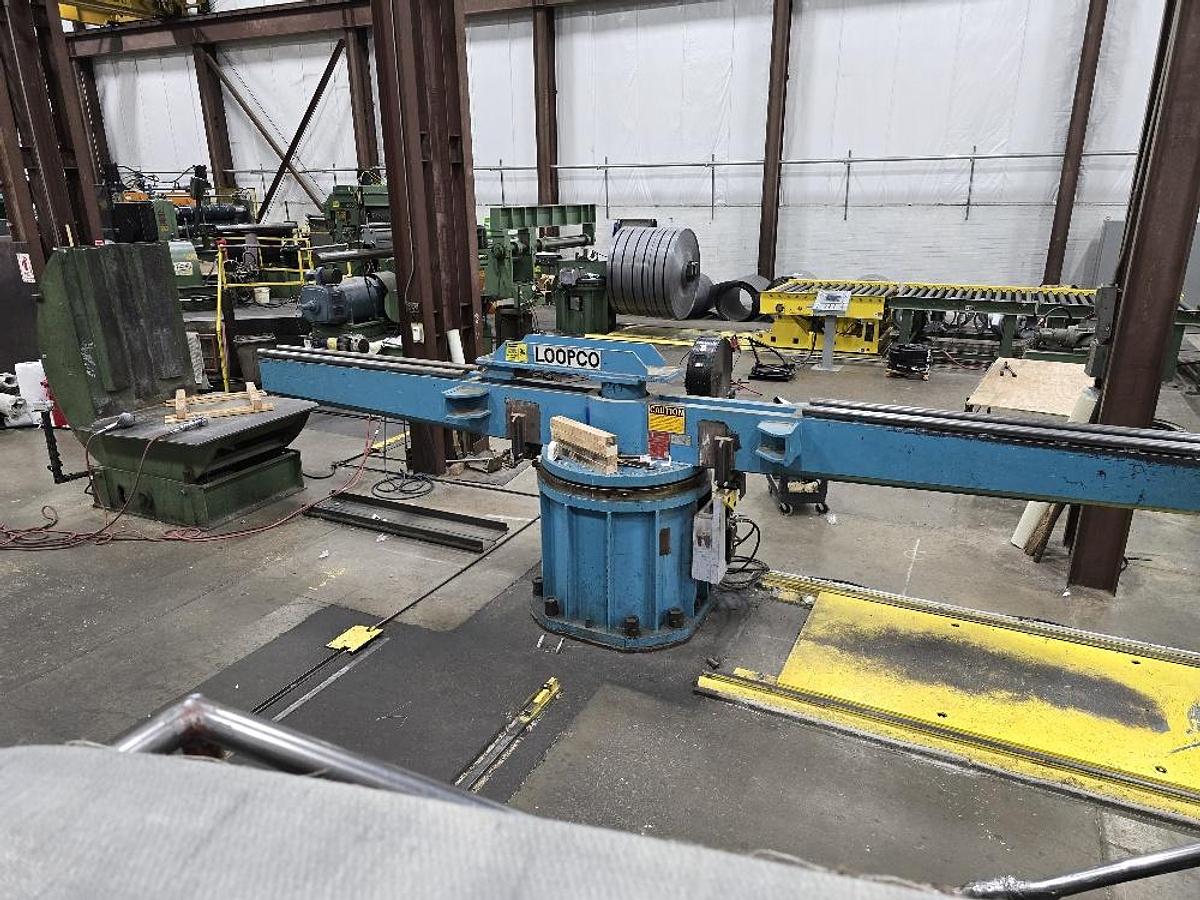

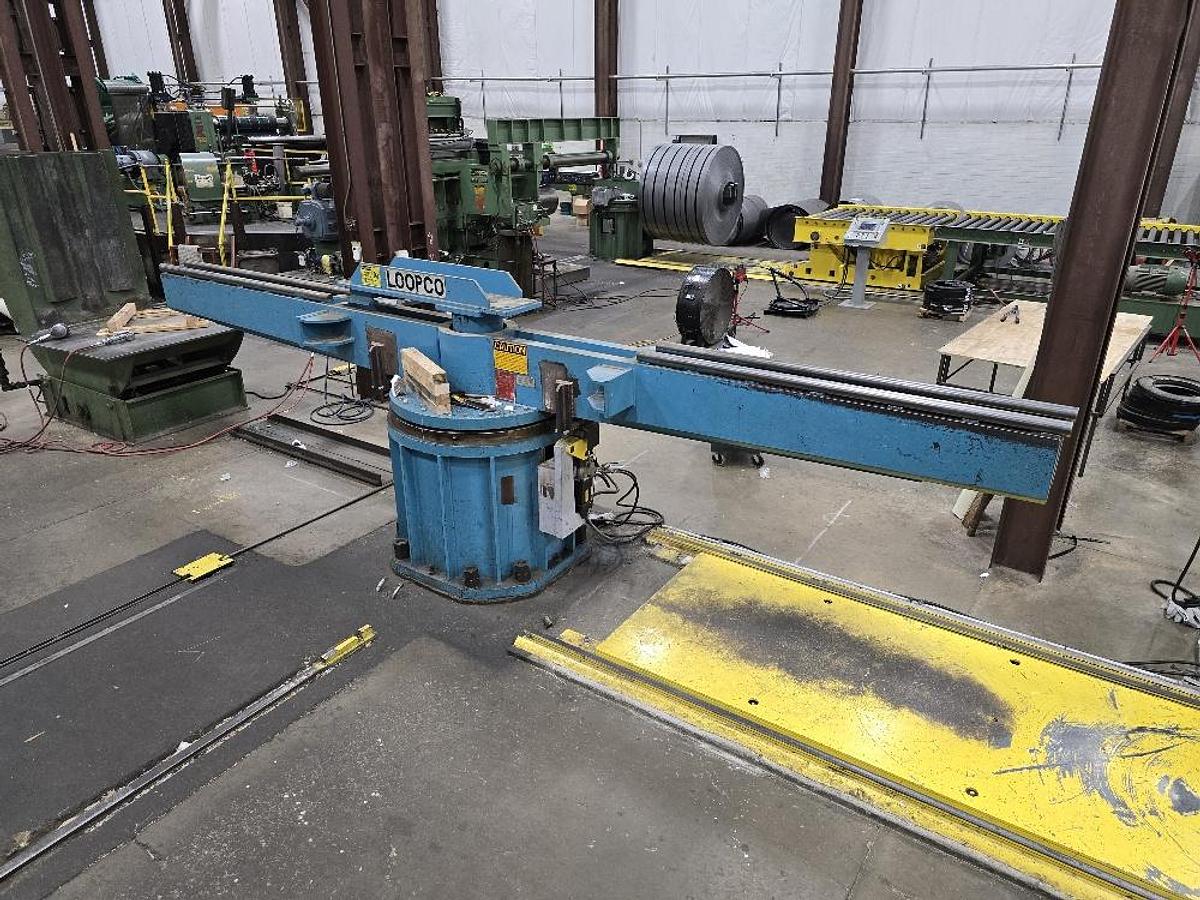

Turnstile – Loopco,

-2-Arm

-78” Arms

-Hydraulic Rotate
