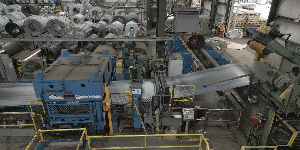

72” x .250” x 50,000 Lbs. Braner Cut-To-Length Line
Specifications
| Manufacturer | Braner |
| Condition | Used |
| Stock Number | VX-35703 |
Description
General Specifications:
Manufacturer: Braner
Width Capacity: 72"
Weight Capacity: 50,000 Lbs.
Gauge Range: .020" - .250"
OD Range: 72" Max
ID Range: 20-24" w/ Pads for 30"
Stacker Sheet Length: 40' Max
Line Includes:
3-Station Coil Storage Saddle
Coil Car
Uncoiler
Entry Unit
-Peeler Blade
-Pinch Rolls
-Side Guide
Entry Crop Shear
Leveler, Braner
-84" x 3-1/2" Work Rolls
-Hydraulic Adjusted Back Up
Measuring Roll Unit
Flying Shear
Inspection/Feed Table
-Belt Conveyor
Stacker
-Side Eject
Hydraulic Crop Shear With Scrap Table
Shear Strength: 50,000 PSI
Strip Width: 72”
Strip Thickness: 0.25” max - 0.010” min
Shear Cycle Time: 15 seconds
Means Of Actuation: Hydraulic cylinders
Seventeen Roll Cassette Leveler - Four (4) High
Materials: Hot rolled and hot rolled P&O carbon steel – ASTM A568 or better
Maximum Yield Strength: 80,000 PSI @ 0.180” thick and less / 65,000 PSI @ 0.250” / 50,000 PSI above 0.250”
Minimum Yield Strength: 36,000 PSI
Maximum Thickness: 0.312”
Minimum Thickness: 0.075”
Maximum Strip Width: 72”
Number Of Work Rolls: 17
Work Roll Diameter: 3.500” (cassette)
Back Up Flights: 7 adjustable flights
Roll Arrangement: Four (4) high
Drive: 300 horsepower, DC
Hydraulic Power Supply: 15 horsepower, AC
Maximum Leveler Speed: 150 FPM
Electrical Power Supply: 460 volt / 3 phase / 60 hertz service by buyer
Pallet Infeed Pusher
Maximum Pallet Width: 72”
Minimum Pallet Width: 24”
Maximum Pallet Length: 240”
Minimum Pallet Length: 30”
Number Of Pallets: One 20 foot long pallet
Drop Stacker
Maximum Thickness: 0.312”
Minimum Thickness: 0.075”
Maximum Sheet Width: 72”
Minimum Sheet Width: 24”
Maximum Sheet Length: 480”
Minimum Sheet Length: 30”
Maximum Stack Weight: 40,000 pounds max (1,150 pounds per 13 foot section)
Number Of Lift Stations: 3 each
Maximum Stack Height: To be advised based on the existing line
Stacker Conveyor Type: Side discharge chain conveyor
Note: No blower
40’ Side Discharge Conveyor
Maximum Stack Width: 72”
Minimum Stack Width: 24”
Maximum Stack Length: 480”
Minimum Stack Length: 30”
Maximum Stack Weight: 40,000 pounds (20,000 pounds per 20 foot section)
Maximum Stack Height: To be advised based on the existing line
Number Of Sections: One 8 foot long x 40 foot wide section
