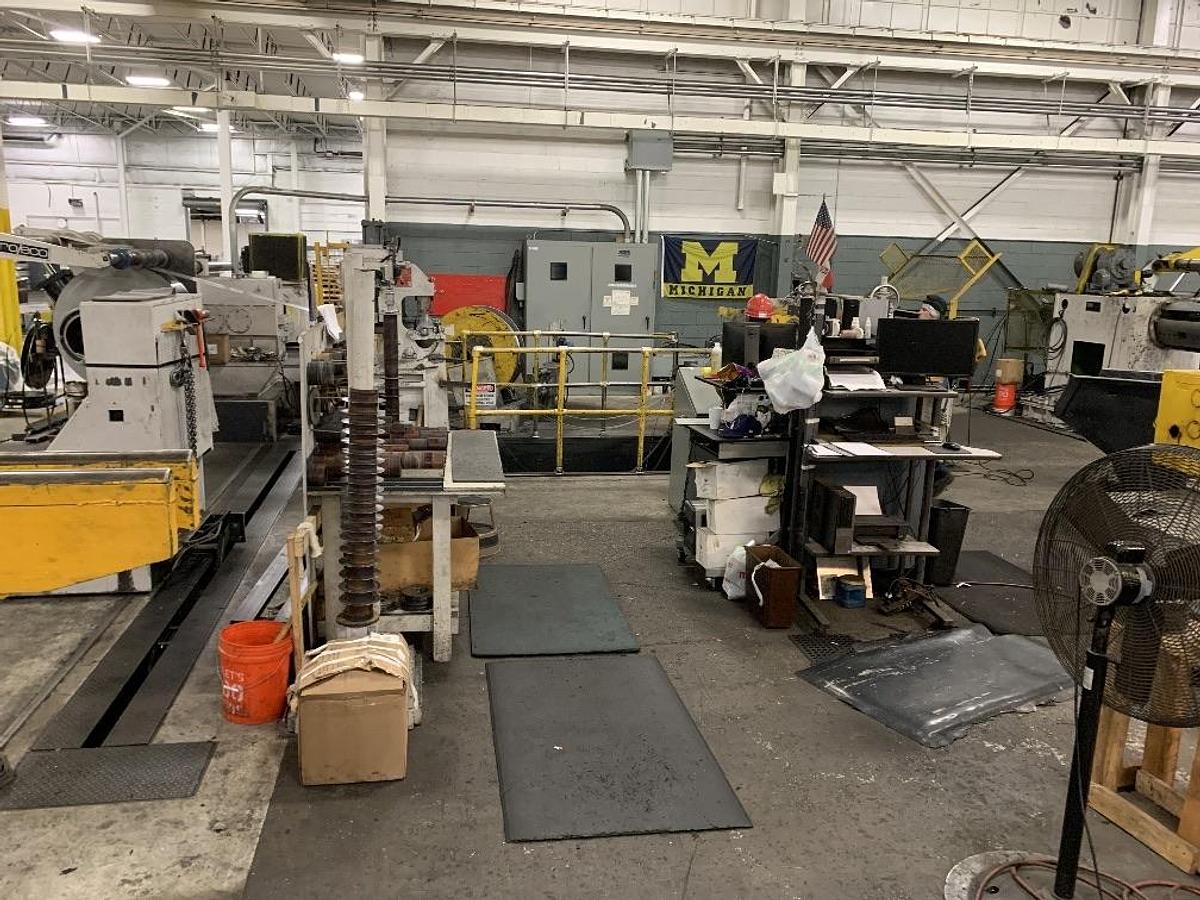

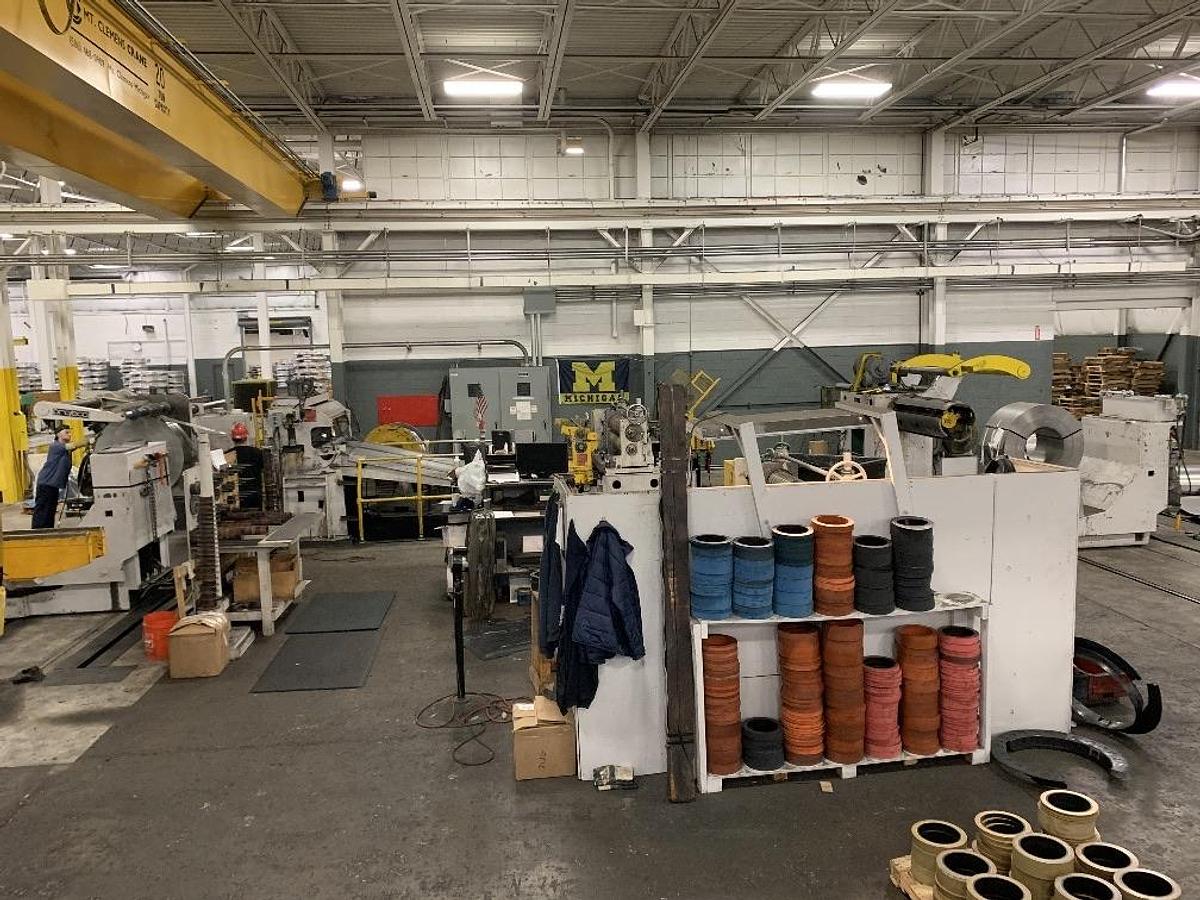

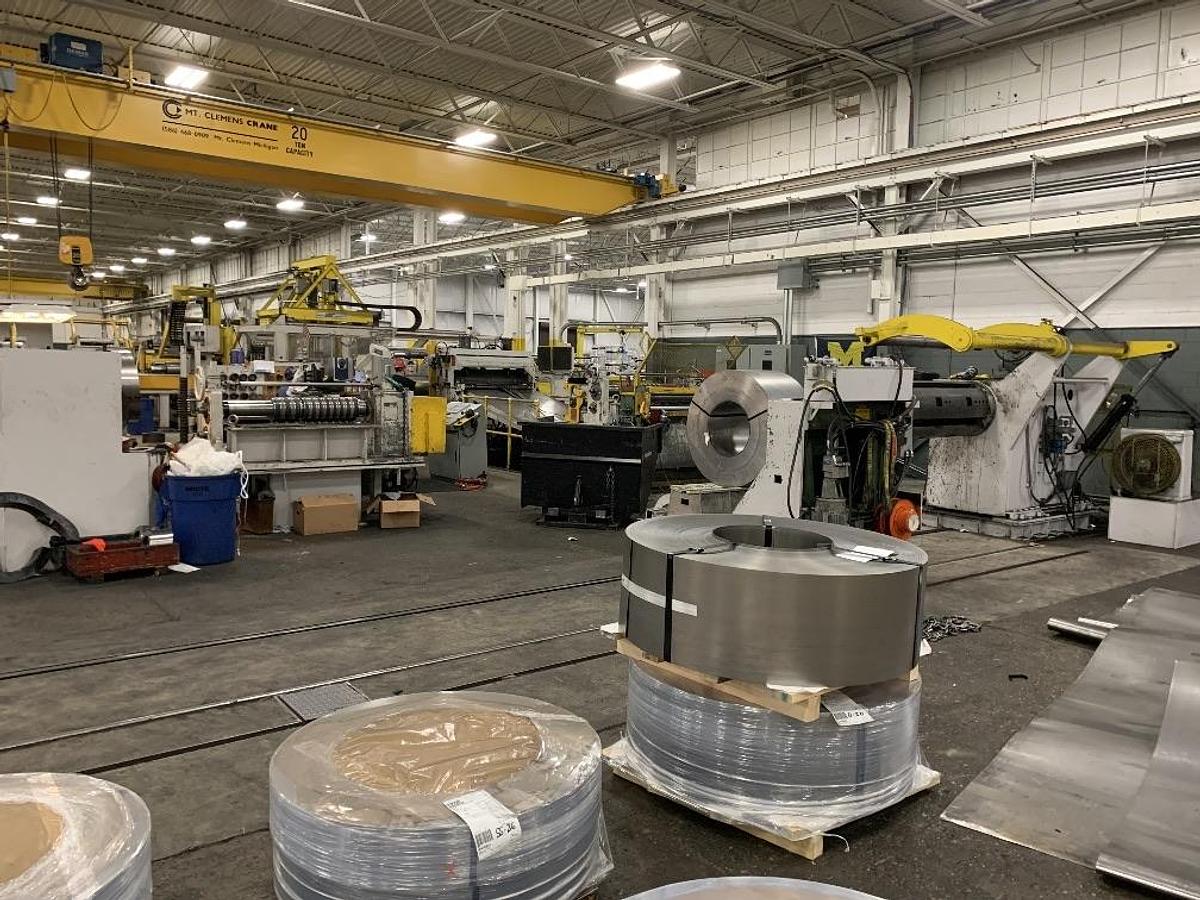

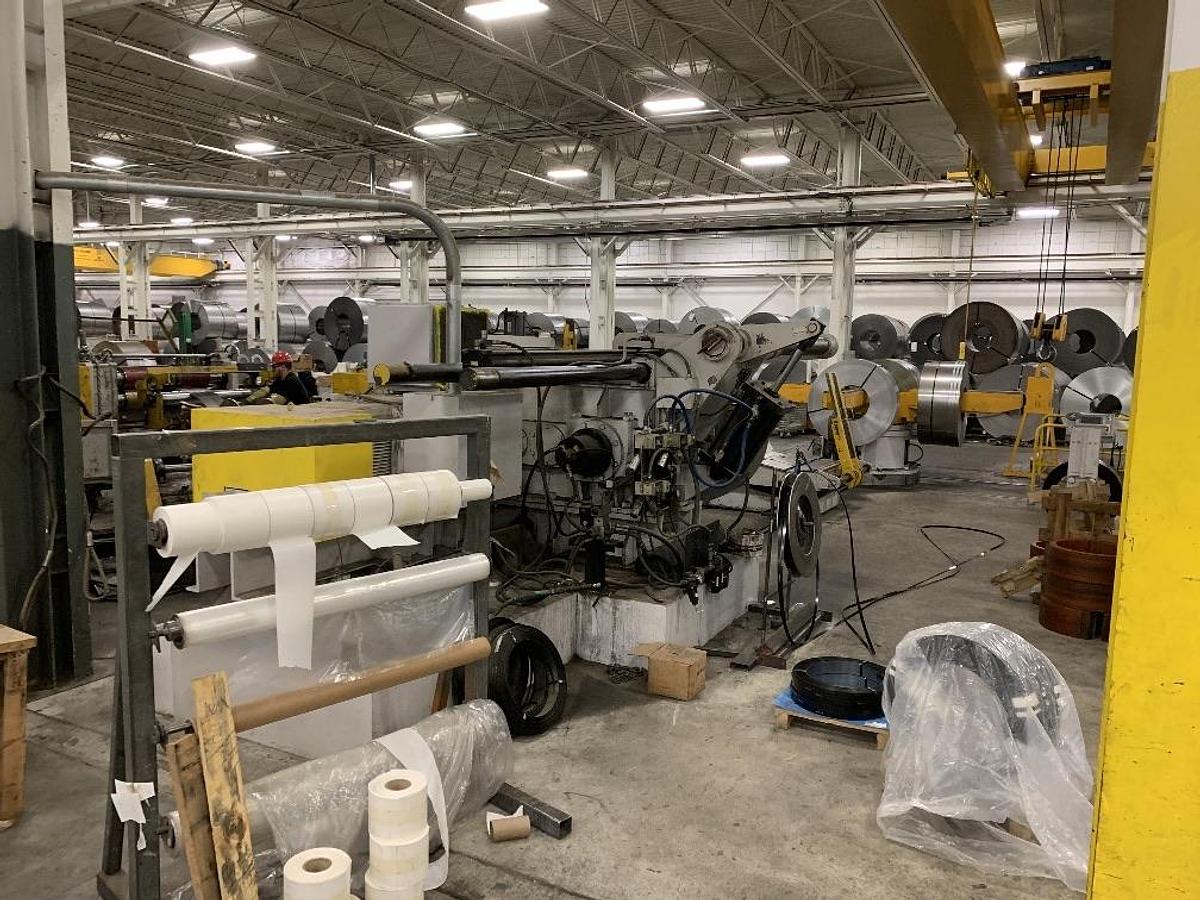

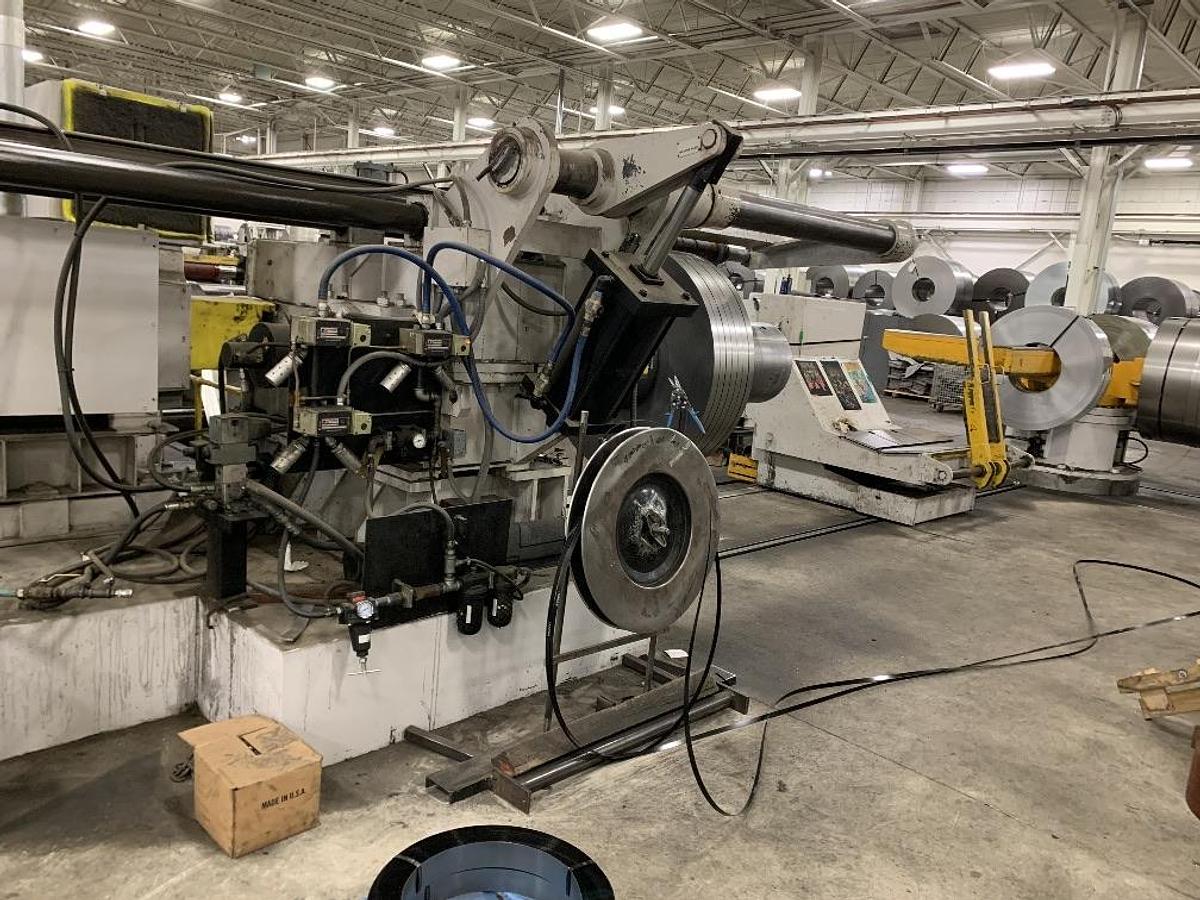

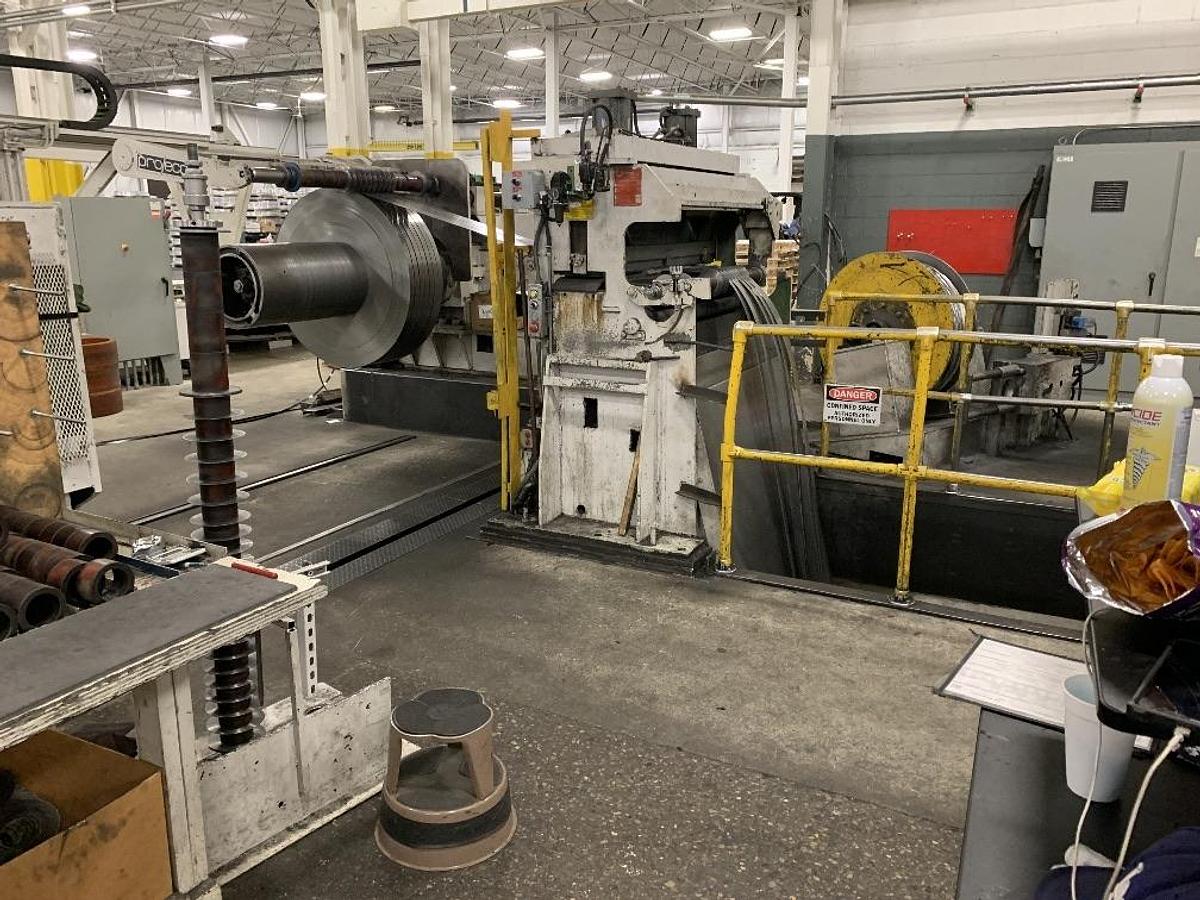

54" x .015 - .125 x 30,000 Lbs. Pro-Eco/Loopco Slitting Line
Specifications
| Manufacturer | Pro-Eco/Loopco |
| Condition | Used |
| Stock Number | VX-35712 |
Description
Specifications:
Material: Low & Med Carbon Steel
Shear Strength: 45-75000 PSI
Gauge Range: .005" - . 125"
Width:
-54" Untrimmed
-52" Trimmed
Coil O.D.: 76"
Coil I.D.:
-20-24 Entry
-16-20 Exit
Coil Weight: 30,000 Lbs.
Line Direction: Right to Left
Line Includes:
Entry Turnstile, 4-Arm, Loopco
-Arm Length: 52”
-Rotation: Motorized Hydraulic
-Design: C Hook Unload

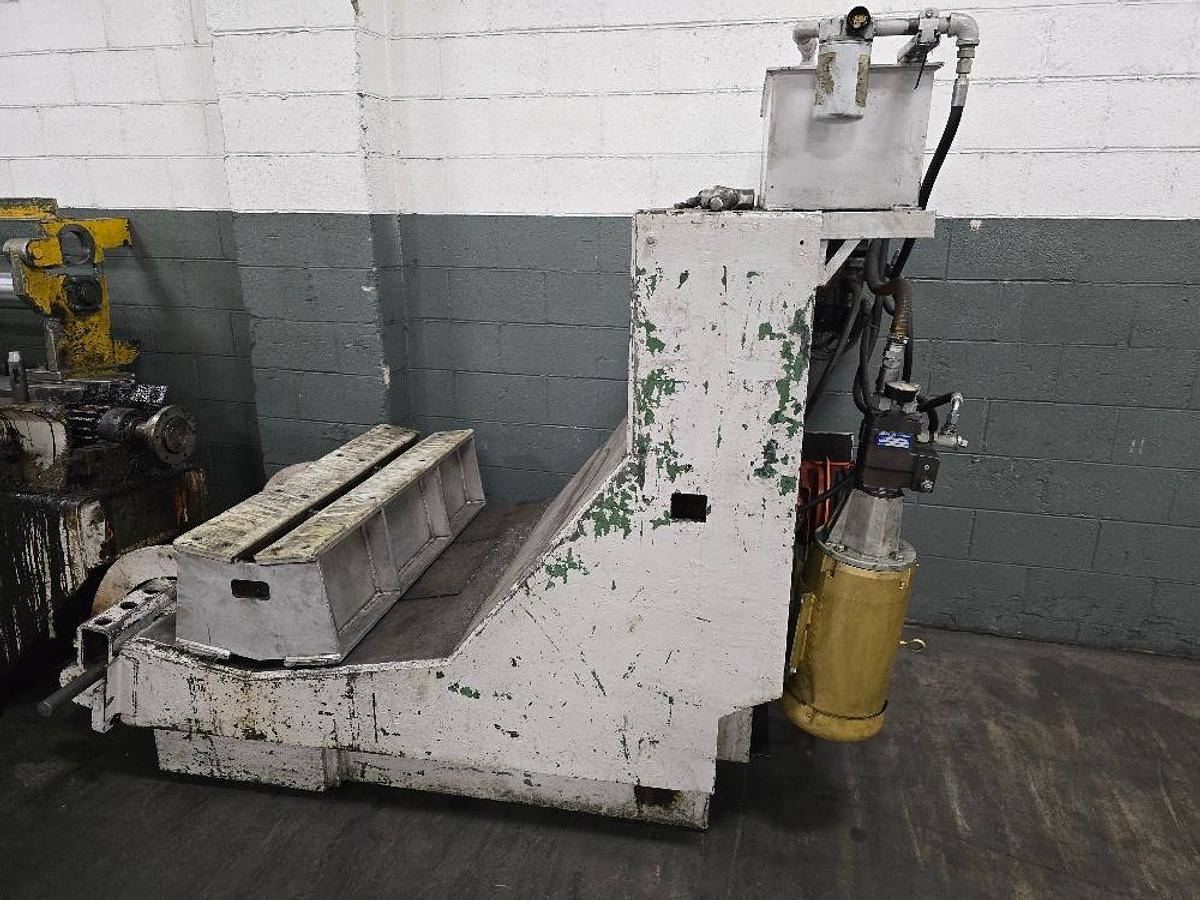

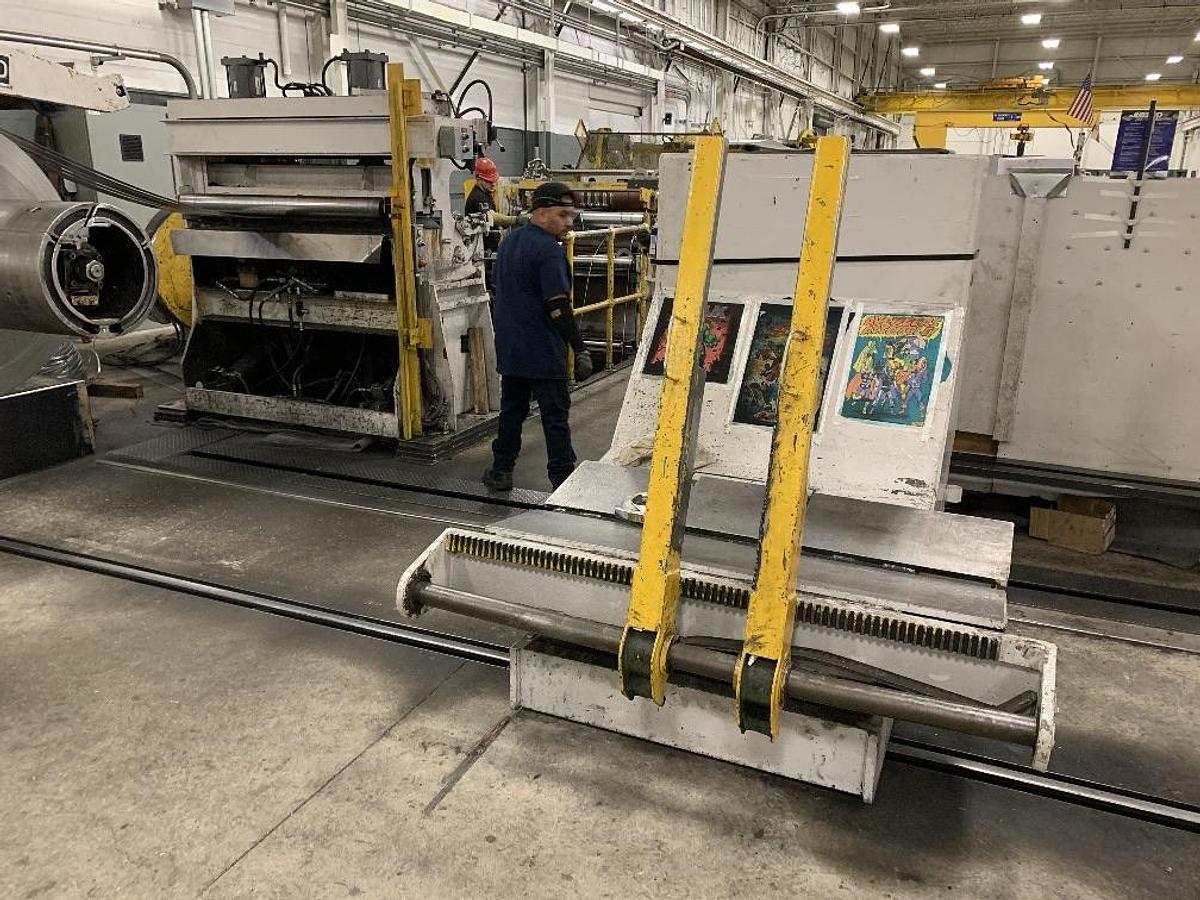

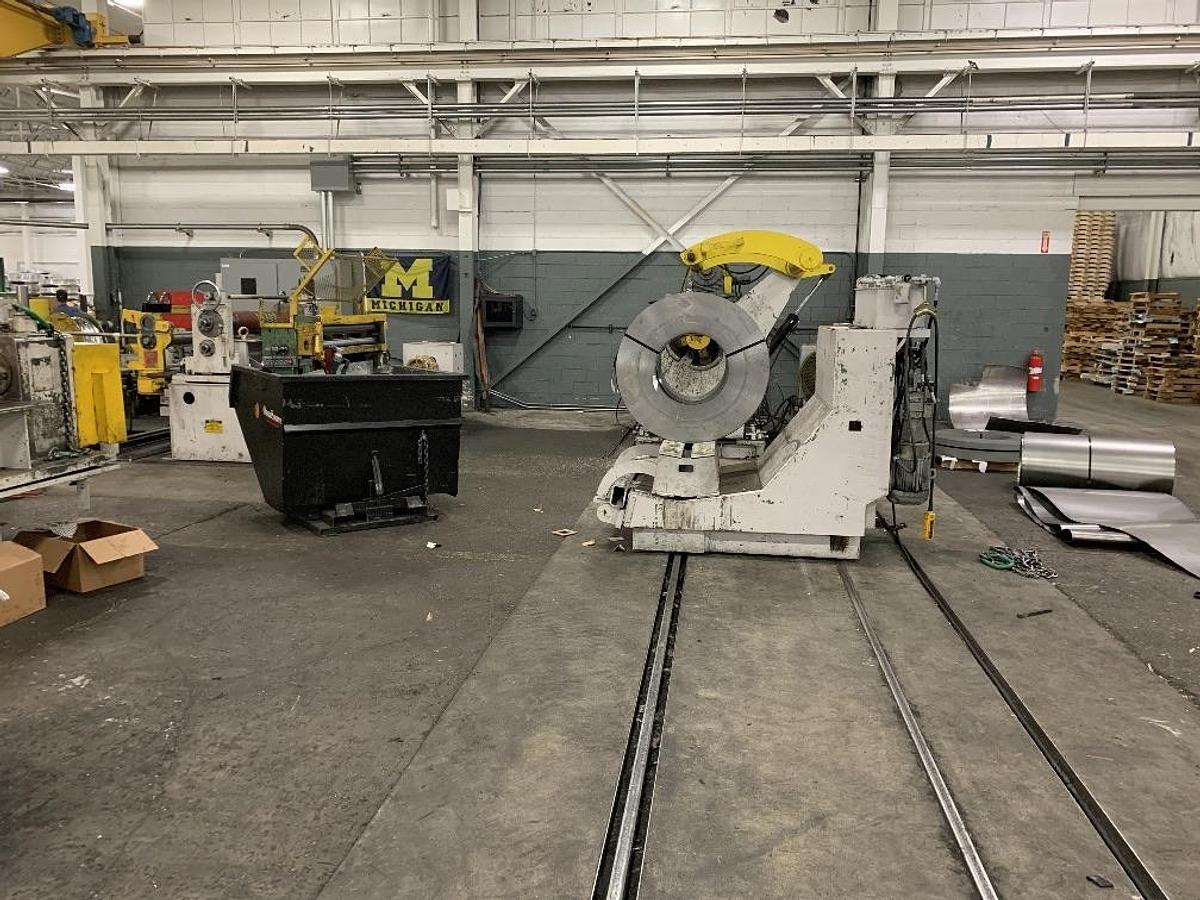

Entry Coil Car, Loopco
-Above Floor
-w/ Self-mounted Hydraulics
-Weight Capacity: 40,000 Lbs
Uncoiler, UMI
-Mandrel width: 63”
-Expansion Range: 18.5” to approx. 24.5” Hydraulic Expansion
-Feed Up: Hydraulic Orbit Motor Through Gearbox, Chain And Sprocket
-Hyd. Slide Base
-Clutch: Wichita Air Clutch & Water Cooled Brake
Entry Unit
-Peeler/Pinch
-Shared Base w/ Slitter Head

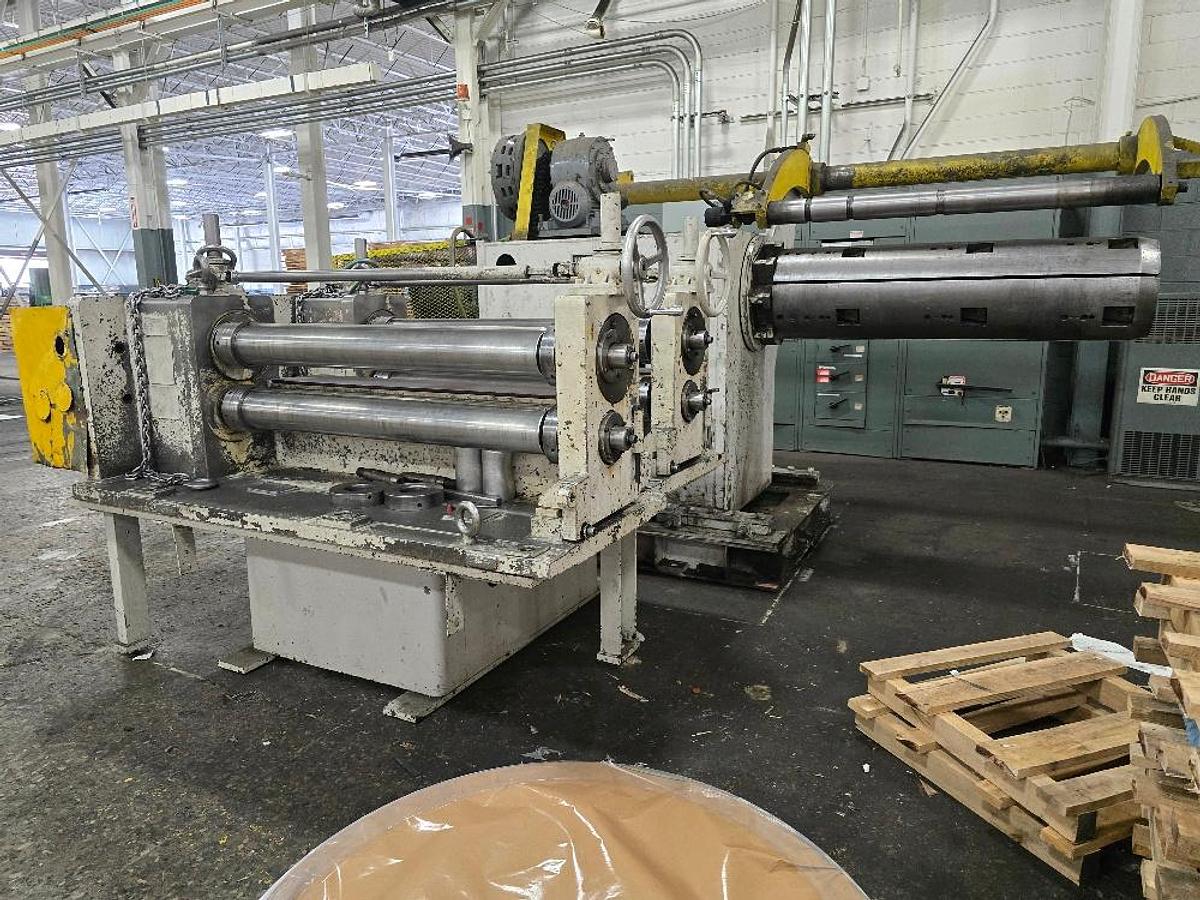

Slitter Head
-52" wide x 6” Arbor
-Tooling: Shimless Tooling With Slitting Knives ("2–3 Grinds Remaining")
-Motor: 50 HP DC
Dual Scrap Winders
-Self-Dumping
-Motor: Two Speed Hydraulic Motor

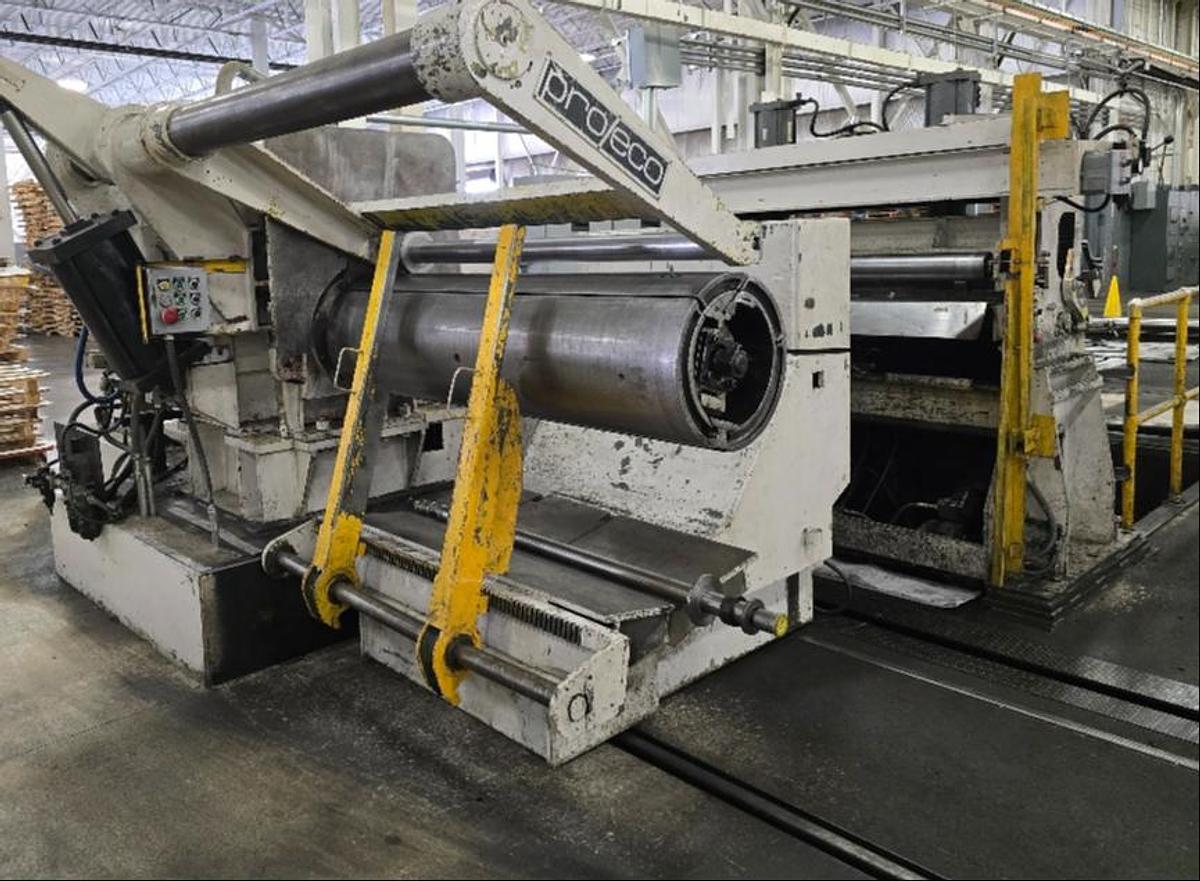

Recoiler, Pro-Eco
-Drum Face: 70”
-Drum Diameter: 15.5” Bare Drum w/ pads for 20” & 24"
-Push Off: Hydraulic
-Attached Overarm Separator
-Motor: 300 HP DC
-Gear Ratio: 20.4:1

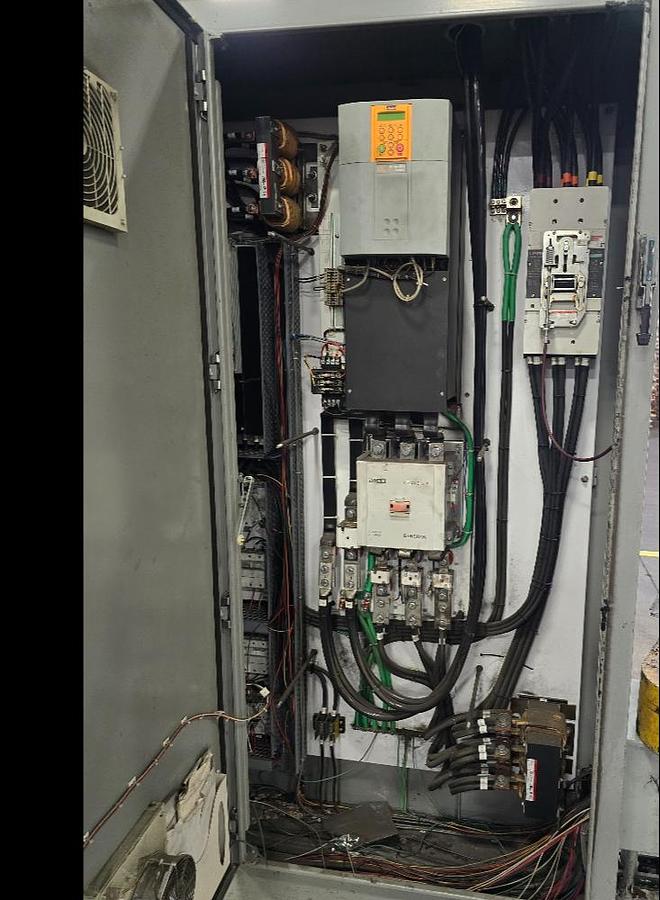

Electrical Cabinet:
-Electrics Manufacturer: Excel
-Electrics Year: 2015
Hydraulic Unit: Included
Water Cooling Unit: Included
