24" x 5.00" x 20,000# Stamco Slitting Line

Specifications

Width: 24"

Weight: 20,000 lbs. Entry

12,000 lbs. Exit

Coil ID: 16" - 20"/24" Entry

16" Exit

Coil OD: 72"

Line Direction: Right to Left

Consisting of the following:

-Entry Coil Lift:

Stationary Lift

Hydraulic Scissor Lift

-Mandrel Uncoiler: Stamco

Hydraulic Expansion 16" - 20", with Plates for 24" I.D.

Hydraulic Feedup Motor

Water Cooled Brake

Hydraulic Slide Base

Overarm Holddown Roll

-Water Cooler:

-Hydraulic Power Unit:

-North America Edge Control:

Photo Electric

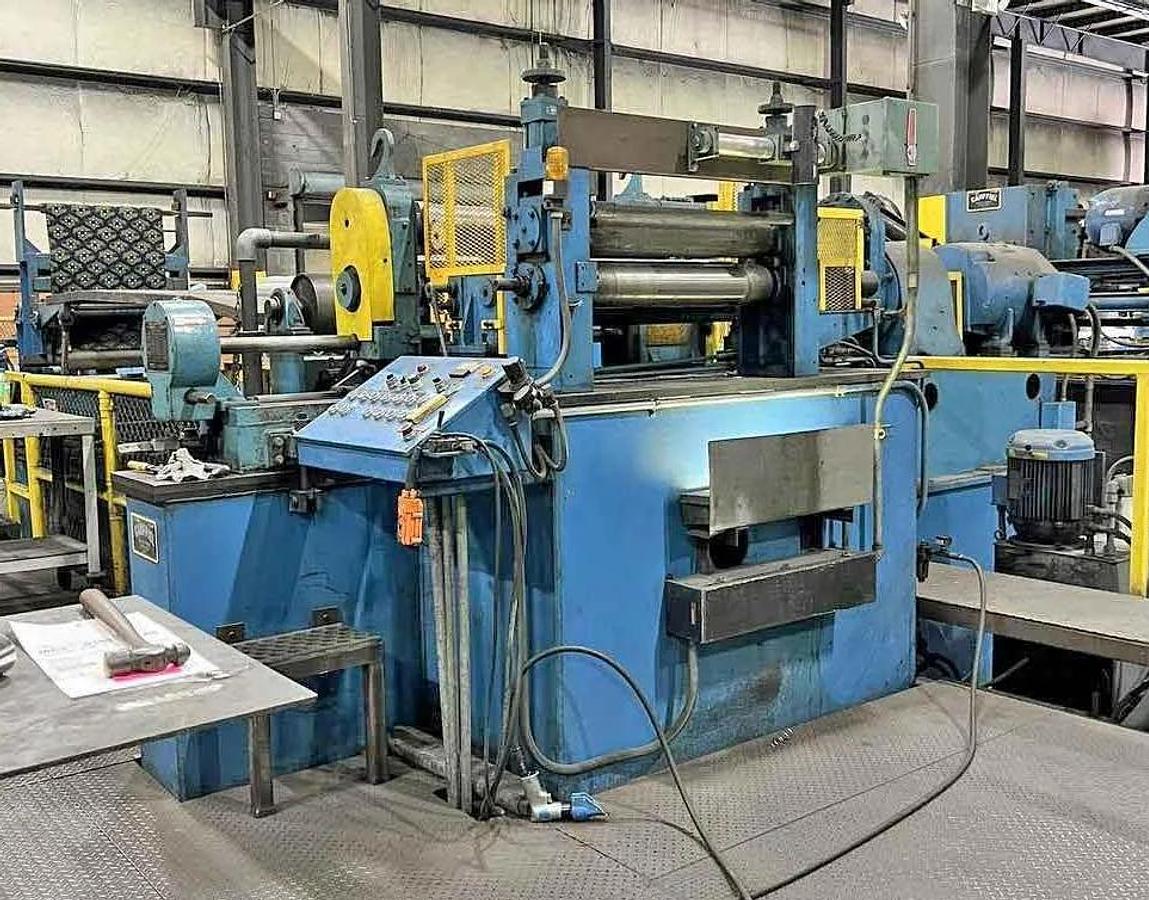

-Slitter Head: Stamco

Removable Head (1 Head)

Eccentric Arbor Adjustment

Entry Driven Pinch Rolls

Entry Side Guides with Center Holddown

25 HP DC Motor Drive

Integrated Pinion Stand Reducer

-Scrap Winder Baller:

AC Motor Driven

Hydraulic Cylinder Ball Dump

-Pit Cross Over Table:

Attached to Tension Stand

-Tension Stand: Cauffiel

Air Cylinder Pad Tension Operation

Entry and Exit Separator Bars

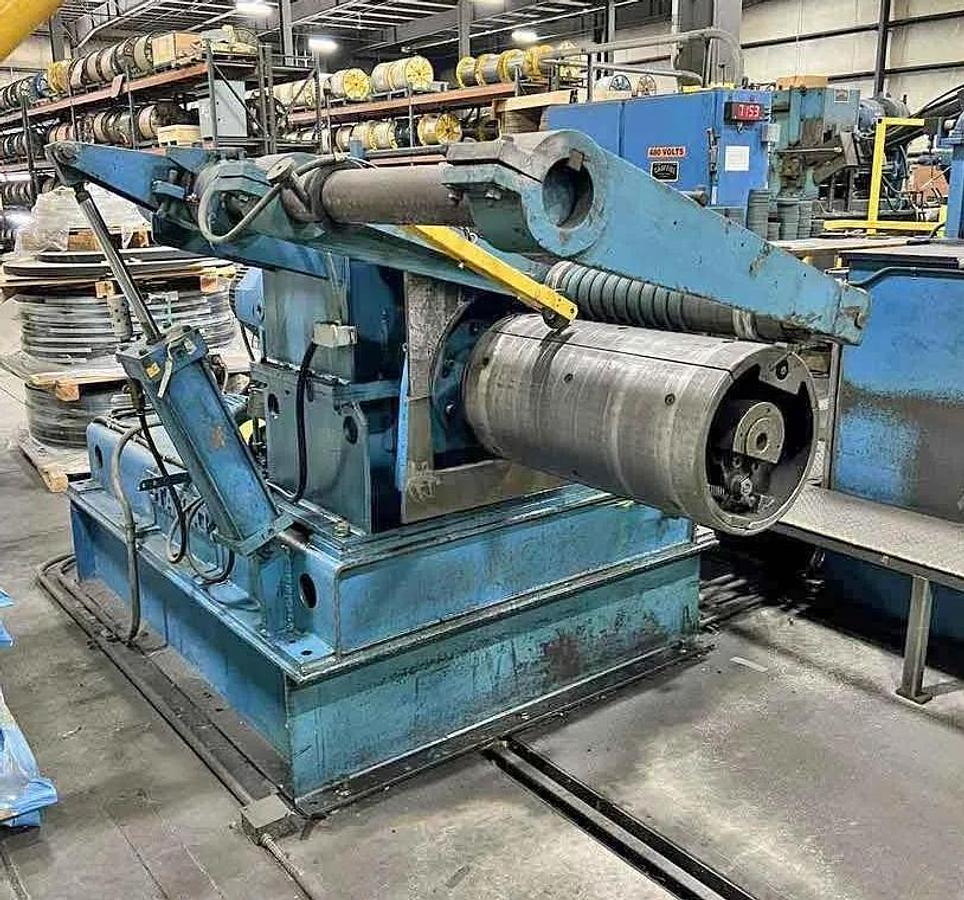

-Recoiler: Stamco

16" Diameter Drum

Manual Grip and Expand

Overarm Separator

25 HP GE DC Motor, 400/2400 RPM, 240 V

2 Speed Reducer

-Exit Coil Car:

Hydraulic Lift and Travel

Self-Contained Hydraulic Unit

Coil Keeper Bars

-Installed & Running
