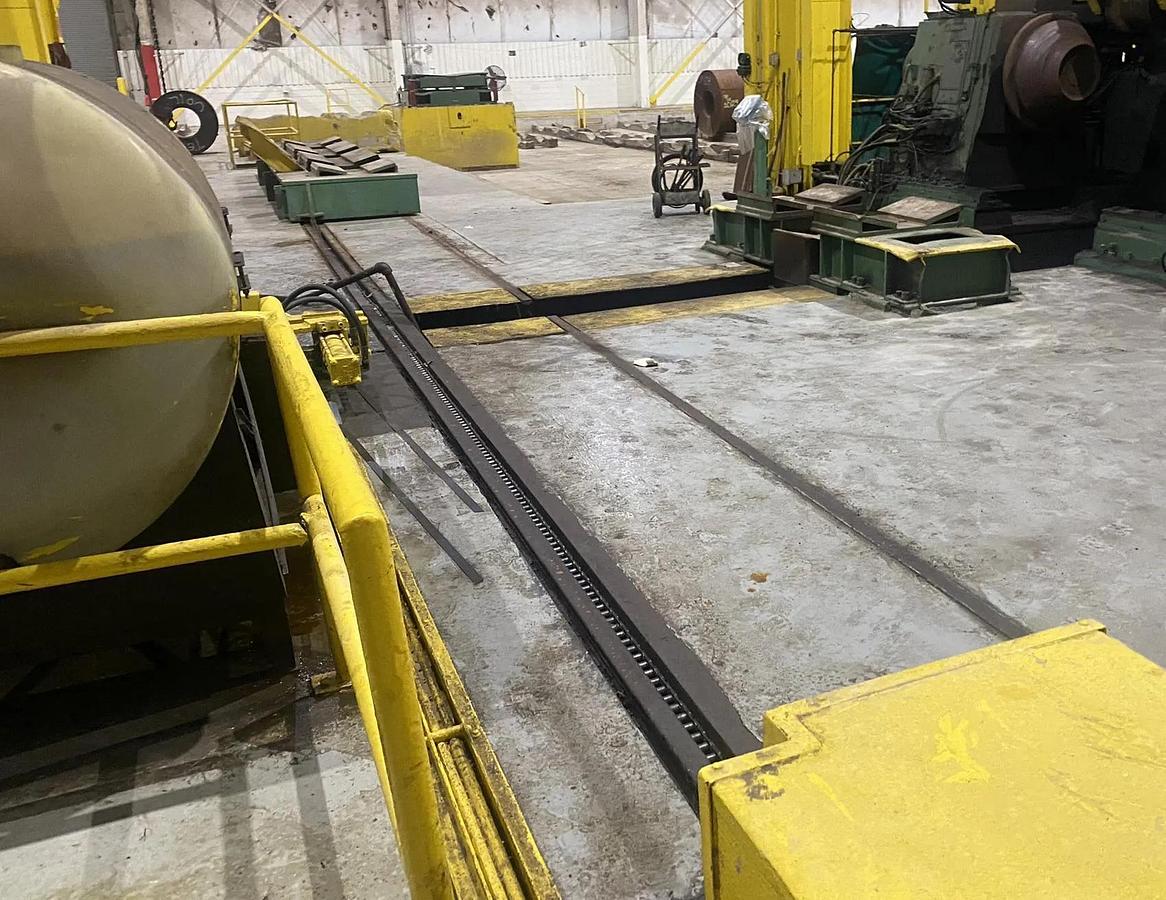

69,000 Lbs / 207,000 Lbs Pro-Eco Cross-Bay Coil Transfer Car w/ Three (3) Coil Capacity

Specifications:

Manufacturer: Pro-Eco

Number Of Coils: Three (3) Coils Max.

Individual Coil Weight: 69,000# (31,298 Kg) Max.

Total Transfer Car Capacity: 207,000# (93,894 Kg) Max.

Coil Width: 72” (1829 Mm) Max.

Coil OD: 80” (2,032 Mm) Max.

Coil Orientation: “V” Saddle / Coil ID Parallel To Car Travel

Drive: Hydraulic Gearmotor Driving Heavy-Duty Chain & Sprocket

Notes:

The Transfer Car Moves Coils From One Bay To Another.

Structural Steel Frame Supports Coils On “V” Shaped Saddles.

Car Is Positioned By Hydraulic Gearmotor Driving A Chain And Sprocket Assembly.

*Embedded Rails Are Not Included And Must Be Supplied By Customer.
