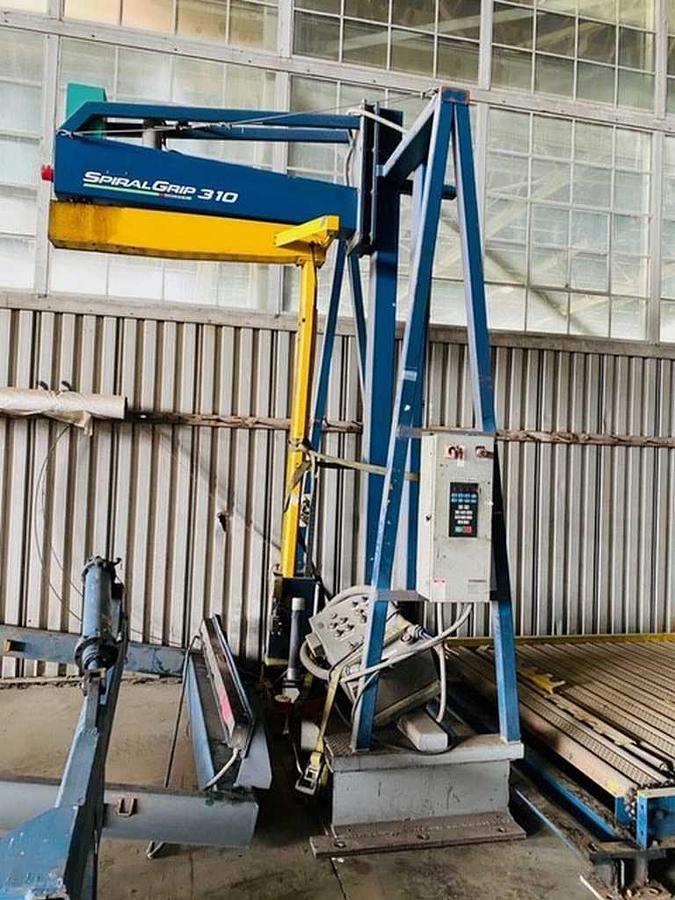

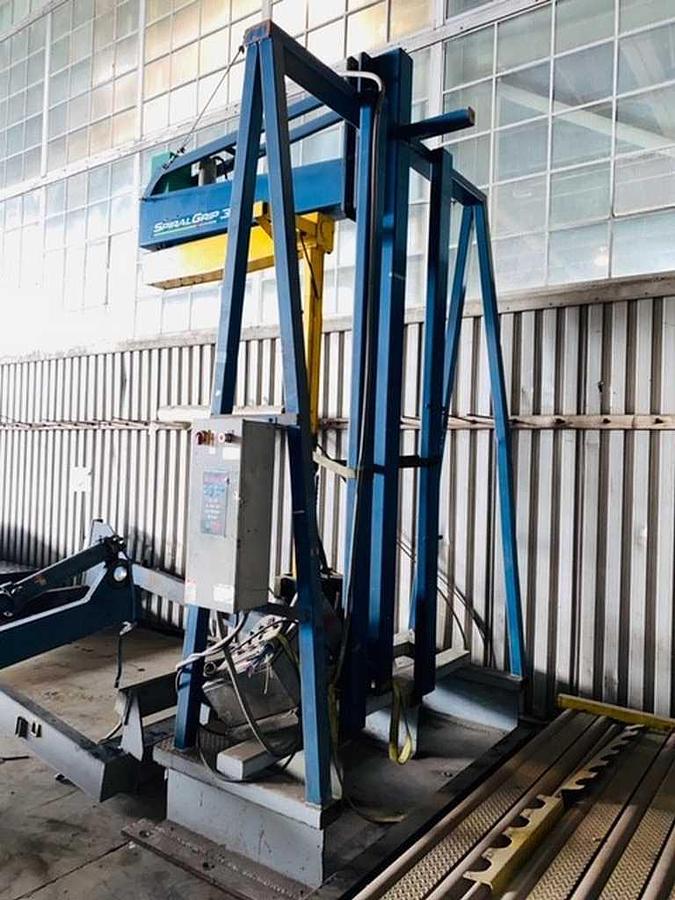

Signode Semi-Automatic Overhead Stretch Wrapping Machine

Specifications:

Manufacturer: Signode

Rotation Speed: 12 RPM

Loads Per Hour: 35 approx.

Average Cycle Time: 30 seconds

Minimum Wrap Height: 2” (51 mm)

Maximum Wrap Height: 84” (2135 mm)

Maximum Load OD: 84”

Film Delivery Type: Sensor Stretch, Powered Pre-Stretch

Maximum Roll Width: 20” (500 mm)

Film Roll Diameter: 10” (250 mm)

Core Size: 3” (76 mm)

Overall Size (L x W x H): 57” x 56” x 128” (1460 mm x 1435 mm x 3265 mm)

Operating Voltage: 110 V, 1 phase

Floor Conveyor:

2 sections of floor conveyor, 90” roll face x 90” long, 40,000 lbs capacity

Shipping Weight: 3,000 lbs approx.
